Welcome to laser welding! You can learn this skill, even if you are new. Today, more than 35% of advanced factories use laser welding. If you know laser welding parameters, you will do better. Many beginners make mistakes, like picking the wrong filler rod size or forgetting about air pockets:
| Common Mistake | Description |
|---|---|
| Communication | Not understanding welding areas can lead to bad repairs. |
| Removal of air pockets | If you do not remove air pockets, the welds will be weak. |
| Edge technique | Bad edge methods can cause undercuts. |
| Selection of filler rod size | Rods that are too small make welding hard and not as good. |
Use this guide to stop these mistakes and make strong, clean welds every time.
Key Takeaways
- Learn about laser welding parameters to make better welds. Change things like power, speed, and focus for good results.
- Do not make common mistakes. Talk clearly and remove air pockets. These steps make welds stronger and cleaner.
- Pick the right shielding gas for each metal. This stops oxidation and keeps the weld strong and free from problems.
- Try welding on scrap pieces before your real project. Testing settings helps you avoid problems and get better welds.
- Safety is very important. Wear safety gear and make sure the air is clean. This keeps the welding area safe.
Laser Welding Parameters Overview
What Are Laser Welding Parameters
Laser welding parameters are settings you can change. They help the laser join two metal pieces. These are like rules for the laser’s power, speed, and focus. The parameters decide how much energy the laser uses. They also control how fast the laser moves. The settings affect how the laser works with the metal. If you set them right, the laser makes strong and clean welds.
Tip: You can change these parameters for different metals. You can weld steel, aluminum, or stainless steel by changing the settings on the same machine.
Why Parameters Matter
You must watch laser welding parameters closely. They change how good your welds are. Wrong settings can cause cracks or weak spots. You might also see porosity or joints that break. Laser power, spot size, and welding speed are important. They control the weld’s shape and strength. You can use real-time checks and tests to stop problems. This keeps your welds strong. Laser welding uses less heat than TIG or MIG welding. This means less bending and a smaller heat-affected area. That helps when welding thin or heat-sensitive materials.
- Laser welding gives full fusion with less heat.
- You can weld faster and get less bending than with other ways.
Key Parameters List
These are the main types of laser welding parameters you should know:
- Fixturing and Gap Control: Holds your metal pieces steady and keeps gaps small.
- Gas Management and Shielding: Keeps air away from the weld and stops oxidation.
- Spot Size and Laser Beam Focus: Controls how much energy hits the metal.
- Wobbling: Moves the laser in a small pattern to make better welds.
- Metallurgical Phase Transformations: Changes the metal’s structure when it heats and cools.
You will also use these important parameters:
| Laser Welding Parameter | Description |
|---|---|
| Laser Power | Controls energy density and weld quality |
| Welding Speed | Affects heat input and joint strength |
| Laser Spot Size | Sets the area where energy is applied |
| Irradiation Time | Decides how long the laser hits the metal |
| Clamping Pressure | Keeps the weld joint steady |
If you learn and change these laser welding parameters, you can stop common problems and make strong welds.
Core Laser Welding Parameters
Laser Power
Laser power is how much energy the laser gives the metal. You pick this based on how thick and what kind of metal you have. More power makes deeper welds and a bigger heat-affected zone. Less power makes shallow welds and a smaller heat-affected zone. You need to balance laser power with other settings. This helps you not burn thin metals or miss thick ones.
Here is a table that shows the best laser power for aluminum:
| Thickness Category | Recommended Laser Power Range |
|---|---|
| Thin Aluminum (<1 mm) | 500 to 1000 watts |
| Medium Thickness (1 mm – 5 mm) | 1000 to 3000 watts |
| Thick Aluminum (>5 mm) | 3000 watts and above |
Tip: Use lower power for thin metals. Use more power for thick metals so the weld goes all the way through.
When you turn up the laser power, the weld goes deeper and the heat-affected zone gets bigger. If you turn it down, the weld is not as deep and the zone is smaller. Aluminum spreads heat fast, so the heat-affected area is bigger than with steel.
Welding Speed
Welding speed is how fast the laser moves on the joint. You change this to fit the metal’s thickness and the weld you want. Thin metals need faster speeds, about 10 to 20 inches per minute. Thick metals need slower speeds, about 14 to 19 inches per minute, so the weld goes deeper.
If you go too fast, you can get problems like porosity or undercuts. Porosity is when gas gets stuck in the melted metal. Undercuts happen when the melted metal does not fill the joint before it cools.
- Going faster can trap gas and cause porosity.
- Too much speed can make undercuts because the metal does not flow well.
Note: Change welding speed and laser power together for the best welds. Go slower for thick metals and faster for thin ones.
Focus Position
Focus position is where the laser beam is the strongest. You can set the focal point above, on, or below the metal. This changes how deep and wide the weld is.
- Focal Point Zero gives a deep, narrow weld.
- Positive Defocus makes a wider, shallow weld.
- Negative Defocus makes a wide weld with a bell shape.
Keep the focal point in the right spot to get enough power for deep welds. For stainless steel and carbon steel, a positive focal length helps you get deeper welds. For shiny metals like aluminum, a little negative focal length helps the metal take in more energy and not reflect it.
Tip: Always check the focus position before you start. Small changes can really change how good your weld is.
Shielding Gas and Flow
Shielding gas keeps the melted metal safe from air. You pick the gas and how fast it flows based on the metal. Shielding gas keeps out oxygen and nitrogen, so the weld does not get weak or dirty. If you do not use the right gas, the weld can break or get brittle.
| Metal | Shielding Gas | Advantages |
|---|---|---|
| Stainless Steel | Argon with 2%-5% CO2 or Helium | Better arc, deeper welds, less spatter |
| Aluminum | Pure Argon or Argon/Helium mix | Good arc, better heat control, less oxidation |
| Steel | Argon-CO2 blend (75% Ar, 25% CO2) | Good arc, deeper welds, less spatter |
Keep the gas flow at least 32 cubic feet per hour or 15 liters per minute. For metals like galvanized steel, you might need up to 60 CFH or 28 LPM.
Alert: If you use the wrong gas or flow, the weld can get weak and have problems.
Wobble and Scan Width
Wobble welding means moving the laser in a small pattern. This makes the melted metal pool bigger and spreads heat better. Wobble and scan width help make the weld even and stop problems.
- Wobble welding makes the weld pool bigger.
- Better heat spread helps stop problems.
- You get stronger welds that look better.
If you set wobble right, you get fewer problems and more even welds. This is good for parts that do not fit well or need a wider weld.
Tip: Try wobble welding for joints with gaps or if you want a smoother weld.
Pulse Settings
Pulse settings control how the laser gives energy. You can use steady or pulsed modes. Pulsed welding sends energy in bursts. This helps you weld thin metals without too much heat. You change pulse time and how often it pulses to fit the metal and joint.
- Short pulses are good for thin metals.
- Long pulses help with thick metals.
Pulse settings are part of your laser welding parameters. They help you control heat and stop bending.
Fixturing and Gap Control
Fixturing means holding your parts still while you weld. Gap control keeps the space between parts small and even. Good fixturing and gap control stop parts from moving or bending.
- Good alignment makes welds even.
- Clamps stop parts from moving or bending.
- Special fixtures can handle parts getting bigger from heat.
If you do not control gaps, the weld can be weak or have problems. Good fixturing is important for strong welds.
Spot Size and Beam Motion
Spot size is how wide the laser beam is on the metal. Beam motion is how the laser moves along the weld. You change spot size to control how much energy hits the metal. A smaller spot size puts more power in one spot and helps make deep welds.
- A tight focus (0.2–0.6 mm) gives more power for deep welds.
- Changing spot size can stop porosity.
- Good optics give you a small, strong laser point.
Beam motion changes weld quality, heat-affected zone, and how much the part bends. You need to set these right for each job.
Wire Feed and Diameter
Wire feed rate and wire diameter control how much filler you add. You need to match wire feed speed with laser power and how fast you move.
| Parameter Combination | Effect on Filler Wire | Resulting Molten Pool Characteristics |
|---|---|---|
| Low Laser Power + High Wire Feed Rate | Filler wire tip does not melt right | Small and cool molten pool |
| High Laser Power + Low Wire Feed Rate | Filler wire tip gets too hot and melts too much | Hot molten pool and too much penetration |
| Suitable Combination | Filler wire melts just right | Smooth and steady molten pool |
If you use the wrong settings, the weld can look uneven or not melt right. Change wire feed and diameter to get smooth, strong welds.
Note: Always test wire feed and diameter before you start a new project.
If you learn and change these laser welding parameters, you can stop common mistakes and make strong welds on many metals.

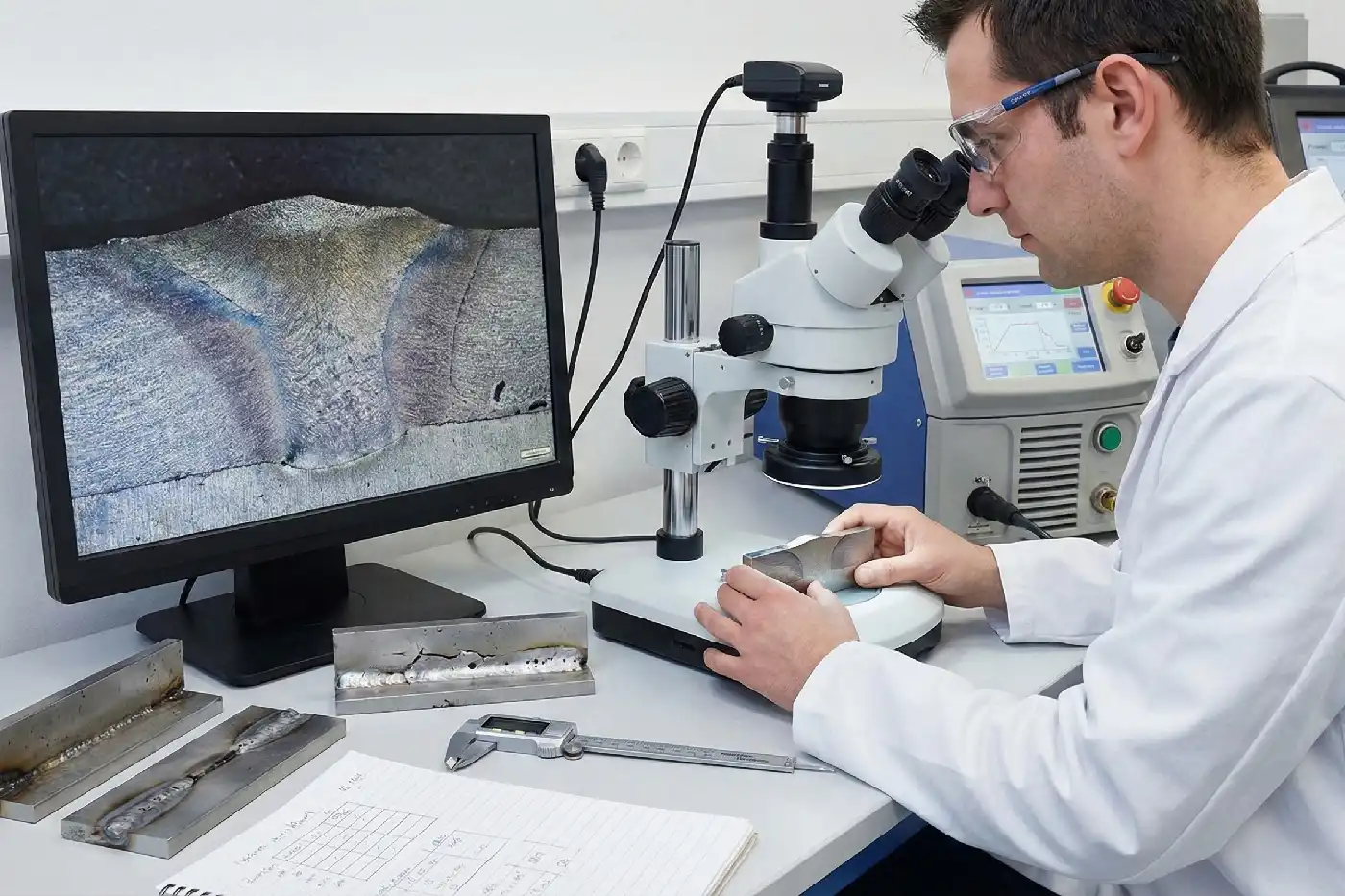

How Parameters Affect Weld Quality
Penetration and Strength
You control weld penetration and strength by adjusting laser welding parameters. Laser power has the biggest effect. If you increase power, the weld goes deeper. If you lower power, the weld stays shallow. For example, ZE 790 steel can reach a yield strength of 800 MPa when you set the right parameters. Laser power alone can change weld penetration by up to 64%. When you set the energy between 25 and 27 joules and use a wobble amplitude of 0.75 mm, you get the strongest welds. You can also increase welding speed by 66% and still reach a tensile strength of 189 MPa.
- Use higher power for thick steel or aluminum.
- Use lower power for thin stainless steel to avoid burn-through.
- Adjust speed and focus to match the metal type.
Weld Appearance
Weld appearance tells you if your settings are correct. You want a smooth, shiny weld with no dark spots or rough edges. If you set laser power too high, you see too much melting and discoloration. If you move too slowly, the weld can overheat and turn dark. Focus position also matters. If the beam is not focused right, the weld looks uneven.
| Parameter | Effect on Weld Quality |
|---|---|
| Laser Power | Too high causes melting and discoloration |
| Travel Speed | Too slow causes overheating and oxidation |
| Focus Offset | Bad focus gives poor weld appearance |
| Shielding Gas | Not enough gas causes oxidation and dark spots |
Wobble welding helps make the weld smoother. It spreads heat and lets gases escape. This works well for brass and other metals that need a clean look.
Common Defects
You may see defects if you do not set parameters correctly. These include burn-through, dark welds, porosity, weak welds, undercut, and distortion. Each defect has a cause and a fix.
| Defect Type | Probable Causes | Suggested Adjustments |
|---|---|---|
| Burn-through / edge collapse | Power too high, speed too low, scan width narrow | Lower power, increase speed, widen scan |
| Dark weld on stainless | Low gas flow, too much heat | Increase gas, reduce power, increase speed |
| Porosity | Dirty metal, weak gas shielding | Clean metal, increase gas flow |
| Weak weld / lack of fusion | Power too low, speed too high | Raise power, slow down |
| Undercut | Not enough filler, too much heat at surface | Add filler, reduce power |
| Distortion / panel warp | Too much heat, unbalanced welds | Lower power, increase speed, improve clamps |
Tip: Always check your welds for these signs. Small changes in settings can fix most problems.
Setting Parameters for Beginners
Setup Steps for Thin Metals
You need to follow a few simple steps to set up for welding thin metals. These steps help you get clean welds and avoid damage.
- Prepare your workspace. Make sure the area is clean, well-lit, and free from anything flammable.
- Put on your protective gear. Wear gloves, laser safety goggles, and make sure the room has good ventilation.
- Choose the right welding wire. Pick a wire that matches the metal you plan to weld.
Tip: Always double-check your equipment before you start. A safe and organized workspace helps you avoid mistakes.
Recommended Settings by Material
You can use this table to find starting values for different metals. These settings help you get good results when you begin.
| Material | Wire Size | Wire Feed Speed | Shielding Gas | Voltage Range | Amperage Range |
|---|---|---|---|---|---|
| Aluminum | .035″ (0.9 mm) | 350-400 ipm (Spray Arc) | Argon | 21-22 Volts | 110-130 |
| .035″ (0.9 mm) | 425-450 ipm (Spray Arc) | Argon | 23-24 Volts | 140-150 | |
| 3/64″ (1.2 mm) | 350-375 ipm (Spray Arc) | Argon | 24-25 Volts | 180-210 | |
| Stainless Steel | .035″ (0.9 mm) | 120-150 ipm (Short Circuit) | Helium+Argon+CO2 | 19-20 Volts | 50-60 |
| .035″ (0.9 mm) | 180-205 ipm (Short Circuit) | Helium+Argon+CO2 | 19-20 Volts | 70-80 | |
| Steel | .045″ (1.1 mm) | 175-185 ipm (Short Circuit) | CO2 | 19-21 Volts | 110-125 |
| .045″ (1.1 mm) | 210-230 ipm (Short Circuit) | CO2 | 20-22 Volts | 140-155 |
Start with these values, then adjust as you practice.
Adjusting for Joint Types
You need to change your settings for different joint types. Here are some quick tips:
- For butt joints, use a tight fit and steady speed.
- For lap joints, increase power slightly to ensure full fusion.
- For corner joints, slow down and use more shielding gas to prevent oxidation.
Tip: Test your settings on scrap pieces before working on your main project. This helps you avoid surprises.
Safety Tips
Laser welding can be dangerous if you do not follow safety rules. Always keep these precautions in mind:
| Safety Precaution | Description |
|---|---|
| Wear Proper Protective Gear | Use laser safety goggles and full protective clothing. |
| Use Laser Welding Curtains or Enclosures | Set up barriers to keep others safe. |
| Ensure Proper Ventilation | Make sure fumes and smoke can leave the workspace. |
| Follow Laser Safety Standards | Follow rules like ANSI Z136.1 for laser safety. |
| Train Operators | Learn how to use the equipment and what to do in emergencies. |
| Avoid Direct Exposure to Laser Beams | Never look at the laser or let it touch your skin. |
| Proper Machine Maintenance | Check and maintain your equipment often. |
Remember: Safety always comes first. Take time to set up your workspace and gear before you start welding.
Troubleshooting Laser Welding Parameters
Porosity and Cracks
Porosity and cracks can weaken your welds. You can prevent these problems by following a few important steps:
- Clean your workpiece well. Remove all rust, oil, and dust before you start.
- Adjust the cooling speed. If the workpiece cools too fast, increase the water temperature.
- Check the fit. Make sure the gap is small and there are no burrs.
- Lower the shielding gas flow if it is too high.
- Preheat the material. This helps reduce thermal stress and stops cracks from forming.
- Control your laser settings. Keep the power and speed steady for a stable weld pool.
Tip: A clean and well-prepared workpiece is the first step to strong, crack-free welds.
Incomplete Fusion
Incomplete fusion happens when the weld does not join the metals fully. You can spot this problem by looking for weak or uneven joints. The table below shows common causes and how you can prevent them:
| Causes of Incomplete Fusion | Prevention Methods |
|---|---|
| Low heat input | Use higher welding current and slow down your travel rate |
| Incorrect joint and torch angles | Adjust joint and torch angles for better bead position |
| Excessively large weld pool | Lower the deposition rate |
Spatter and Burn-Through
Spatter and burn-through can make your welds messy or even damage your parts. You can reduce these issues by:
- Optimizing your laser settings. Adjust power, speed, and focus position to minimize spatter.
- Managing shielding gas. Use the right gas flow to protect the weld and control the molten pool.
- Using monitoring systems. Sensors and real-time feedback help you spot and fix spatter quickly.
Note: Small changes in your settings can make a big difference in weld quality.
Quick Fixes
You can solve many common welding problems with quick adjustments. Use this table to find expert recommendations:
| Issue | Expert Recommendation |
|---|---|
| Hot Cracking | Use filler wire and preheat the material to lower stress. |
| Porosity | Clean the workpiece and adjust shielding gas flow to remove trapped gases. |
| Spatter | Lower power density and fine-tune welding parameters for a stable weld pool. |
| Undercut | Control welding speed and keep the assembly gap even. |
| Collapse and Pits | Reduce energy density and adjust speed to keep the weld strong and smooth. |
Remember: Careful setup and small tweaks can help you avoid most welding problems. Always check your welds and adjust as needed.
You have learned that knowing how to set laser welding parameters helps you make strong and clean welds. If you control these settings carefully, you will have fewer problems and better welds. Some studies show that changing speed, power, and how the laser moves can make welds better and lower mistakes:
| Study | Key Finding |
|---|---|
| Adisa et al. | The best welds happen with the right speed and power. |
| Liu et al. | More laser movement lowers weld porosity from 11.2% to 5.2%. |
| Casalino et al. | Good models can guess weld quality with less than 4% error. |
Practice on extra pieces of metal and read your equipment manual. Each time you weld, you get better and feel more sure of yourself. You can become great at laser welding!
FAQ
What is the best way to choose laser power for a new project?
You should start with the recommended power for your metal’s thickness. Test on scrap pieces first. Increase power for thicker metals. Lower it for thin sheets. Always check your welds for strength and appearance.
How do I know if my shielding gas flow is correct?
Look for a smooth, shiny weld with no dark spots. If you see bubbles or oxidation, increase the gas flow. Too much gas can cause turbulence. Use a flow meter for accuracy.
Can I use the same settings for all metals?
No, you need to adjust settings for each metal. Aluminum, steel, and stainless steel need different power, speed, and gas. Always check a settings chart or your machine’s manual before you start.
Why does my weld have holes or cracks?
Holes (porosity) or cracks often mean the metal is dirty or the gas flow is wrong. Clean your workpiece well. Adjust your gas and check your laser power. Try slower cooling for fewer cracks.
Do I need special safety gear for laser welding?
Yes! Always wear laser safety goggles, gloves, and protective clothing. Set up barriers or curtains to protect others. Good ventilation keeps fumes away. Safety gear protects your eyes and skin from laser light.
How to Narrow the Heat-Affected Zone in Welding Processes
Which welding process has the smallest heat affected zone?
What is the heat affected zone in laser welding
What you should know about CNC machine tools and laser cutting
