Cold weather can hurt your laser equipment fast. You need to keep the room temperature between 10°C and 40°C. Always check that water-cooled tubes are not frozen before you begin. Run the chiller for at least 20 minutes to make the system steady. If it gets colder than freezing, add antifreeze fluid to your coolant. Winter Antifreeze Protection helps you stop expensive repairs and keeps your laser safe.
Key Takeaways
- Keep your laser equipment between 10°C and 40°C. This helps stop freezing and damage. Use RV antifreeze instead of car antifreeze. This protects your laser system from cold weather problems. Run the chiller for at least 20 minutes before you start your laser. This helps the coolant temperature stay steady. Change your antifreeze every six months. This keeps the system clean and stops freezing issues. If you will not use the machine for a long time in winter, drain the coolant ahead of time.
Winter Antifreeze Protection Importance
Freezing Risks for Laser Equipment
If your laser equipment gets too cold, there are real dangers. The coolant inside can freeze and turn solid. This can block the cooling pipes or even break them. When water freezes, it gets bigger. This can hurt the inside parts and the optical components of your laser. If it gets very cold, the laser source might get damaged forever.
Here is a table that shows the main risks you need to watch for:
| Risk Description | Implication |
|---|---|
| Coolant solidification | Can block or rupture cooling pipes |
| Expansion of frozen coolant | May damage internal and optical components |
| Severe freezing | Potential for permanent damage to the laser source |
Tip: Always check your coolant and keep your equipment above freezing. Winter Antifreeze Protection helps you avoid these problems.
Consequences of Cold Damage
Cold damage does more than just stop your laser from working. It can make your equipment not last as long. When water turns into ice, it can cause short circuits or rust. This can make your device work badly and be unsafe. If the optics get too cold, they can bend or crack. This makes the laser beam worse and less accurate.
Mechanical parts like gears and bearings can shrink or break. This causes more wear and more problems. Cracks in cooling plates can make the cooling system not work right. This can make things overheat and hurt other parts. Broken water pipes stop the coolant from moving. This means your laser cannot stay at the right temperature. Cracks in joints and QBH can make leaks. This causes coolant loss and makes your device work worse and be less reliable.
Here is a table that explains what can happen if you do not use Winter Antifreeze Protection:
| Consequence | Impact on Performance and Lifespan |
|---|---|
| Short circuits or corrosion | Affects device functionality and safety due to moisture condensing into water or ice. |
| Thermal stress on optics | Can lead to bending or cracking, reducing beam quality and system accuracy. |
| Mechanical part damage | Shrinking and breaking of gears and bearings can cause technical problems and increased wear. |
| Cracks in cooling plates | Risk of instability in the cooling system, leading to overheating and potential damage to other parts. |
| Broken water pipes | Disruption in coolant flow can prevent proper temperature regulation, causing operational issues. |
| Cracks in joints and QBH | Leakage in the cooling system can result in coolant loss, affecting performance, reliability, and longevity of the device. |
Note: You can stop these problems by following Winter Antifreeze Protection rules. This keeps your laser equipment safe and working well all winter.
Temperature Management Strategies
Safe Operating Temperature Range
You must keep your laser equipment in the right temperature range to prevent damage. If the room gets too cold or too hot, your laser will not work well. The best temperature for most workshops is between 15°C and 30°C. The ideal spot is 22°C, plus or minus 2°C. If the room drops below 10°C, you should preheat the equipment. This helps you avoid thermal shock, which can hurt the optical parts.
Here is a table to help you remember the best temperature ranges:
| Component | Recommended Temperature Range | Key Insights |
|---|---|---|
| Workshop | 15°C – 30°C (Ideal: 22°C ± 2°C) | Room temperature controls thermal balance. Too much heat or cold is harmful. |
| Chiller Water | Laser: 20°C – 22°C; Cutting Head: 28°C – 30°C | Dual circuits keep the system efficient and stop condensation. |
You should always keep the temperature above 5°C (41°F). This keeps the coolant from freezing and protects your laser.
Tip: Stable temperatures help your laser stay accurate and last longer. Even small changes can cause problems like misalignment or changes in the laser beam.
Parameters unified & measurement conditions
To remove confusion, use these unified setpoints and measurement points: ambient workshop air (1 m from the machine, away from vents): 15–30°C (preferred 20–25°C); chiller supply to laser source (chiller outlet): 20–22°C target (acceptable 20–25°C), stability ±0.5°C; chiller supply to cutting head/head housing: 28–30°C target (acceptable 28–32°C), stability ±2°C. Use a reference condition of 25°C when comparing specs; measure with calibrated thermocouples/RTDs (water-line tolerance ±0.5°C, surface IR ±1–2°C). These ranges apply to modern fiber laser cutters with dual‑circuit chillers; CO2 systems typically use a single circuit (20–25°C) and tolerate wider variation. Log and alarm on deviations.

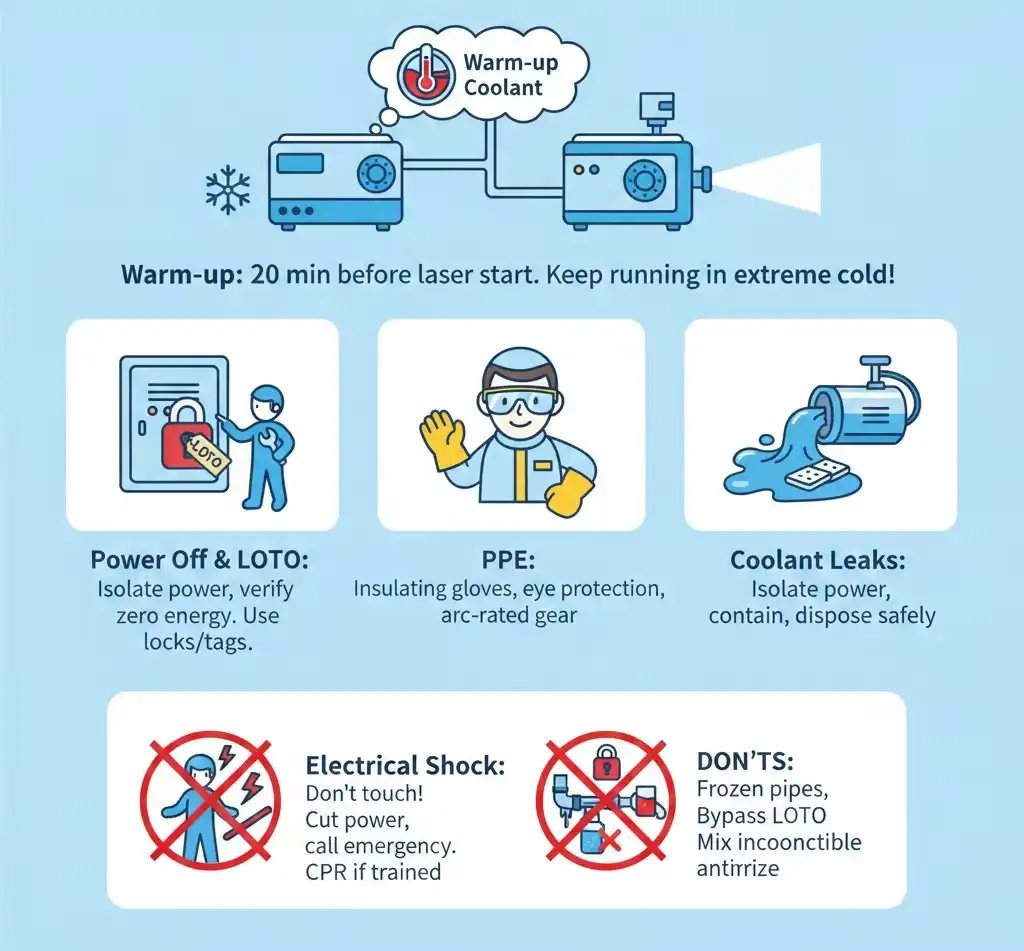

Chiller Operation Best Practices
You need to use your chiller the right way to keep your laser safe in winter. Always run the chiller for at least 20 minutes before you start the laser. This warms up the coolant and makes the temperature steady. If it is very cold, keep the chiller running, even at night. This keeps the coolant moving and stops it from freezing.
- Power off and discharge: shut down equipment, isolate power and stored energy, and verify zero energy before any service (follow visual LOTO steps). See Brady’s Lockout‑Tagout 8‑step guidance for procedure details.
- Lockout‑tagout (LOTO): apply locks/tags to breakers and valves; only the person who applied them may remove them.
- PPE: wear insulating gloves rated for electrical work, eye protection/splash shield, and arc‑rated gear if high voltage is present.
- Coolant leaks: isolate power first, contain with absorbent pads, avoid using conductive rags, and pump or absorb then dispose per local rules.
- Electrical shock: don’t touch the victim if energized; cut power or use a non‑conductive tool to separate, call emergency services and start CPR/AED if trained.
- Don’ts: don’t run equipment with frozen pipes, don’t bypass LOTO, and don’t mix incompatible antifreeze types.
Here are some best practices for chiller operation:
- Keep the room above 0°C to stop freezing.
- Run the chiller long enough to stabilize the system.
- Drain the coolant if you cannot keep the room warm.
- Use Winter Antifreeze Protection if you expect freezing weather.
Good chiller habits help your laser work better. They also stop costly repairs and downtime.
Antifreeze Selection and Use

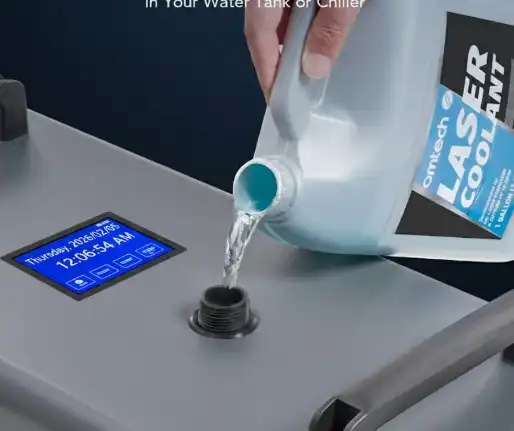

When to Use Antifreeze
You should use antifreeze when it gets very cold. If the coolant freezes, it can break pipes and connectors. Add antifreeze if you think it will get below 0°C. If you cannot keep your chiller running, use antifreeze instead of regular water. This is the best way to protect your laser equipment.
- Use antifreeze when it gets below freezing outside.
- Frozen coolant can break your laser and cost a lot to fix.
- Running the chiller all the time keeps things above 5°C, but antifreeze is needed if you cannot do this.
- Winter Antifreeze Protection keeps your laser safe in cold weather.
Tip: Check the weather and get your laser ready before it gets cold.
Choosing the Right Antifreeze
Pick the right antifreeze for your laser equipment. Some antifreeze is not safe to use. RV antifreeze is made from propylene glycol. It is safe and does not cause electrical problems. Automotive antifreeze has ethylene glycol. It can hurt your cooling system and has more conductivity. Do not use automotive antifreeze.
- RV antifreeze (propylene glycol) works well and is safe.
- Automotive antifreeze (ethylene glycol) can damage your laser and cause problems.
- Pick antifreeze that freezes at least 5°C lower than the coldest temperature you expect.
- Choose antifreeze that stops rust and corrosion.
- Make sure the antifreeze does not harm rubber seals and stays stable.
| Type of Antifreeze | Safety for Laser Equipment | Conductivity (µS/cm) | Notes |
|---|---|---|---|
| RV Antifreeze (Propylene Glycol) | Recommended | ~414 | Non-toxic, safe for cooling systems |
| Automotive Antifreeze (Ethylene Glycol) | Not recommended | ~633 | Can degrade materials, higher risk |
Note: Always read the label and pick antifreeze made for sensitive equipment.
Mix Ratios and Application
Mix antifreeze and water in the right amounts. The mix depends on how cold it gets where you live. A 50:50 mix protects down to -37°C. This works for most places. If it gets colder, use a 60:40 mix for more safety. Before adding antifreeze, drain old coolant and clean the pipes with water. Change antifreeze every six months to keep your laser working well.
| Local Temperature Range | Anti-freeze Mix Ratio |
|---|---|
| -42°C to -45°C | 60% anti-freeze, 40% water |
| -32°C to -35°C | 50% anti-freeze, 50% water |
| -22°C to -25°C | 40% anti-freeze, 60% water |
| -12°C to -15°C | 30% anti-freeze, 70% water |
Follow these steps to use antifreeze the right way:
- Drain all coolant and clean pipes with water.
- Take off the water pipe at the inlet and use compressed gas to blow out water.
- Plug the water inlet and outlet to keep dust out.
- Mix antifreeze and water for your local temperature.
- Fill the system with the new mix and check for leaks.
- Change antifreeze every six months for best results.
- After winter, clean all pipes and filters with deionized water.
Alert: Good antifreeze should be thin at low temperatures and should not damage rubber seals or metal parts.
Winter Antifreeze Protection means using the right antifreeze, mixing it well, and putting it in before it gets cold. This keeps your laser equipment safe and working all winter.
Short-Term and Professional Protection
Temporary Antifreeze Methods
There are quick ways to protect your laser equipment when it gets cold fast. These steps help stop freeze damage if you cannot do full winterization.
- Keep the room temperature between 10°C and 40°C.
- Run the chiller at about 5°C to keep coolant moving.
- Drain coolant from the machine after each use.
- Add antifreeze fluid to the coolant if it will get cold.
These steps give short-term protection. Always check your equipment before and after you use it. If you cannot keep the room warm, draining coolant is safest.
Tip: Plan ahead. Start Winter Antifreeze Protection before it gets too cold.
Professional Maintenance Options
You can ask a professional to help winterize your laser equipment. Experts know how to protect your system in winter. Here are the main steps they follow:
- Watch the storage temperature and act if it drops below 40°F.
- Drain all water from the system to stop freezing.
- Fill the system with RV antifreeze for safe protection.
- Run the machine so antifreeze moves through all parts.
- Cover the machine to keep out dust and debris.
Regular maintenance helps your equipment work safely in cold weather. Professionals use compressed air to blow out leftover water. This stops ice from forming inside pipes.
- You stop problems from cold temperatures.
- Your laser works better and lasts longer.
Risks and Best Practices
You must use antifreeze the right way. Using the wrong kind can cause big problems.
Chronic failures of the laser power supply have been linked to using conductive coolants. Some users feel electrical shocks when touching coolant systems. This means there is a risk of electrical shock.
Using antifreeze the wrong way can cause electrical problems. It can make the coolant conduct electricity. This can cause arcing, power loss, and even damage the laser’s power supply. Automotive antifreeze is very risky because it conducts electricity. It can make the coolant dangerous and hurt the laser equipment.
If you do not use anti-freeze measures or use antifreeze the wrong way, the warranty does not cover the damage. This shows why you must use the right coolant.
Always pick RV antifreeze and follow mixing instructions. Never use automotive antifreeze. Always check for leaks and change coolant as needed. These best practices keep your laser safe and help you avoid expensive repairs.
Post-Winter Maintenance Steps
Equipment Inspection
You should check your laser equipment after winter ends. Start by making sure the room temperature stays above 0°C. Keep the laser and chiller powered on to stop freezing. If you had to shut down for a long time, drain all the cooling water. Use compressed air to blow out any water left in the chiller, pipes, and water channels. Treat the deionization tank so it does not crack. Always check that the external pipes are dry.
Here is a quick checklist for your inspection:
- Keep the ambient temperature above 5°C.
- Run the chiller to keep water from freezing.
- Drain the cooling water after each use.
- Use compressed gas to clear out any leftover water.
Tip: Careful inspection helps you find problems early and keeps your laser working well.
Coolant Flushing and Replacement
You need to flush and replace the coolant to keep your system clean. Follow these steps:
- Turn off the laser system.
- Drain all coolant from the reservoir and pipes.
- Rinse the system with distilled water until the water runs clear.
- If you see heavy dirt, use a mild cleaner approved by the manufacturer.
- Rinse again with distilled water.
- Fill the system with fresh, pre-mixed coolant of the right type.
- Do not mix different coolants.
- Fill slowly to avoid air bubbles.
- Run the pump for a short time to circulate the coolant, then top up if needed.
Always use new coolant for the best protection.
Preparing for Next Winter
You can get ready for the next cold season by planning ahead. Check the storage temperature often. If it drops below 40°F, take action right away. Drain all water from the system to stop freezing damage. Add an antifreeze blend that matches your local winter temperatures. Run the machine to make sure the antifreeze moves through all parts. Cover the machine to keep out dust.
You can also:
- Use insulation on cooling parts to protect them from cold.
- If you will not use the machine for a long time, drain the system and use compressed air to remove all water.
| Benefit of Planning Ahead | How It Helps Your Laser Equipment |
|---|---|
| Reduces risk of freeze damage | Keeps pipes and parts safe during cold weather |
| Saves money | Prevents costly repairs and downtime |
| Improves reliability | Makes sure your laser works when you need it |
Winter Antifreeze Protection works best when you plan before the cold arrives.
You can keep your laser equipment safe in winter. Use Winter Antifreeze Protection and follow these steps:
- Change the coolant to professional antifreeze for your area.
- Drain the water system if you stop for over a day.
- Warm up your machine before using it and run the chiller.
| Benefit of Regular Maintenance | Result |
|---|---|
| Find problems early | You spend less on repairs |
| Equipment works smoothly | You have less downtime |
Take care of your laser and plan ahead. This helps your laser stay safe and saves you money.
References & cross‑check — manufacturer manuals and standards to consult before winterizing: consult the IPG YLR series installation/specification notes for coolant temperature and flow limits (see “coolant temp/flow”), the IEC/IP overview at RS Components for the IPX7 (1 m/30 min) vs. IPX8 distinction (see “1 m/30 min ceiling”), and Intertek’s ingress‑protection testing page for lab vs. field test caveats (see “lab vs. home tests”). For antifreeze chemistry and safe mixes, consult propylene‑glycol technical data sheets and your chiller vendor’s manual before adding glycol (see “antifreeze chemistry / thermal capacity”).
FAQ
What happens if you use automotive antifreeze in your laser equipment?
Automotive antifreeze is not safe for your laser. It can let electricity move through it and hurt seals. It might also cause electrical trouble. You should always pick RV antifreeze for sensitive machines.
How often should you change the antifreeze in your laser system?
You need to change the antifreeze every six months. This helps keep your system clean. It also protects your laser from freezing problems.
Can you use only water as coolant during winter?
You should not use just water in winter. Water can freeze and break the pipes. Always add antifreeze if it gets cold outside.
What should you do if your laser equipment will not be used for a long time in winter?
- Drain all the coolant from the system.
- Use air to blow out any water left inside.
- Cover your machine so dust does not get in.
How do you know if your antifreeze mix is correct?
| Mix Ratio | Freezing Point |
|---|---|
| 50:50 | -37°C |
| 60:40 | -45°C |
Look at your local weather and pick the right mix. The table above shows which mix to use.
