Essential Maintenance Tips for Laser Scanning Galvanometers

You need to take care of your laser scanning galvanometer. Regular maintenance keeps it working well. This helps stop problems and makes it last longer. Work in a clean place that does not move. Use a good power supply. Make sure your device is mounted tightly. Clean and check your system often. This stops damage and helps it run smoothly. These steps help you find problems early. They also keep your equipment safe.

• Keep dust and water away from your work area.
• Use a steady power source to stop voltage changes.
• Use the device carefully to stop overloads and stress.

Key Takeaways

• Doing regular maintenance helps your laser scanning galvanometer last longer. Clean and check your device each month. This stops small problems from turning into big ones.
• A clean workspace is very important. Keep dust and water away from your equipment. This helps you get clear scans and good results.
• Use a steady power supply to stop voltage changes. This keeps your device from getting too hot. It also helps your device work the same way every time.
• Check the alignment and calibration of your galvanometer often. Good alignment gives you correct scans and stops mistakes.
• Write down all maintenance work you do. Keeping a record helps you watch how your device works. It also helps you find problems early and saves you time and money.

Why Maintenance for Laser Scanning Galvanometers Matters

Lifespan Benefits

You want your laser scanning galvanometer to work for a long time. Doing regular maintenance helps you reach this goal. Dust, dirt, and water can hurt the small parts inside. If you clean and check your device often, you stop little problems from getting worse. You help protect the mirrors and motors from wearing out. You also keep the electronics safe from getting too hot or rusty.

Tip: Set a reminder to look at your system every month. This habit helps you find problems early.

A device that gets care can last for many years. You save money because you do not have to buy new parts often. You also stop sudden problems that can pause your work. Many people use a simple list to remember cleaning and checking steps. This way, you do not forget anything and your laser scanning galvanometer stays in good shape.

Performance Reliability

You need your equipment to work well every time. Maintenance helps your laser scanning galvanometer do its best job. Clean optics give you sharp and clear scans. Good motors move fast and do not miss steps. If you skip maintenance, you might see blurry scans or slow movement. You could also hear weird sounds or see errors.

• Clean mirrors and lenses so results stay clear.
• Check wires and connections to keep things safe.
• Test alignment so scans are always correct.

When you follow a routine, you know your device will work when you need it. You do not have to worry about delays or mistakes. You also finish your projects on time.

Note: When your device works well, you can do more jobs and finish them with confidence.

Clean Environment Essentials

Dust & Debris Control

It is important to keep your workspace clean. Dust and debris can land on mirrors and lenses. These small bits block the laser beam. This makes scans look worse. Sweep and wipe surfaces often. Use a vacuum with a HEPA filter for tiny dust. Put your device in a room with air filtration. This helps keep dust out of the scanner head.

• Cover your galvanometer when you are not using it.
• Wear clean gloves when you touch optics.
• Keep cleaning tools in a closed box.

Tip: Look for dust every week. Clean any dust you see right away. This habit keeps scans clear and your equipment safe.

Temperature & Humidity

You need to control temperature and humidity in your workspace. High heat can hurt electronics. Cold air can make water drops form. Water can land on mirrors and lenses. This may cause rust or short circuits. Keep the temperature between 5°C and 45°C. Make sure humidity does not condense. Stable conditions help your galvanometer work well.

• Temperature range: 5°C to 45°C
• Humidity: Non condensing

Quick changes in temperature or humidity can cause problems. You might see errors or blurry scans. Use a thermometer and hygrometer to check your room. If you notice big changes, adjust your air conditioning or heating. Use a dehumidifier if your room feels wet.

Note: The environment can change how well galvanometer optical scanners work. Things like temperature and humidity can affect accuracy.

You protect your device when you control dust, temperature, and humidity. Your galvanometer will last longer and work better.

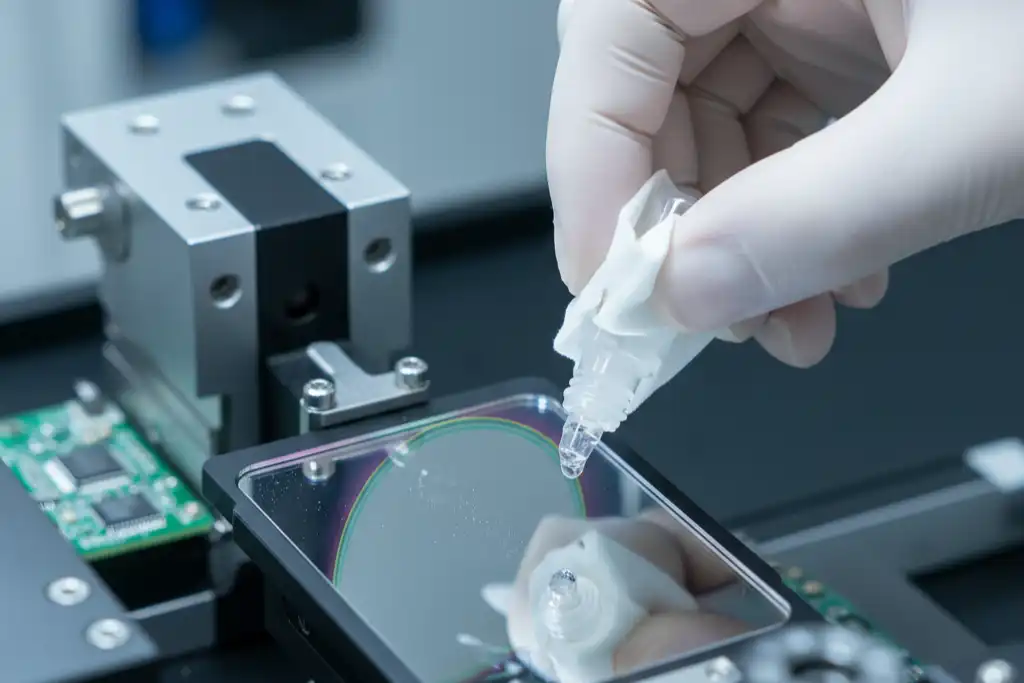

Regular Cleaning of Optics and Mirrors

Cleaning Laser Galvanometer Mirrors

You need to clean the mirrors in your laser scanning galvanometer on a regular schedule. Clean mirrors help your device work at its best. Dust and smudges can block the laser beam and lower scan quality. You should check protective mirrors every day, especially if you work in a place with lots of spatter. If your workspace stays clean, you can clean the mirrors every three to six months.

Here is a table that shows how often you should clean different parts:

Follow these steps to clean the mirrors safely:

1. Use a blower or compressed air to remove loose dust and lint.
2. Prepare some lens-safe detergent and wipes.
3. Move the working table upward so the lens does not fall.
4. Remove the mirror gently. Rinse it with cleaning fluid.
5. Place a drop of cleaning fluid on the mirror and let it sit for one minute.
6. Wipe off the fluid with a moist cleaning cloth.

Tip: Always use lens cleaning paper or a lint-free cloth. These tools protect the mirror from scratches.

Handle the mirrors with care. Do not touch the surface with your fingers or with sharp tools. If you scratch the mirror, you may see blurry scans or weak laser beams.

Cleaning Lenses & Scanner Head

You also need to clean the lenses and the scanner head in your laser scanning galvanometer. Clean lenses keep the laser beam strong and focused. Dust and fingerprints can block the light and cause errors.

Here are some important points to remember:

• Lenses and mirrors are fragile. Handle them gently.
• Avoid touching the lens with your fingers or tools.
• Use only lens-safe cleaning fluid and wipes.

To clean the lenses and scanner head, follow these steps:

1. Blow off dust with a blower or compressed air.
2. Remove the lens carefully.
3. Rinse the lens with cleaning fluid.
4. Put a drop of cleaning fluid on the lens and wait one minute.
5. Wipe the lens with a moist, lint-free cloth.

Note: Clean the scanner head every three to six months. If you work in a dusty area, clean it more often.

Regular cleaning helps your laser scanning galvanometer stay accurate and reliable. You will see clear scans and strong laser beams. You also protect your device from damage and extend its lifespan.

Power Supply Stability

A steady power supply helps your laser scanning galvanometer work well. You need to watch voltage and use surge protection. These steps keep your equipment safe from harm. They also help you avoid many problems.

Voltage Regulation

You should use a power supply that gives steady voltage. If the voltage changes, your galvanometer may act strange. You might hear weird sounds or feel it get hot. Sometimes, it may shake and make scans less clear. The table below shows what can happen if power is not steady:

Pick a regulated power supply for your system. This kind of supply keeps voltage the same. Check the voltage often with a voltmeter. If you see big changes, get a new power supply. Always test the power before you connect your galvanometer.

Tip: Plug your galvanometer into its own outlet. This stops other devices from causing voltage drops.

Surge Protection

Power surges can hurt your galvanometer. Surges are quick jumps in electricity. These jumps can burn small parts inside your device. You need to keep your equipment safe from these spikes.

Put a surge protector between your power supply and galvanometer. Surge protectors block extra voltage and keep your device safe. You can also use a UPS for backup power. A UPS helps if the main power goes out. This keeps your scans going and saves your data.

• Use surge protectors for every device you have.
• Check surge protectors twice a year.
• Replace old surge protectors if they look worn out.

Note: Surge protection saves you money on repairs. It also helps your laser scanning galvanometer last longer.

Mounting & Alignment

Secure Installation

You must put your laser scanning galvanometer in a steady spot. A strong mount stops the device from moving or shaking. If it moves, your scans can have mistakes. Use tough brackets or mounts that fit your device. Make sure all screws and bolts are tight. Check if the base sits flat on your table. If you see loose parts or gaps, fix them before scanning.

A good setup keeps your galvanometer safe from bumps and shakes. Put the device away from big machines or busy paths. This lowers the chance of someone hitting it by accident. Use anti-vibration pads under the mount if your room shakes a lot.

Tip: Press gently on the device to test if it is steady. If it moves, fix the mount so it does not move.

Here is an easy checklist for a safe installation:

• Pick the right mounting hardware for your device.
• Tighten every screw and bolt.
• Put the device on a flat, hard table.
• Use anti-vibration pads if you need them.
• Keep the space around the device clean.

Alignment Checks

You should check the alignment of your galvanometer often. Good alignment helps the laser beam hit the right spot. If it is not lined up, scans can look blurry or miss marks. First, make sure the scanner matches the laser beam. Use calibration tools to help set the right spot.

Change speed and acceleration settings for each project. Fast movement can make scans look bad. Slow movement can waste time. Find a speed that gives you clear scans. Use dynamic power control to keep the laser beam strong while scanning.

Software helps a lot with alignment. Use programs that work well with your galvanometer. Good software makes alignment and calibration easy. You can also save your settings for next time.

Note: Checking alignment often helps you avoid mistakes and keeps your scans clear.

Overload Prevention

Laser scanning galvanometers work best when you do not push them too hard. If you overload them, motors, mirrors, and electronics can get damaged. You must know what your device can handle. You also need to pay attention to how you use it every day.

Load Limits

Each galvanometer has a top limit for weight or force. This is the most it can safely handle. If you go over this, you might break something or cause mistakes. Always look at the manufacturer’s guide for safe load ratings. These ratings show you the right weight or force to use.

Here is a table to help you remember what to check:

Tip: Use mirrors and lenses that are the right size and weight. This helps keep your galvanometer safe.

If you use parts that are too big or move too quickly, you might hear odd sounds or see bad scans. You can stop these problems by following the load limits.

Usage Monitoring

You need to keep an eye on how you use your galvanometer. Watching usage helps you find problems before they get worse. You can use software to see how long the device runs and how hard it works. Some systems will warn you if you are pushing the limits.

Try these steps to watch usage:

• Check the device’s temperature while it is running.
• Write down how many hours you use it each week.
• Watch for error messages or warning lights.
• Use software logs to check how the device is doing.

Note: If you see signs of overload, stop and let the device cool off. This keeps your device safe and your scans clear.

Checking usage often helps you find problems early. You protect your device and help it last longer. You also save money and avoid stopping your work.

Routine Calibration for Laser Scanning Galvanometers

You need to calibrate your laser scanning galvanometer often. Calibration makes sure your device scans the right places. If you skip calibration, your scans might look wrong. They could be crooked or stretched. Small mistakes can build up over time. Regular calibration keeps your work neat and your device in good shape.

Calibration Steps

There are different ways to calibrate your laser scanning galvanometer. Each way has its own steps and level of accuracy. Here is a table that shows three common ways to calibrate:

Hand calibration is quick and easy. Draw a grid on paper and scan it. Use a ruler to check if the lines match. If they do not match, change your settings. The flatbed scanner method uses special software and a printed pattern. Put the pattern on the scanner and let the software measure. This method is more accurate. The metrology method uses very precise tools. You scan with a device like MicroVu and enter the numbers by hand. This way is best when you need perfect results.

Tip: Use the same calibration method each time. This helps you see if anything changes.

Calibration Frequency

You should calibrate your laser scanning galvanometer on a set schedule. Most people check calibration every three to six months. If you use your device a lot or move it, check more often. Calibrate after you clean the optics, move the device, or see strange scans.

Here is an easy routine you can follow:

1. Choose a calibration method that works for you.
2. Set a reminder to calibrate every three months.
3. Check the scan field with your chosen method.
4. Change the settings if you find mistakes.
5. Write down the results in your maintenance log.

Note: Regular calibration keeps your scans sharp and your device working well. You save time and avoid problems.

If you make calibration a habit, your laser scanning galvanometer will last longer. You also make sure every scan is as accurate as it can be.

Inspect Connections & Wiring

Wear & Tear Checks

You need to check the wires and connections in your laser scanning galvanometer often. Wires can wear out over time. You might see cracks, bends, or spots where the wire looks thin. If you ignore these signs, your device may stop working or give bad results. Look at each wire closely. Use a flashlight to see small details. Move the wires gently to check for loose spots.

Here is a simple checklist for wear and tear:

• Look for cracks or cuts in the wire coating.
• Check for bent or twisted wires.
• Find any spots where wires feel loose.
• Listen for buzzing or clicking sounds when the device runs.

Tip: If you find a damaged wire, replace it right away. This keeps your laser scanning galvanometer safe and working well.

Connector Maintenance

Connectors help your device send signals and power. Dirty or loose connectors can cause errors. You should clean connectors every few months. Use a soft brush or compressed air to remove dust. Make sure each connector fits tightly. If you see rust or dirt, clean it with alcohol and a lint-free cloth.

Here is a table to help you remember what to check:

Note: Always turn off the power before you touch connectors. This keeps you safe and protects your device.

Regular checks and cleaning help you avoid problems. You keep your laser scanning galvanometer running smoothly and extend its lifespan.

Troubleshooting Basics

Common Issues

You may face problems with your laser scanning galvanometer from time to time. Knowing what to look for helps you solve issues quickly. Here are some common problems you might see:

• The motor does not swing or move as expected.
• The laser output is missing or weak.
• Scans look blurry or do not line up.
• You hear strange noises from the device.
• The system shows error messages or warning lights.

You should check the control signal output if the motor does not swing. Sometimes, loose wires or bad connections cause this issue. If the laser output is missing, you may have a dirty or damaged mirror. Misalignment or incorrect marking speed can also stop the laser from working. Weak motor strength often points to a problem with the driver board or the motor itself.

Tip: Write down any error codes or symptoms you notice. This helps you find patterns and fix problems faster.

Quick Fixes

You can try several quick fixes when your galvanometer acts up. These steps help you get back to work without long delays.

• Cross-check components. Use a working driver board or motor to test your system. If the motor does not lock up, it may be damaged.
• Test for weak motor strength. Connect an intact driver board and motor. If the motor does not respond, you may need to replace it.
• Check control signal output and connections. If the motor still does not swing, the driver board could be faulty.
• Clean or replace the galvanometer mirror. Dirt or damage can block the laser output. Make sure the mirror is clean and in good shape.
• Adjust marking speed and check alignment. Sometimes, the laser does not show because of wrong settings or misalignment.

Note: Always turn off the power before you touch any parts. Safety comes first.

You can solve many problems with these simple steps. Regular checks and quick fixes keep your laser scanning galvanometer running smoothly. 😊

Maintenance Records

Logging Activities

You should keep records of every maintenance task you do. Good records help you remember what you did and when. This makes it easier to spot problems early. Writing down each activity helps you work safely.

Here is a table that shows what you should write in your log:

Tip: Write down every detail, even small changes. This habit helps you avoid expensive repairs and keeps your equipment working well.

Tracking Performance

You should check how your laser scanning galvanometer works over time. Watching performance helps you find small problems before they get worse. When you check power and stability, you can see if cleaning or calibration is needed.

• You can notice changes in laser power output. These changes may mean you need to clean a lens or fix alignment.
• Stability checks help you find trouble early, like power supply problems or dirty optics.
• Diagnostic tools let you see issues before they stop your work.

Regular maintenance and careful tracking help your galvanometer stay reliable. You avoid surprise breakdowns and help your equipment last longer. Using a good maintenance plan saves you time and money. 😊

Stay Updated with Technology

New Maintenance Tools

You can make taking care of your device easier with new tools. Many companies now sell cleaning kits for laser scanning galvanometers. These kits have wipes that are safe for lenses, anti-static brushes, and special cleaning liquids. You can use these tools to clean mirrors and lenses without scratching them. Some kits come with small vacuums to suck up dust from small spaces.

You can get digital inspection cameras to look inside your device. These cameras show close-up pictures of wires, connectors, and optics. You can find problems early and fix them before they get worse. Some cameras plug into your computer, so you can save pictures for your records.

Tip: Try a digital inspection camera to look for dust or damage. You will see things you might miss with just your eyes.

Here is a table that lists helpful maintenance tools:

Software & Firmware Updates

You should look for software and firmware updates often. These updates help your laser scanning galvanometer work better. Companies make updates to fix problems and add new things. Updated software can make calibration and alignment easier. Firmware updates can help your device scan and move better.

Firmware updates for 3D laser scanners, including laser scanning galvanometers, are important for keeping them working well. These updates can add new features and make your device work better, which is important for good maintenance and making sure your equipment works right.

You can set your software to check for updates by itself. You will get a message when a new version is ready. Always read the notes before you install an update. You can learn what is new and how it helps your device.

Note: Keeping your software and firmware up to date helps you stop problems and keeps your equipment working well. 😊

You can help your laser scanning galvanometer last longer with easy habits. Clean the mirrors and lenses every few months. This keeps dust from blocking the laser beam. Check if everything lines up right and use test patterns to calibrate. This makes sure your scans stay sharp and correct. Look at wires and connectors often to find small issues early. Learn about new tools and updates to make your maintenance better. These steps help you stop problems and make your equipment last twice as long.

FAQ

How often should you clean the mirrors and lenses?

You should clean mirrors and lenses every three to six months. If you work in a dusty area, clean them more often. Clean optics help your scans stay sharp and clear.

What tools do you need for safe cleaning?

You need lens cleaning paper, a lint-free cloth, and lens-safe cleaning fluid. Use a blower or compressed air for dust. These tools protect your optics from scratches.

Why does your galvanometer need calibration?

Calibration helps your device scan the right spots. You avoid crooked or stretched scans. Regular calibration keeps your work accurate and your equipment working well.

What signs show your galvanometer needs maintenance?

You may see blurry scans, weak laser output, or hear strange noises. Error messages or warning lights can also mean your device needs care. Check your system if you notice these signs.

Can you use regular cleaning products on your galvanometer?

No, you should not use regular cleaning products. They can damage mirrors and lenses. Always use products made for optics to keep your device safe.
