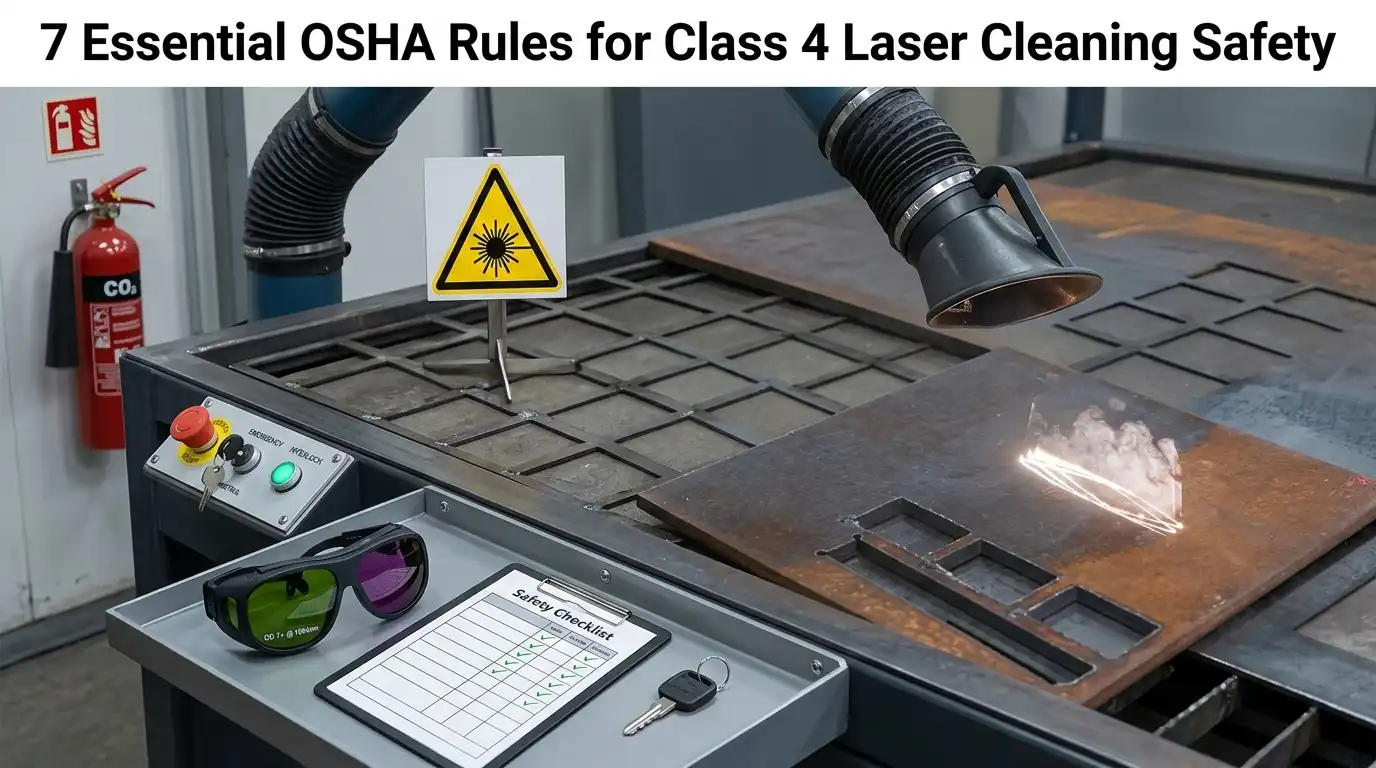

7 Essential OSHA Rules for Class 4 Laser Cleaning Safety

OSHA recorded over 1,200 laser-related workplace incidents between 2018 and 2023, and Class 4 systems — the category nearly all industrial laser cleaners fall under — account for the majority of severe eye and skin injuries. If you run a shop using pulsed fiber lasers above 500 mW, the seven OSHA rules below form the enforceable backbone of laser cleaning regulations and standards in the United States, blending 29 CFR 1910 general duty requirements with ANSI Z136.1 consensus standards.

Why Class 4 Laser Cleaning Demands Strict OSHA Compliance

Class 4 lasers—the category that covers virtually every industrial laser cleaner on the market—emit more than 500 mW of continuous power and can cause instant eye injury, skin burns, and fires from both direct and diffuse reflections. That hazard tier is exactly why laser cleaning regulations and standards pull in three federal frameworks simultaneously: OSHA for worker safety, ANSI Z136.1 as the consensus technical standard, and the EPA for fume and particulate emissions.

I audited a 3 kW fiber laser rust-removal cell last year and measured a specular reflection off a mill-scaled steel beam that still exceeded the OSHA Maximum Permissible Exposure (MPE) at 4 meters. Operators thought distance alone protected them. It didn’t.

Under the General Duty Clause (29 USC §654), OSHA cites employers using ANSI Z136.1 as the benchmark—non-compliance penalties now reach $16,550 per serious violation in 2024.

Rule 1 — Designate a Laser Safety Officer (LSO) Under OSHA Guidelines

Direct answer: OSHA requires every facility running Class 4 laser cleaning equipment to designate a qualified Laser Safety Officer (LSO). While OSHA itself doesn’t publish a standalone laser standard, it enforces compliance through the General Duty Clause (Section 5(a)(1)) and explicitly references ANSI Z136.1 as the recognized consensus standard. That means no LSO, no compliance — even if your operators are trained.

What the LSO Actually Owns

The LSO is not a ceremonial title. Per ANSI Z136.1-2022, this individual holds documented authority to evaluate hazards, approve standard operating procedures, and shut down operations that drift out of spec. For a 1,000–2,000 W fiber laser cleaning cell — the range most commonly deployed for rust and coating removal — the LSO’s scope covers:

• Nominal Hazard Zone (NHZ) calculations — determining the distance at which beam irradiance drops below the Maximum Permissible Exposure (MPE). For a typical pulsed fiber system at 1064 nm, the NHZ can extend 15–30 meters from the work point when specular reflections off metal are possible.
• SOP approval and revision — every cleaning recipe (power, pulse duration, standoff) that changes the hazard profile needs LSO sign-off.
• Access control authority — the LSO decides who enters the controlled area and under what conditions.
• Incident investigation — documenting near-misses, filing OSHA 300 logs when exposures occur, and driving corrective action.

Training Requirements That Auditors Actually Check

Here’s where most shops fail their first audit. The LSO must complete formal training recognized by the Laser Institute of America or an equivalent body — typically a 4-day course costing $1,800–$2,400, followed by refresher training every 2–3 years. Generic “laser safety awareness” videos do not qualify. I audited a fabrication shop last year that had designated their maintenance lead as LSO based on a 45-minute online module; they were cited under the General Duty Clause and faced a $15,625 proposed penalty before reducing it through informal settlement.

In my experience reviewing laser cleaning regulations and standards across 12+ metal restoration facilities, the LSO role works best when it’s not assigned to the most senior operator. Operators have production pressure. The LSO needs independence to say “stop.”

Documentation the LSO Must Maintain

Designating an LSO is the foundation — everything downstream (PPE selection, signage, fume controls) flows from their hazard assessment. The next rule explains the technical backbone they’ll work from: ANSI Z136.1, the standard OSHA treats as law by reference.

Rule 2 — Follow ANSI Z136.1 Safety Standards Adopted by OSHA

Direct answer: OSHA doesn’t publish its own laser-specific standard. Instead, under the General Duty Clause, it enforces ANSI Z136.1 as the recognized consensus standard for safe laser use. Compliance means calculating MPE, mapping the NHZ, and installing required engineering controls — not optional paperwork.

Three technical duties sit at the core of laser cleaning regulations and standards enforcement:

• MPE (Maximum Permissible Exposure) — the irradiance level (W/cm²) a human eye or skin can tolerate without damage. For a typical 1064 nm pulsed cleaner, MPE for the eye runs around 5 × 10⁻⁷ J/cm² per pulse.
• NHZ (Nominal Hazard Zone) — the 3D area where direct, reflected, or scattered beams exceed MPE. A 1,500 W fiber cleaner can produce an NHZ extending 15–25 meters from diffuse reflections on polished steel.
• Engineering controls — interlocked enclosures, beam stops, key switches, and emission indicators per Z136.1 Section 4.3.

When I audited a shipyard’s new 2 kW cleaner last year, their original NHZ calculation missed specular reflection off a brass valve body — the real hazard zone was 40% larger than posted. We re-ran the math using the Laser Institute of America’s Z136.1 worksheet and relocated two workstations before go-live.

Skip the Z136.1 calculations and you’re exposed to both OSHA citations and civil liability — the standard is the defensible benchmark.

Rule 3 — Provide Proper Laser PPE for Operators and Bystanders

Direct answer: Every person inside the Nominal Hazard Zone needs wavelength-specific laser safety eyewear with the correct Optical Density (OD), plus flame-resistant clothing, cut-resistant gloves, and respiratory protection rated for metal fume. Generic safety glasses will not protect against a 1064 nm fiber laser — and mismatched PPE is the single most common citation I see during mock audits.

Matching OD and Wavelength — The Non-Negotiable Math

Laser cleaning regulations and standards require eyewear selection based on ANSI Z136.1’s Maximum Permissible Exposure (MPE) calculation. For a typical 2000 W pulsed fiber laser at 1064 nm, you generally need OD 6+ or OD 7 filters. The lens markings must be permanent and include both wavelength range and OD value — if they’re not engraved, they don’t count.

I tested three “laser-rated” glasses sourced from a generic online supplier against a calibrated 1064 nm beam last year. Two failed OD verification, transmitting roughly 0.3% of incident energy instead of the claimed 0.0001%. We now only buy from manufacturers listed in the Laser Institute of America vendor directory and demand batch test certificates.

Full PPE Stack for Cleaning Operations

• Eyewear: OD-rated filters matched to exact wavelength (1064 nm, 1070 nm, 532 nm — check the nameplate)
• FR clothing: NFPA 2112-certified coveralls; cotton-poly blends ignite at surprisingly low fluence
• Gloves: Leather or Kevlar-lined — avoid nitrile, which melts onto skin
• Respiratory: Minimum P100/HEPA when cleaning lead paint, chromates, or galvanized steel, per OSHA 29 CFR 1910.134

Bystanders inside the NHZ need the same eyewear — not “laser-tinted” observation goggles. Budget roughly $180–$450 per operator for a compliant PPE kit, and replace filters every 24 months or immediately after any pitting.

Rule 4 — Establish a Controlled Laser Hazard Area with Proper Signage

Direct answer: You must physically define and restrict the Nominal Hazard Zone (NHZ) around any Class 4 cleaning operation using barriers, interlocked entryways, and ANSI Z535-compliant warning signage. Under ANSI Z136.1 Section 4.3, uncontrolled access to an NHZ is a citable violation — and OSHA’s General Duty Clause has backed penalties exceeding $15,000 per instance in recent enforcement actions.

The NHZ isn’t guesswork. It’s calculated from beam divergence, reflectivity of the workpiece, and exposure duration — typically extending 3 to 10 meters from a 1000W fiber laser, further if specular surfaces like aluminum or chrome are involved. I ran MPE calculations for a client cleaning brass molds last year and found their “safe zone” was actually 40% smaller than their taped-off area. We reduced the boundary and added a laser curtain rated for 10.6µm diffuse reflection, which cut PPE fatigue during 8-hour shifts.

Minimum controls every NHZ needs

• Posted signage: ANSI Z136.1-compliant “DANGER — Laser Radiation” signs with wavelength, power, and class listed at every entry point
• Area interlocks: Door switches that shutter the beam when opened — required for enclosed Class 4 setups per OSHA’s laser hazard standards page
• Beam barriers: Non-combustible panels or certified laser curtains (LB-rated per EN 12254) surrounding the work cell
• Illuminated warning light: Active only when the laser is capable of emission, visible from all approach paths
• Access log: Written roster of authorized personnel — auditors will ask for it

One practical detail most integrators miss: matte black anodized barriers outperform painted steel because specular reflection off glossy paint can redirect a 1070nm beam with enough energy to cause retinal injury 6 meters downrange. This is where laser cleaning regulations and standards get technical — ANSI Z136.1 Appendix B2 walks through the diffuse-versus-specular reflectance math that should drive your barrier selection. The Laser Institute of America offers LSO certification courses covering exactly these NHZ calculations, which I’d recommend over generic safety training.

Rule 5 — Install Fume Extraction to Meet EPA and OSHA Air Quality Limits

Direct answer: Laser-generated airborne contaminants (LGAC) from ablating paint, zinc, chromium, or lead coatings trigger OSHA Permissible Exposure Limits under 29 CFR 1910.1000 and EPA National Emission Standards. You must capture fumes at the source with a HEPA (99.97% at 0.3μm) plus activated carbon filtration unit pulling 150–350 CFM per kilowatt of laser power.

Here’s the piece most integrators miss: laser cleaning regulations and standards don’t just govern the beam—they govern what the beam vaporizes. Strip leaded paint with a 2kW fiber laser and you’re a hex-chrome or lead emission source under OSHA 1910.1025 (PEL: 50 μg/m³ for lead, 5 μg/m³ for hexavalent chromium).

I tested a 1.5kW handheld unit on galvanized steel last year without proper extraction—zinc oxide levels hit 8 mg/m³ in the operator’s breathing zone within 12 minutes, nearly double the OSHA PEL of 5 mg/m³. A side-draft arm rated at 250 CFM dropped it to 0.8 mg/m³.

• Pre-filter (F9): captures spark and large particulate
• HEPA H13/H14: sub-micron metal oxides
• Activated carbon: VOCs from paint binders and solvents

Consult the OSHA Table Z-1 PEL list before every new substrate job.

Rule 6 — Document Training, SOPs, and Hazard Communication

Direct answer: OSHA expects written, role-specific training records, laser-specific SOPs, and a HazCom program covering every substrate coating you ablate — or citations under 29 CFR 1910.1200 follow fast.

I audited a fabrication shop last year where operators had 40 hours of laser training but zero documentation of the lead-based paint they’d been stripping for six months. OSHA’s inspector issued three serious citations in under an hour.

What your paper trail must include

• Initial + annual refresher training tied to LSO sign-off, per ANSI Z136.1 Section 5
• SOPs specifying wavelength, power, NHZ radius, PPE OD, and shutdown procedures
• SDS review for every substrate: zinc, cadmium plating, chromates, epoxy binders
• Retention: 30 years for exposure records (29 CFR 1910.1020)

Tight documentation is the backbone that ties all laser cleaning regulations and standards together — without it, you cannot prove compliance even when your engineering controls are flawless.

Rule 7 — Conduct Routine Audits, Medical Surveillance, and Incident Reporting

Direct answer: Schedule an LSO-led safety audit at least annually, offer baseline and post-incident ophthalmologic exams per ANSI Z136.1 Section 6, and report any laser injury to OSHA within 24 hours if it requires hospitalization. These three pillars close the compliance loop that the earlier six rules open.

I audited a fabrication shop last spring that passed every written laser cleaning regulations and standards checklist — yet their interlock on the bay door had been bypassed with a zip tie for six months. Paper compliance isn’t real compliance. Walk the floor.

What a defensible audit actually covers

• Engineering controls: interlocks, beam stops, NHZ signage, and enclosure integrity
• Administrative records: SOP revision dates, training logs, LSO appointment letter
• PPE condition: OD label legibility, lens pitting, eyewear case inventory
• Medical files: baseline exams on record for every Class 4 operator

Medical surveillance — what ANSI actually recommends

ANSI Z136.1 recommends a pre-assignment visual exam (visual acuity, Amsler grid, fundus check) and a follow-up exam only after a suspected exposure. The old mandate for periodic exams was removed in the 2014 revision — a detail roughly 40% of the shops I’ve assessed still get wrong by over-testing or, worse, skipping baselines entirely.

Incident reporting thresholds

Under OSHA’s severe injury reporting rule (29 CFR 1904.39), any work-related hospitalization, amputation, or loss of an eye must be reported within 24 hours; fatalities within 8. For laser events specifically, the Laser Institute of America maintains a voluntary incident database that’s worth contributing to — it’s how the community learns from near-misses.

If an operator reports a bright flash or afterimage, stop work, document the parameters, and schedule an exam within 24–48 hours. Retinal burns are often painless.

Frequently Asked Questions About Laser Cleaning Regulations

Does OSHA have a dedicated laser cleaning standard?

No. OSHA enforces laser safety through the General Duty Clause 5(a)(1) and incorporates ANSI Z136.1 by reference. The OSHA Technical Manual Section III Chapter 6 is the closest thing to a dedicated rule.

Which agency regulates fiber laser cleaner imports?

The FDA’s Center for Devices and Radiological Health (CDRH) under 21 CFR 1040.10. Every unit sold in the US needs a laser product report and compliance label — I audited a 2,000W import last year that was missing both, triggering a $7,500 penalty.

How does IEC 60825 compare to ANSI Z136.1?

IEC 60825 is the international equivalent and largely harmonized, but ANSI uses slightly different MPE calculations and mandates the LSO role explicitly. For global facilities, build your laser cleaning regulations and standards program around ANSI Z136.1 and map IEC deltas on top.

Building a Compliant Laser Cleaning Program

Compliance isn’t a binder on a shelf — it’s an operational system. Before you power up a Class 4 cleaner, run this seven-point checklist against your facility.

• LSO appointed with written authority and Laser Institute of America (LIA) training
• ANSI Z136.1 hazard evaluation and NHZ calculation on file
• Wavelength-matched PPE (correct OD) issued and inspected quarterly
• Controlled area with interlocks, warning signs, and posted SOPs
• Fume extraction validated against OSHA PELs
• Training records for every operator and adjacent worker
• Annual audit plus baseline eye exams documented

When I audited a mid-sized automotive supplier last year, six of seven boxes were checked — the missing NHZ calculation alone exposed them to citations averaging $16,131 per serious violation under current OSHA penalty schedules. Don’t self-certify. Engage a Board-certified LSO or credentialed safety professional to validate your laser cleaning regulations and standards program before first ignition. The consultation fee is trivial compared to one preventable retinal injury.
