Beyond Stealth Absolute Low-Altitude Dominance
Harnessing MW-level fiber laser technology to neutralize unauthorized UAV threats with micro-second precision tracking.
GET SYSTEM ACCESS
[ SYSTEM STATUS: ARMED ]
[ TARGETING: AUTO-SCAN_V4.2 ]
[ GPS_LOCK: 34.0522° N / 118.2437° W ]
[ TARGETING: AUTO-SCAN_V4.2 ]
[ GPS_LOCK: 34.0522° N / 118.2437° W ]
Tactical Engagement CycleLaser Defense Workflow
Target Acquisition
Radar & EO/IR multi-sensor fusion for 360° situational awareness.
Neural Surveillance
AI-driven autonomous identification and millisecond precision locking.
Precision Strike
High-energy laser engagement delivering speed-of-light neutralization.
// INTELLIGENT_LOGIC
- Dual-Mode Fusion: Real-time synchronization of active radar and thermal EO/IR tracking.
- AI Neural Engine: Deep-learning classification distinguishing UAVs from environmental clutter.
- Multi-Target Logic: Sequential or simultaneous engagement handling of drone swarms.
- FPV Counter-Speed: Validated tracking for targets moving up to 200 km/h.
// PERFORMANCE_STANDARDS
- Precision Limit: Servo tracking accuracy maintained at < 10μrad.
- High-Speed Feedback: Real-time system refresh and tracking rate exceeding 700Hz.
- Surgical Focus: Millimeter-level beam concentration on critical target vulnerabilities.
- Environment Shield: Stable operations across extreme ranges of -20°C to +55°C.
System ArchitectureTactical Anatomy
Detection & Acquisition
Integrated low-altitude detection radar fused with multi-spectral IR/Visible light windows for 24/7 situational awareness.
Energy & Thermal Matrix
Advanced energy storage subsystem paired with a high-capacity thermal management unit for persistent engagement.
ATP Beam Control
Precision Beam Directional System (ATP) ensuring sub-10μrad tracking accuracy and rapid target locking.
Effector Terminal
High-energy laser emission window optimized for 1064nm atmospheric window penetration and maximum thermal disruption.
Industry Technical BarrierPrecision Engineering
RMS ≤ 10nm
Optical Accuracy
< 10μrad
Servo Tracking
QC_LEVEL_01
Component Screening
Rigorous pre-selection of optical sensors and laser diodes ensuring zero-defect mission reliability.
QC_LEVEL_02
System Stress Test
Validation of operational integrity across extreme temperatures from -20°C to +55°C.
QC_LEVEL_03
Core Module Validation
Advanced testing of high-energy laser focusing components and beam alignment persistence.
QC_LEVEL_04
Tactical Mobility Test
Field-road testing to ensure optical stability during rapid vehicle-mounted deployment.
Field Combat EvidencePerformance Lethality
Validated thermal disruption across aerospace-grade materials including carbon fiber, aluminum alloys, and high-velocity FPV targets.
Carbon Fiber
Neutralized
Payload Hub
Mission Success
Rotor Link
Destroyed
Aluminum Alloy
Penetrated
Steel Shell
Total Breach
Fixed Wing
Downed
Battery Pack
Disabled
FPV Intercept
Hard Kill
// BATTLE_LOG_REF: D740D0 // ALL TARGETS DEFEATED VIA DIRECT ENERGY ENGAGEMENT
Mobile & Infrastructure AdaptabilityFlexible Deployment
Our Modular Engagement System ensures seamless integration across diverse tactical chassis and stationary defense platforms.
Warrior Chassis
TYPE // ARMORED_TACTICAL
Heavy Pickup
TYPE // CIVILIAN_DUTY
Logistic Truck
TYPE // CARGO_PLATFORM
Universal Mounting Interface
4WD UGV
TYPE // UNMANNED_ROVER
Police Patrol
TYPE // PUBLIC_SAFETY
Fixed Shelter
TYPE // STATIONARY_HUBTechnical Data FortressSystem Specifications
| Metric Categories | S-A02-002 (Light) | S-B02-006 (Medium) | S-C02-010 (Heavy) |
|---|---|---|---|
| Laser Power Output | 2kW | 6kW | 10kW |
| Max Hard-Kill Distance | 400m | 1km | 1.6km |
| Capture Range (Visible) | 800m | 1.5km | 2km |
| Neutralization Time | 6s | ≤ 10s | ≤ 10s |
| Tracking Accuracy | 30 μrad | 20 μrad | 15 μrad |
| Gimbal Range | Az: ±120° / El: -10°~+60° | Az: N×360° / El: -5°~+70° | Az: N×360° / El: -5°~+70° |
| System Weight | ≤ 90kg | ≤ 1200kg | ≤ 2500kg |
| Operating Temp | -20°C ~ +55°C | -20°C ~ +55°C | -20°C ~ +55°C |
Tactical Deployment Matrix
Intelligence-Driven Solutions
Rapid Response
MODEL // S-A02-002
Get Technical Specs
Compact Interceptor
Laser Power2kW
Engagement Dist.400M
Tracking Accuracy30 μrad
Deployment TypeMobile / Tripod
Perimeter Guard
MODEL // S-B02-006
Get Technical Specs
Tactical Guardian
Laser Power6kW
Engagement Dist.1.0KM
Tracking Accuracy20 μrad
Deployment TypeFixed / Truck
Strategic Defense
MODEL // S-C02-010
Get Technical Specs
Sovereignty Master
Laser Power10kW
Engagement Dist.1.6KM
Tracking Accuracy15 μrad
Deployment TypeShelter / Container
*Neutralization performance metrics based on DJI Phantom 4 class UAV targets under optimal atmospheric conditions.
Mass Production & LogisticsMass-Scale Delivery
Leading international production standards for mission-critical low-altitude defense assets.

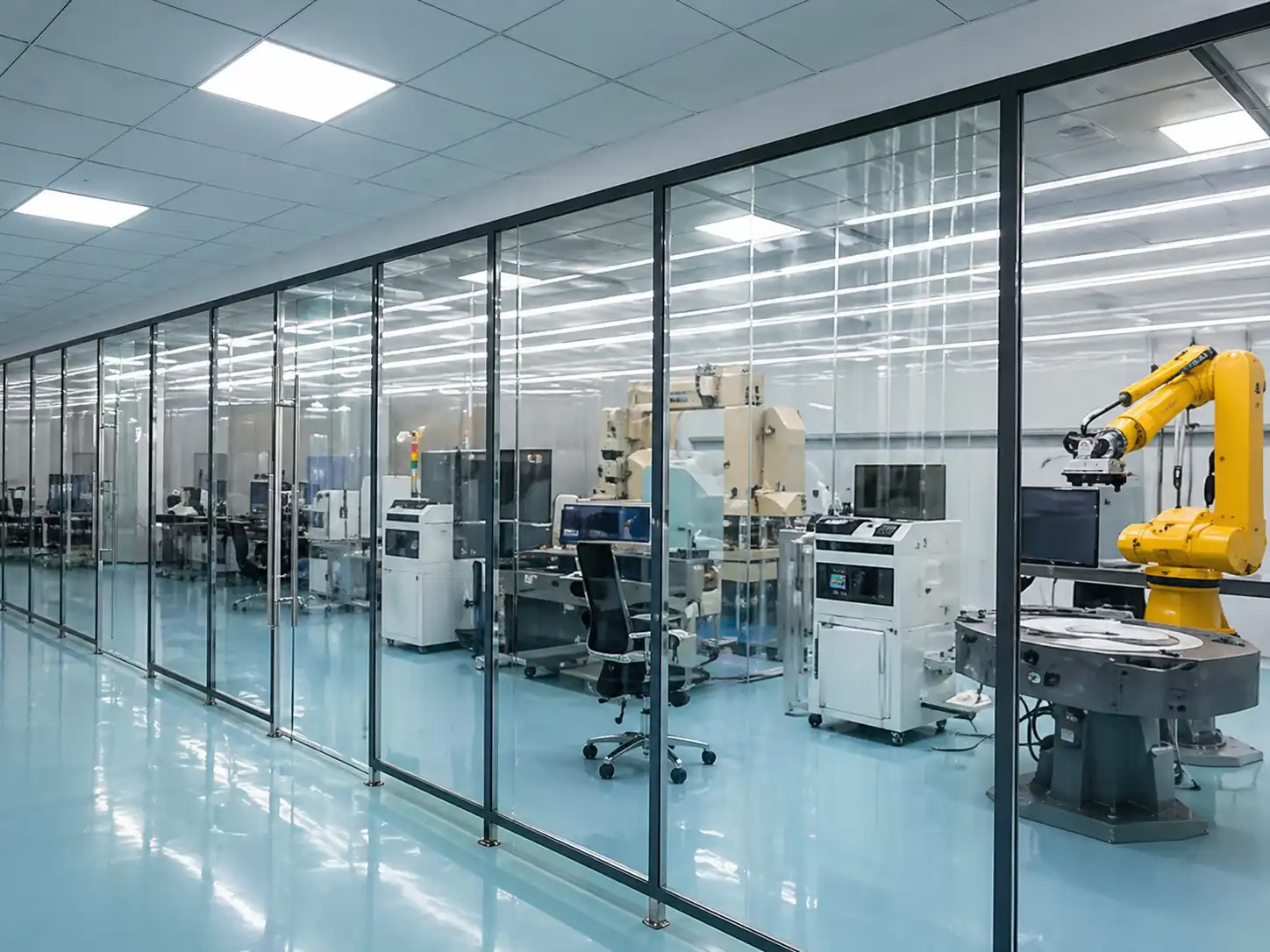

Batch Integration
Equipped with domestic first-class mass production lines for full-system integration and assembly.

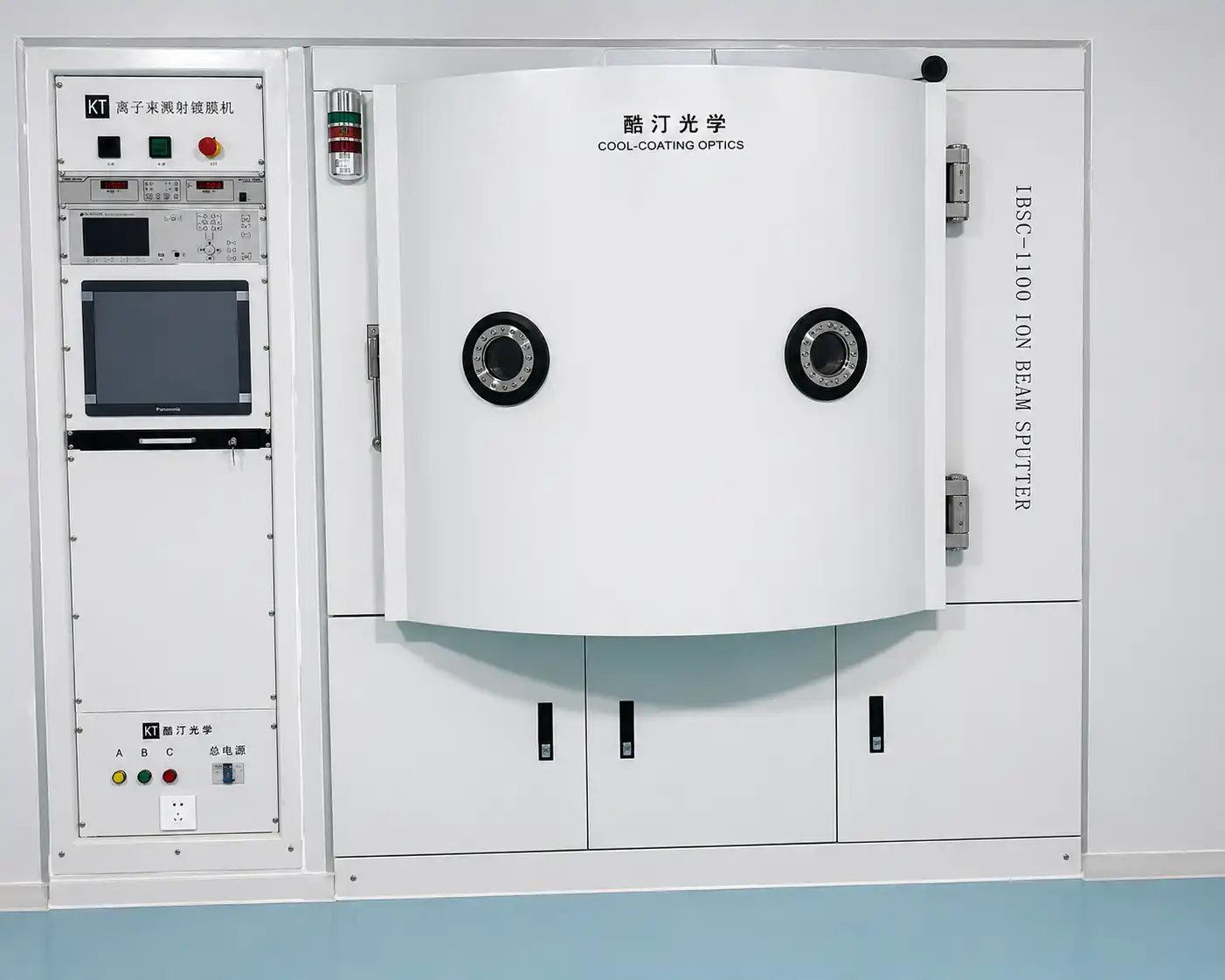

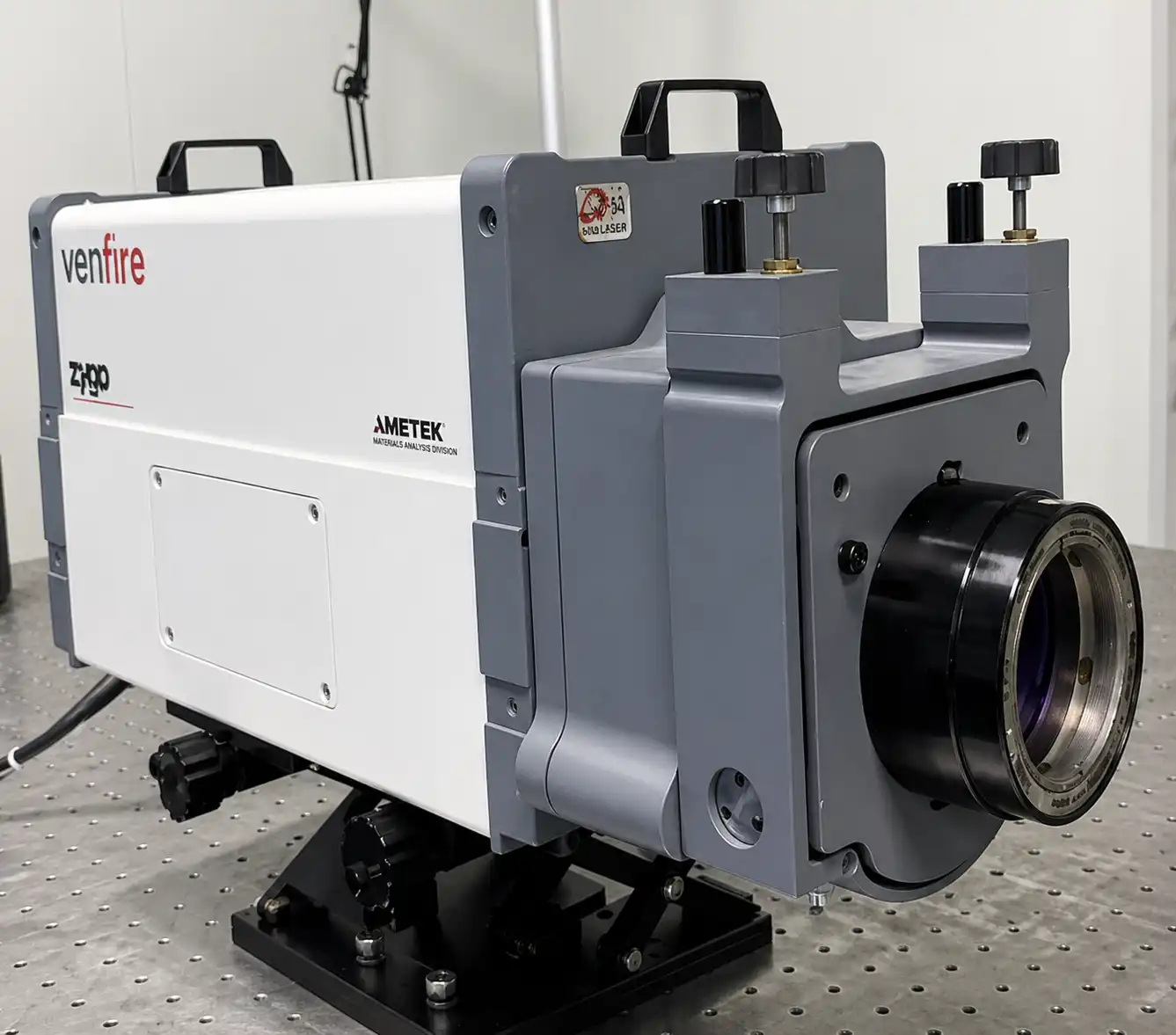

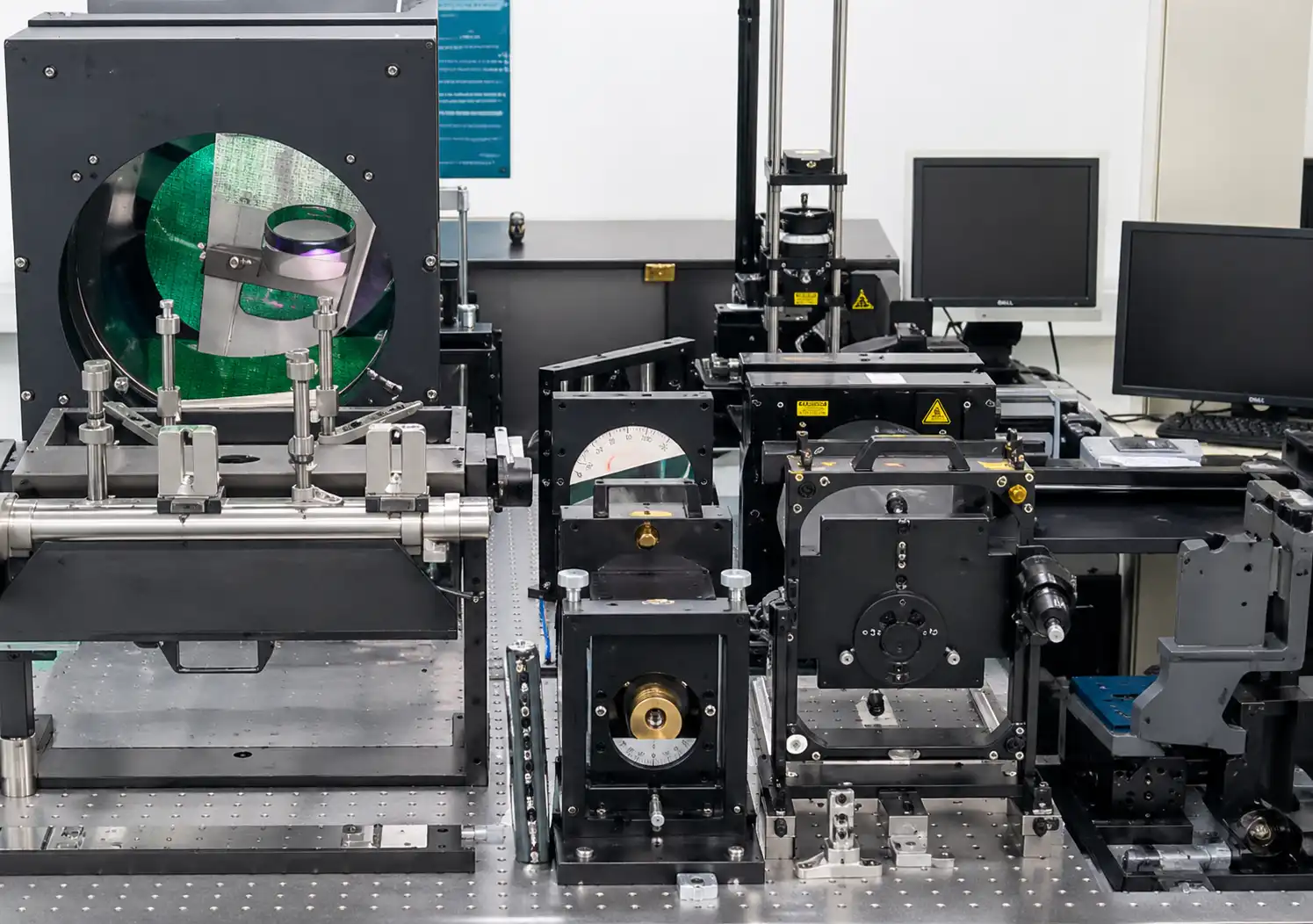

Precision Coating
In-house ultra-precision optical component processing and advanced laser coating infrastructure.
Rapid Response
Robust inventory and scalable workflow designed to secure urgent requirements and bulk procurement.
Sector DeploymentGlobal Industry Matrix
Providing high-precision low-altitude sovereignty across diverse critical infrastructure environments worldwide.
[ SEC_ZONE_01 ]
Aviation Hubs
Securing exclusion zones for international airports and private hangars against unauthorized UAV interference and flight disruptions.
[ SEC_ZONE_02 ]
Energy & Power
Protecting nuclear plants, oil refineries, and strategic grid assets from aerial espionage and targeted kinetic threats.
[ SEC_ZONE_03 ]
Strategic Govt
High-level perimeter defense for administrative centers, sensitive border control points, and tactical military outposts.
[ SEC_ZONE_04 ]
Public Venues
Rapidly deployable security for international summits, sports stadiums, and high-profile mass public gatherings.
System Protocol BriefingTactical Intelligence Log
How does the system perform in adverse weather?
Can it identify autonomous drones with no RF signal?
What are the safety protocols for manned aviation?
Is the system compliant with international standards?
Our systems leverage the 1064nm NIR atmospheric window for maximum beam penetration. Integrated power-adaptive modules automatically compensate for scattering in fog or rain, maintaining engagement range in coastal mist or light precipitation.
Affirmative. The system operates independently of radio frequencies. Our AI Neural Engine processes high-speed multispectral video feeds to classify targets by silhouette and behavior, ensuring 100% identification of GPS-independent "dark" threats.
Integrated safety. The command hub features ADSB-In and secondary radar validation. An automated "No-Fire Zone" logic creates a dynamic 5-degree spherical buffer around detected manned aircraft, with a hardware-level laser kill switch.
Fully certified. All defense units are Class IV Laser products, adhering to IEC 60825-1 and MIL-STD ruggedization. We provide comprehensive safety documentation and operational clearance support for international government deployments.
Engagement InquiryTactical Command Center
Ready to secure your low-altitude sovereignty? Submit your mission parameters for a specialized laser defense feasibility analysis.
