Aerospace MRO Buyer Guide

5 CW Laser Cleaning Systems for Aerospace Components What You Must Prove

Short answer: CW laser cleaning can remove coatings, oxides and contamination quickly from robust aerospace parts, tooling and ground equipment. It is not automatically approved for aircraft hardware. Choose the system architecture from the real part, then qualify the coating-removal window, protected surface, safety controls and acceptance test before purchase or production release.

Oceanplayer LaserBuyer & Process GuideTechnical review: Sep 2026
Aircraft structural maintenance technician making a replacement C-130J panel
System proof belongs to the process window.A machine is not automatically approved for every aircraft part. Approval depends on current maintenance data, representative testing and documented acceptance evidence.Aircraft structural-maintenance context: U.S. Air Force photo by Staff Sgt. Tylin Rust, public domain, via Wikimedia Commons. The image does not show laser cleaning.

60-second verdict

Where CW cleaning earns a trial—and where it does not

Use this screen before comparing wattage. CW systems favor sustained removal on stable, heat-tolerant work. Sensitive coatings, thin skins and composite structures usually need a much tighter test window and may favor pulsed lasers.

Strong starting pointRobust metal parts

Steel tooling, fixtures, ground-support hardware, engine housings and repeatable components with known coatings and room for controlled heat input.

Prove on couponsAluminum and titanium

Cleaning thresholds can sit close to a damage threshold. Validate oxide retention, roughness, hardness, microstructure and the next manufacturing step.

Stop and reviewThin skins and composites

Do not proceed without approved data and representative tests. Resins, sealants, cladding and conversion coatings may be damaged before an obvious visual defect appears.

Non-negotiableApproved data and safety

Current maintenance instructions, a controlled work area, beam containment, plume capture, trained roles and written acceptance limits are purchase gates.

Meaning of proof

“Proven” does not mean one machine is approved for every aircraft

NASA field work has demonstrated laser coating removal, corrosion removal, weld-line preparation and surface cleaning on aerospace and ground-support applications. Research also shows that continuous-wave cleaning can remove selected coatings from aluminum and titanium when power, speed and exposure are controlled.

That evidence supports a serious evaluation. It does not replace the current aircraft maintenance manual, component maintenance manual, engine manual, repair data or customer specification that controls the actual part.

Use this buyer rule

Call a system proven only after it produces accepted parts across the normal material, coating, gap, geometry and operator variation your shop expects.

01

Known starting condition

Identify alloy, temper or heat-treatment condition, coating stack, plating, sealant, contamination, prior repairs and the surface that must remain.

02

Locked process window

Record output power, scan speed, scan width, overlap, focus, standoff, number of passes, path direction, extraction position and cooling pauses.

03

Acceptance evidence

Inspect more than appearance. Depending on the part, evidence may include remaining coating thickness, roughness, dimensional change, microscopy, hardness, adhesion, NDT or mechanical testing.

04

Approved maintenance route

Use the process only where the applicable maintenance data or an accepted engineering change authorizes it. Keep revision-controlled work instructions and traceable records.

Choose the emission mode first

CW and pulsed lasers solve different aerospace cleaning problems

CW delivers energy continuously and is attractive when removal rate and large-area coverage matter. Pulsed systems deliver short bursts with more control over heat accumulation, which often makes them a better first trial for thin, delicate or highly selective work.

Decision factorCW laser cleaningPulsed laser cleaningBuyer interpretation
Best starting taskFaster bulk removal on stable, robust surfacesSelective removal and heat-sensitive surfacesStart from the part and acceptance result, not from a preferred machine type.
Thermal behaviorGreater heat accumulation risk if speed, overlap or dwell is poorly controlledShort pulses can reduce average heat input, although damage is still possibleMeasure the real surface and near-surface result; “non-contact” does not mean “no thermal effect.”
Large-area throughputUsually stronger when the contaminant and substrate tolerate sustained energyUsually slower at the same average powerCompare accepted square meters per shift, including pauses, inspection and rework.
Layer selectivityCan be difficult when coating and substrate thresholds are closeOften easier to tune for a narrow removal windowImportant when primer, anodize, cladding, conversion coating or bond coat must remain.
Typical machine rangeOceanplayer Laser CW systems are commonly configured from 1000 W to 3000 WLower average powers with adjustable pulse energy, frequency and widthThese are equipment categories, not universal aerospace thickness or speed ratings.
Qualification burdenHigh for flight parts because thermal effects must be boundedAlso high; pulse parameters add more variablesBoth modes require documented testing when the part or maintenance data demands it.

Swipe horizontally to compare all columns.

Five practical architectures

Five CW laser cleaning configurations aerospace teams can qualify

These are system configurations, not a claim that five specific commercial models carry blanket FAA or EASA approval. Power is only one design input; delivery, enclosure, motion, extraction and data capture decide whether the system can become a controlled process.

01

1000 W mobile CW system

A practical entry configuration for localized work on robust metal components, tooling and ground-support equipment. The lower power ceiling can make parameter development easier than starting at 2–3 kW, while still offering faster removal than many low-average-power systems on suitable contamination.

Best starting workSteel fixtures, engine stands, wheel-shop tooling, large housings and controlled corrosion-removal trials.
Main limitationStill enough energy to overheat thin aluminum, protective finishes and small edges. Do not treat it as a precision setting by default.
Qualification gate: demonstrate the required cleanliness without changing dimensions, protective layers, roughness or downstream inspection sensitivity.
02

1500 W high-throughput mobile system

This middle range suits facilities with recurring coating or oxide removal on larger metal parts. It adds process headroom without immediately moving to the electrical, cooling and thermal-management burden of the highest-output option.

Best starting workRepeatable metal brackets, overhaul fixtures, steel landing-gear support hardware and thick engine or ground-equipment components.
Main limitationMore output does not improve selectivity. Higher speed, wider scanning or controlled duty may be safer than simply increasing dwell.
Qualification gate: compare at least three representative conditions—light contamination, normal work and the hardest normal coating—using the intended operator and extraction setup.
03

2000 W production CW system

A 2 kW platform is aimed at sustained production on parts that can carry heat away and where accepted throughput justifies the larger source. It should be selected because trials show a wider usable speed window or higher accepted output, not because a brochure labels it “aerospace.”

Best starting workLarge robust steel or nickel-alloy hardware, thick housings, heavy fixtures and controlled coating removal in a dedicated bay.
Main limitationAt the same slow travel speed, excess energy can increase melting, oxidation, undercut at edges or changes in the near-surface structure.
Qualification gate: monitor temperature and inspect worst-case corners, thin transitions, holes and edges where heat flow differs from the flat coupon.
04

3000 W enclosed gantry system

The highest-output configuration makes sense for large, predictable surfaces and non-flight ground assets where coverage rate matters. A gantry can maintain path, standoff and overlap more consistently than manual work and can integrate extraction around the moving head.

Best starting workGround-support structures, steel maintenance platforms, transport fixtures, large engine stands and selected thick metal panels.
Main limitationIt is not the default answer for aircraft skin. Thin sheets, riveted joints, sealants, cladding and layered finishes create rapidly changing heat paths.
Qualification gate: prove dimensional stability and remaining finish at seams, fasteners and panel boundaries—not only in the middle of a flat test panel.
05

Robot-integrated CW cleaning cell

A six-axis robot or positioner can turn a qualified cleaning recipe into a repeatable part-family process. The value is not “lights-out aerospace cleaning.” It is controlled path, angle, standoff, overlap, extraction position and traceability for recurring geometries.

Best starting workRepeat brackets, housings, actuator bodies, wheel components, fixtures and approved engine-part families with stable loading.
Main limitationAutomation repeats mistakes precisely. Part location, coating variation, tool calibration and reflected-beam paths still need controls.
Qualification gate: challenge the cell with normal part-position and coating variation, then lock recipe access, fixture datum, maintenance checks and stop rules.
Technician reassembling an aircraft jet engine during maintenance

Application fit

The component decides the cleaning route

Engine, airframe, landing-gear and composite work may share a hangar, but they do not share one safe laser recipe. Even within one component, heat flow changes around edges, holes, ribs, thin walls and repaired areas.

NASA demonstrations show that laser systems can support aerospace coating removal and surface preparation. The production decision still belongs to the component’s maintenance data and the evidence produced by your qualification plan.

Aircraft engine maintenance context. U.S. Navy image, public domain. The photograph does not show laser cleaning.

Airframe structures

Aluminum skins, panels and fasteners

Use caution. Paint, primer, anodize, alclad, conversion coating, sealant and thin sheet may sit in one stack. CW is a trial candidate only when the required layer can be removed while protected layers and dimensions remain within the approved limit.

Landing gear

Steel parts, plating and corrosion

Know the plating. High-strength steels may carry cadmium or other protective systems. Removing corrosion or coating can change dimensions and fatigue-critical surfaces, while the plume may contain regulated metals. Follow the OEM repair limit and exposure-control plan.

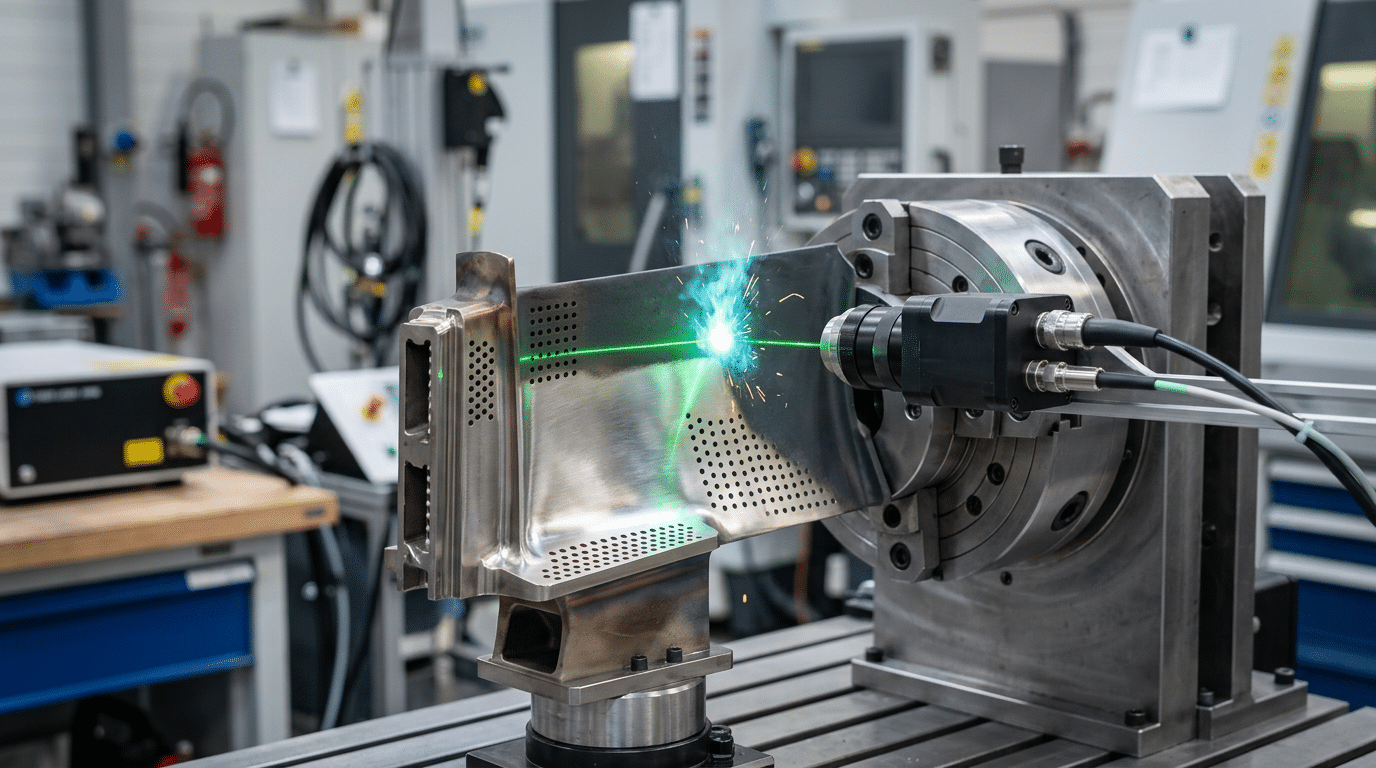

Engines

Housings, liners and hot-section parts

Do not generalize. A thick housing may tolerate a useful CW window; a thin turbine airfoil, cooling hole, bond coat or thermal barrier system may require pulsed cleaning or another approved method. Inspect metallurgy and geometry, not only residue.

Bonding and welding

Surface preparation before joining

Define the next step. The accepted surface may need a certain chemistry, roughness, wetting behavior or contamination limit. A shiny surface can still bond or weld poorly if oxides, salts or laser redeposition remain.

Composite repairs

CFRP, resin and adhesive systems

Usually start with pulsed or non-laser trials. Resin, fibers, lightning-strike mesh and adhesive interfaces can be damaged by heat before the defect is obvious. Use approved repair data and destructive coupon evidence.

Ground equipment

Fixtures, stands and support structures

Often the easiest CW entry point. These assets can offer robust materials, larger areas and lower airworthiness risk. They are useful for developing safety, extraction, maintenance and operator discipline before flight-part qualification.

Process-window design

Power is only one variable in CW laser cleaning

A stable aerospace process comes from the interaction of energy, motion, optics, material and heat flow. Keep the exact setup traceable so a later change to lens, fiber, scanner, extraction or fixture does not quietly invalidate earlier evidence.

Illustration of a laser cleaning process on a contaminated metal surface
Generic laser-cleaning illustration. Image: Kianaarteshyar / Wikimedia Commons, CC0. It is not an aerospace qualification diagram.

Output and speed

Higher output can permit faster motion, but the result is not linear. Record both power and path speed, then verify absorbed thermal effect on the actual coating and substrate.

Scan width and overlap

A wider pattern spreads energy but may reduce intensity. Too much overlap raises heat accumulation; too little can leave stripes or islands of contamination.

Focus and standoff

Changing distance changes spot size and energy density. Curved parts and manual motion need a mechanical or sensing strategy that keeps the approved range.

Pass count and path

Multiple light passes can behave differently from one slow pass. Edges, corners, holes and thin transitions need their own limits because heat cannot escape the same way.

Surface and coating state

Color, thickness, aging, moisture, oil and prior repair change absorption. Use representative worst-normal coupons rather than new, uniform sample paint only.

Extraction position

The plume can block energy, redeposit residue and expose workers. Capture close to the source without disturbing the scanner or pushing contamination into open seams.

01

Identify the controlling document

Start with current AMM, CMM, engine manual, structural repair manual, service bulletin, engineering order, customer specification or other accepted maintenance data. Record revision status and the exact task.

02

Define what may be removed and what must remain

Separate topcoat, primer, conversion coating, anodize, cladding, plating, oxide, sealant and base material. Add dimensional, metallurgical and cleanliness limits.

03

Build an engineering change or qualification route

If the approved data does not name laser cleaning, determine who can authorize an alternative or changed instruction. The answer may involve the design approval holder, operator, customer, competent authority or delegated engineering organization.

04

Test the full condition range

Use actual or representative parts covering coating variation, substrate lots, geometry extremes, previous repairs, contamination and intended operators. A single showpiece is not a production qualification.

05

Release controlled work instructions

Lock approved parameters, fixture, motion, safety controls, extraction, inspection, stop criteria, calibration and maintenance. Restrict recipe changes and preserve serial-number or batch traceability where required.

Hard gate

Class 4 beam control and hazardous plume control come before throughput

High-power open-beam cleaning can create direct, reflected and diffuse radiation hazards, fire risk and airborne contaminants. Aerospace coatings can contain chromium, cadmium, lead or other regulated constituents. Removing wet chemicals does not make the process waste-free or exposure-free.

A safe system is a facility design, not a pair of glasses

Plan a laser-controlled area or validated enclosure, access control, warning systems, rated barriers and viewing panels, beam stops, reflection control, emergency stop, authorized roles, training, inspection and a documented laser-safety program. Wavelength- and optical-density-specific eyewear is only one layer.

For on-aircraft work, reflected paths, adjacent personnel, open doors, lifts, windows and shiny curved surfaces make containment more difficult. Do not assume a portable machine is suitable for an open ramp or shared hangar.

Plume and filter plan

Identify the coating before cleaning, capture at source, select filters for the contaminant, verify exposure controls and handle collected residue as the material requires.

Fire and hot-surface plan

Remove flammables, assess hidden cavities and sealants, control sparks or glowing residue, monitor heat and define fire-watch and emergency actions.

Reflective metal

Aluminum, titanium, nickel alloys and plated or polished features can redirect hazardous energy. Assess the full motion path and possible specular reflection.

Chromate paint

OSHA’s aerospace guidance recognizes hexavalent chromium exposure during paint removal. Engineering controls and exposure assessment remain necessary.

Cadmium plating

Cadmium-containing dust and fume require strict controls. Do not laser-remove an unknown plating system and treat the captured material as ordinary shop waste.

Representative sample test

Prove the cleaning result before buying the system

A useful pilot tests the hardest normal production condition, not the easiest coupon a supplier can prepare. Define acceptance before the laser is turned on, then compare accepted-part time and evidence against the current process.

Aircraft maintainer inspecting a C-17 landing gear assembly
Landing-gear maintenance context. U.S. Air Force photo by A1C Clayton Cupit, public domain. The image does not show laser cleaning.
01

Choose three representative conditions

Test the easiest normal condition, the most common production condition and the hardest normal condition. Include edges, holes, curves, thin transitions and repaired areas.

02

Freeze acceptance criteria

Specify removal depth, protected layers, dimensions, surface chemistry, roughness, hardness, visual limits, NDT response, adhesion or mechanical evidence as the part requires.

03

Develop a safe parameter window

Find a nominal recipe and its safe boundaries. Record what happens when coating thickness, speed, focus, overlap or temperature reaches the normal edge of production.

04

Repeat with intended operators

Run enough parts to expose loading, positioning and motion variation. For automation, challenge fixture location and coating variation; for manual work, challenge posture and access.

05

Inspect the surface and near-surface

Use the inspection plan agreed before the trial. Bright metal is not proof of preserved oxide, unchanged metallurgy, clean bond chemistry or acceptable fatigue performance.

06

Measure the whole route

Include preparation, masking, fixture, containment, cleaning, filter handling, inspection, rework, changeover and documentation—not just beam-on time.

07

Release only the qualified family

Document which material, coating, geometry and condition the process covers. Anything outside that family returns to engineering review instead of operator judgment.

Economics

Compare cost per accepted aerospace part, not cleaning speed alone

A high-output CW system can reduce labor and consumables on the right work. It can also create expensive idle time if the approved workload is small or if safety, extraction and qualification were omitted from the capital request.

Planning formulaCost per accepted part = installed fixed cost + labor + utilities + optics + filters + inspection + rework + downtime, divided by accepted production output

Installed system cost

Include source and head, motion platform, enclosure or barriers, interlocks, extraction, electrical service, cooling, fixtures, monitoring, integration, training and spare optics.

Qualification cost

Budget engineering, coupons, coating preparation, microscopy, hardness, NDT, adhesion or mechanical tests, customer review, procedure release and any requalification after change.

Operating value

Measure accepted parts per shift, labor saved, chemical or media use avoided, waste handled, floor space, finish work, rejection, changeover and realistic eligible volume.

Supplier RFQ

Send evidence, not a one-line request for “an aerospace laser cleaner”

A useful proposal begins with real parts and acceptance requirements. Ask the supplier to explain how its configuration will be tested, contained, extracted, maintained and supported after the demonstration.

Part and geometryPhotos, drawings, dimensions, edges, holes, curves, access and annual volume.
Base materialExact alloy, temper or heat-treatment state, plating, cladding and surface finish.
Removal targetCoating stack, layer thickness, oxide, corrosion, oil, sealant or carbon deposit.
Protected surfaceWhich primer, oxide, conversion coating, dimension or microstructure must remain.
Acceptance planVisual, dimensional, roughness, chemistry, hardness, adhesion, NDT or mechanical criteria.
Facility informationAvailable power, floor plan, enclosure option, extraction path, loading, network and traceability needs.
Maintenance dataApplicable AMM, CMM, repair or customer requirement and the authority for process approval.

Buyer questions

Frequently asked questions

These answers are deliberately conservative. Aerospace cleaning decisions should follow the current maintenance data and evidence for the exact part.

Is a CW laser cleaning machine automatically approved by the FAA or EASA?

No. Regulators approve organizations, data and maintenance pathways; they do not give a blanket approval to a generic laser cleaner for every aircraft component. The process must be supported by applicable current maintenance data or an accepted engineering route, then controlled and documented by the maintenance organization.

Can CW laser cleaning remove paint from aluminum aircraft skin?

Research shows that continuous-wave lasers can remove selected paint systems from aluminum under controlled conditions. That does not make every skin panel a good CW job. Thin sheet, alclad, anodize, conversion coating, primer, sealant, repairs and local heat flow can narrow the safe window. Test the actual coating stack and protect every layer the maintenance data requires.

Is CW or pulsed laser cleaning better for aerospace parts?

CW is usually the stronger starting point for faster bulk removal on robust, stable metal surfaces. Pulsed cleaning is often the stronger starting point for selective removal, thin parts, composites and heat-sensitive surfaces. The correct answer comes from a controlled comparison on representative parts, not from average power alone.

Can a CW laser clean turbine blades?

It may clean selected coatings or deposits on a qualified blade family, but turbine hardware is not a generic application. Airfoil thickness, cooling holes, bond coats, thermal barrier coatings, previous service damage and superalloy microstructure can make the process highly sensitive. Use engine-approved data and inspect near-surface effects, geometry and NDT response.

What CW power should an aerospace MRO facility buy?

Do not choose power until the facility knows its eligible part families. A 1000 W system can be a sensible entry point for controlled robust-metal work; 1500–2000 W may increase accepted throughput on recurring larger parts; 3000 W is mainly justified where large robust surfaces and automation use the extra output. Ask each supplier to prove the hardest normal part at the proposed configuration.

Can portable CW laser cleaning be used on an aircraft in a hangar?

Only when the work can be performed under an approved maintenance procedure and a validated laser-safety plan. Open-beam Class 4 work around reflective aircraft surfaces, windows, lifts, doors and other people is difficult to control. A portable machine does not remove the need for containment, access control, beam management, extraction and trained roles.

Does laser cleaning eliminate hazardous waste?

No. It may reduce liquid chemicals or spent blast media, but the removed coating becomes plume, particles and captured filter residue. If the coating contains hexavalent chromium, cadmium, lead or another hazardous constituent, exposure and waste controls still apply.

What evidence should a supplier provide before purchase?

Ask for the full test setup, parameter log, before-and-after inspection, acceptance results, repeatability across normal variation, safety architecture, extraction design, utility requirements, consumables, service plan and a clear list of what was not tested. The most important proof is an accepted representative part made with the proposed production configuration.

Part-based recommendation

Let the component choose the laser system

Send Oceanplayer Laser the material, coating stack, dimensions, protected layer, current process, required inspection and target output. We will help you build a CW, pulsed or side-by-side sample test around the real decision.
