Laser cleaning safety guide
Operator & supervisor
Updated August 2026
Control the beam before relying on PPE
How to Protect Yourself When Operating a Laser Cleaning Machine
Protect people by controlling the laser, access, reflections and plume first—then add task-specific PPE. Before emission, confirm the documented class and wavelength, establish a controlled area, terminate plausible beam paths, run source capture, remove combustibles and admit only trained, authorized people. If any required control is unknown, missing, damaged or bypassed, do not start.
Identify the laserControl accessControl reflectionsCapture the plumeAuthorize people
Know the laserRead the label and current manual
Class, wavelength, mode and accessible-emission conditions drive every later control.
Control the spaceBuild a real controlled area
Protect entrances, windows, adjacent work and every plausible beam or reflection path.
Match protectionChoose eyewear from evidence
Lens color, a generic “1064 nm” claim or a welding shade is not enough information.
Capture emissionsKnow what is being removed
Paint, plating, oil, polymer and unknown residue can change the plume and filter needs.
Stop-work authorityPause on any failed control
Unexpected reflection, lost extraction, damaged fiber, fire or suspected exposure requires escalation.
The direct safety answer
Goggles are necessary in many Class 4 tasks—but they are not the safety system.
The safer order is simple: prevent exposure with design and physical controls, control how people enter and work, then use PPE selected for the remaining task-specific risk.
Do not enable the machine until five questions have evidence-backed answers.
What laser is accessible? Where can the direct or reflected beam travel? Who can enter? What material becomes airborne? Which approved procedure and protection apply to this exact operating condition?
If the machine label, wavelength, interlocks, barrier plan, eyewear basis, extraction or operator authorization cannot be verified, the correct action is to stop and obtain the missing information.
Scope: this is a general risk-control guide. It does not replace the machine manual, product label, a site-specific hazard assessment, current consensus standards, local law or medical care. Oceanplayer Laser does not use this page to certify a workplace as safe or compliant.
Interactive planning aid
Laser Cleaning Work-Area Readiness Check
Check only items already documented and verified for this exact machine, material and location. The result is a planning status—not an OD calculation, NHZ assessment, barrier rating, ventilation design or compliance approval.
STOP
Critical information is missing.
Do not start the laser. Verify the missing controls with the machine documentation and the responsible laser-safety/EHS role.
A fully checked list means only: proceed under the approved work instruction and complete the machine/site pre-use process. It does not mean “safe in every condition,” “OSHA compliant,” or “certified.”

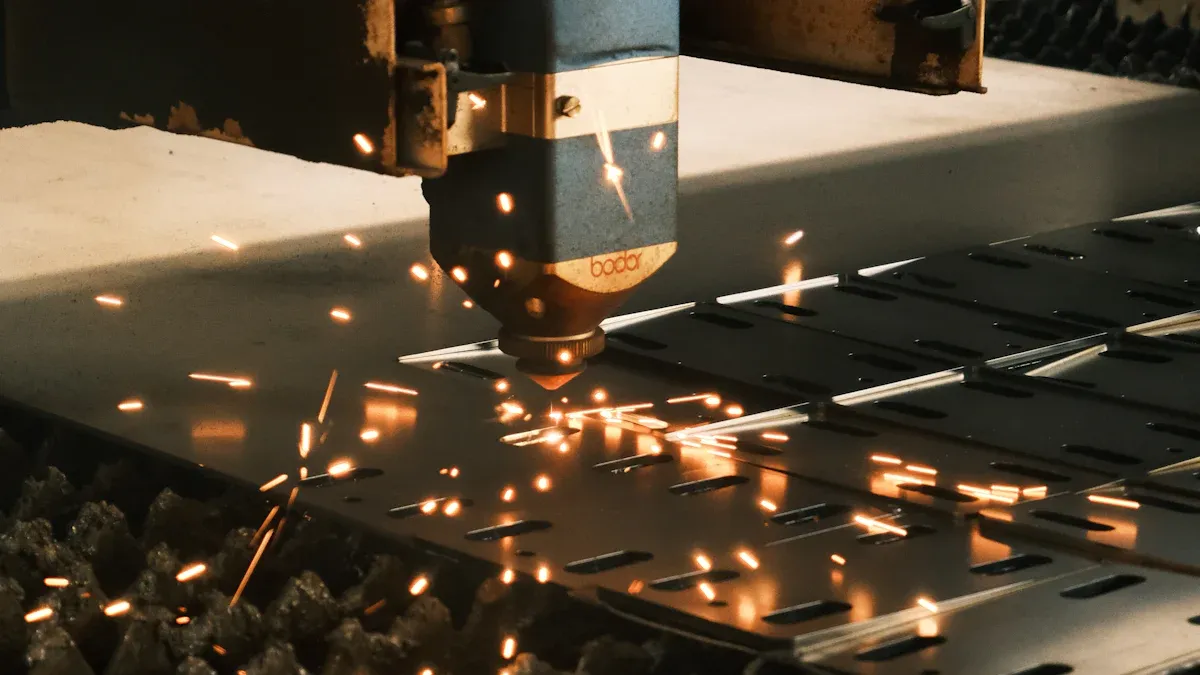

See the whole exposure path
Laser cleaning creates beam hazards and non-beam hazards at the same time.
The primary beam is only one route. A curved part can redirect a mirror-like reflection, a rough surface can scatter energy, the removed layer can become a plume, and hot debris can create a fire or burn hazard.
| Hazard | How it can arise | Primary control direction |
|---|---|---|
| Direct beam | The handpiece is aimed outside the work envelope, fired during setup or used after a safeguard fails. | Contain or terminate the beam; restrict access; verify key control, standby/shutter, interlocks and emergency stop. |
| Reflected radiation | Curved metal, polished tools, windows, vehicles or fixtures redirect concentrated or scattered energy. | Assess the three-dimensional beam path, remove reflective items, use approved barriers and keep people outside the assessed hazard area. |
| Eye and skin injury | Direct or reflected radiation reaches a person; invisible wavelengths add risk because there may be no visible warning. | Use engineering controls first, then wavelength- and task-specific eye, face, skin and clothing protection. |
| Fumes and particles | Ablation or heating releases material from paint, plating, oil, rust, polymer, adhesive or the substrate. | Identify materials where possible, capture close to the source, maintain the system and use respiratory protection only within an appropriate program when required. |
| Fire and equipment | The beam or hot debris reaches combustibles; damaged electrical, cooling, fiber or motion systems create added hazards. | Remove combustibles, inspect utilities and delivery components, follow the fire plan and isolate hazardous energy for authorized service. |
Build protection in the right order
Use the hierarchy of controls—not a PPE-first shopping list.
NIOSH and OSHA place elimination, substitution and engineering controls above administrative controls and PPE because the higher layers reduce reliance on perfect human behavior.
Practical laser-cleaning translation
If an enclosed or lower-hazard method can perform the task, evaluate it first. When open processing remains necessary, isolate the hazard with verified physical controls, define the operating process, and then protect the person against residual risk.
Eliminate the open exposure where feasible
Use a closed cleaning cell, remote handling or another suitable method when it removes the need for people near accessible radiation.
Substitute only after comparing the new hazards
A lower-hazard process may be reasonable for some jobs, but abrasives, chemicals and mechanical tools have their own controls.
Engineering controls take primary priority
Protective housing, rated barriers, beam termination, interlocks, key control, emission indication, emergency stop and local exhaust.
Administrative controls define who may do what
Authorization, controlled-area rules, task SOP, pre-use checks, maintenance boundaries, training, supervision and incident reporting.
PPE is the final protective layer
Laser eyewear, protective clothing, gloves, face/skin protection and respiratory protection selected for the remaining assessed risk.
Step 1 — identify the real system
Do not build a safety plan from “fiber laser cleaner” or wattage alone.
Obtain the current product label, manual, configuration and site procedure. The same source can create very different accessible conditions when a housing is opened, an interlock is bypassed, optics are serviced or a handpiece is used in an open space.
IEC 60825-1 addresses laser-product classification and manufacturer requirements. It does not, by itself, create a finished workplace program. A product can contain an embedded Class 4 source while normal operation is enclosed to a lower accessible class; maintenance or service may reveal the higher hazard again.
Laser emissionAccessible class, wavelength or range, CW/pulsed mode and maximum credible output condition
Delivery systemHandpiece or scan head, optical fiber, working distance, scan behavior and installed safeguards
WorkpieceSubstrate, coating, rust, oil, adhesive, plating, curvature, cavities and changing reflectivity
WorkplacePeople, entrances, windows, vehicles, reflective equipment, ventilation, fire load and adjacent operations
Safety architectureHousing, interlocks, key, emission indicator, standby/shutter, emergency stop, barriers and beam termination
Approved rolesOperator, observer, supervisor, LSO or equivalent competent role, EHS and authorized service personnel
Follow user-described tasks only.
Cleaning a specified external component or changing a user-serviceable filter is maintenance only when the manufacturer defines it that way and the required isolation is followed.
Higher hazards may become accessible.
Opening panels, repairing a fiber, aligning optics or bypassing an interlock belongs to authorized service under manufacturer and site controls—not improvised operator troubleshooting.

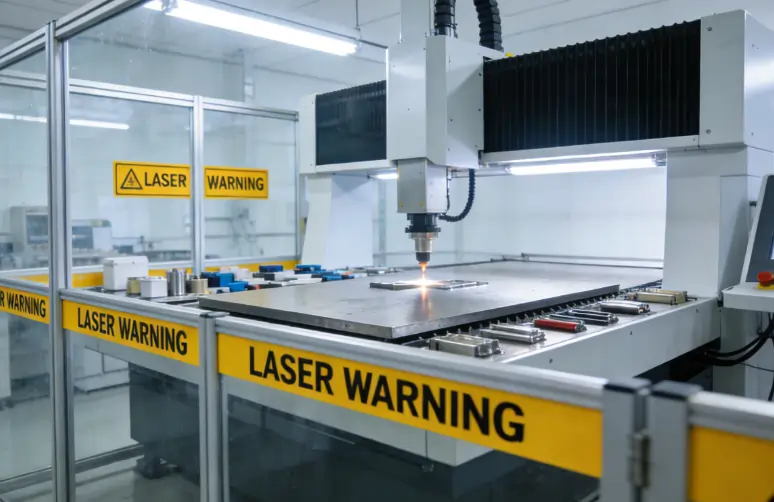

Step 2 — control the real space
A controlled area is a working system, not a warning sign.
For open or handheld processing, the evaluated boundary must account for the primary beam, reflections, the workpiece, plume, entrances, observers and adjacent operations. If that area cannot be controlled, do not use the location.
01
Define the work envelope
Fix the workpiece and expected scan zone so the beam remains within a planned geometry and approved termination path.
02
Remove uncontrolled reflection paths
Include curved parts, newly exposed metal, fixtures, tools, windows, vehicles and overhead structures.
03
Use assessed barriers and openings
Do not improvise with black cloth, cardboard, plastic sheet or a welding curtain that lacks confirmation for the actual laser.
04
Control access and beam-off state
Authorized entry, correct warnings, supervision and an approved standby/shutter/cap or power-off condition are part of the system.
No universal safe distance: NHZ depends on wavelength, output, pulse behavior, beam size/divergence, optics, geometry, reflections and exposure conditions. A qualified role must determine it for the actual installation; this page does not provide a fixed radius.

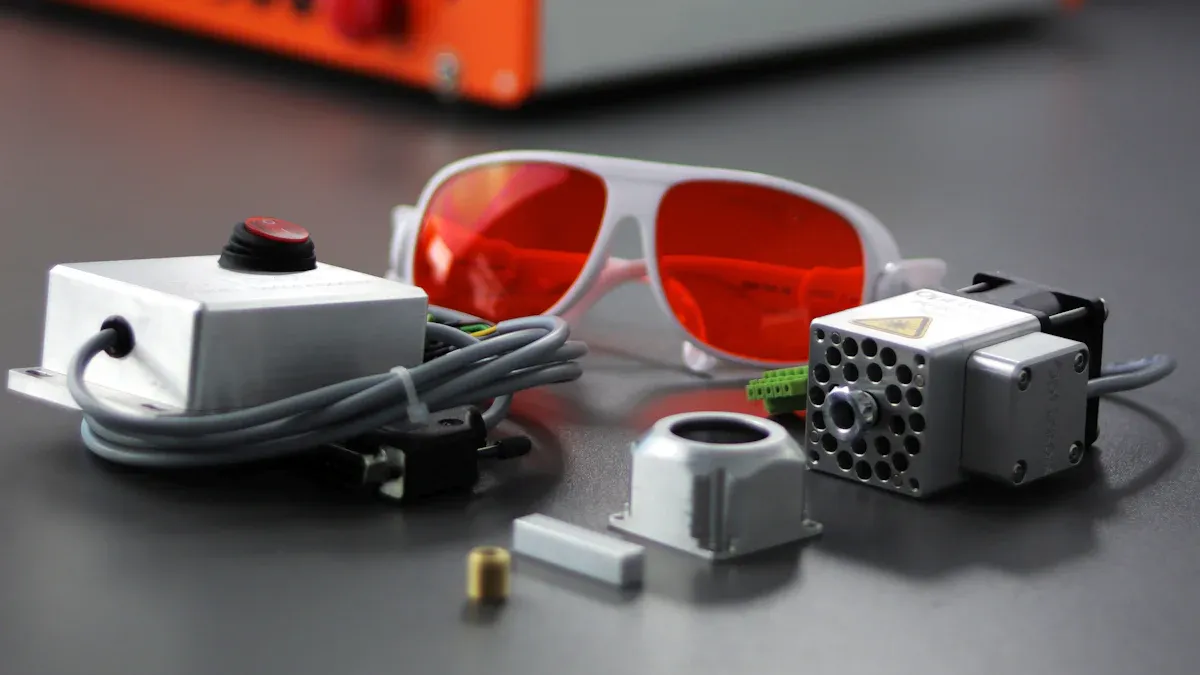

Step 3 — select PPE from evidence
Do not choose laser eyewear by lens color, machine wattage or a generic product name.
Protective eyewear must cover the documented wavelength or wavelength range and provide the required attenuation for the assessed exposure. It also needs usable visibility, suitable coverage, sound frames and filters, and compatibility with the rest of the PPE.
What the selection needs
- Actual wavelength or wavelength range
- CW or pulsed operating conditions
- Required OD from the competent hazard assessment
- Expected beam and reflection geometry
- Visible-light transmission and task visibility
- Frame, side coverage, fit and other PPE compatibility
Reduce assessed residual exposure
Correctly selected eyewear can reduce the chance of an eye injury from an accidental exposure within its rated conditions. Suitable clothing, gloves and face/skin protection can address residual optical, thermal, hot-particle and workpiece hazards when the assessment calls for them.
Inspect labels, filters, frames, fit and condition before every use.
Make an uncontrolled process acceptable
Eyewear is not permission to look into the beam or reflection. A welding helmet is not automatically laser protective. Laser eyewear does not control smoke, gases, fire, hot material, electrical energy or unintended machine motion.
Damaged, unlabeled or uncertain eyewear is a stop condition.
01 / DOCUMENTRead the label and manual
Confirm the actual source, wavelength(s), modes and accessible conditions rather than copying a specification from a similar machine.
02 / ASSESSDefine credible exposure
The competent laser-safety process determines MPE, NHZ and required OD from the real source and geometry.
03 / MATCHVerify markings and coverage
The eyewear label must match the required wavelength range and OD; side coverage and fit must suit the work.
04 / INSPECTCheck before every use
Remove eyewear with pitting, cracks, deep scratches, delamination, frame damage, light leaks or unreadable markings.
Step 4 — know what enters the air
“Rust smoke” is not a complete plume description.
The laser can release particles and vapors from every layer it reaches. The capture layout, filtration, discharge, exposure assessment and waste handling must follow the real material—not a generic machine brochure.
Known starting condition
Rust on documented steel
Confirm whether the part also carries oil, scale, paint, plating or process residue. Treat the generated particles as an exposure that needs source capture and a maintained collection path.
Information to gatherSteel grade where relevant, corrosion products, prior coatings, oil/chemical history and the planned cleaning endpoint.
Control directionPosition verified local capture near generation; maintain and dispose of collected material under the site plan.
Stop and escalate whenThe plume escapes capture, odor changes unexpectedly, the coating history is uncertain or a filter/control alarm appears.
Respirator boundary: a dust mask or respirator does not replace source control. In U.S. workplaces where respirators are required, OSHA 1910.134 calls for hazard evaluation, selection, medical evaluation, fit testing where applicable, training, maintenance and a written program. Do not select a cartridge or filter before identifying the contaminant and work conditions.
Step 5 — control fire and equipment hazards
Treat the machine as optics, electrical equipment and a hot-work source.
Class 4 radiation may ignite material or heat parts and debris. The system can also include high electrical energy, cooling, compressed gas, moving fixtures, cables and optical fiber that require their own controls.
Never improvise a barrier or collector. Paperboard, ordinary black cloth, unknown plastic, unverified welding curtains and household vacuums can transmit or reflect radiation, ignite, release fumes, or create a combustible-dust problem.
Fire load
Remove unnecessary combustibles and control hot particles, smoldering residue and post-process heat under the facility fire plan.
Electrical and cooling
Use the specified supply, grounding and cooling. Stop on damaged leads, leaks, recurring alarms or unstable utilities.
Fiber and handpiece
Protect routing and bend limits; inspect housings and cables. Never open or repair the optical delivery path without authorization.
Motion and fixtures
Control robot, axis, turntable, clamp, pinch and unexpected-start hazards separately from the optical hazard.
Combustible dust
Fine metal or organic particles may create fire/explosion concerns. Identify the dust before selecting collection and return-air arrangements.
Energy isolation
Emergency stop or software standby is not automatically lockout/tagout. Authorized service follows the site energy-control procedure.
Step 6 — make safe behavior repeatable
Use a three-stage operating timeline.
A short checklist is useful only when it matches the approved machine and task. These prompts show what a strong site procedure should cover; they are not a replacement for it.
Verify the system and space
- Match the machine label, manual, work instruction and material record.
- Confirm boundary, signs, authorized access, beam termination, barriers and reflection controls.
- Inspect the handpiece, fiber/cable, housing, key, interlocks, indicator and emergency stop.
- Check approved eyewear and any required skin, thermal or respiratory PPE.
- Remove combustibles and unnecessary reflective items; stabilize the part and fixture.
- Start and verify the specified source-capture system before generating emissions.
Stay inside the approved envelope
- Keep the head and beam within the planned scan and termination path.
- Never use an open-area “test fire” or aim toward people, doors, windows, vehicles or unknown surfaces.
- Maintain access control; stop emission before an unprotected person enters.
- Use only authorized settings, standoff and scan methods for the task.
- Watch for changing reflections, escaping plume, unusual odor, hot debris, alarms or equipment damage.
- Stop rather than continuing through a failed safeguard or uncertain condition.
Leave the system in a controlled state
- Use the approved standby, shuttered, capped or power-off state before leaving position.
- Secure the key or access code and prevent unauthorized restart.
- Manage residual plume, hot parts and contaminated residue under the site procedure.
- Inspect for ignition, smoldering material, damaged barriers and extraction/filter problems.
- Record defects, alarms, unusual reflections and maintenance needs.
- Do not return the system to service until required checks and authorization are complete.
Immediate stop-work conditions
Stop, secure and escalate—do not improvise around a failed control.
The operator needs clear authority to stop production. Absence of pain, a short exposure time or an attractive cleaning result is not evidence that an incident was harmless.
Suspected eye or skin exposure
Stop emission, prevent restart, protect the area, report promptly and follow the site’s urgent medical-evaluation process.
Unexpected reflection or changed geometry
Pause and reassess the complete beam path; “look away” or “stand farther back” is not a control plan.
Barrier, interlock, key or emergency-stop fault
Do not bypass, tape, bridge or ignore the safeguard. Secure the machine and call the authorized role.
Extraction failure or escaping plume
Stop generation and control access. An open door, room fan or unverified respirator is not a substitute.
Unknown coating, odor or residue
Identify the material and obtain EHS/industrial-hygiene review before treating the task as routine.
Fire, smoldering, damaged fiber/cable or abnormal alarm
Use the site emergency process and keep the machine out of service until inspected and released.
| Event | Immediate direction | Do not do this |
|---|---|---|
| Possible laser exposure | Stop and secure the laser, report the event and follow the site’s urgent safety and medical evaluation route. | Do not judge severity from pain, brightness or a quick self-check; do not resume without authorization. |
| Reflection or boundary failure | Isolate the area and reassess beam, workpiece, fixture, barrier and access geometry before restart. | Do not continue while people merely move aside or promise not to look. |
| Plume-control failure | Stop the process, limit exposure and escalate under the extraction/EHS procedure. | Do not substitute general room airflow or unverified PPE for required source control. |
| Fire or overheated material | Stop emission, raise the alarm and follow the facility fire-response plan with trained personnel. | Do not restart until the material, area and safety controls have been assessed. |
Illustrative factory scenario
A portable cleaner does not create a portable safety system.
A shared maintenance bay makes the difference clear. Mobility changes where the machine can go; it does not remove the need to control the environment around the job.
Rust removal beside normal traffic
A technician plans to clean a large frame beside a pedestrian route, polished tool cabinet and general ventilation grille. Old paint remains on part of the surface.
Eyewear does not close the gaps
The reflection path, unauthorized access, coating composition, source capture, fire load and beam termination have not been verified.
Pause before emission
Move the part to an approved cell or build a validated controlled area; identify the coating, remove reflective items, verify capture and safeguards, and authorize only required people.
Buy the workcell, not only the source
Machine selection should include barriers, access logic, extraction, training, maintenance and application proof. If the bay cannot support those controls, the task should not proceed there.
Supervisor and buyer evidence
Approve the complete safety architecture—not a machine photo and a pair of glasses.
A strong supplier conversation starts with the application, material and workcell. Ask what the product provides, what the facility must provide and who owns each verification.
01
Classification and emission documentation
Product label, current manual, wavelength, mode, maximum output conditions and product conformance information.
02
Safety architecture and function tests
Protective housing, interlocks, key, warning indicators, emergency stop, scan-failure behavior and service access controls.
03
Eyewear selection basis
Required wavelength/range and OD basis, markings, inspection, storage, replacement and compatibility with other PPE.
04
Controlled-area drawing
Beam envelope, barriers, openings, access control, warning logic, termination path, operator position and nearby operations.
05
Plume-control and maintenance plan
Material assessment, capture layout, filtration/discharge basis, alarms, filter change, contamination handling and waste route.
06
Role-based training and service boundary
Operator, observer, supervisor, EHS/LSO role and authorized service responsibilities, plus emergency and incident procedures.
Unsafe shortcuts to reject
Seven statements that should stop a safety review.
×
“The goggles are green, so they work for fiber lasers.”
Lens color does not prove wavelength coverage, required OD, damage threshold, frame integrity or suitability for the exposure.
×
“Five meters is a safe distance.”
There is no universal radius. NHZ follows the actual source, mode, optics, geometry, reflection paths and exposure conditions.
×
“Rust is rough, so reflections are harmless.”
Class 4 diffuse reflections may be hazardous, and the cleaned metal can become more reflective as the process advances.
×
“HEPA or an N95 handles every plume.”
Particle filters do not control every gas or vapor. Material identification and exposure evaluation must drive capture, filtration and respiratory decisions.
×
“FDA-compliant equipment makes the workcell OSHA compliant.”
Product requirements and workplace controls are different responsibilities. Site layout, people, material and operating method still require assessment.
×
“An interlock allows open operation.”
Interlocks support the protective system; they do not authorize a person to defeat a boundary, enter a beam path or ignore reflections.
×
“Supplier training replaces our risk assessment.”
Manufacturer training is valuable, but the employer/site must address its material, work area, local rules, adjacent work and authorization structure.
×
“The beam is invisible, so it is less dangerous.”
Invisible radiation removes a natural visual warning. Use indicators, barriers, procedures and measured/documented controls—not eyesight—to manage it.
Frequently asked questions
Laser cleaning machine safety FAQ
Are laser safety goggles enough for a laser cleaning machine?
No. Goggles are one protective layer. Control the beam with an enclosure or assessed controlled area, barriers, access restrictions, interlocks and beam termination; control the plume; then use eyewear selected for the actual wavelength and required optical density.
Can reflected laser light damage eyes during laser cleaning?
Yes. FDA describes Class 4 lasers as an immediate eye and skin hazard from direct or reflected beams, and OSHA guidance also addresses potentially hazardous diffuse reflections. Control shiny surfaces, changing workpiece geometry and access rather than focusing only on the direct beam.
Can I use a laser cleaning machine in an open workshop?
Only inside a site-specific, established and verified controlled area with the required engineering, administrative and PPE controls. A portable handpiece does not make an open walkway, neighboring workstation, window or reflective shop environment acceptable by default.
Can I use a welding helmet instead of laser goggles?
Not automatically. A welding shade or face shield is not proof of protection for the laser wavelength and exposure. Use only eye and face protection confirmed for the actual source, operating conditions and required OD by the manufacturer documentation and competent hazard assessment.
Are fumes from laser cleaning dangerous?
They can be. The plume may contain particles and vapors from coatings, paint, plating, oil, polymer, rust and substrate material, and its composition can change during cleaning. Characterize the job where possible and capture emissions at the source under an appropriate exposure-control plan.
What should I do if the fume extractor stops working?
Stop cleaning, prevent further exposure and follow the site ventilation/EHS procedure. Do not continue with only general room ventilation, an open door or an unverified respirator as a replacement for required source capture.
What should I do after a suspected laser eye exposure?
Stop the laser, secure it against restart, report the event and follow the site’s urgent medical-evaluation procedure. Do not rely on lack of pain or an informal vision check; a laser eye injury may not be immediately painful or obvious.
Who may service a laser cleaning machine?
Only people authorized under the manufacturer instructions and site program. Opening panels, repairing optical delivery paths, aligning optics or bypassing interlocks can expose hazards beyond normal operation and must use the correct service and hazardous-energy controls.
Technical sources and scope
Primary references used for this guide
These sources support the control principles and regulatory context. U.S. OSHA/FDA requirements do not automatically replace the rules in another country, and consensus standards may apply through law, contract or company policy.
- FDA — Frequently Asked Questions About Lasers: current laser-class and Class 4 direct/reflected/fire hazard description.
- OSHA — Laser Hazards: optical and associated laser hazard overview.
- OSHA Technical Manual, Section III, Chapter 6: NHZ, operating states, controls, training and eyewear principles.
- OSHA — Guidelines for Laser Safety and Hazard Assessment: controlled areas, interlocks, beam controls and eyewear labeling.
- OSHA — Hazard Prevention and Control: engineering-first hierarchy and verification of controls.
- OSHA 29 CFR 1926.54: U.S. construction-context training, warning, eye protection and beam-off provisions.
- OSHA 29 CFR 1910.134: respiratory hazard evaluation, selection, medical evaluation, fit testing, training and written-program requirements.
- NIOSH — Hierarchy of Controls: preferred order from elimination through PPE.
- NIOSH — Laser and Plasma Cutting Worker Safety: manufacturing context for engineering controls, training and ventilation.
- IEC 60825-1:2014: laser-product classification and manufacturer requirements; not a complete workplace program.
- ANSI Z136.1-2022: current U.S. consensus model for laser safety programs and qualified LSO oversight.
- ISO 11553-1:2020: safety requirements for laser processing machinery.
The OSHA laser directive and Technical Manual include historical references and example calculations based on older editions of ANSI Z136.1. This page uses their control concepts, not their old example OD, MPE or NHZ values. Current calculations and equipment selection should follow the applicable current standard and qualified assessment.
Turn the application into a controlled process
Share the material, contamination and workcell—not only the machine power.
Oceanplayer Laser can help review the cleaning objective, part geometry, machine direction and sample-test route. Your employer, qualified laser-safety/EHS team and local authority retain responsibility for the final hazard assessment, controls, training and authorization.
Include these details
- Base material and exact coating, rust or residue
- Part size, shape, cavities and reflective surfaces
- Cleaning area and required finished condition
- Daily volume and planned operating mode
- Workcell layout, entrances and nearby operations
- Existing extraction, fire and facility constraints
