What Is the Weld Throat and Why Does It Matter for Strength?
The weld throat is the shortest load-resisting path through a fillet weld. It is central to effective weld area, but throat size alone does not prove fusion, code compliance or total connection strength.
Throat terminology distinguishes theoretical geometry, effective design size and the as-deposited profile.
A 10 mm equal-leg fillet has a 7.07 mm theoretical throat under ideal geometry.
Concavity, root condition, fusion and discontinuities can change the accepted result.
Base metal, weld metal, length, loading direction, fatigue and the adopted code also matter.

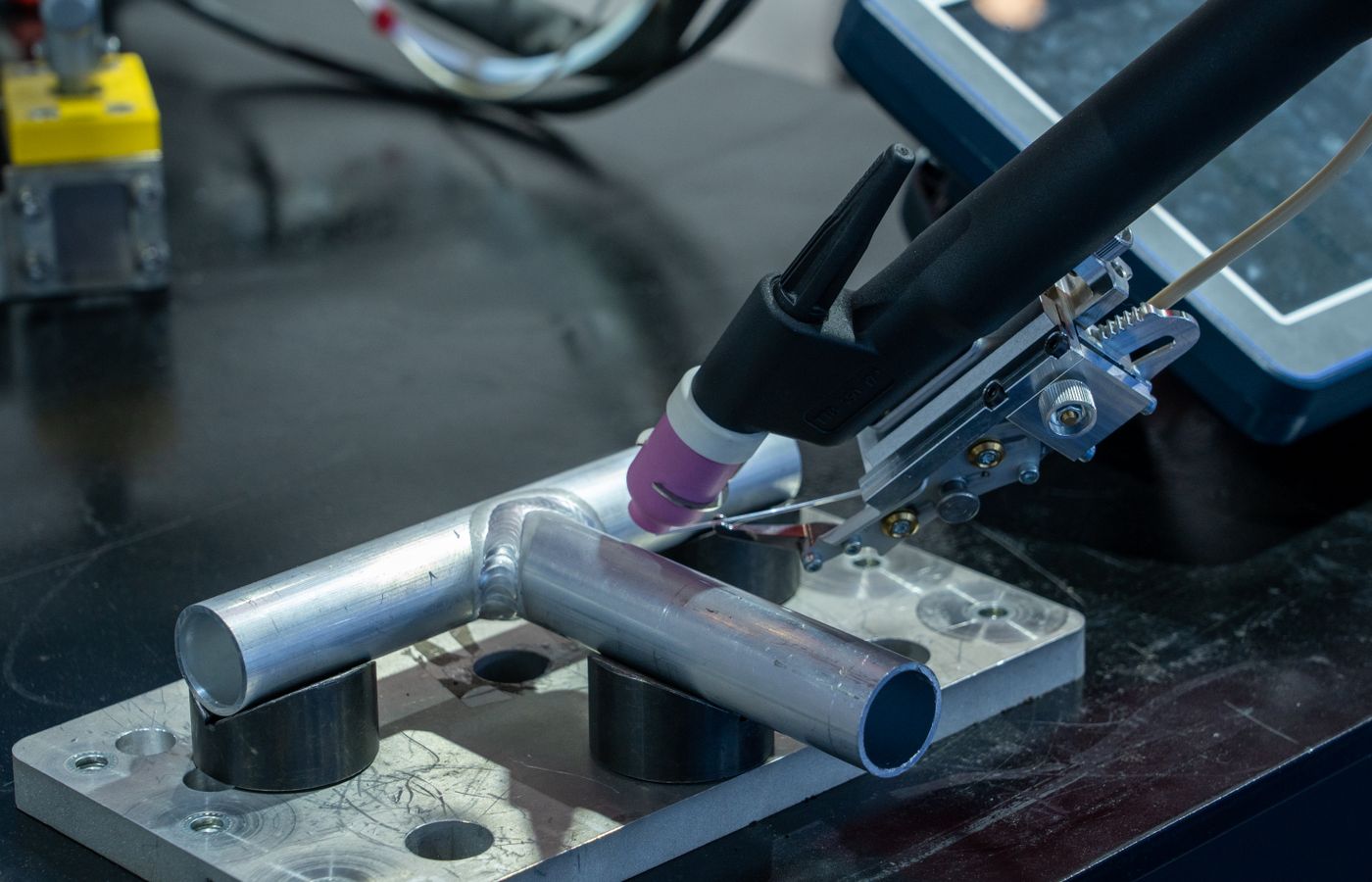

Where is the throat on a fillet weld?
A fillet weld joins surfaces that meet, commonly at approximately 90°. Its root is the deepest point of the joint, the toes are where the weld face meets the base metal, and the legs run from the root to each toe.
The point at which the back of the weld intersects the base-metal surfaces. Throat dimensions are referenced to the root, which may not be directly visible after welding.
Each leg is measured from the root to a toe. An equal-leg callout does not mean the visible bead will be a perfect triangle, and unequal legs require both dimensions.
The face is the exposed weld surface. The throat runs from the root toward that face, but the exact definition changes depending on whether the theoretical, effective or actual throat is being discussed.
Theoretical, effective and actual throat
Current AWS terminology gives each term a specific geometric role. Project specifications and adopted codes determine which dimension receives design credit and how it is verified.
| Term | What it describes | What is excluded or limited | How to use it |
|---|---|---|---|
| Theoretical throat | The perpendicular distance from the joint root to the hypotenuse of the largest right triangle that can be inscribed in the fillet-weld cross-section. | It is idealized geometry. It does not itself prove fusion, penetration, soundness or an accepted as-built profile. | Use it to interpret ordinary fillet geometry and drawing size. Apply the correct joint angle and leg dimensions. |
| Effective throat | The minimum root-to-face distance credited for design, excluding convexity. Applicable code provisions may define or permit limited penetration credit in particular qualified cases. | Extra cap reinforcement or convexity is not automatically load-resisting throat. Code credit is not created by visual appearance alone. | Use the governing specification, joint details and qualified procedure to establish the credited design throat. |
| Actual throat | The shortest distance between the weld root and the surface of the as-deposited fillet-weld face. | An external gauge cannot necessarily reveal the hidden root, internal lack of fusion or all cross-sectional discontinuities. | Use appropriate inspection, sectioning or qualified measurement methods when the actual cross-section must be confirmed. |
| Leg size | The distance from the root to a toe along the member surface. Equal-leg fillets have one nominal size; unequal-leg fillets require two. | Leg size is not synonymous with throat. A concave face can have acceptable-looking legs but insufficient throat. | Measure the required legs and profile, then confirm that the accepted throat requirement is also satisfied. |
The effective throat is measured without crediting convexity. A high crown can consume weld metal and heat input while contributing little or no code-credited throat. Conversely, concavity can pull the face inward and reduce the actual or acceptable throat even when both toes reach the nominal leg positions.
How to calculate weld throat size
Start by identifying the weld type, joint angle and the dimension shown on the drawing. Never apply the equal-leg shortcut to every triangular-looking weld.
t = z × sin(45°) = 0.7071z
Here, t is the theoretical throat and z is the equal leg size. A 10 mm leg produces an ideal theoretical throat of 7.071 mm.
t = (a × b) ÷ √(a² + b²)
For legs of 8 mm and 12 mm, the ideal throat is 96 ÷ √208 = 6.66 mm. Using 0.707 times the larger leg would be unconservative; using the smaller leg alone would not describe the actual geometry.
t = (a × b × sin θ) ÷ √(a² + b² − 2ab cos θ)
This is a geometric distance from the root to the line joining the two toes. Skewed T-joints, acute/obtuse joints and special profiles may have code-specific effective-throat rules, minimum sizes or detail restrictions. Use the formula as geometry, not automatic design credit.
6 mm equal legs
At 90°, theoretical throat = 0.7071 × 6 = 4.24 mm. Over 200 mm of accepted effective length, ideal geometric area = 848.5 mm².
8 × 12 mm legs
At 90°, the ideal throat is 6.66 mm. The controlling perpendicular distance is not obtained by averaging the two legs.
Drawing gives throat “a”
Some drawing systems dimension the throat directly rather than the leg. Read the symbol standard and project notes before converting between a and z.
Complete-joint-penetration, partial-joint-penetration and flare-groove welds use separate definitions and qualification rules. A narrow laser-weld seam also cannot be reduced to “leg × 0.707” unless it is genuinely an ordinary 90° fillet governed by that geometry.
Concave, flat and convex fillet faces
The toes may occupy similar positions while the shortest root-to-face distance changes. That is why a leg-only check is incomplete.
The face curves inward. Excessive concavity can reduce throat below the required value even when the legs appear adequate.
The straight face follows the ideal triangular model most closely. Acceptance still depends on size, length, fusion and applicable quality criteria.
The crown extends beyond the ideal face. It can add weld volume without automatically increasing the effective throat used in design.
The throat converts weld size into load-resisting area.
That area is then used in the governing design method. A larger accepted throat generally increases nominal weld-metal resistance, but it does not automatically make the whole joint stronger.
The phrase weld throat often sounds like one simple dimension. In practice, AWS terminology separates the theoretical throat, effective throat and actual throat. Those terms answer different questions: what the ideal geometry predicts, what the design or governing rule credits, and what the deposited weld profile physically contains.
This distinction matters whenever a drawing calls out a fillet weld, an inspector checks a bead, an estimator prices weld volume or an engineer compares a conventional arc weld with laser welding. It also prevents a common error: assuming that an attractive face or an adequate leg measurement guarantees the required internal fusion and effective area.
The interactive calculator that follows turns the ideal geometry into a planning result. It remains deliberately separate from connection capacity and acceptance, which require the adopted standard, qualified procedure and suitable inspection evidence.
Fillet Weld Throat Geometry Calculator
Calculate the perpendicular distance from the root to the line joining the two weld toes for an ideal triangular fillet. Use equal or unequal legs and a selected included angle.
Enter the idealized joint geometry
The default example is a 10 × 10 mm, 90° equal-leg fillet over 100 mm of weld length.
Geometry only. The calculator does not credit penetration, determine allowable strength, evaluate root gap or fusion, apply a code, or qualify a welding procedure.
Why weld throat matters for strength
The accepted effective throat and effective weld length establish an effective weld area. That area is a core input to weld-metal resistance, but it is only one part of the connection check.
Awe = Le × te
Le is effective weld length and te is effective throat. In structural-steel design, a governing specification may use this area with a weld-metal nominal stress and applicable resistance or safety factors. Do not transplant one code’s stress expression into another application.
If every other input remains valid, increasing effective throat increases the nominal weld-metal area in direct proportion. For example, increasing credited throat from 5 mm to 6 mm raises effective weld area by 20% for the same length. But the connection may still be governed by base-metal yielding or rupture, block shear, local deformation, eccentricity, fatigue, the weld group’s geometry, or a different limit state.
Throat × length
A correct throat with insufficient effective length still gives insufficient area. Intermittent welds, end returns and terminations must be interpreted from the drawing and governing specification.
The weld group matters
Loads may act longitudinally, transversely, eccentrically or in combination. Force distribution through the weld group cannot be inferred from throat size alone.
Sound fusion matters
Porosity, slag, cracks, lack of fusion, undercut or an unqualified procedure can invalidate a simple area-based expectation.
Can a weld be too large?
An oversized weld is not automatically a stronger or better connection. Fillet-weld volume grows approximately with the square of leg size, so a modest increase can add substantial filler, arc time, heat input and distortion. The larger bead may also create poor access, unfavorable profile or interference with adjacent features.
At the same time, an inspector should not casually demand removal of an otherwise acceptable oversized weld. Gouging or grinding can introduce new damage, residual stress or cracking. Acceptance and repair should follow the contract documents, governing code and an authorized disposition.
Deposit the required qualified size and profile consistently—not the largest bead the process can produce.
Fillet welds and groove welds do not share one throat rule.
The 0.707 shortcut belongs to a specific fillet-weld geometry. Groove preparation, penetration classification and qualified procedure determine the effective throat of groove welds.
- Ordinary equal-leg, 90° fillet: theoretical throat = 0.707 × leg.
- Unequal legs: use both leg dimensions.
- Skewed joints: use the correct joint geometry and code provisions.
- Concavity can reduce throat; convexity is not automatically credited.
- Actual fusion and discontinuities still require suitable verification.
- CJP welds are intended to achieve complete joint penetration as defined by the applicable standard and qualified procedure.
- PJP welds use a specified or qualified depth/effective throat—not the fillet 0.707 rule.
- Flare-bevel and flare-V details have special effective-throat provisions.
- Backing, root opening, groove angle and process qualification can affect the accepted result.
- External bead width cannot prove penetration depth.
| Joint situation | Can 0.707 × leg be used? | What must be established instead? |
|---|---|---|
| Equal-leg 90° fillet | Yes, for ideal theoretical throat geometry. | Accepted leg, profile, effective length, fusion, quality and applicable code requirements. |
| Unequal-leg 90° fillet | No single-leg shortcut. | Both legs and the perpendicular geometric distance; then the applicable effective-throat rule. |
| Skewed fillet joint | Not automatically. | Included angle, leg dimensions, symbol interpretation and governing specification. |
| PJP groove weld | No. | Specified effective throat, groove detail, procedure qualification and inspection requirements. |
| CJP groove weld | No. | Complete joint penetration under the qualified detail and applicable acceptance criteria. |
| Laser seam or lap weld | Only if it is truly governed as an ordinary fillet. | Joint-specific fused cross-section, qualified WPS, required quality level and verification method. |
How weld throat is measured and verified
Inspection should begin before the arc or laser starts. The inspector needs the drawing convention, weld symbol, WPS, joint detail, acceptance standard and access limitations.
Read the requirement
Confirm whether the symbol specifies leg size, throat size, weld length, intermittent pitch, contour, finish, all-around extent or a groove-weld requirement.
Verify fit-up
Check root opening, included angle, alignment, cleanliness and accessibility before welding. Fit-up changes the deposited cross-section and may invoke code-specific provisions.
Gauge the profile
Use the correct fillet-weld gauge or measurement method for legs, convexity, concavity and throat-related acceptance. A digital caliper is not a universal throat gauge.
Check length and continuity
Confirm effective extent, starts, stops, craters, terminations and discontinuities. A correct local profile does not compensate for missing length.
Escalate when hidden evidence matters
Use macroetch, qualified scanning, destructive sectioning or specified NDE when penetration, root fusion or internal quality cannot be established visually.
What visual inspection can establish
With suitable access, calibrated tools and a defined acceptance standard, visual inspection can evaluate visible size, profile, length, contour and surface discontinuities. It can reveal obvious undersize, undercut, overlap, cracks, arc strikes, poor terminations or excessive profile.
What it cannot prove by itself
Visual inspection cannot automatically locate the hidden root, quantify internal fusion or establish complete penetration. A fillet-weld gauge also assumes a particular profile and access geometry. If internal fusion is a release criterion, the inspection plan must include a method capable of producing that evidence.
Match the inspection method to the failure mode. Surface appearance, effective throat and internal soundness are related but not identical.
| Method | Useful evidence | Primary limitation | Typical role |
|---|---|---|---|
| Fillet-weld gauge | Visible leg size, convexity, concavity and selected throat/profile checks. | Requires access and the correct gauge; does not prove hidden fusion. | Routine in-process and final visual inspection. |

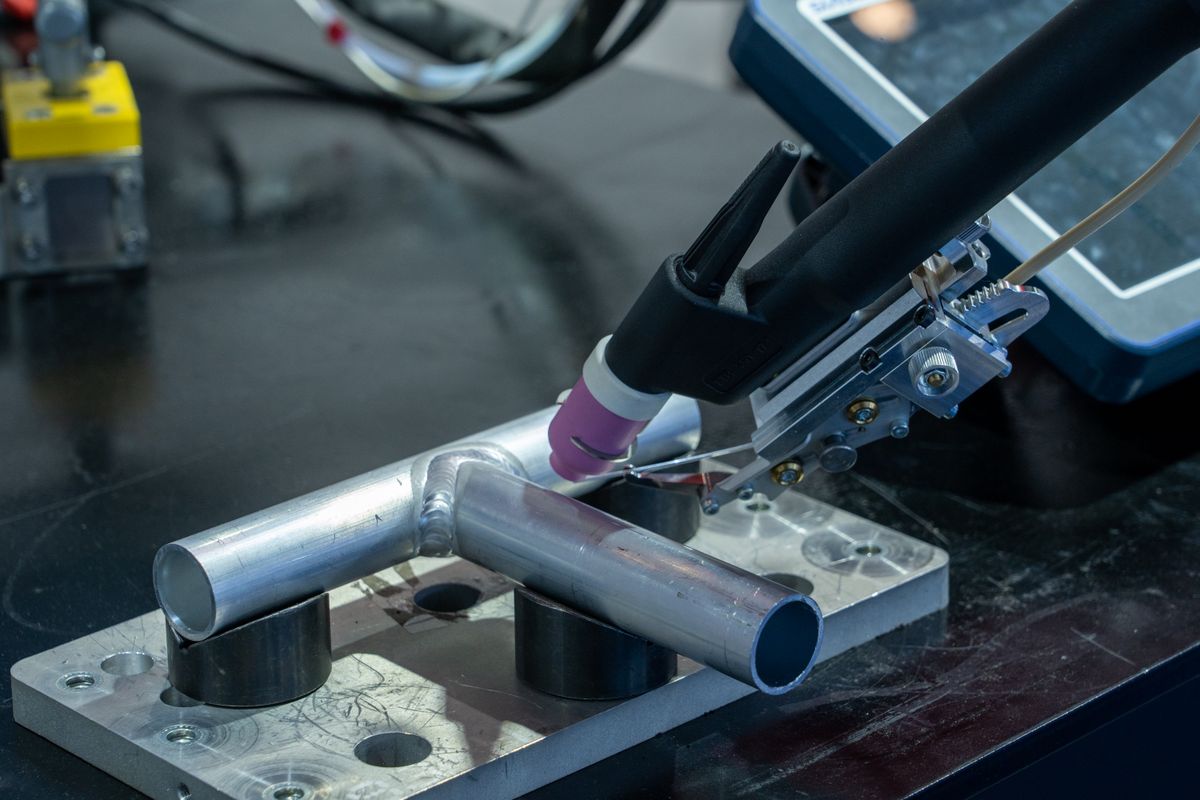

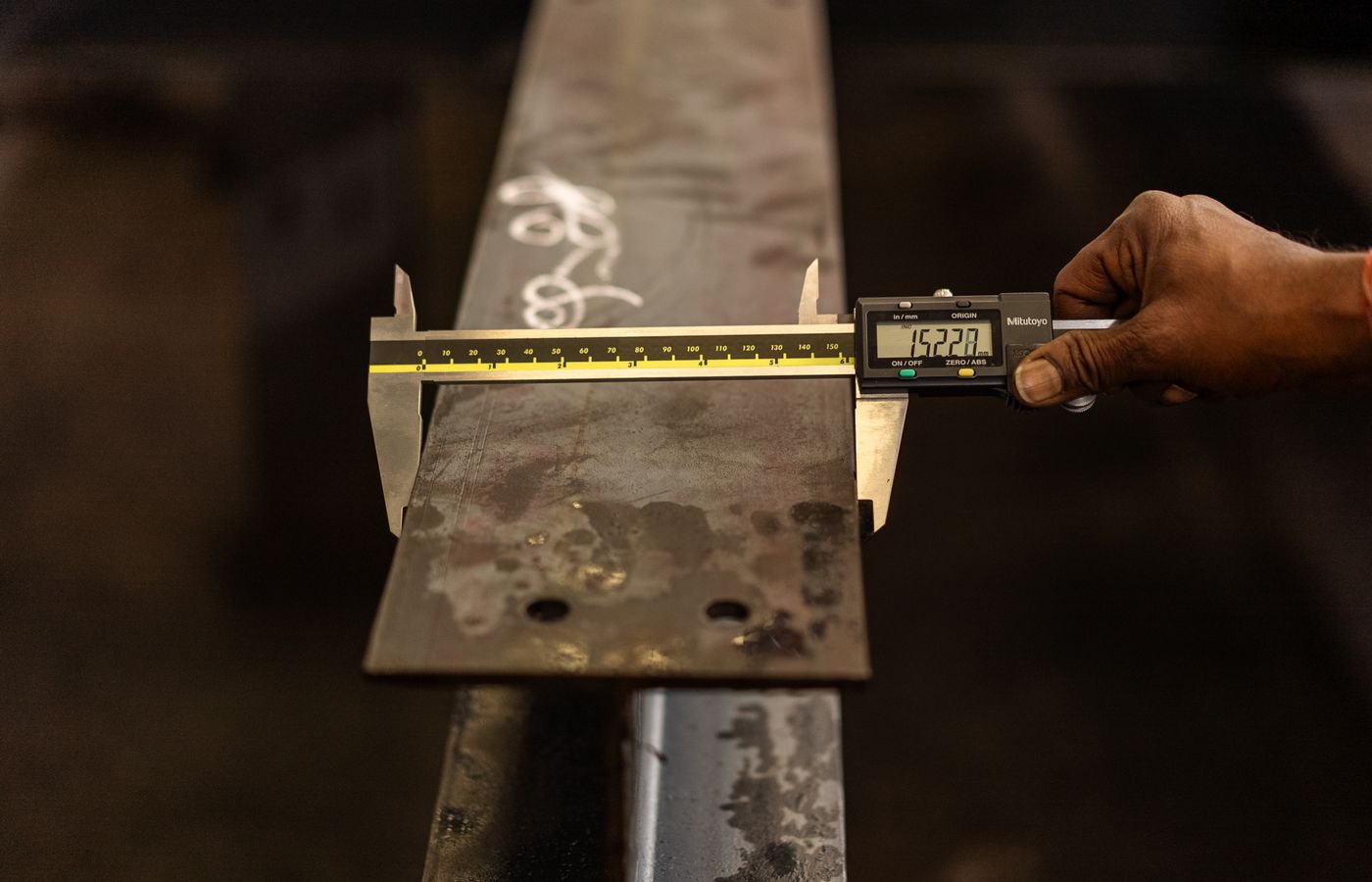

| Caliper or rule | Accessible linear dimensions and weld length. | May not represent the true shortest root-to-face distance. | Supporting dimensional checks. |
| Macroetch cross-section | Fused zone, penetration shape, profile and internal discontinuity evidence at the sampled section. | Destructive and local; sampling plan matters. | Procedure development, qualification and forensic verification. |
| Laser profile scan | High-density surface geometry and repeatable profile records. | Surface measurement does not automatically reveal hidden root fusion. | Automated dimensional inspection with validated correlation. |
| Specified NDE | Evidence targeted to internal or surface discontinuities, depending on the method. | Technique, calibration, geometry and acceptance criteria are application-specific. | Code- or project-required quality assurance. |
Common weld-throat mistakes
Most throat errors start before inspection: the wrong dimension is read, the wrong formula is applied or the production process is asked to compensate for an incomplete joint definition.
A 6 mm equal leg at 90° gives about 4.24 mm theoretical throat—not 6 mm. Confirm whether the drawing dimension is “a” or “z.”
The shortcut does not cover unequal legs, skewed fillets, PJP/CJP grooves, flare grooves or every laser-weld cross-section.
Convex reinforcement beyond the ideal face is not automatically part of the effective throat, even when it consumes more filler metal.
Leg endpoints can look adequate while an inward face shortens the minimum root-to-face distance.
Root gap, misalignment and changing angle can alter geometry. Inspect fit-up and apply only provisions authorized by the governing standard.
A precise external profile is still external evidence. Correlation to macrosections or other suitable verification may be needed.
Local size does not replace missing weld length, unacceptable terminations or an interrupted load path.
A larger throat may simply move the controlling limit state into the base metal or increase distortion and cost.
Structural steel, pressure equipment, machinery and beam-welded products do not share one universal acceptance rule.
How throat verification changes for laser welding
Laser welding can create a narrow, deep fused zone with a small visible face. That makes cross-sectional evidence and process qualification more—not less—important when penetration or effective throat is a release criterion.
Do not judge a keyhole weld by bead width alone.
In conduction-mode welding, fusion is relatively shallow and broad. In keyhole-mode welding, concentrated energy can create much deeper penetration. Focus position, power, travel speed, joint gap, shielding, beam oscillation and material condition can shift the process between stable penetration, underfill, porosity, spatter or collapse.
For laser-welded lap, corner, butt or hybrid joints, define the required fused cross-section and acceptance level in the drawing, WPS and inspection plan. ISO 13919-1 addresses imperfection quality levels for electron- and laser-beam-welded steel, nickel, titanium and their alloys; ISO 15614-11 covers procedure qualification for electron- and laser-beam welding. Those standards do not turn a photograph into proof of fitness for purpose.
Where handheld laser welding fits
Handheld laser welding can improve travel speed, heat input control and operator accessibility for suitable sheet-metal joints. It is not a substitute for joint design. Variable torch angle, fit-up, hand motion and filler delivery must remain inside a validated operating window.
When a customer asks, “What throat can this machine produce?” the responsible answer begins with material, thickness, joint type, loading, gap, process mode and acceptance standard. A sample weld can then establish a starting parameter range and the required verification plan.
What to define before requesting a welding recommendation
A useful recommendation needs more than a photo of the seam. Supply the information that controls weld geometry, process stability and acceptance.
Grade, thickness, temper or heat treatment, coating, surface condition and dissimilar-metal combination.
Joint type, included angle, leg or throat callout, groove detail, root opening, tolerances and accessible welding position.
Static, cyclic, impact, fatigue, pressure, leak-tightness, temperature, corrosion, lifting or public-safety relevance.
Continuous or intermittent length, start/stop restrictions, all-around requirement and available run-on/run-off features.
Adopted code, customer specification, symbol convention, quality level, WPS/PQR requirements and inspector authority.
Target cycle time, automation level, filler availability, shielding, fixture access, extraction and power supply.
Visual checks, gauges, macrosections, mechanical tests, leak tests, NDE, monitoring and traceability requirements.
Production material, real fit-up range and worst-case coating or tolerance—not only ideal laboratory coupons.
For load-bearing structures, pressure boundaries, lifting equipment, fatigue-critical joints, seismic work or public-safety applications, connection design and acceptance must be performed by qualified personnel under the adopted standard. This page and its calculator are educational planning aids.
Related welding resources
Validate the joint before choosing the machine.
Send Oceanplayer your material, thickness, joint drawing, expected fit-up range, target speed and acceptance method. We can help organize a representative laser-welding sample test and equipment recommendation.
Weld throat FAQ
What is the throat of a weld?
For a fillet weld, throat terminology describes a root-to-face dimension through the weld cross-section. AWS distinguishes theoretical throat, effective throat and actual throat, so the correct answer depends on whether you are discussing ideal geometry, design credit or the as-deposited profile.
Why is weld throat important?
The accepted effective throat multiplied by effective weld length gives effective weld area. That area is a key input to weld-metal strength calculations. It also affects filler volume, heat input, cycle time and inspection.
Is weld throat the same as weld size?
Not always. Fillet-weld size is commonly expressed by leg length, while throat is the shortest relevant root-to-face distance. Some drawing systems dimension the throat directly, so symbol conventions and notes must be read carefully.
What is the throat of a 6 mm fillet weld?
If “6 mm” means equal legs on an ordinary 90° fillet, the ideal theoretical throat is 0.7071 × 6 = approximately 4.24 mm. That calculation does not confirm as-built fusion or acceptance.
What is the throat of a 10 mm fillet weld?
For an ordinary equal-leg 90° fillet, the ideal theoretical throat is approximately 7.07 mm. If the 10 mm callout means throat rather than leg, or the joint is skewed or unequal-leg, that answer changes.
Why is 0.707 used for fillet welds?
In an ideal 45-45-90 triangle, the perpendicular distance from the right-angle root to the hypotenuse equals the equal leg divided by √2, or approximately 0.7071 times the leg.
Does the 0.707 formula work for unequal fillet welds?
No single-leg shortcut describes unequal legs. For an ideal 90° triangle with legs a and b, the root-to-face distance is ab divided by √(a²+b²). Then the applicable code must determine the effective throat credited.
Does a convex weld face increase effective throat?
Convexity beyond the ideal face is not automatically credited in effective throat. It can add weld metal, heat and cost without a proportional design benefit.
Can a fillet weld be too large?
Yes, oversizing can increase weld volume, cycle time, distortion and access problems. However, an oversized weld is not automatically rejectable, and unnecessary removal can create new damage. Follow the governing acceptance and repair process.
Can weld throat be measured visually?
Visible profile, legs and selected throat-related dimensions can be checked with appropriate gauges when access and geometry permit. Visual inspection alone cannot always locate the hidden root or prove internal fusion and penetration.
What is effective throat versus actual throat?
Effective throat is the minimum dimension credited under the applicable design provisions, excluding convexity. Actual throat is the shortest distance from the root to the as-deposited fillet face. They may not be identical.
Does a deeper throat always make a joint stronger?
A larger accepted throat increases weld-metal area for the same effective length, but the connection may be controlled by base metal, weld group geometry, fatigue, eccentricity, discontinuities or another limit state.
How is weld throat checked in laser welding?
When a laser weld’s fused depth or cross-section is critical, a qualified WPS, representative macrosections, performance testing and a validated production-inspection method are commonly needed. Narrow bead width alone is not proof of penetration.
Can this calculator be used to design a structural weld?
No. It calculates ideal triangular geometry only. A qualified engineer must apply the adopted code, loads, materials, weld group, resistance factors, fatigue requirements, procedure qualification and inspection criteria.
Standards and primary guidance used
- AWS SCC1.0:2026, AWS Standard for Calibration and Certification of Welding Inspectors — reproduces current AWS A3.0 terminology for actual, effective and theoretical throat.
- ANSI/AISC 360-22, Specification for Structural Steel Buildings — structural-steel weld design provisions and effective-area context.
- AISC, “Fillet Weld Strength” — explanatory treatment of effective weld area and the 0.707 relationship.
- AISC Engineering FAQ 8.3: Fillet Welds — practical notes on oversized welds and code-specific fit-up provisions.
- FHWA Bridge Welding Reference Manual — fillet profile, effective throat and inspection guidance.
- FHWA Welding Inspection Laboratory Manual — visual inspection and fillet-weld gauge use.
- AWS A2.4:2020 preview, Standard Symbols for Welding, Brazing, and Nondestructive Examination — welding-symbol framework.
- ISO 2553:2019 — symbolic representation of welded joints on drawings.
- ISO 13919-1:2019 — imperfection quality levels for electron- and laser-beam-welded joints in specified metallic materials.
- ISO 15614-11:2025 — welding-procedure qualification for electron- and laser-beam welding.
