5083 Aluminum Alloy Properties
5083 is a non-heat-treatable aluminum-magnesium-manganese alloy chosen for welded structures that need high strength, seawater corrosion resistance and dependable low-temperature behavior. The correct answer, however, is not simply “use 5083”: product form, thickness, temper, weld procedure, service temperature and the governing specification determine the properties you may actually use in design.
5083 in four engineering decisions
Use these as screening rules, then confirm the ordered product against its mill certificate, applicable material standard and design code. “Typical” data is useful for comparison; it is not a substitute for guaranteed minimum properties.
Welded strength in saltwater service
5083 combines a strong 5xxx-series matrix with very good fusion weldability and marine corrosion performance. That makes it a natural plate alloy for hulls, tanks, decks and offshore structures.
O/H111 for forming; H116/H321 for marine plate
O favors ductility. H111 is lightly strain hardened. H116 and H321 are corrosion-tested marine tempers, but their availability and required properties depend on product and thickness.
Warm exposure can sensitize high-Mg 5xxx
The widely quoted 65°C limit is a conservative screening threshold, not a timer that triggers instant failure. Time, stress, chloride exposure, weld history and microstructure all matter.
Qualify the complete joint—not just the filler
5183 and 5556A are common high-strength matches. 5356 may be suitable in some applications. Groove-weld qualification, corrosion, service temperature and code requirements decide.
What is 5083 aluminum—and why is it different?
5083 (UNS A95083, commonly written EN AW-5083 in European supply chains) is a wrought 5xxx-series alloy. Magnesium is its principal strengthening addition, while manganese and chromium support strength and microstructural control. Unlike 6061-T6 or 6082-T6, 5083 is not precipitation hardened. Its strength comes primarily from solid-solution strengthening and, in H tempers, controlled strain hardening.
This distinction matters after welding. A fusion weld locally changes the cold-worked condition, so the heat-affected zone cannot automatically be designed using the delivered H116 or H321 base-plate proof strength. However, because 5083 does not depend on a T6 precipitation treatment, its welded performance can be more favorable than a heat-treated 6xxx alloy whose strengthened temper is softened around the joint.
“Marine grade” is also more specific than a marketing label. The active ASTM B928/B928M specification covers high-magnesium aluminum-alloy products intended for marine hull construction and environments involving frequent or constant seawater contact. It requires production-lot controls and corrosion-resistance evidence for covered alloy-tempers. A generic 5083 sheet ordered only to a commercial chemistry is not automatically equivalent to a corrosion-tested H116 or H321 marine plate.
Choose 5083 when welded strength, low mass, seawater exposure and low-temperature toughness matter together. Reconsider it when sustained warm exposure, intricate extrusion geometry, highly cosmetic anodizing, alkaline chemicals or aggressive galvanic couples dominate the design.
Magnesium provides strength; balance controls behavior
The following limits reflect a representative AA 5083 / EN AW-5083 H116 supplier sheet. Purchase specifications govern acceptance, so always compare the certificate with the exact standard named on the order.
| Element | Representative range, wt.% | Engineering role |
|---|---|---|
| Magnesium (Mg) | 4.0–4.9 | Primary solid-solution strengthening addition; also creates the sensitization concern if beta phase becomes continuous at grain boundaries. |
| Manganese (Mn) | 0.4–1.0 | Supports strength, grain structure and recrystallization control through dispersoid formation. |
| Chromium (Cr) | 0.05–0.25 | Helps control microstructure and recrystallization during thermomechanical processing. |
| Silicon (Si) | 0.40 max | Controlled impurity; excess can alter phases and fabrication behavior. |
| Iron (Fe) | 0.40 max | Controlled impurity that contributes intermetallic particles. |
| Copper (Cu) | 0.10 max | Kept low to protect corrosion performance. |
| Zinc (Zn) | 0.25 max | Restricted minor element. |
| Titanium (Ti) | 0.15 max | May support grain refinement during casting. |
| Aluminum (Al) | Remainder | Face-centered cubic matrix that retains useful ductility at low temperature. |
Composition alone does not identify temper, corrosion qualification or mechanical performance. Positive material identification can verify alloy chemistry, but the mill certificate and traceability documents are still needed to confirm product form, lot, temper and governing standard.
More magnesium raises solid-solution strength but also makes thermal history increasingly important.
Restricting copper helps avoid the corrosion trade-offs seen in many higher-copper alloys.
These additions help the mill create a useful grain structure and stable rolled product.
Chemistry is only one line item; properties and corrosion testing must match the purchase order.
Properties that remain broadly stable across tempers
Physical values are useful for mass, stiffness and thermal calculations. They remain approximate and temperature-dependent, but temper changes them far less than it changes strength and elongation.
Representative values from Hydro's 5083-H116 product data and established materials compilations. For cryogenic or elevated-temperature analysis, use temperature-dependent data rather than room-temperature constants.
Why 5083 strength values change from table to table
Strength depends on temper, gauge, sampling direction, product specification and whether the value is a minimum, maximum or typical test result. The safest comparison is to keep all five descriptors attached to every number.
| Condition | 0.2% proof / yield | Ultimate tensile | Elongation | How to interpret it |
|---|---|---|---|---|
| 5083-O, representative room-temperature data | ~145 MPa | ~290 MPa | ~22% | Annealed and most formable. Values are typical literature data, not a universal procurement minimum. |
| 5083-H116, Hydro 3–8 mm product | 220 MPa minimum; 250 MPa typical | 305 MPa minimum; 340 MPa typical | 10% minimum A50 | A specific supplier/product range. Thicker plate or another standard can carry different requirements. |
| 5083-H321, representative literature | Commonly near the H116 range | Commonly near the H116 range | Depends on thickness and specification | Do not copy H116 values onto H321 without checking the actual product standard and certificate. |
| Welded H116 product, Hydro assumption | 145 MPa minimum | 290 MPa minimum | 14% A5.65 / 16% A50 minimum | The supplier states that after-weld strength is that of H111. Design-code HAZ factors may still control a structural calculation. |
The terms “yield strength” and “0.2% proof strength” are often used loosely in online summaries. Aluminum does not show the same sharp yield point as some steels, so design documents typically use proof stress. Also distinguish tensile-test results from design allowables, joint efficiency and fatigue strength.
A welded joint may retain a high percentage of ultimate tensile strength while losing a larger fraction of proof strength in a strain-hardened heat-affected zone. Groove-weld tensile qualification, HAZ design stress, fillet shear strength and fatigue performance are different questions.
Choose a practical starting condition
Select the nearest manufacturing objective. This is a routing tool, not a substitute for the material, design and classification standards that govern the finished structure.
What must the plate do first?
Choose the dominant procurement driver. If several apply, start with the governing service standard and then check whether the required forming operation is feasible.
Prioritize ductility before strength
O temper is fully annealed and offers the broadest forming window. It is a logical starting point for severe forming and many cryogenic fabrications, where the completed design is evaluated in the annealed or as-welded condition.
Corrosion resistant does not mean corrosion proof
5083 forms a protective aluminum oxide film and has excellent performance in many marine atmospheres and seawater applications. Its low copper content and high-magnesium chemistry are major reasons it is preferred over many 2xxx and 7xxx alloys for welded hulls. Yet any statement such as “seawater immunity” is technically misleading.
Localized corrosion can still develop at crevices, under deposits, around poorly drained joints or where a more noble metal creates a galvanic couple. Stainless-steel fasteners are commonly used with aluminum, but the joint needs electrical isolation where required, suitable sealants, drainage and a corrosion-control plan. Copper and copper-alloy contamination deserve particular attention because deposited copper can create efficient local cathodes on aluminum.
ASTM B928/B928M addresses high-magnesium products intended for marine and similar environments and includes corrosion-resistance controls. That evidence is more meaningful than a generic seller description. For classed vessels, the project may also require mill approval, heat-lot traceability and documentation from ABS, DNV, Lloyd's Register or another classification society.
Why the “65°C limit” needs engineering context
High-magnesium 5xxx alloys can precipitate a magnesium-rich beta phase at grain boundaries during sufficient thermal exposure. In a stressed chloride environment, a continuous anodic path can increase intergranular-corrosion and stress-corrosion-cracking susceptibility. Temperature accelerates the process, but temperature alone does not predict the condition.
Many selection guides advise against prolonged service above roughly 65°C (150°F). Treat this as a prompt for a time-temperature-service review—not a universal, instantaneous failure boundary. Short fabrication cycles, multi-year operation and hot chloride stress are not equivalent exposures.
Beta-phase precipitation
Magnesium migrates and may form Mg-rich grain-boundary precipitates. The continuity and electrochemical behavior of that phase govern susceptibility.
Time × temperature
Warmer exposure generally accelerates sensitization. Weld thermal cycles, engine-room heat and warm cargo service deserve separate evaluation.
Corrosion qualification
Marine product standards use production-lot corrosion testing and microstructural controls. Service-aged material may require condition assessment rather than reliance on original paperwork.
Lower-Mg alloy route
5454 is often considered for warmer tank and transport service. That substitution changes strength, formability, corrosion behavior and welding details, so it must be designed—not assumed.
These tempers are produced and tested for marine corrosion resistance. They should not be described as immune to sensitization after arbitrary warm exposure. Ask for the governing edition of the standard, lot test evidence and a service-temperature review.
5083 welds readily—but the joint still needs qualification
5083 is widely welded by GMAW (MIG), GTAW (TIG), friction stir welding and, with suitable equipment, laser welding. Hydro lists AA 5183 and AA 5556A as recommended fusion-welding wires for its H116 marine product. ESAB also identifies 5183, 5356 and 5556 as possible matches, with the final choice depending on required strength, joint type, corrosion and temperature.
5183 was developed for high-strength 5083 weldments and is often chosen when a groove-weld procedure must meet demanding tensile requirements. ESAB notes that 5356 can weld 5083 successfully but may not consistently meet a 275 MPa groove-weld transverse-tensile requirement. This does not make 5356 universally “wrong”; it means the procedure and code decide.
Silicon-rich 4043 and 4047 should not be treated as general substitutes on 5083. ESAB specifically warns against using 4xxx filler on 5xxx base metal containing more than 2.5% magnesium because the combination can produce a brittle, low-ductility weld structure.
Remove oxide and contamination
Keep joint edges dry and clean; remove oil, moisture and oxide with controlled tools that do not introduce iron or copper contamination.
Control heat and shielding
Use a qualified travel speed, heat input, gas flow and joint fit-up. Excessive heat widens the softened zone and increases distortion.
Inspect the right failure modes
Porosity, incomplete fusion, cracking, undercut and weld-profile defects affect static and fatigue performance differently.
Use HAZ and weld allowables
Do not apply delivered H116 proof strength through the joint. Use the code and procedure qualification for the actual configuration.
Can 5083 aluminum be laser welded?
Yes. A manufacturer data sheet for 5083-H116 explicitly lists laser welding among suitable processes. The practical challenge is not whether the laser can melt 5083; it is whether the optical setup, joint, cleanliness, shielding and heat flow produce stable penetration without unacceptable porosity, underfill, cracking or distortion.
Aluminum reflects a substantial share of near-infrared energy at room temperature and conducts heat quickly. Once a keyhole forms, absorption changes sharply. Stable delivery, accurate focus, tight fit-up and controlled travel are therefore more important than choosing power from alloy name alone. Magnesium vaporization and hydrogen-related porosity also require attention.
Why 5083 is associated with cryogenic equipment
5083-O is one of the most established aluminum alloys for cryogenic service. The face-centered-cubic aluminum matrix does not show the sharp ductile-to-brittle transition typical of many ferritic steels, and strength and toughness can remain useful as temperature falls. NIST publishes temperature-dependent 5083-O data covering thermal conductivity, specific heat, Young's modulus and expansion across cryogenic-to-room-temperature ranges.
That reputation does not eliminate design work. LNG containment, vacuum vessels and low-temperature piping are code-controlled systems. The engineer must evaluate welded-joint properties, fracture mechanics, thermal contraction, leak tightness, fatigue from fill cycles, support loads and compatibility with insulation and adjoining materials.
Fabrication behavior changes with temper and thickness
5083 is highly workable in the right condition, but it should not be treated like a free-machining alloy or a highly extrudable 6xxx grade. Production planning begins with the geometry and then selects the material condition.
Bend radius rises with hardness
O and H111 provide the broadest forming window. H116 may require large bend radii; Hydro's thin H116 sheet data, for example, lists increasing minimum radii as thickness increases. Use mill-specific bend guidance.
Expect ductile chips and built-up edge
Sharp tools, positive rake, appropriate lubrication and chip control help. H tempers can machine more cleanly than O, but 5083 is selected for service properties rather than peak machining speed.
Protect edges from contamination
Sawing, routing, waterjet and laser cutting can be suitable. Control recast, oxide, embedded steel particles and edge quality according to the later weld and corrosion requirement.
Functional finish may look gray
5083 can be anodized, but high magnesium and weld-metal differences can produce a darker or less uniform cosmetic appearance than architectural alloys. Approve a representative sample.
Design for bearing and galvanic exposure
Aluminum threads can gall, and highly loaded joints need appropriate inserts, preload control and bearing checks. Isolate dissimilar metals where the environment demands it.
Joint detail often dominates alloy strength
Weld toe shape, undercut, misalignment, residual stress and local attachment geometry can control life. Do not infer fatigue performance from ultimate tensile strength.
Where 5083 earns its material premium
The alloy is most valuable when multiple requirements occur at once. If only one requirement matters, a less expensive alloy, an extrusion-friendly alloy or a different metal may produce the better part.
Hulls and superstructures
Workboats, patrol craft, ferries, decks and bulkheads benefit from welded strength, low mass and marine corrosion resistance. Class and B928/B928M documentation may be required.
Platforms and access structures
Gangways, helidecks and modular structures can use 5083 where chloride exposure, weight and weldability align. Fatigue and galvanic details remain critical.
LNG and low-temperature vessels
5083-O is associated with tanks, vessels and components operating at cryogenic temperatures. Vessel-code acceptance and qualified welded properties govern.
Tanker and vehicle structures
Low mass supports payload efficiency. For hot cargo or sustained warm service, a lower-magnesium alloy such as 5454 may be the more appropriate starting point.
Welded vessels and piping components
Good weldability and low-temperature behavior are attractive, but code allowable stress, corrosion medium and inspection requirements decide suitability.
Armor plate and military structures
5083 armor plate is covered by dedicated military specifications and tempers. Commercial H116 plate is not automatically armor-grade or ballistically qualified.
5083 vs 5086, 5454, 6061 and 6082
The right comparison is based on product form and failure mode—not a single strength number. Prices change with region, thickness, certification, quantity and market conditions, so a static “cost per kilogram” table is not a reliable selection method.
| Alloy | Strength route | Best reason to choose | Trade-off vs 5083 | Typical product decision |
|---|---|---|---|---|
| 5083 | Non-heat-treatable; Mg solid solution + strain hardening | High-strength welded plate for marine and cryogenic service | Warm-service sensitization review; not the easiest extrusion or machining alloy | Hull plate, welded tanks, cryogenic fabrications |
| 5086 | Non-heat-treatable 5xxx | Marine fabrication with somewhat lower strength and good formability | Usually lower strength; actual temperature advantage must be proven for the selected condition | Marine sheet/plate, formed boat components, welded structures |
| 5454 | Lower-Mg non-heat-treatable 5xxx | Warmer tank and transport service where sensitization resistance is prioritized | Lower strength than 5083; not a drop-in replacement for a high-strength hull design | Road tankers, process vessels, warmer cargo structures |
| 6061-T6 | Heat-treatable Al-Mg-Si | Availability, machining, extrusions and general structural use | T6 strength is reduced around fusion welds; marine plate certification differs | Machined parts, frames, tubes and readily available shapes |
| 6082-T6 | Heat-treatable Al-Mg-Si, common in Europe | Higher-strength extrusions and structural profiles | Fusion-weld HAZ softening; less natural choice for high-Mg marine plate requirements | Extruded beams, profiles, machined structural parts |
When a drawing says “5083 or equivalent,” define what equivalent means: minimum proof and tensile strength, elongation, product form, corrosion test, service temperature, weldability, code listing, class approval and traceability. Chemical similarity alone is not equivalence.

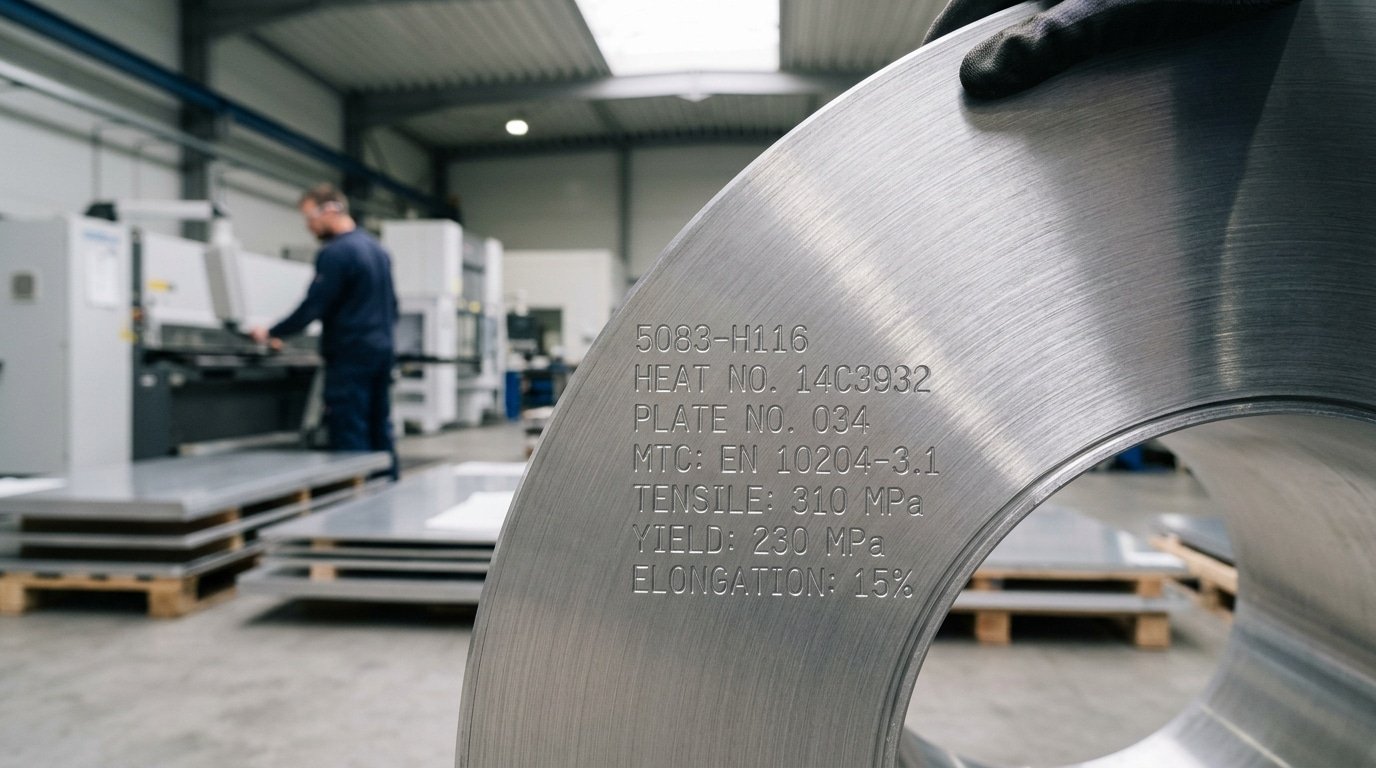

Five items to lock before buying 5083 plate
A precise purchase order prevents the common failure of receiving the correct alloy number in the wrong temper, certification level or thickness-property range.
Standard and edition
Name ASTM B209/B209M, ASTM B928/B928M, EN 485 or the actual project specification. Avoid “marine grade” as the only requirement.
Temper and thickness
State O, H111, H116 or H321 and the full gauge range. Mechanical limits and bendability can change by thickness.
Corrosion evidence
For marine plate, define required lot testing, microstructure acceptance, class approval and certificate content.
Welded design basis
Name joint types, filler candidates, code allowables, procedure qualification and NDT/acceptance requirements.
Service envelope
Document temperature history, chloride exposure, fatigue spectrum, galvanic couples, coating system and inspection access.
5083 aluminum alloy properties FAQ
These answers are screening guidance. Final material and joint acceptance should follow the current project specification, mill certificate and applicable design code.
What is 5083 aluminum alloy?
5083 is a wrought, non-heat-treatable Al-Mg-Mn alloy in the 5xxx series. It is selected for welded structures needing high strength, low mass, marine corrosion resistance and useful cryogenic behavior.
What is the density of 5083 aluminum?
A representative room-temperature density is approximately 2.66 g/cm³, or 2,660 kg/m³. Use the supplier or code value required by the calculation when tighter accuracy is necessary.
Is 5083 aluminum stronger than 6061?
It depends on temper, product and which property is compared. 5083-H116 and 6061-T6 can have similar ultimate tensile strength, but their proof stress, product forms and welded heat-affected-zone behavior differ substantially.
Can 5083 be heat treated to make it stronger?
No in the precipitation-hardening sense used for 6061-T6. 5083 is strengthened by magnesium in solid solution and by strain hardening in H tempers. Heating generally softens cold-worked material and can create sensitization concerns.
What is the difference between 5083-H116 and H321?
Both are common corrosion-resistant marine plate tempers produced through controlled thermomechanical routes. Mechanical limits can be similar, but processing, product availability, thickness ranges and project/class acceptance must be checked rather than assumed interchangeable.
Is 5083 suitable for seawater?
Yes, it has excellent seawater corrosion resistance and is widely used in marine structures. It can still suffer crevice, pitting, galvanic or sensitization-related attack when joint design, drainage, dissimilar metals or thermal history are poorly controlled.
What is the maximum service temperature for 5083?
About 65°C is a widely used conservative threshold for prolonged service review because high-magnesium 5xxx alloys can sensitize. The real decision depends on time, temperature, stress, environment, temper, welds and the governing code.
Which filler metal should be used for welding 5083?
5183 and 5556/5556A are common high-strength choices. 5356 can be suitable for some applications but may not meet every groove-weld tensile qualification. Match the filler to joint type, code, corrosion and service temperature.
Can 5083 aluminum be laser welded?
Yes. Stable penetration requires controlled surface preparation, fit-up, focus, power, travel speed, beam motion and shielding. A representative coupon should be qualified for porosity, cross-section, strength, distortion and corrosion requirements.
Why is 5083 used in cryogenic applications?
5083-O retains useful ductility and strength at very low temperature, and NIST publishes temperature-dependent material data for cryogenic analysis. Vessel codes, welded-joint properties and thermal contraction still govern the design.
Can 5083 aluminum be anodized?
It can be anodized, especially for functional protection, but its high magnesium content and welded zones may create a gray or non-uniform cosmetic result. Approve finish appearance on a representative welded sample.
Is 5083-H111 acceptable for a marine hull?
H111 can be used in many fabricated components, but a hull or seawater-contact application may require H116/H321 product qualified to ASTM B928/B928M and classification-society rules. Follow the exact project requirement.
Primary sources used for this guide
Material values were separated into representative, typical and minimum data. Always consult the complete current standard or supplier certificate before design or procurement.
