Laser Cleaning Before Welding for Cleaner Joints, Better Fusion and Less Rework.
Oceanplayer laser cleaning solutions help remove rust, oxide, oil, paint, coating residue and surface contamination before welding. Prepare stainless steel, carbon steel, aluminum, galvanized steel and welded assemblies with a controlled, dry and repeatable process before MIG, TIG, laser welding or robotic welding.
Many welding defects begin with poor surface preparation
Rust, oil, oxide, paint and coating residue can affect weld stability, appearance and inspection results. Laser cleaning helps prepare the joint area with a controlled process.
Porosity and weak fusion
Oil, moisture, oxide and coating residue can contribute to pores, unstable arc behavior and inconsistent fusion in the weld area.
Inconsistent weld appearance
Uneven surface contamination can cause visible color variation, spatter, rough weld edges and extra finishing work.
Manual grinding is hard to control
Grinding and abrasive cleaning can remove base material, create dust and leave inconsistent preparation along long seams or complex parts.
Where laser cleaning before welding is useful
Laser cleaning can prepare joint areas and nearby surfaces before manual welding, robotic welding, repair welding, laser welding and production-line assembly.
- Rust and oxide removal before welding carbon steel and stainless steel.
- Oil, grease and coating residue removal from joint areas and fixture contact zones.
- Aluminum oxide removal before aluminum laser welding, TIG welding or repair work.
- Weld seam preparation for pipes, tanks, frames, sheet metal, panels and structural parts.
- Robotic cleaning before robotic welding in repeated production workflows.
Remove the contaminants that can reduce weld quality
Different materials and welding processes need different cleaning intensity. The goal is to remove the unwanted layer without over-processing the base material.
Prepare cleaner metal contact

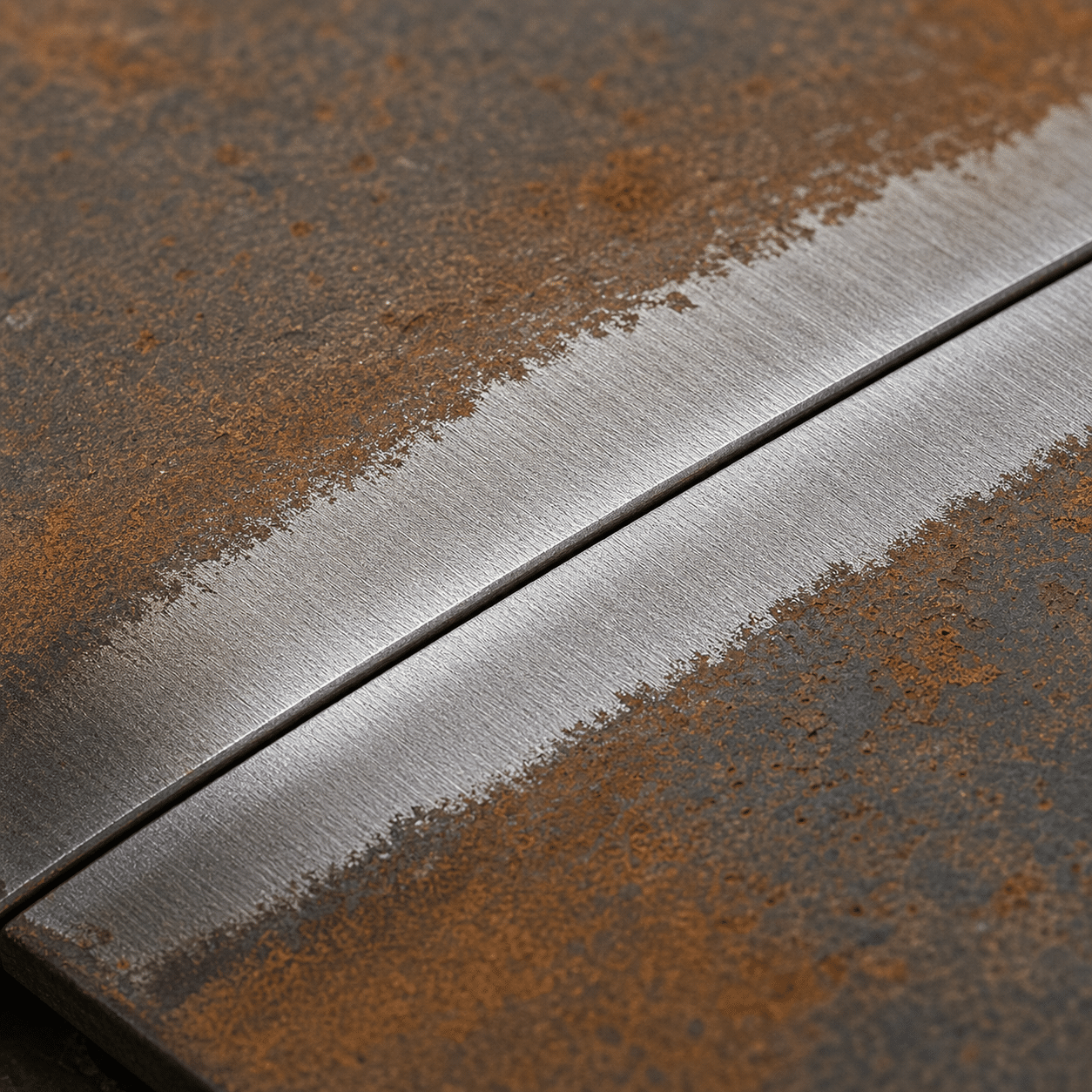

Laser cleaning can remove rust, light oxide and surface scale from the weld path before joining.
- Useful for carbon steel and stainless steel
- Supports visible cleaning boundary control
- Check depth and heat input for thin parts
Reduce surface contamination
Oil and grease can affect arc stability, weld appearance and post-weld inspection, especially in repair and maintenance work.
- Dry cleaning process
- No chemical rinse residue
- Fume extraction may be required
Clean a controlled weld zone
Laser cleaning can strip coating in a defined area before welding, helping reduce extra grinding and masking work.
- Useful for repair welding and coated parts
- Works best with tested coating thickness
- Confirm edge quality before production
Select the laser cleaner by weld prep material and production need
The right configuration depends on material, contaminant type, seam width, cleaning speed, part thickness, operator access and whether cleaning is manual or automated.
| Weld Preparation Need | Common Laser Choice | Best Use | What To Check |
|---|---|---|---|
| Precision cleaning before welding | Pulsed laser cleaner | Thin parts, molds, stainless steel, aluminum and controlled surfaces | Heat input, cleaning width, surface finish and base material protection |
| Fast rust or paint removal | CW laser cleaner | Steel structures, frames, repair welding and large metal areas | Cleaning speed, thickness, fume control and surface roughness |
| Flexible shop-floor welding prep | Handheld laser cleaning machine | Repair shops, fabrication, maintenance and mixed part sizes | Operator access, cable reach, safety and cleaning path width |
| Repeat cleaning before robotic welding | Robotic laser cleaning system | Automotive parts, fixtures, repeated seams and production cells | Robot path, fixture repeatability, cycle time and extraction |
| Pipe or tube seam preparation | Handheld or automated laser cleaning | Pipe welding, tanks, pressure vessels and round parts | Curvature, seam access, cleaning width and alignment |
Review weld preparation cleaning results across common materials
Use these positions for your before-and-after cleaning images on rusted steel, aluminum oxide, oil residue, coated parts and pipe seams.
Watch laser cleaning before welding on real joint surfaces
Review cleaning speed, surface finish, cleaning width and operator workflow before choosing manual or automated weld preparation.
Choose a cleaning process that matches your welding workflow
Laser cleaning before welding can be used as a flexible handheld process, a dedicated workstation or an automated step before robotic welding.
Handheld Weld Prep
Best for repair shops, fabrication teams, mixed parts, pipes, frames and flexible pre-weld cleaning tasks.
Workstation Cleaning
Useful for repeated parts, small assemblies, controlled safety, fixture positioning and stable cleaning results.
Robotic Cleaning
Recommended when the same weld path needs repeatable cleaning before robotic welding or automated joining.
Pulse Cleaning
Better for precision surfaces, thin materials and lower heat input when base material protection is important.
CW Cleaning
Useful for faster cleaning of heavier rust, paint, scale and larger steel areas before welding or repair.
Fume Extraction
Important when removing oil, paint, coating, oxide or surface residue before welding in a production area.
Confirm these details before selecting a weld preparation laser cleaner
Good recommendations depend on the material, contaminant, welding process, part thickness, cleaning width and daily workflow.
Base material
Share stainless steel, carbon steel, aluminum, galvanized steel, coated steel or mixed metal details.
Contaminant type
Confirm rust, oxide, oil, grease, paint, coating, scale, dust or mixed contamination before welding.
Welding method
MIG, TIG, laser welding, spot welding, robotic welding and repair welding may need different cleaning widths and results.
Part thickness and shape
Thin sheet, pipe, tank, frame, panel and curved parts require different heat control, access and cleaning path planning.
Production rhythm
Daily quantity, cycle time, operator movement and welding cell layout affect manual or automated configuration choices.
Safety and extraction
Laser safety, fume extraction, coating removal and workplace layout should be considered before installation.
Send your weld samples and confirm the cleaning result before choosing a machine.
Share material, contaminant, welding method, part thickness, cleaning width and production rhythm. Oceanplayer can help recommend pulsed, CW, handheld, workstation or robotic cleaning options.
Share Welding Details
Send material, contaminant, weld type, thickness and sample photos.
Test Cleaning Effect
Check cleaning width, speed, surface finish and base material impact.
Choose Configuration
Select pulsed, CW, handheld, workstation or robotic cleaning setup.
