How to Choose Galvanized Sheet Metal
Choose galvanized sheet by matching the steel grade and thickness to the part, then selecting the coating and surface treatment for its exposure and fabrication. Put those choices under one named product standard. “G90” describes zinc coating weight; it does not tell you the sheet’s strength, thickness or suitability for painting and welding.
Define the exposure and the finished part first
Start with where the part will work and what will happen to it in the shop. A dry enclosure, a condensing air-handling unit and a salt-exposed panel can require different protection even when their shapes look similar.
- Service conditions: condensation, rain, salt spray or deicing salts, cleaning chemicals, temperature, drainage and trapped debris.
- Part duty: loads, span, pressure, stiffness, dent resistance, visible surfaces and the applicable drawing or construction requirements.
- Manufacturing sequence: cutting, bending or drawing, joining, finishing and the intended treatment of exposed edges and welds.
Zinc provides a barrier and can protect small nearby exposed steel areas by corroding preferentially. Its consumption rate changes with time of wetness and contaminants. GalvInfo’s coating-selection guidance explains why environment belongs in the specification.
Use exposure to define the evidence you need. For outdoor work, review drainage, fasteners, cut edges, maintenance access and the intended service interval. For chemical contact or continuous wet service, check the actual medium and operating conditions before choosing zinc thickness. There is no universal “outdoor = G90” rule.
Choose the coating route before comparing grades
Galvanized sheet, galvannealed sheet and a fabricated assembly galvanized after welding are different products. The coating route changes the applicable specification and the manufacturing sequence.
| Product route | What is supplied | Selection implication |
|---|---|---|
| Continuous hot-dip galvanized sheet | Steel strip coated with zinc, supplied as coil or cut lengths; covered by ASTM A653/A653M, among other standards. | A route for sheet fabrication. Choose the base steel, coating mass, surface and dimensions separately. |
| Galvannealed sheet | Hot-dip coated sheet with a subsequent heat treatment that produces a zinc-iron alloy coating. | Often considered for painted parts and resistance welding. Check coating behavior in the actual forming operation. |
| Electrogalvanized sheet | Zinc deposited electrolytically. ASTM A879/A879M specifies coating mass on each surface. | A different designation system. Compare per-face coating requirements, finish and the complete corrosion-protection system. |
| Batch galvanizing after fabrication | The fabricated article is immersed after cutting and welding. | Review coverage, venting, drainage, dimensions and distortion with the galvanizer. It is a separate process from buying precoated sheet. |
Swipe horizontally on narrow screens. Product scopes: ASTM A653/A653M and ASTM A879/A879M. The galvanized-steel overview expands on the protection mechanisms and product families.
Decide when the protective coating is applied
Precoated sheet arrives ready for blanking and forming, but cutting and welding create areas that may need further protection. Galvanizing after fabrication can cover the completed assembly, while its design must allow safe immersion, venting and drainage. The AGA’s design checkpoints cover these requirements.
For a thin welded enclosure, compare both sequences before fixing the drawing. Include dimensional stability, access to enclosed areas, edge treatment and the later paint system. A coating number alone cannot decide the fabrication route.
Steel grade controls strength and formability
The zinc coating does not define yield strength or ductility. Two sheets with the same G90 designation can have different steel substrates and behave differently under load or in a press.
General bending
Commercial Steel (CS) may suit ordinary non-structural fabrication. Its designation should not be substituted for a structural grade with required mechanical properties.
Demanding forming
Review Forming Steel (FS), Deep Drawing Steel (DDS) or another suitable forming designation. Match it to the draw, bend radius, tooling, surface and required finish.
Load-bearing parts
Specify the structural or high-strength grade and class needed by the design. Higher yield strength does not by itself resolve stiffness, springback or connection requirements.
ASTM A653/A653M separates material categories with typical properties from those with mandatory properties. Use the requirements of the ordered designation and grade.
Read G60, G90 and Z275 as coating designations
For the conventional ASTM total-both-sides system, G60 and G90 refer to minimum coating-weight values in ounces per square foot. They are not steel grades, gauges or zinc purity percentages.
| ASTM designation | Minimum triple-spot total | Approximate unit conversion |
|---|---|---|
| G40 | 0.40 oz/ft² | 122 g/m² |
| G60 | 0.60 oz/ft² | 183 g/m² |
| G90 | 0.90 oz/ft² | 275 g/m² |
Both faces combined per unit of projected sheet area. Conversions use approximately 305 g/m² per oz/ft²; they are not substitute designations. Basis: GalvInfoNote 1.1, revision 4.0.
A triple-spot average is not a per-face promise
A triple-spot test averages coating results from defined positions across the as-coated sheet width. It does not require identical coating on every face or at every point. Single-spot and per-side provisions also matter; inspect against the full contract requirements rather than dividing G90 into two guaranteed G45 faces.
Z275 also appears in ASTM’s metric system
ASTM A653M uses Z275 for a 275 g/m² minimum triple-spot total. EN 10346 also uses Z275, as shown in SSAB’s zinc-coating table. Matching mass labels do not establish equivalence of steel grade, dimensional tolerances, test rules or surface condition.
A653/A653M’s unit rule treats inch-pound and SI orders independently. State the governing standard and unit system. A conversion helps compare quantities; it does not authorize a supplier to change the ordered product.
More zinc increases the reserve, but does not complete the design. G90 has more specified coating mass than G60. Decide whether that additional mass is useful for the exposure, then check forming, joining, finish and cost. Do not turn a coating-mass ratio into a guaranteed finished-part lifespan.
Order decimal thickness with a clear measurement basis
Use an explicit inch or millimeter thickness and its tolerance. Gauge can remain a reference, but it does not state the permissible range or whether the coating is included.
ASTM A924/A924M-26, section 1.8, defines the thickness of its metallic-coated sheet as the total of steel and coating. If the design needs a minimum base metal thickness, make that separate requirement explicit and reconcile it with the supplier’s coated-sheet order.
Choose thickness from the actual part: load, span, pressure, section shape, supports and required stiffness. For ductwork or roofing, use the applicable construction or tested system requirements. A generic application-to-gauge chart is not enough.
For acceptance limits and measurement planning, see the sheet-metal thickness tolerance guide.
Two quotes both say “1.20 mm galvanized.” One may describe total coated thickness while the purchaser intended a minimum 1.20 mm steel substrate. Resolve that basis and the tolerance before comparing prices. This is an ordering example; it does not select a thickness or coating for a particular part.
Match forming and finish to the supplied surface
The coating can survive one forming operation and be unsuitable for another. Oil, passivation and surface texture can also affect the process that follows.
Qualify the formed surface
Use production-equivalent steel, coating mass and surface treatment when evaluating bend radii, draw depth and lubricant. Inspect the base metal for splits and the coating for damage at critical radii. Do not accept a draw trial on an easier grade as proof for the purchased grade.
SSAB’s processing guidance treats geometry, steel grade, coating, surface and tooling as connected choices. A heavier coating or higher-strength substrate may change the process even when the nominal sheet thickness is unchanged.
Visible zinc spangle forms during solidification; GalvInfo’s spangle explanation describes its origin. Choose cosmetic quality by the agreed surface requirement and sample, not by assuming larger crystals mean more zinc.
Specify the paint or adhesive system
Ask what oil, chemical treatment, passivation or film is present. Name the intended liquid paint, powder coating, adhesive or sealant, and agree on cleaning, pretreatment and adhesion acceptance with its supplier.
ASTM D7396-25 addresses preparation of new continuously zinc-coated surfaces for liquid paint. Its scope excludes powder coating and mill treatments for temporary moisture-stain protection other than easily removed oils. It refers batch-galvanized items to D6386.
That distinction matters when a quote says “passivated and paintable.” Confirm the actual treatment and approved finishing route; a generic reference to D7396 does not demonstrate compatibility.
Plan protection at cut edges and welded joints
Buying compliant coil is only the first stage. The finished part must still meet its corrosion, appearance and joint requirements after fabrication.
Nearby zinc can protect limited exposed steel areas, but it does not recreate a removed coating. Agree how edges, fastener locations and weld zones will be handled.
- Control exposed edges and local damage
Cutting, punching and welding can interrupt protection. Review the exposed width, burrs, water traps and the service environment. Specify any required repair or subsequent coating through the project’s approved method.
- Give welding its own qualification
Zinc vapor at a tightly clamped lap interface can create porosity and blowholes during laser welding. Joint venting or another validated process strategy may be needed. TWI’s coating discussion explains the mechanism; it is not a universal gap or machine-setting recipe.
- Test the required finished result
Trial the actual grade, coating, thickness and joint stack. Examine sections, strength, leakage or corrosion performance as required by the part. Plan coating restoration and assess total preparation and finishing time. The galvanized-steel laser welding page provides the application context.
Fume control belongs in the production plan. Welding zinc-coated steel can generate zinc oxide fume. Review all coatings and residues, arrange suitable extraction, and assess exposure and any respiratory-protection needs. Working outdoors alone does not establish adequate protection. OSHA’s welding-fume guidance explains the factors to assess; laser equipment also requires its own beam-safety controls.
Write a purchase description that suppliers can quote consistently
Compare quotations only after the material, finish and acceptance basis match. A lower price for “G90 galvanized” can reflect a different substrate, thickness tolerance, surface treatment or delivery scope.
| Order item | Write it explicitly | What it resolves |
|---|---|---|
| Standard and steel | Product standard and contract edition, unit system, steel designation, grade and class where applicable. | Typical properties versus mandatory properties; unauthorized grade substitution. |
| Thickness and dimensions | Nominal or minimum basis, coating included or excluded, tolerance, width, length, flatness and edge condition. | Whether the delivered blank meets the design and fits the process. |
| Coating | Coating chemistry and designation; any required per-face or differential-coating provisions. | Which coating quantity and test basis control acceptance. |
| Surface and finish | Critical side, surface quality, oil or passivation, protective film and compatibility with the named finishing process. | Appearance, storage protection and later adhesion. |
| Inspection and traceability | Required certificate or test report, coil/bundle identification, sampling and agreed dimensional, mechanical or coating evidence. | How the received material will be released or held for review. |
| Supply scope | Coil or cut sheet, quantities, slitting/blanking, packaging, transport, storage requirements and approved substitutions. | A comparable delivered cost and a usable material supply. |
Swipe to view all columns. Requirements come from the part and contract; the table is a drafting checklist, not a substitute product standard.
ASTM A653M-25a, Forming Steel (FS), Z275 zinc coating; nominal total coated thickness 1.20 mm; 1,250 × 2,500 mm cut sheets. Apply the agreed A924M dimensional requirements. Quote the supplied surface treatment and provide coil traceability and the requested coating-compliance documentation.
This example shows how the fields fit together. The actual design must select the grade, thickness and coating, then add its finish specification, dimensional limits, inspection requirements and quantity. Keep an SI order internally consistent rather than attaching an inch-pound coating code to a metric template without agreement.
For a new supplier, include a trial lot and agreed first-part checks in the sourcing plan. Compare the cost per accepted part, including blanking loss, forming, joining, surface preparation, repair, inspection and freight.
Check the delivered sheet before production
Match the bundle or coil identity to the order and documents. Verify the specified thickness basis, dimensions, coating evidence and surface condition. Record damage or a mismatch before cutting removes traceability or changes the surface.
Keep stock dry and prevent condensation between closely stacked sheets or coil wraps. Moisture trapped without free air circulation can cause white, gray or dark storage stain. Passivation reduces the risk; it does not make wet storage acceptable. GalvInfo’s shipping and storage note explains these conditions.
If the finish must be cosmetic, state the permitted appearance before delivery. The acceptability of storage stain depends on its extent, remaining protection and the agreed end-use requirements—not on a photograph alone.

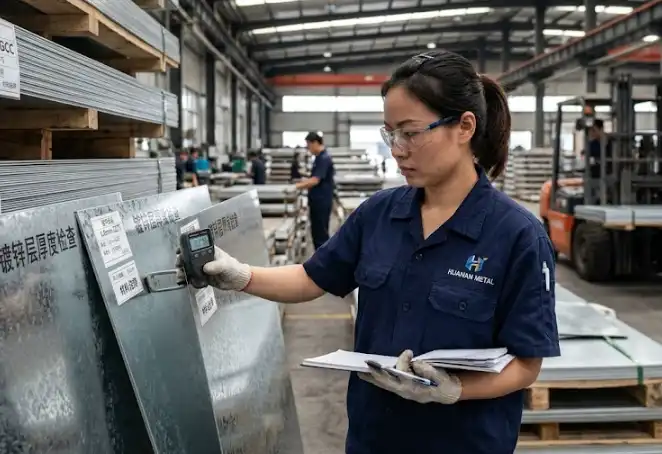

Can a handheld coating-thickness gauge prove G90 compliance?
A suitable, calibrated gauge can provide useful local coating readings. One reading is not the full coating-weight acceptance test. The coating designation has a specified sampling and mass basis, and a measurement on one face cannot establish the total on both. Use the agreed inspection method and the applicable product requirements; A924/A924M describes coating testing within its scope.
