What Problems Does a Bevel Solve in Welding?
A welding bevel removes material from one or both joint edges to create a groove. Its main job is to give the heat source, electrode and filler metal controlled access to the root and sidewalls when a square butt joint cannot reliably achieve the required penetration.
The groove lets the arc, laser or electrode reach the fusion faces instead of only heating the joint surface.
Correct geometry reduces the risk of incomplete penetration and lack of sidewall fusion.
A wide groove is easier to reach but needs more filler, passes, heat and time.
The correct bevel depends on process, material, thickness, position, access, backing and service requirements.

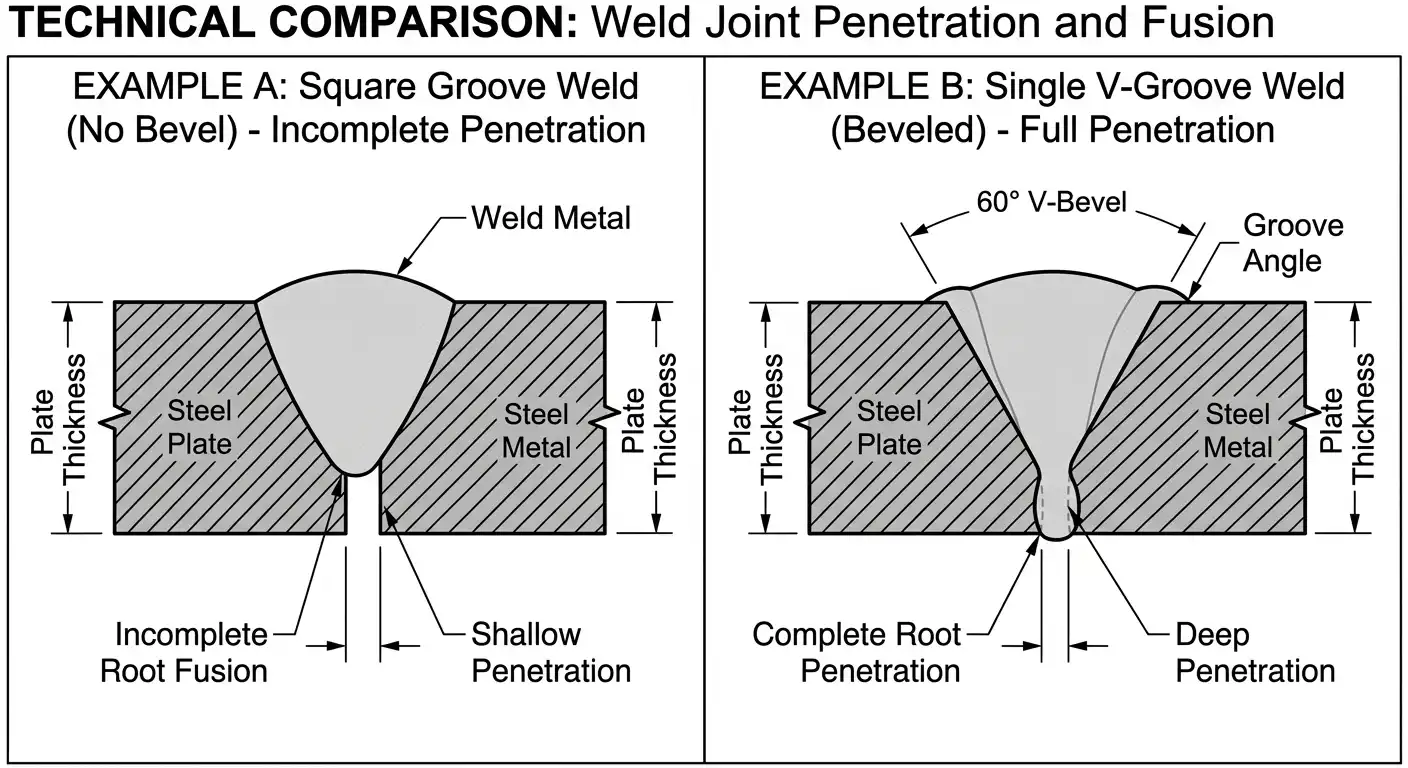

Image: Vronmikah2024 / Wikimedia Commons, CC0 1.0.
A bevel solves an access problem, not every welding problem.
A bevel is useful when the selected welding process cannot penetrate the full joint thickness from square edges with adequate consistency. It opens the joint so the welder or automated head can position energy at the root, maintain a workable torch or electrode angle, fuse both sidewalls and build the specified weld throat.
It also creates a repeatable joint volume for filler metal and makes full-penetration thick-section welding practical. However, a bevel does not compensate for contaminated metal, incorrect heat input, unstable travel, poor shielding, excessive mismatch, wrong filler or inadequate restraint. The joint preparation and the welding procedure must be designed together.
What is a bevel in welding?
A welding bevel is an angled or contoured surface prepared on the edge of a workpiece before welding. One beveled edge beside one square edge forms a single-bevel groove. Two angled edges facing each other form a V-groove. Curved preparations create J- or U-grooves.
The bevel is only one feature of the complete joint. The design can also specify the groove angle, root opening, root face, depth of preparation, backing and allowable mismatch. These dimensions determine whether the heat source can reach the root and how much weld metal must be deposited.
A chamfer may look similar, but the word usually describes an edge broken for assembly, handling or stress relief. In welding, the prepared edge is part of a qualified groove geometry intended to produce a specified weld.
Bevel angle is the angle on one prepared member. Groove angle is the included angle between the two groove faces. They are not always the same number.
What problems does a bevel actually solve?
The most useful way to understand beveling is to connect each geometry feature to a specific production problem. A bevel is not added because it makes a joint look professional; it is added because square edges would make the required fusion, access or quality uneconomical or unreliable.
Reaches deeper than a square joint

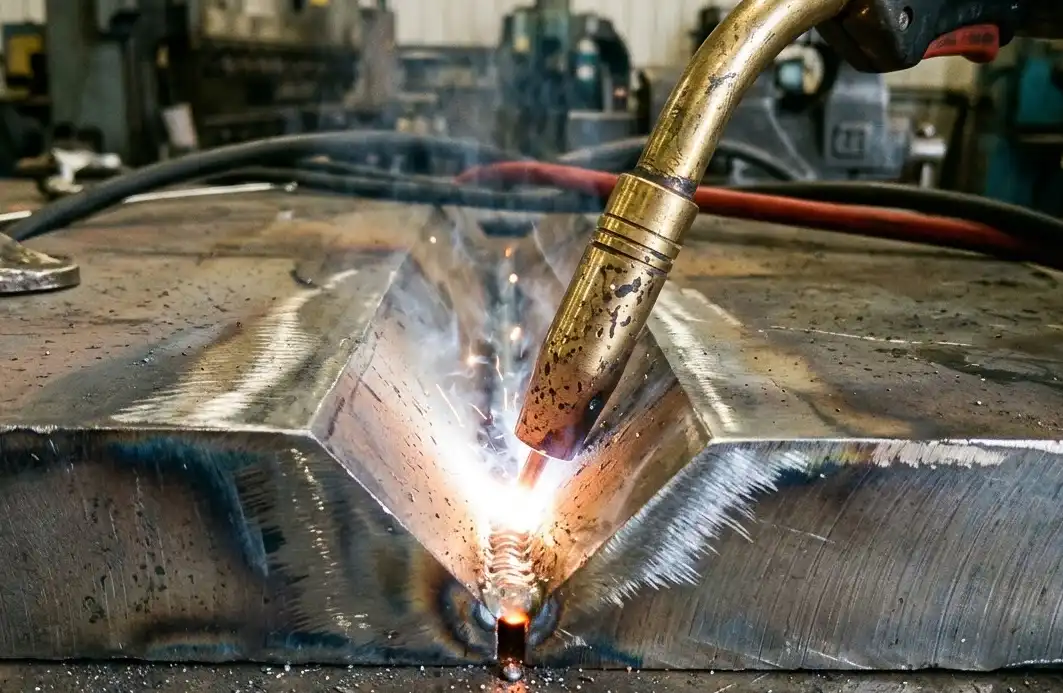

The groove exposes the root and fusion faces so the heat source can act where the joint must bond.
Supports a full-thickness weld
For thick sections, the preparation creates a path for a root pass followed by controlled fill and cap passes.
Creates torch and electrode clearance
The included angle provides room to hold the required work angle, arc length and wire stick-out.
Defines a measurable joint volume
Angle, land and gap can be inspected before welding, reducing variation between operators and parts.
Balances access with filler demand
J, U and double-sided preparations can reduce deposited metal on thick work when machining or access is available.
Start with a bevel family, then qualify the details.
Choose the closest production condition. The result is a planning direction for discussion, not a WPS or permission to weld a production joint.
Describe the joint
Use actual drawing, material, access and process constraints whenever possible.
Start with a single-V groove study
For a medium section welded from one side with an arc process, a single-V preparation is a practical starting family because it opens the root while remaining straightforward to cut or machine.
- Define bevel angle, included angle, root face and root opening separately.
- Check whether backing or a controlled open root is permitted.
- Confirm access with the actual torch, electrode or wire position.
A bevel works only when the other joint dimensions work with it.
The angle is easy to notice, but many root problems are caused by the interaction of root face, root opening, mismatch and tacking. Inspect the complete groove, not just one dimension.
One prepared edge
Affects local access and contributes to the total included groove angle.
Space between faces
Controls electrode or torch clearance and strongly affects weld-metal volume.
The remaining land
Helps support the root pool, but excessive land can prevent complete penetration.
Gap at the root
Can improve root access, but too much opening increases melt-through and filler demand.
High-low alignment
Changes local root-face engagement and may cause uneven penetration or stress concentration.
TWI notes that a narrow included angle reduces access and increases the risk of sidewall fusion problems, while a larger root opening may partly compensate. The final combination depends on process and thickness.

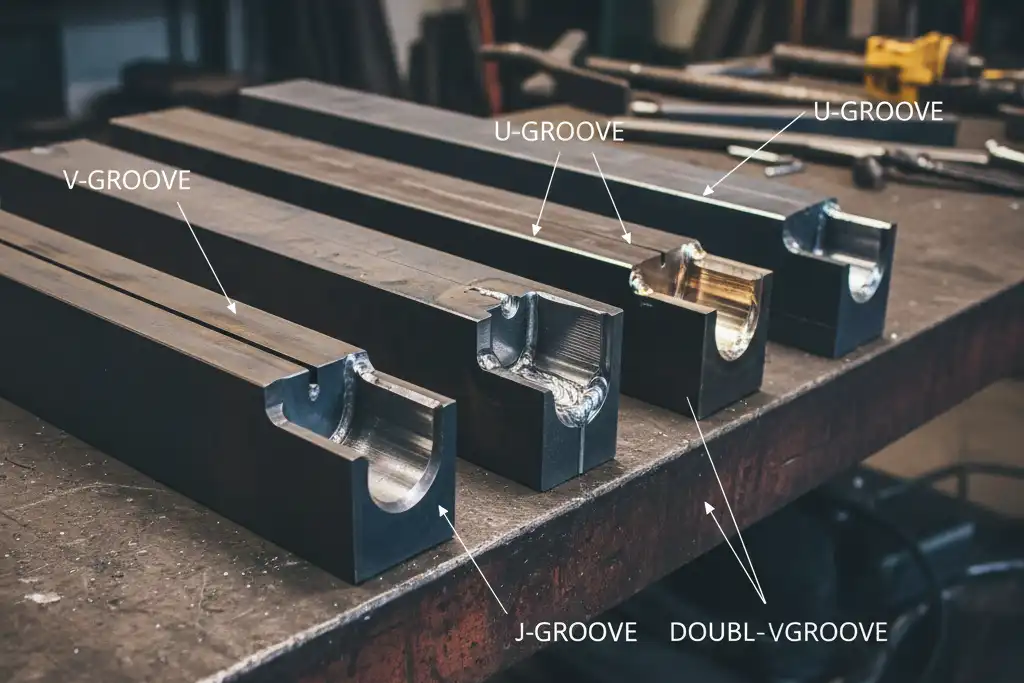

Which bevel or groove type solves which production constraint?
| Preparation | What it solves | Main advantage | Main limitation | Typical planning use |
|---|---|---|---|---|
| Square groove | Avoids unnecessary edge preparation on thin or high-penetration applications. | Lowest prep and filler volume. | Limited root access with many conventional arc processes. | Thin sheet, qualified laser welding, or processes proven to penetrate the thickness. |
| Single-V groove | Opens both joint edges for one-sided root access. | Simple to cut, inspect and weld. | Filler volume and one-sided shrinkage increase with thickness. | General plate and pipe work where the joint is mainly welded from one side. |
| Single-bevel groove | Provides groove access while leaving one member square. | Useful where only one component can be prepared. | Fusion demands are asymmetrical and torch angle must be controlled. | T-joints, transitions, attachments and unequal members. |
| Double-V or double-bevel | Splits weld volume and heat between both sides. | Can reduce filler and angular distortion on thick sections. | Requires reverse-side access, turning or positional welding, plus back-gouging when specified. | Thick plate where both sides can be welded and balanced. |
| J-groove | Reduces weld volume while preserving root access from one side. | Efficient deposited volume on thick work. | Usually requires accurate machining and tight fit-up control. | Thick pipe, orbital work or high-quality automated roots. |
| U-groove | Reduces the large triangular volume of a wide V-groove. | Lower filler and fewer passes on very thick sections. | Machining cost and dimensional control are higher. | Very thick pressure, vessel and heavy fabrication joints when savings justify machining. |
| Narrow-gap groove | Minimizes weld volume in thick mechanized joints. | High productivity and lower filler demand. | Sidewall fusion, torch guidance and seam tracking become more demanding. | Qualified automated or mechanized systems with accurate preparation and tracking. |
ISO 9692-1 specifies joint-preparation types for several steel welding processes, including beam welding, and recognizes that preparation details can change for one-sided welding and backing. Project-specific qualification still controls production use.
Why not make every groove wider?
A wider groove may improve visibility and manipulation, but it also increases the cross-sectional area that must be filled. That means more wire or electrodes, more passes, more interpass cleaning, more time and more thermal contraction.
Access is restricted
The operator or automated torch may not be able to maintain the intended work angle, arc length, stick-out or focus position.
- Higher risk of lack of sidewall fusion
- Harder manipulation at the root
- Less tolerance for electrode size or tracking error
- Potential bridging over an unfused root
Weld volume becomes expensive
The groove may be accessible, but every extra unit of area requires deposited metal and introduces additional thermal cycles.
- Higher filler and shielding-gas consumption
- Longer cycle time and more passes
- More shrinkage and distortion potential
- Greater opportunity for interpass inclusions
For thick work, a double-V can reduce the amount of metal deposited from one side and help balance angular shrinkage. A J- or U-preparation can reduce volume further, but the machining cost and dimensional accuracy must be justified. The best design is therefore not the widest or narrowest groove. It is the smallest qualified groove that still provides reliable access, fusion and production tolerance.
How to prepare a welding bevel without losing the design intent
A nominal angle on a drawing is not enough. The edge must be produced, cleaned, assembled and held within the fit-up range assumed by the welding procedure.
Read the complete joint detail
Confirm process, material grade, thickness, bevel angle, groove angle, root face, root opening, backing, access side and acceptable mismatch. Resolve whether the drawing calls for complete or partial joint penetration.
Select a preparation method
Grinding is flexible for repair and small batches. Oxy-fuel and plasma are productive for suitable steels. Milling and dedicated beveling machines provide tighter geometry. Waterjet or machining may be preferred where thermal effects or precision matter.
Remove process damage and contamination
Cutting oxide, slag, burrs, lubricant, paint, moisture and embedded abrasive can interfere with fusion or introduce inclusions and porosity. Prepare the surface to the WPS and material requirements.
Measure angle and root face
Use a bevel gauge, protractor, bridge cam gauge or qualified fixture. Check several locations rather than one end because manual cutting and grinding can drift along the seam.
Fit, align and tack
Use spacers or fixtures to control root opening and high-low. Tack sequence and restraint must prevent the gap from closing or opening as the joint pulls during assembly and welding.
Reinspect before the root pass
Record critical fit-up values, confirm tack quality and verify that the torch, wire or electrode can physically reach the intended root location throughout the joint.
What should be checked before welding?
Angle, land, depth and radius match the drawing or WPS over the full joint length.
The gap is within range after tacking, not merely before assembly.
High-low, offset and joint centerline stay within the permitted fit-up tolerance.
Loose scale, cutting dross, oil, paint, moisture and unacceptable oxide are removed.
Backing, purge dams, temporary bars or back-gouging access agree with the procedure and service conditions.
The actual torch, nozzle, electrode, wire and seam-tracking hardware can follow the groove without collision.
Arc welding and laser welding do not need the same bevel.
Conventional arc processes have finite penetration and physical access requirements. The groove must allow the electrode or torch to reach the root, maintain the correct arc length and fuse the sidewalls. A wide manual groove can be forgiving for manipulation, but it adds filler volume.
Laser welding concentrates energy into a much smaller spot and can penetrate deeper through a narrow fusion zone. This can make a square butt joint or narrow preparation possible at thicknesses where a conventional arc process needs a V-groove. The tradeoff is that laser welding is generally less tolerant of gap, mismatch, focus error and seam-tracking deviation.
Laser-hybrid welding may use a narrow groove to combine laser penetration with arc filler and gap-bridging capability. The geometry must be qualified for the actual beam profile, focus, wire position, shielding, travel speed and joint tolerance.
Manual arc welding
Prioritize physical access, electrode diameter, work angle and root manipulation. The qualified groove may be wider than a mechanized design.
GMAW and FCAW
Control wire placement and sidewall fusion. A narrow groove can improve productivity only if the torch and process reliably reach both fusion faces.
GTAW root welding
Separating heat from filler addition gives strong root control, but land, gap, purge and fit-up must still be consistent.
Laser welding
Reduce unnecessary groove volume, but tighten joint preparation, clamping, seam position, focus and gap control.
Robotic and automated welding
Design for repeatability. Machined J, U or narrow-gap forms may pay back through lower filler demand only when preparation accuracy and tracking are stable.
What defects can an incorrect bevel contribute to?

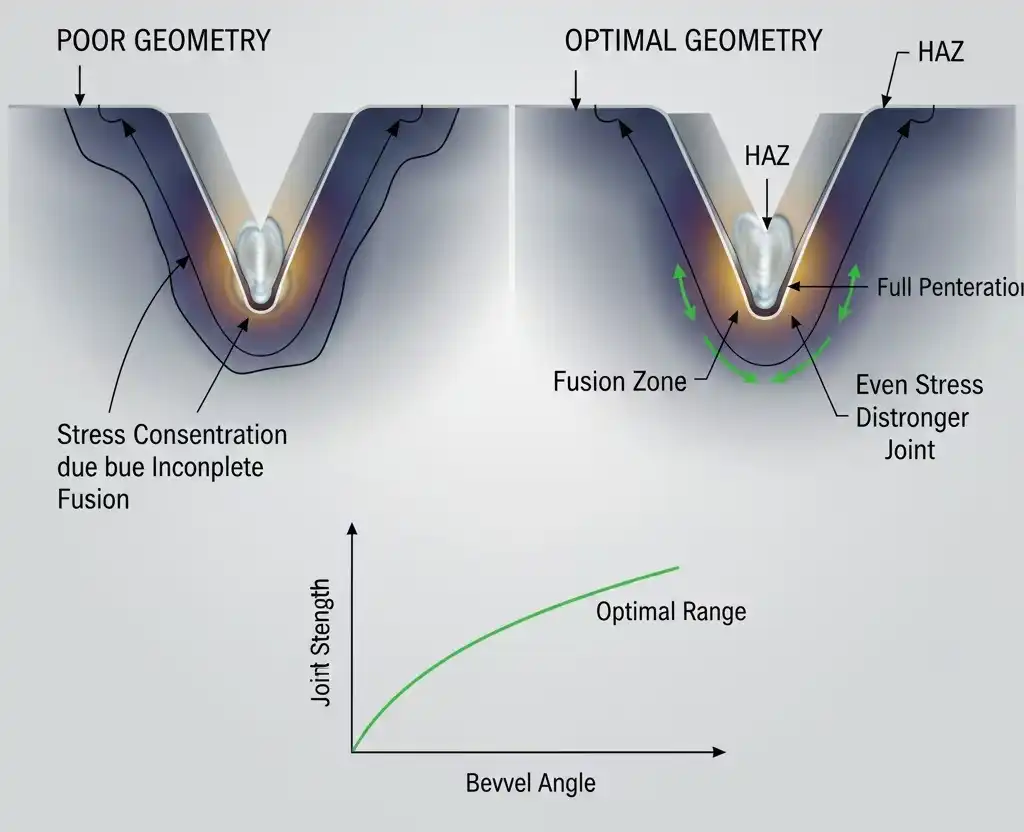

A bevel reduces certain risks only when its geometry matches the process. Poor preparation can create a new defect mechanism or make the qualified procedure impossible to execute.
Lack of sidewall fusion
A groove that is too narrow can prevent the arc or beam from reaching the fusion face.
- Check included angle and torch clearance
- Verify wire or electrode position
- Confirm energy input and travel speed
Incomplete penetration
An excessive root face, small root opening, wrong focus or insufficient energy can leave an unfused root.
- Measure land and opening after tacking
- Check whether the pool is bridging
- Validate the root with macrosection or NDT
Melt-through and irregular root
A root gap wider than the qualified range can remove pool support and increase penetration variation.
- Improve fixture and tack control
- Use backing only when permitted
- Requalify if the joint range must change
Distortion and shrinkage
A wide single-sided groove needs more metal and thermal cycles, increasing angular pull.
- Evaluate double-sided preparation
- Plan sequence and restraint
- Do not solve volume only by lowering heat below fusion needs
Porosity or inclusions
Slag, oxide, oil, moisture and trapped debris can remain in the groove or between passes.
- Remove cutting dross and contamination
- Clean between passes
- Use material-appropriate tools to prevent cross-contamination
Inconsistent penetration
An angle or root face that changes along the seam changes the local energy and filler requirement.
- Measure more than one location
- Use guides or mechanized preparation
- Track bevel capability as a production variable
When does beveling reduce distortion and filler metal?
Single-sided preparation
A single-V, single-bevel or J-groove is useful when the reverse side is inaccessible. It concentrates the groove volume and shrinkage on one side, so fit-up, root support and sequence matter. It is often the practical choice for pipe, closed vessels and components that cannot be turned.
When the root side cannot be inspected or repaired, the first pass becomes especially critical. Backing, purge, GTAW root control or a qualified laser root strategy may be used depending on the service and procedure.
Double-sided preparation
A double-V or double-bevel distributes deposited metal across both sides. On thick plate, this can reduce total filler compared with a very large single-V and can balance angular contraction. The tradeoff is access, part handling and the need to remove the unfused root region when back-gouging is required.
Back-gouging must reach sound metal. TWI recommends confirming the prepared groove before welding the second side, using the inspection method required by the procedure.
A wider bevel does not automatically make a stronger joint. Required throat, penetration class, fusion, material properties, defect acceptance and load path determine performance. Once the specified weld is achieved, extra groove volume may add cost and distortion without adding useful strength.
How do you know the bevel solved the intended problem?
Measure the preparation, execute a controlled trial and inspect the resulting weld. A visually attractive cap does not prove root fusion.
Document fit-up
Record angle, root face, opening, mismatch, tack spacing and backing condition.
Run a process trial
Use production-representative material, position, fixtures, shielding and consumables.
Section the weld
Macroetching reveals penetration, sidewall fusion, root contour and dilution that surface appearance cannot show.
Qualify and monitor
Apply required mechanical tests or NDT, then control preparation capability in production.
When should you bevel metal before welding?
| Situation | Likely direction | Why | What to verify |
|---|---|---|---|
| Thin material and proven full penetration | Square joint or minimal preparation | A bevel may add distortion and filler without improving the qualified result. | Gap tolerance, burn-through margin and required throat. |
| Thick butt joint welded from one side | Single-V, single-bevel or J study | Opens the root for full-thickness fusion. | Root control, backing, access and single-sided shrinkage. |
| Thick plate accessible from both sides | Double-V or double-bevel study | Can reduce filler and balance distortion. | Back-gouging, turning, welding sequence and NDT access. |
| Very thick high-volume production | U, J or narrow-gap engineering study | Reduces deposited volume and pass count. | Machining cost, sidewall fusion, tracking and automation repeatability. |
| Laser welding with tight fit-up | Square or narrow preparation study | High energy density may avoid a conventional wide groove. | Penetration, gap, focus, seam tracking, shielding and metallurgical response. |
| Repair weld with unknown history | Engineering review before beveling | Removing metal may expose cracks, change section strength or violate the repair procedure. | Base material, damage extent, code, NDT, preheat and approved repair plan. |
Validate the joint before choosing power or production speed.
Share the base material, thickness, joint drawing, fit-up range, required penetration and production target. Oceanplayer can help you compare autogenous welding, wire-fed laser welding and automated joint-tracking directions before equipment selection.
For a useful engineering review, prepare:
Material grade and conditionThickness and joint length
Bevel drawing or edge photos
Minimum penetration or strength requirement
Allowed gap and mismatch
Cycle-time and inspection target
Related welding resources
Welding bevel FAQ
What does a bevel do in welding?
A bevel opens the joint so the heat source, electrode or filler can reach the root and sidewalls. It is commonly used to make full-thickness fusion practical when square edges do not provide enough penetration or access.
Does beveling make a weld stronger?
Beveling can enable the penetration and fusion required by the design, which may make the completed joint stronger than an incompletely penetrated square joint. A wider bevel does not automatically add strength after the specified weld throat and quality are achieved.
What happens if the bevel angle is too small?
The torch or electrode may not have enough room to reach the root or sidewall at the correct angle. This can increase the risk of lack of sidewall fusion, incomplete penetration and tracking sensitivity.
What happens if the bevel angle is too large?
The groove requires more filler metal and more passes. Cycle time, heat input, shrinkage and distortion can increase, even though access may be easier.
What is the difference between bevel angle and groove angle?
Bevel angle describes one prepared edge. Groove angle is the included angle between the groove faces of the assembled joint. In a symmetrical V-groove, the groove angle is approximately the sum of the two bevel angles.
At what thickness should steel be beveled?
There is no universal thickness. The need depends on penetration capability, process, joint type, access, position and required weld throat. Some guidance shows square joints on relatively thin material and groove preparation on thicker work, but the project WPS and qualification control the actual threshold.
Is a 37.5 degree bevel always correct for pipe?
No. Certain piping component standards use common end preparations, but material, wall thickness, process and project specification can require different details or compound bevels. Confirm the current applicable standard and approved WPS.
Should thick plate use a single-V or double-V groove?
A single-V is practical when welding access is limited to one side. A double-V can reduce filler volume and help balance angular distortion when both sides can be welded, but it may require turning, back-gouging and additional inspection.
Why use a J- or U-groove?
J- and U-grooves reduce the large triangular weld volume created by a wide V on thick material. They can save filler and welding time, but usually need more accurate machining and fit-up.
Does laser welding need a bevel?
Not always. Laser welding can achieve deep penetration through a narrow fusion zone, so square butt joints or narrow preparations may be possible. A bevel or filler wire may still be needed for thickness, gap bridging, metallurgical control or hybrid process access.
Can a grinder be used to make a welding bevel?
Yes, especially for repair, field work and small batches. The challenge is consistency. Angle, root face, depth and surface condition should be measured along the full joint, not judged only by appearance.
Can beveling prevent all weld defects?
No. It can improve access and reduce certain fusion and penetration risks. Porosity, cracking, inclusions, undercut and distortion also depend on cleanliness, filler, shielding, heat input, sequence, restraint, material condition and technique.
Sources and scope
- ISO 9692-1:2013, Welding and allied processes - Types of joint preparation - Part 1. The standard covers several arc, gas, TIG and beam welding preparations for steels.
- TWI, Design - Part 3, discussion of butt-joint preparation, root access, included angle, root opening and weld-volume tradeoffs.
- TWI, Design - Part 4, guidance on bevel access, back-gouging and backing.
- TWI, Incomplete Root Fusion or Penetration, causes and prevention of root fusion imperfections.
- ASME B16.25-2017, Buttwelding Ends, reference for standardized component end preparations. Confirm the edition required by the project.
- Miller, Guide to Weld Joints, practical discussion of groove preparations and penetration.
Scope statement: This page explains welding-joint planning principles. It is not a WPS, PQR, design calculation, acceptance standard or repair authorization. Use the current project drawing, applicable code, qualified welding procedure and competent welding engineer before production.
Reviewed and expanded for technical planning: July 27, 2026.
