Why Is Laser Welding Galvanized Steel So Problematic?
Galvanized steel can be laser welded, but a tight lap joint creates a difficult sequence: zinc at the buried interface vaporizes before the steel pool is fully established, the gas becomes trapped, and pressure disturbs the keyhole and molten metal. The practical answer is to engineer vapor escape, repeatable fit-up and evidence-based inspection before treating power or speed as the cure.
Zinc can vaporize before a stable steel melt pool exists.
Buried coating has no easy lateral route to escape.
Address geometry and fit-up before chasing a parameter.
A smooth top bead does not rule out internal porosity.
Zinc-containing fume and laser hazards need designed controls.
The coating changes the physics of the joint.
The problem is not simply that galvanized steel is “dirty” or reflective. The decisive issue is what happens when zinc remains between two sheets and the laser creates a melt pool above it.
Zinc boils at about 907°C, while steels melt over a much higher range that depends on composition. In a coated lap joint, zinc at the faying interface can therefore turn into a rapidly expanding vapor before the steel provides a stable path for that vapor to leave. SAE research describes this boiling-point mismatch as the core reason zinc-coated automotive sheet needs a special welding strategy.[1]
When the interface is sealed, the vapor seeks the only route available: through the keyhole and liquid metal. That pressure can eject molten steel, enlarge or collapse the keyhole, and leave spatter, underfill, surface blowholes or internal pores. Recent zero-gap research confirms that zinc-vapor jets, beam shape and the relationship between the zinc evaporation zone and the heat-affected region govern process stability.[2]
That does not mean galvanized steel cannot be laser welded. It means the job should be treated as a coupled joint-design, coating, fixturing and process-control problem. A vent path, a controlled gap or dimple, beam shaping, oscillation, tandem beams, localized coating removal or another qualified strategy may help. Which method works depends on the actual stack, coating, joint, laser, speed and acceptance requirement.
Four stages turn a protective coating into a weld disturbance.
The most important distinction is between zinc on an exposed surface and zinc trapped at the faying interface. Exposed zinc can vent into the surrounding process zone; buried zinc must find a path through or around the developing weld.
The drawing shows a tight coated lap joint. The orange arrows represent possible zinc-vapor paths. If the interface offers no lateral vent, vapor interacts directly with the keyhole and molten steel.
Not every galvanized-steel weld traps zinc in the same way.
A statement such as “galvanized steel is hard to weld” is incomplete without the joint. A tight overlap with coated faying surfaces is the classic high-risk case; an open edge or butt joint usually provides a less restricted vapor path, although coating burnback, fume and corrosion restoration still matter.
| Joint concept | Vapor path | Relative mechanism risk | Typical evidence to collect |
|---|---|---|---|
| Butt joint or open edge | The interface is exposed near the seam, so vapor does not have to cross a sealed overlap. | Lower trapped-vapor risk | Penetration, edge condition, surface loss of coating, distortion, strength and corrosion-restoration plan. |
| Edge or flange joint | Vapor may escape toward an accessible edge, but local folds and clamp contact can still restrict it. | Configuration dependent | Edge vent consistency, corner behavior, spatter, underfill and joint access across the full part. |
| Lap joint with a designed vent path | A controlled gap, dimple, channel or open route is intended to relieve interface pressure. | Controlled development required | Gap mapping under clamp load, cross-sections, strength, repeatability and response to coating-lot variation. |
| Tight sealed lap joint | Buried zinc must escape through the keyhole or molten pool unless a specialized beam/process strategy creates a route. | Highest development risk | High-speed stability if available, spatter, underfill, internal porosity, lap width, strength and leak performance. |
Galvanized Steel Laser Weld Risk Checker
Describe the production joint, coating, escape path and evidence status. The checker separates vapor-trapping risk from the qualification gap so a low-risk geometry is never mistaken for a production-ready process.
Describe the actual stack
Choose the closest condition. Unknowns are treated as development work, not as neutral inputs.
Planning aid only. It does not create a welding procedure, certify a joint, prescribe a universal gap or replace a laser-safety and industrial-hygiene review.
This combination traps zinc at a coated lap interface and has no confirmed production evidence.
Different symptoms point to different stages of the same instability.
Zinc-related trouble does not present as one universal pore. Some failures are visible immediately; others remain under a smooth surface. A useful troubleshooting record separates the observed evidence from the assumed cause.
Internal porosity
Rounded voids may form when gas enters the liquid metal and becomes trapped during rapid solidification. Confirm with cross-sections or another inspection method appropriate to the product; bead appearance alone cannot clear the joint.
Blowholes and surface pits
A large pressure event can break through the weld surface and leave an open crater. Record whether it occurs at steady state, starts, stops, corners or locations where the designed gap may have collapsed.
Spatter and liquid ejection
Research on zero-gap lap welding links high-velocity zinc-vapor flow to violent molten-pool motion and ejection.[3] Heavy spatter is evidence of instability, not merely a housekeeping issue.
Underfill or seam collapse
When molten metal leaves the joint, the finished seam may lack material. Underfill can reduce effective section, alter sealing performance and change fatigue behavior even where penetration appears present.
Intermittent penetration
Keyhole fluctuation, focus drift, changing gap, coating variation or part movement can produce alternating deep and shallow regions. Section starts, stops and transitions separately from the stable center of the seam.
Coating burnback and deposits
The zinc layer near the weld can be altered or removed. Residue, discoloration and a visually clean seam do not define corrosion performance; the drawing and finish specification must state how the affected zone is accepted or restored.
A useful defect log has location and timing.
“Porosity present” is too vague for process development. Record where the defect appears in relation to clamp points, sheet edges, embossed vents, starts, stops, path corners and weld-over-weld regions. Then compare the same locations against measured fit-up and coating data.
Defects that cluster near clamp points may indicate a local loss of the vapor path. Defects concentrated at the start may reflect a transient melt-pool condition. A failure that appears only after a new coil, oil or adhesive lot may be material-state related rather than a laser fault.
Surface quality is not internal quality.
A bead can look continuous while pores remain below it. Conversely, a small cosmetic deposit does not automatically mean the joint lacks strength. Tie every symptom to the acceptance function:
- appearance and paint readiness;
- lap-shear, peel or tensile performance;
- fatigue or crash requirement;
- leak integrity;
- corrosion protection;
- spatter limits for downstream assembly.
Fix the escape path before fine-tuning the beam.
The most durable solutions start with the physical stack. Laser settings can widen a workable process window, but they cannot make an uncontrolled joint repeatable. Use the following order so each experiment answers a specific question.
Joint and vapor route
Choose an open edge, controlled gap, dimple, embossment, vent channel, localized coating treatment or another concept that gives vapor a defined route. Confirm that the concept is compatible with strength, sealing and corrosion requirements.
Fixture consistency
Measure gap and sheet contact under real clamp load. Prevent a designed vent from disappearing when parts flex, heat or move. Monitor clamp wear and part-form variation as production variables.
Beam and process strategy
Develop power, speed, focus, spot distribution, oscillation, sequence and shielding as a coordinated matrix. A dual or shaped beam may change how energy and vapor move, but it still requires evidence.
Inspection and monitoring
Section representative locations, test the required function and lock the process window. Use monitoring to detect drift only after the relationship between signal, defect and acceptance is established.
Controlled gap, dimples or channels
These features create lateral relief at the faying interface. They can be effective because they address the pressure path directly. Their trade-off is fit-up sensitivity: too little relief may not vent; too much can reduce bridging, change penetration or distort the part. Map the actual gap along the seam rather than trusting a nominal spacer.
Oscillation, beam shaping or dual spots
Beam motion and energy distribution can change keyhole size, molten-pool flow and the timing of zinc release. A 2022 study found that oscillation path changed keyhole behavior and spatter in its tested galvanized-steel condition.[4] That proves the strategy can matter—not that one wobble shape is universal.
Preconditioning or coating removal
A first pass, localized ablation or mechanical removal can reduce zinc at the interface. The price is another operation, possible cycle-time loss and local loss of corrosion protection. Verify the remaining coating, heat effect and any required post-weld restoration.
Every setting changes both the weld and the vapor-release window.
Parameter development should hold joint geometry and coating state constant, then change a controlled group of variables. Copying one speed, focus offset or gas recipe from another stack hides the mechanism and makes failures difficult to diagnose.

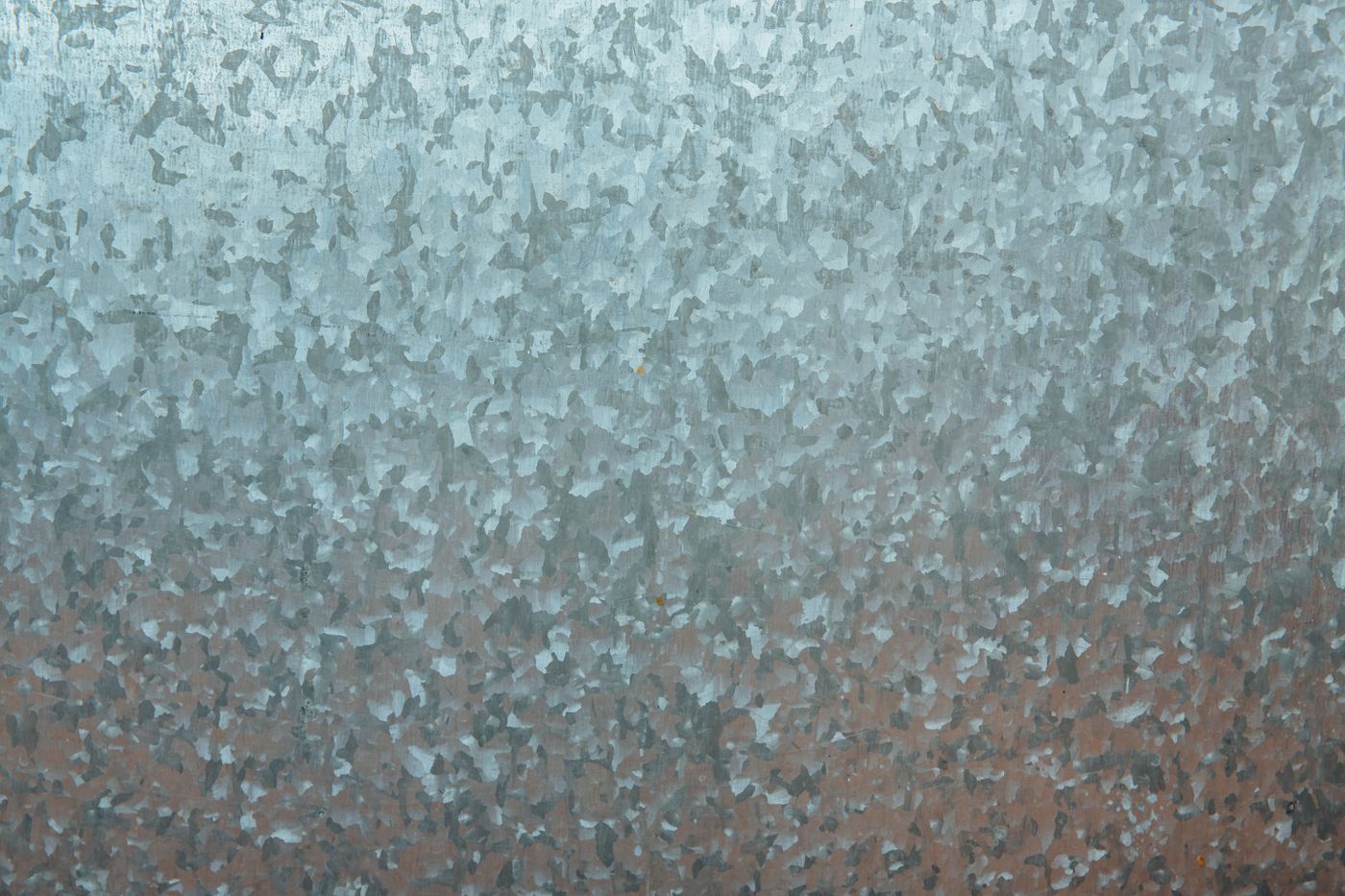

“Galvanized” is not one repeatable material condition.
Coating family, mass, morphology, sidedness and surface treatment all change the amount and timing of volatile material entering the process. The purchasing description should travel with the weld-development record.
| Coating family | What may change | What to record | Why the welding team needs it |
|---|---|---|---|
| Electrogalvanized | Layer thickness, surface morphology and one- or two-sided application can differ from a hot-dip product. | Exact designation, coating mass per side, supplier, coil or lot and any lubricant. | The lower or more uniform coating often associated with the process may help development, but the name alone does not guarantee a pore-free joint. |
| Hot-dip galvanized | Coating mass and surface structure may be higher or more variable, increasing the zinc available at a buried interface. | Coating designation, measured/nominal mass, spangle/finish, oil and production-lot traceability. | The vapor load and required escape strategy may change with product form and coating distribution. |
| Galvannealed | The zinc-iron layer has a different structure and surface behavior from a free-zinc hot-dip coating. | Material certificate, coating designation, layer condition and downstream paint/adhesive requirement. | It can produce a different process window, but it should not be assumed universally easier without same-condition trials. |
| Additional organic layer, oil or adhesive | Extra volatile species, residue, plume and contamination can enter the weld area. | Product name, application thickness, cure state, storage age and whether it remains at the faying interface. | A trial on solvent-cleaned sheet may not predict a production stack that includes oil, sealer or adhesive.[6] |
The difficulty is worth solving when the production case is strong.
Galvanized sheet is widely used where corrosion protection and formed lightweight structures matter, especially in automotive body-in-white assemblies. Laser welding can provide concentrated heat input, high travel capability, access through scanners or robots and narrow seams. These benefits explain why industry continues to develop gap-control, beam-shaping and zero-gap strategies rather than abandoning the material.
But the business case should compare the qualified production system, not only the laser source. Include part preparation, dimpling or coating treatment, fixture complexity, extraction, inspection, spatter cleanup, corrosion restoration, reject rate and changeover. A technically possible weld can still be the wrong manufacturing route when its control plan costs more than an alternative joint.
Laser brazing may be attractive for some visible galvanized seams because the filler melts while the base sheet is not fully fusion welded. It is not a synonym for laser welding: joint strength, metallurgy, filler, corrosion behavior and acceptance criteria differ. Decide which process function the drawing actually requires before comparing appearance or speed.
Turn a promising bead into a controlled production process.
The development sequence should preserve traceability from material and joint to evidence. A one-off sample on unknown sheet does not answer whether the line will remain stable across coils, clamps, starts, stops and environmental conditions.
Record steel grade, coating designation/mass, thickness, oil or adhesive, joint drawing, seam orientation and required function.
Measure part-to-part gap, edge access, clamp load, springback and how the interface changes along the full seam.
Compare an open route, controlled gap, dimple/channel, coating treatment or beam strategy that can be manufactured repeatably.
Vary a limited set of power, speed, focus, distribution or oscillation variables while keeping material and fixture controlled.
Section representative zones and perform strength, peel, leak, fatigue, appearance or corrosion checks required by the product.
Define the accepted window, material traceability, maintenance checks, clamp verification and response plan for process drift.
What a useful DOE changes
A small design of experiments is more valuable than a large random trial. Start with the dominant mechanism. If vapor has no route, first compare controlled joint concepts. Once the stack is stable, investigate beam distribution and heat input. If coating lot changes the result, add the coating measurement to the control plan.
Label every coupon with the exact parameter set and location. Preserve samples from starts, steady state, corners and stops. Record spatter mass or count when downstream cleanliness matters. A photograph of the top bead should accompany—not replace—the section and functional test.
What a useful production release proves
A pretty seam is only one line of evidence.
Inspection should be selected from the failure consequences. TWI lists porosity, lack of fusion, undercut and other defects among the conditions that can occur in laser welds generally.[7] Galvanized lap joints add a strong reason to search for hidden gas pores and material loss.
Fume control is a process release gate—not an afterthought.
Welding and heating galvanized steel can generate zinc oxide fume. OSHA identifies zinc oxide from galvanized steel as a cause of metal fume fever and notes that coated metals can add hazards beyond those of the base steel.[8]
Build controls around the real cell.
Use source-capture local exhaust designed and verified for the welding location, fume plume, enclosure and production duty. A room fan, open door or extraction hood placed for convenience is not proof of exposure control. NIOSH engineering-control guidance emphasizes local exhaust approaches that capture welding emissions near their source.[9]
- Characterize the material. Confirm zinc coating, oils, adhesives, sealers, paint, primers and any other layer that can produce fume or decomposition products.
- Assess exposure. Industrial-hygiene evaluation should determine whether controls keep workers within applicable occupational limits and whether additional respiratory protection is required.
- Verify capture without disrupting the weld. Extraction and shielding arrangements must control fume while preserving the qualified gas flow and molten-pool behavior.
- Control optical hazards. A high-power laser welding system needs the appropriate enclosure, interlocks, access control, trained personnel and wavelength-specific risk assessment.
- Manage fire and hot-work hazards. Deposits, filters, spatter and nearby materials require inspection and maintenance appropriate to the process.
Describe the joint—not only the material and wattage.
A credible equipment or process recommendation needs enough detail to reproduce the vapor path, heat flow and acceptance requirement. Include the following information with a sample request or supplier RFQ.
Validate zinc release, weld quality and cycle time on the real stack.
A representative trial should use the actual steel grade, coating, thickness, fit-up concept and production-state surface. Oceanplayer can compare joint and laser directions, document the trial matrix and help identify which equipment configuration deserves further qualification.
Laser welding galvanized steel FAQ
Can galvanized steel be laser welded?
Yes. Galvanized steel is laser welded in industrial applications, including automotive sheet assemblies. The difficult case is usually a tight lap joint with zinc coating trapped at the faying interface. A successful process controls vapor escape, fit-up, beam behavior, fume and inspection. “The laser can melt it” is not the same as a qualified production joint.
Why does zinc cause porosity and spatter during laser welding?
Zinc reaches its boiling condition before the steel has formed a stable melt pool. In a sealed overlap, the expanding vapor interacts with the keyhole and liquid metal. Violent escape can eject molten steel as spatter or create blowholes; gas that remains during solidification can form internal porosity.
Which galvanized-steel joint is the most difficult to laser weld?
A zero- or tight-gap lap joint with coated faying surfaces is generally the most demanding mechanism because the buried zinc has no easy lateral outlet. Butt joints and accessible edges usually reduce trapped-vapor risk, although coating loss, fume, distortion and corrosion requirements still need control.
Is a 0.1–0.2 mm gap always required?
No. Small controlled gaps appear in published thin-sheet studies, but there is no universal value. The useful gap depends on coating mass, steel and sheet thickness, joint length, beam size and distribution, power, speed, fixture stiffness and quality target. Use published values only as bounded experimental references and qualify the actual stack.
Can higher laser power eliminate zinc-related defects?
Not by itself. More power can improve penetration, but it can also generate zinc vapor faster, enlarge the molten pool and intensify ejection. Power, speed, focus, spot distribution and vapor path must be developed together. If the joint physically traps zinc, adding power may amplify rather than solve the failure.
Does beam wobble or oscillation help?
It can. Oscillation changes keyhole geometry, melt flow, heated area and vapor release. Research shows that the path and frequency can materially change spatter behavior in a specific galvanized-steel stack. It does not automatically remove pores: amplitude, frequency, path, speed, power and joint condition still require a controlled trial.
Should the zinc coating be removed before laser welding?
Localized coating removal is one possible control when the product and corrosion plan allow it. It can lower the zinc-vapor load, but adds an operation, may affect cycle time and removes local corrosion protection. Compare it with vented joint design, beam shaping or another qualified strategy, then define how the affected area will be restored or accepted.
Is hot-dip galvanized steel harder to weld than electrogalvanized steel?
Hot-dip products often carry a different or higher coating mass, which can increase the amount of zinc available to vaporize at the interface. However, coating designation, mass, sidedness, morphology, oil and joint geometry matter more than the family name alone. Test the approved production material and retain coil or lot traceability.
Can a handheld laser welder weld galvanized steel?
A handheld system may be able to produce a bead on galvanized sheet, but the same zinc-vapor mechanism remains. Operator motion does not replace a controlled vapor route, repeatable gap, fume capture, laser safety and hidden-defect inspection. Determine suitability with representative samples and product-specific acceptance tests.
How can internal porosity be detected?
Macro cross-sections are common during process development because they reveal penetration, fusion, pore location and interface behavior. Depending on geometry and risk, radiography, computed tomography, ultrasonic methods, leak testing or destructive mechanical tests may add evidence. The chosen method must be capable of finding the relevant defect and must follow the product specification.
What is the difference between laser welding and laser brazing galvanized steel?
Laser fusion welding melts the base material to form the joint. Laser brazing primarily melts a filler that wets the prepared edges while limiting base-metal melting. Brazing can produce smooth visible seams for some galvanized assemblies, but its joint design, filler, strength, metallurgy and acceptance criteria differ. The two processes should not be compared only by bead appearance.
Are galvanized-steel welding fumes dangerous?
They can be. OSHA identifies zinc oxide from galvanized steel as a cause of metal fume fever, and other coatings, oils or adhesives can add hazards. Use source-capture local exhaust designed for the process, complete an exposure assessment and apply respiratory protection only within an appropriate program when required. Laser, fire and hot-work hazards also need engineered controls.
Sources and further reading
The parameter values reported in research belong to the tested material, joint and equipment. This page uses the sources to explain mechanisms and engineering options, not to convert an experiment into a universal procedure.
- SAE Technical Paper 2001-01-3358 — Numerical Study of Zinc Coated Car Body Laser Welding. Describes the lower zinc boiling point, violent boiling and a two-spot process concept.
- Hayat et al. (2024) — Zinc vapor jet, keyhole dynamics and liquid ejection in zero-gap lap welding. Peer-reviewed open-access record from the University of Warwick.
- Journal of Materials Processing Technology — zinc-vapor forces and spattering in remote laser welding.
- International Journal of Heat and Mass Transfer (2022) — keyhole and molten-pool behavior under different oscillation paths.
- Coherent application note — Zero-Gap Welding of Galvanized Steel. A bounded core-and-ring beam case on electrogalvanized sheet.
- Materials (2023) — laser welding of galvanized car-body steel with an organic protective layer.
- TWI — What are the typical defects in laser welds?
- U.S. OSHA — welding hazards from coatings, including zinc oxide from galvanized steel.
- NIOSH Engineering Controls Database — local exhaust ventilation for welding operations.
- PubChem — zinc element and physical-property data.
- TWI — Laser Welding Automotive Steel and Aluminium.
