7 Facts About 6061 Aluminum Alloy Buyers Should Know
6061 is a versatile heat-treatable aluminum alloy, but “6061” alone does not define strength, flatness, weld performance or finish. Buyers must connect alloy chemistry with product form, temper, governing standard and the operations that happen next.
6061 combines heat-treatable strength, useful corrosion resistance, machinability, extrudability and weldability. Its appeal is balance—not superiority in every category.
T4, T6, T651 and T6511 are not interchangeable. Sheet, plate, bar, tube and extrusion can also carry different guaranteed properties and tolerances.
A strong T6 parent product does not mean an equally strong as-welded joint. Design and qualification must use the applicable welded condition.
State form, temper, standard, dimensions, tolerance, certification, finish and any welding or post-processing requirements.
Direct answer
What should a buyer know about 6061 aluminum?
6061 is a magnesium-silicon, precipitation-hardenable wrought aluminum alloy whose real performance is controlled by temper, product form, section thickness, fabrication history and the purchase specification—not by the alloy number alone.
The Aluminum Association describes 6061 as the most widely used alloy in the 6xxx series. That popularity makes it easy to source, but familiarity can encourage under-specification. A quotation for “6061” might refer to an extrusion, rolled plate, sheet, bar or tube in several different tempers. Those products may look similar while behaving differently during bending, machining, welding, anodizing and service.
Magnesium and silicon enable precipitation hardening, but chemistry limits do not guarantee one universal strength.
T4 favors formability; T6 favors strength; T651 and T6511 add stress-relief operations for particular forms.
Use the governing specification and product-specific minimums, not a generic online property card.
The heat-affected zone can become the design-controlling region even when the bead looks excellent.
Extrusion lines, lot variation, filler selection and surface preparation can all change anodized appearance.
Wrought aluminum alloys principally associated with magnesium and silicon additions.
Useful for early mass estimates; use supplier data for final engineering calculations.
Solution heat-treated and artificially aged, but guaranteed properties remain form- and thickness-dependent.
B221 commonly covers extruded products; B209 covers aluminum sheet and plate.
The complete decision map
Seven facts that determine whether 6061 is right for the part
These facts are arranged in the same order a buyer should make decisions: identify what the alloy designation means, select a condition, assess mechanical requirements, plan joining, specify the product route, control the finish and compare alternatives.
Chemistry is not a property sheet
The 6061 designation defines composition limits, while strength is created by processing and condition.
Temper changes the job
T4, T6, T651 and T6511 answer different forming, strength and stability needs.
Light does not mean infinitely stiff
Low density helps mass, but aluminum’s elastic modulus still affects deflection.
A weld rewrites the local condition
Heat input alters precipitation hardening near the joint.
Form is part of the specification
Extrusion, sheet, plate and bar bring different properties and tolerances.
Corrosion control is a system
Environment, drainage, coating and dissimilar-metal contact all matter.
6061 is a baseline, not a default
6063, 5052, 5083, 6082 or 7075 may better fit the real priority.
Fact 1 — chemistry

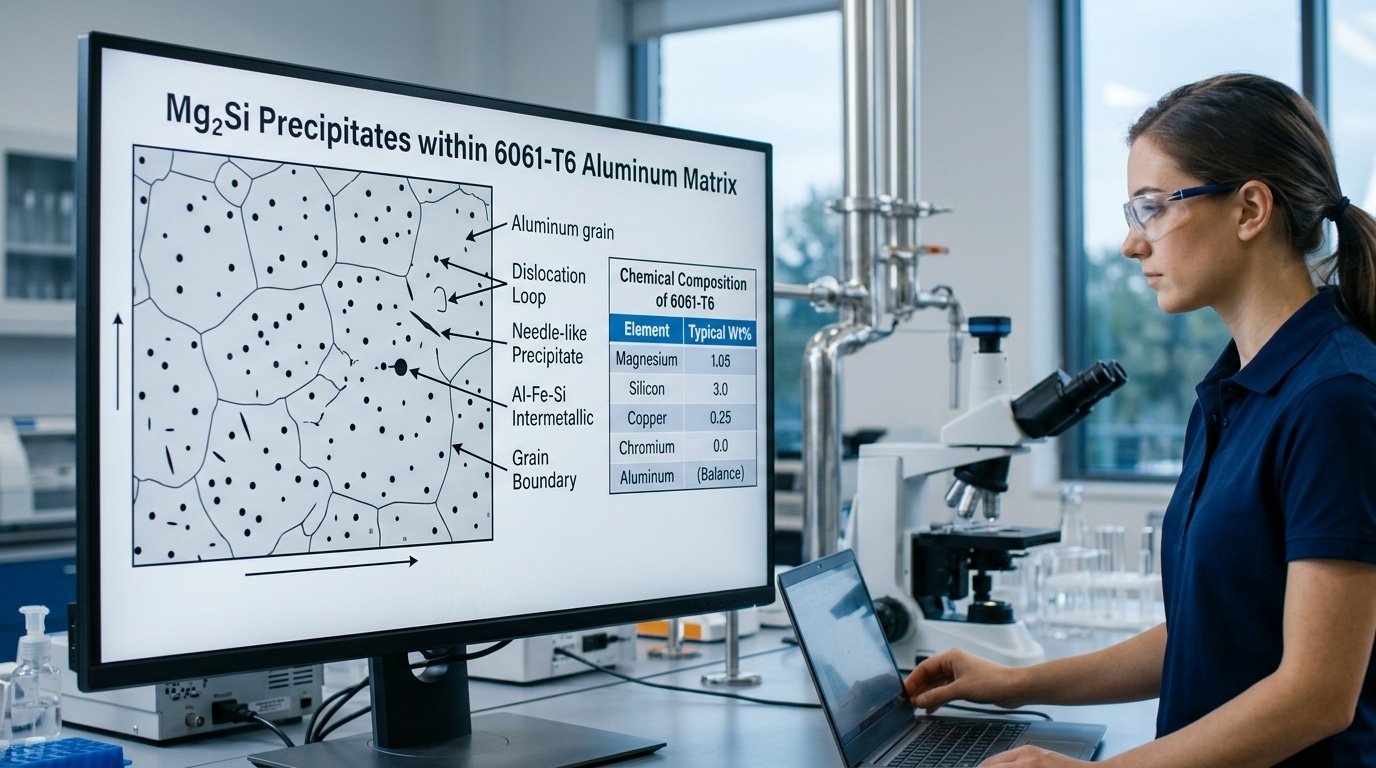

6061 identifies an alloy chemistry, not one fixed strength
6061 belongs to the heat-treatable Al-Mg-Si family. Magnesium and silicon participate in the precipitation-hardening response, while copper, chromium, iron and other elements influence processing and performance. The registered composition window is essential for alloy identity, but two conforming lots can still differ within normal manufacturing limits.
| Element | Typical registered limit, wt% | Why buyers care | What not to assume |
|---|---|---|---|
| Magnesium | 0.8–1.2 | Contributes to the Mg-Si precipitation-hardening system. | Being near one end of the chemistry range does not by itself predict final certified strength. |
| Silicon | 0.4–0.8 | Works with magnesium and influences processing response. | Chemistry alone does not replace temper control or a tensile report. |
| Copper | 0.15–0.40 | Contributes to the alloy’s strength response and can influence corrosion behavior. | Do not turn one element into a universal corrosion rating. |
| Chromium | 0.04–0.35 | Helps control microstructure during processing. | A listed maximum or range is not a supplier’s actual heat analysis. |
| Iron | 0.70 max | Controlled as part of registered alloy identity and microstructure quality. | A maximum is not the expected value in every lot. |
| Aluminum | Remainder | Forms the lightweight metallic matrix. | “Mostly aluminum” does not make every aluminum grade interchangeable. |
What to request from the supplier
For routine commercial work, a certificate of conformance may be sufficient. For controlled projects, request a mill test report or inspection certificate that identifies heat or lot, alloy and temper, product specification, dimensions and the actual reported test results required by that specification.
- Confirm that the certificate matches the delivered lot and marking.
- Check the governing standard and revision instead of accepting “industry standard.”
- Compare reported chemistry with the applicable registered alloy limits.
- Confirm mechanical values apply to the ordered form and thickness.
- Preserve traceability through cutting, machining and outside processing.
Why generic datasheets mislead
Many online cards quote one set of “6061-T6” values without naming the specification, test orientation, product form or thickness. Those values are useful for rough screening, not contract acceptance.
- Extrusion minimums may differ from sheet or plate minimums.
- Longitudinal and transverse properties may not be identical.
- Very thin or thick sections can fall under different requirements.
- Typical values are not automatically guaranteed minimums.
Fact 2 — temper

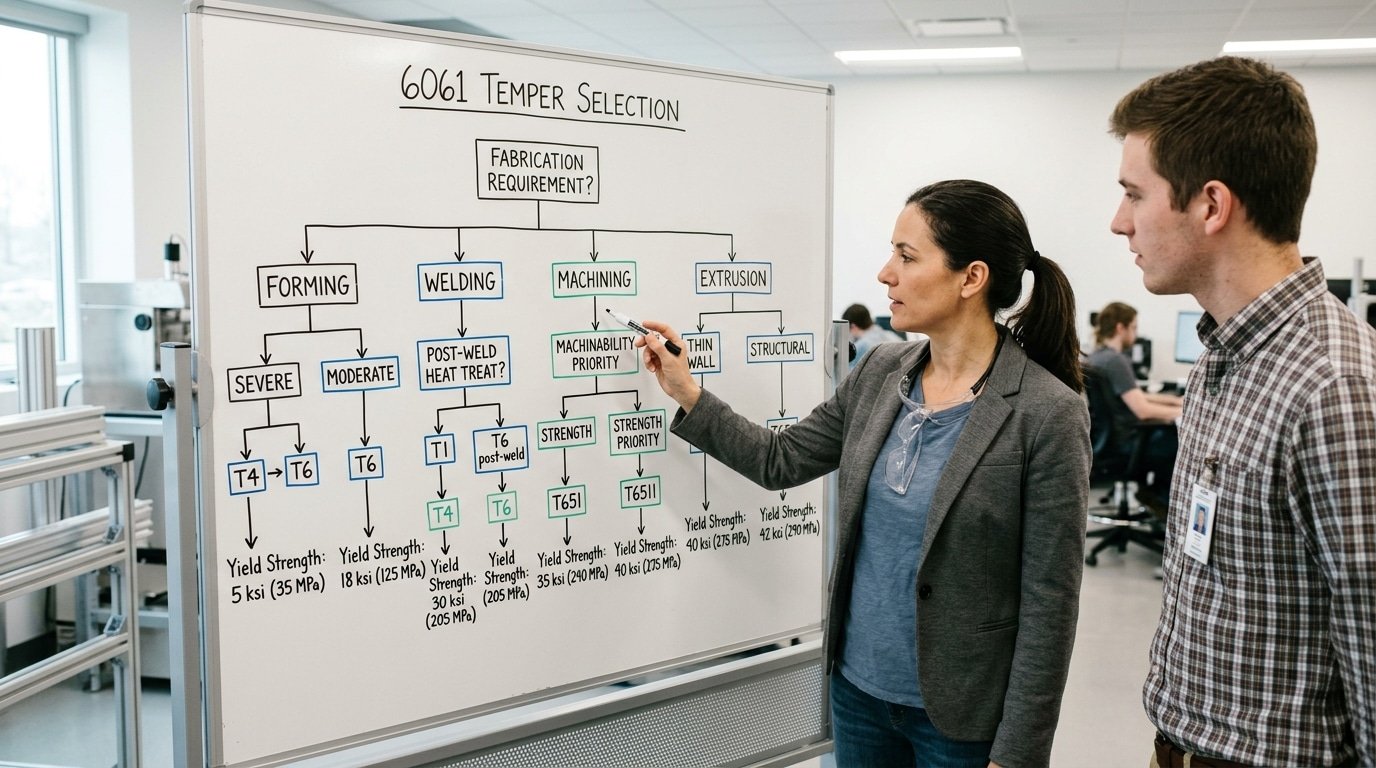

T4, T6, T651 and T6511 answer different manufacturing needs
The temper suffix records important thermal and mechanical history. It should be chosen around the operations that remain—not copied from an old drawing. A part that still needs significant forming may need a different starting condition from a plate that will be pocket-machined or an extrusion that must remain straight.
| Temper | Plain-language meaning | Typical reason to specify it | Key buying question |
|---|---|---|---|
| T4Forming route | Solution heat-treated and naturally aged to a substantially stable condition. | Useful when greater forming capability is needed before final aging or when T4 performance is sufficient. | Will the supplier, fabricator or heat treater control the final condition after forming? |
| T6Strength route | Solution heat-treated and artificially aged. | Common starting point for finished parts requiring stronger mechanical performance. | Does the applicable standard guarantee the values needed for this exact form and size? |
| T651Plate stability | T6 condition with stress relief by stretching; no further straightening after stretching. | Common for rolled plate and machined parts where residual-stress control matters. | How much stock will be removed, from which faces, and what flatness is required after machining? |
| T6511Extrusion stability | T6 condition, stress relieved by stretching, with minor straightening permitted after stretching. | Used for extruded bar, rod, tube or profiles where straightness and machining behavior matter. | Are straightness, twist and bow requirements written into the order? |
List remaining operations
Forming, welding, heavy machining, anodizing and dimensional inspection can each change the preferred starting condition.
Select the product form
Temper suffixes are used differently across sheet, plate, extruded products and drawn products.
Set guaranteed properties
Use the applicable material standard and thickness range, not a generic web value.
Validate the process chain
Confirm how cutting, forming, machining, welding and finishing affect the final acceptance plan.
Fact 3 — mechanical performance
Low density helps mass; stiffness and fatigue still need design work
6061-T6 is often selected for a useful strength-to-weight balance, but substituting aluminum for steel is not a simple equal-thickness swap. Aluminum’s density is roughly one-third of steel’s, while its elastic modulus is also much lower. A lighter aluminum member may need deeper ribs, a larger tube diameter or a different section shape to control deflection and buckling.
Strength values belong to a condition
Published room-temperature values around 310 MPa ultimate tensile strength and 276 MPa tensile yield strength are often associated with certain 6061-T6 products. They are useful reference points, not a promise for every thickness and product form. A buyer should use the minimum properties in the cited procurement standard, then give the designer the correct orientation and condition.
Fatigue needs even more care. Aluminum alloys do not present a simple universal endurance limit comparable to the way some steels are discussed. Stress range, mean stress, surface finish, holes, threads, weld toes, corrosion, residual stress and load spectrum all affect life. A single “fatigue strength” number copied from a datasheet is not a complete design basis.
Property questions for RFQs
- Which tensile minimums apply to this form, thickness and orientation?
- Is the quoted value guaranteed, typical or merely nominal?
- Will the part experience static, cyclic, impact or elevated-temperature loading?
- Are machining direction and grain flow important to the component?
- Will welding, bending, anodizing or thermal exposure change the condition?
- Which test coupon location and direction represent the finished part?
Fact 4 — joining
Welding 6061 changes the local temper—and therefore the design basis
6061 is considered weldable, but welding heat changes the precipitation-hardened microstructure around the fusion zone. The heat-affected zone can be softer than the original T6 parent material, so the joint must be designed and qualified as a welded system rather than treated as untouched 6061-T6.
What a sound procedure must control
- Verified base-alloy and temper identification.
- Oxide, oil and moisture removal immediately before joining.
- Joint design, fit-up, gap and restraint.
- Heat input, travel speed, focus or arc settings and shielding.
- Filler selection when filler is used.
- Porosity, hot-cracking and penetration acceptance criteria.
- HAZ and joint-strength values required by the design code.
- Post-weld finish, anodizing appearance and service temperature.
4043 versus 5356 is not a one-line choice
Both fillers are widely used with many 6xxx-series applications, but they answer different priorities. ESAB describes 4043 as a general-purpose Al-Si filler with good fluidity and lower crack sensitivity. It can become dark gray after clear anodizing. 5356 offers higher shear strength and a closer anodized color match in many applications, but service-temperature and cracking considerations must be reviewed.
Neither filler restores the original T6 heat-affected-zone condition by itself. Joint design, parent condition, filler, heat input, geometry and applicable code must be evaluated together. If appearance after anodizing matters, make a welded and finished sample from production-representative material before releasing the lot.
Clean
Remove contamination and control the oxide condition without reintroducing moisture or oil.
Stabilize
Hold fit-up, focus, shielding and motion inside a repeatable process window.
Inspect
Use the required visual, dimensional, sectioning, leak, mechanical or NDT methods.
Qualify
Validate the complete joint and the design values—not just the appearance of the top bead.
Fact 5 — product route
Extrusion, sheet, plate and bar are not interchangeable stock shapes
The selected manufacturing route affects available geometry, tolerances, grain flow, surface condition, residual stress and minimum properties. The purchase order should name the form and its governing standard before it names a convenient catalogue size.
Efficient material placement
Profiles can integrate ribs, channels, screw bosses and thermal features. Buyers must review minimum wall, corner radii, tongue ratios, die lines, twist, bow and the cost of dedicated tooling.
Common route: ASTM B221 for many extruded productsFormed and fabricated panels
Sheet suits enclosures, covers, formed parts and welded assemblies. Bend direction, inside radius, surface condition and temper must be coordinated with the drawing.
Common route: ASTM B209 for sheet and plateMachined structural components
Plate is common for fixtures, frames, manifolds and machined brackets. Stress-relieved tempers can improve stability, but balanced stock removal and robust workholding still matter.
Ask for flatness, thickness tolerance and ultrasonic quality when neededTurned parts and structural members
Extruded or drawn products can carry different tolerances and surface expectations. Specify straightness, twist, wall thickness, concentricity and mechanical condition as the application requires.
Do not substitute drawn and extruded conditions without approval
Fact 6 — surface performance
Corrosion resistance and anodizing quality must be designed as a system
6061 forms a protective oxide film and performs well in many general environments, but it is not immune to pitting, crevice attack or galvanic corrosion. Exposure, drainage, salts, cleaning chemicals, contact metals, fasteners, coating damage and maintenance can matter more than a broad label such as “corrosion resistant.”
Plan the environment before the finish
For indoor equipment frames, a clean mill finish or decorative anodizing may be adequate. Outdoor, marine-splash, chemical or abrasive conditions demand a more deliberate evaluation. Water traps and tight crevices should be eliminated where possible. When aluminum contacts stainless steel, copper or other more noble materials in a conductive electrolyte, isolate the materials and control the area ratio, drainage and coating continuity.
Anodizing can add corrosion resistance, wear performance or decorative color, but the specification must identify the intended coating class, thickness, sealing, color range and inspection method. Type II and Type III are process categories, not simple “good” and “better” buttons. Hardcoat thickness affects dimensions, fits and thread allowances; decorative color can vary by alloy lot, product form, surface finish and weld filler.
Finish approval checklist
- State indoor, outdoor, salt, chemical, wear and temperature exposure.
- Name the finish standard, class, thickness, sealing and color limits.
- Define masking, electrical-contact and thread requirements.
- Identify dissimilar metals and isolation details.
- Approve a witness coupon from representative alloy, temper and finish preparation.
- For welded parts, include the actual filler and bead preparation in the coupon.
Fact 7 — alternatives

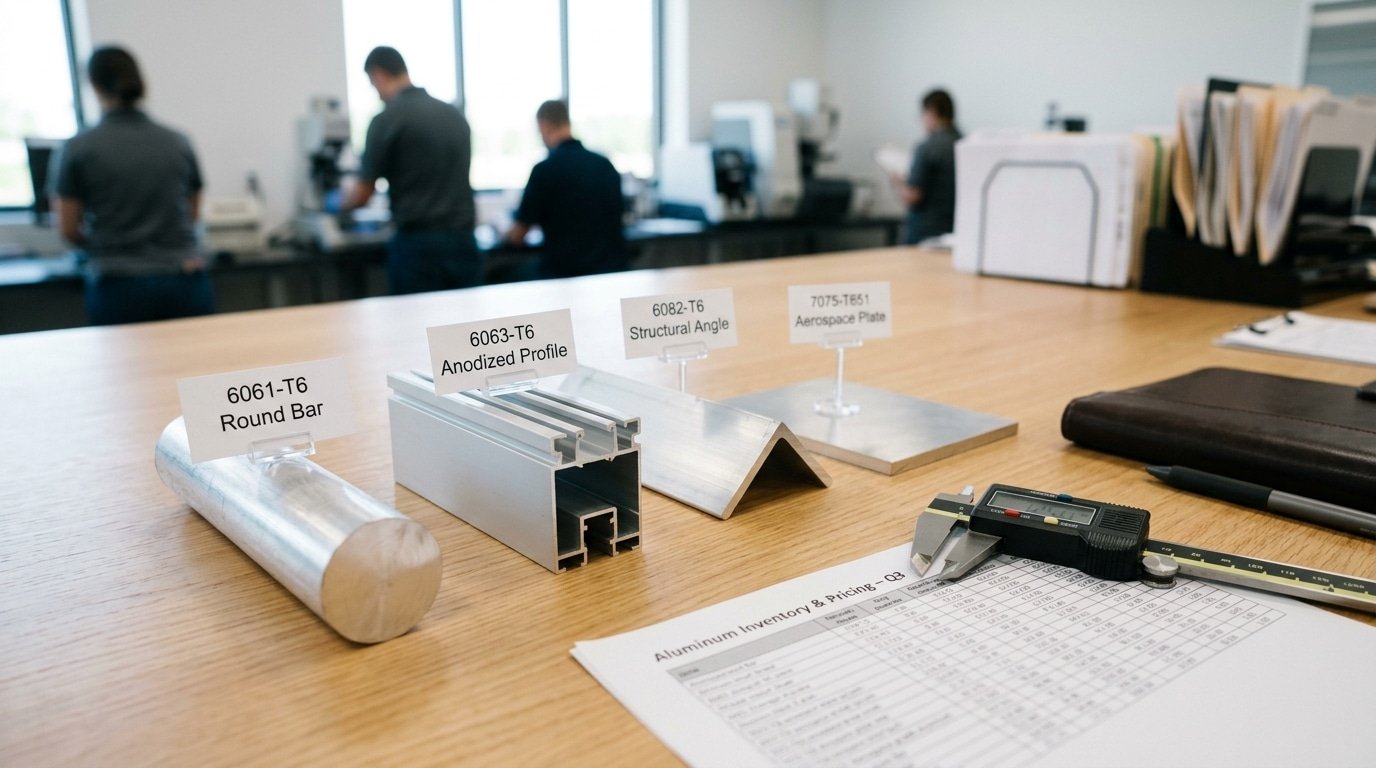

6061 is a strong baseline, but another alloy may fit the priority better
Use 6061 when you need a practical balance. Move to another alloy when one requirement—extrudability, marine performance, sheet formability, European structural availability, peak strength or decorative finish—dominates the project.
| Alloy | Why it enters the shortlist | Where it may beat 6061 | Tradeoff to investigate |
|---|---|---|---|
| 6063 | Highly extrudable 6xxx alloy used widely for architectural and decorative profiles. | Complex thin-wall extrusion, smooth surface and decorative anodized appearance. | Lower mechanical strength in many common tempers; verify load requirements. |
| 6082 | Structural 6xxx alloy common in European supply chains. | Regional stock availability and some structural-property requirements. | Extrusion complexity, procurement standard and local availability. |
| 5052 | Non-heat-treatable Al-Mg sheet alloy with strong forming and corrosion credentials. | Bent sheet enclosures, tanks and formed parts where T6 strength is unnecessary. | Lower heat-treatable strength and different machining behavior. |
| 5083 / 5086 | Higher-magnesium alloys widely considered for marine and welded plate structures. | Marine exposure and welded structural plate applications. | Product availability, forming, machining and service-temperature limits. |
| 7075 | High-strength 7xxx alloy for demanding non-welded parts. | Peak static strength and high strength-to-weight requirements. | Poor fusion-welding suitability in common practice, corrosion protection, cost and availability. |
| 6061 | Balanced, widely understood and available in many forms. | General structural extrusions, machined parts, frames and qualified weldments. | Do not overlook HAZ softening, finish variability or form-specific minimums. |
Interactive planning tool
Build a practical 6061 purchasing route
Choose the closest production scenario. The result is a starting direction for discussion with your designer, mill, extruder, fabricator or welding team—not a substitute for the applicable standard or qualification.
Describe the component
Three decisions reveal the specification items most likely to control cost and risk.
Start with 6061-T651 plate
For a heavily machined plate component, a stress-relieved plate route is the most logical starting point. The final standard, thickness range and flatness requirement still control acceptance.
- Cite the applicable plate standard and required mechanical minimums.
- Set incoming and post-machining flatness separately.
- Plan balanced stock removal and intermediate stress relief if the process requires it.
Planning guidance only. Engineering requirements, code obligations and supplier capability take precedence.
From search result to purchase order
A 6061 specification should answer at least eight questions
A clear purchase order reduces substitution disputes, dimensional surprises, finish rejection and traceability gaps. The exact detail level should match the consequence of failure.
What is the product form?
State extrusion, sheet, plate, bar, rod, tube, drawn product or another defined form. Add profile or drawing number where applicable.
Which temper is required?
Write the complete temper designation. Do not use T6, T651 and T6511 as if they were equivalent shorthand.
Which material standard applies?
For example, ASTM B221 commonly covers extruded bars, rods, wire, profiles and tubes, while ASTM B209 covers sheet and plate. Confirm the correct current standard for your jurisdiction.
Which dimensions and tolerances matter?
State thickness, width, length, wall, straightness, twist, bow, flatness and profile tolerances. Identify critical-to-function features.
What evidence is required?
Define certificate of conformance, mill test report, heat or lot traceability, inspection report and any third-party witnessing.
What will happen after delivery?
Tell the supplier about deep machining, tight bending, welding, heat treatment, anodizing and unusual thermal service because these affect the best route.
What finish and appearance are acceptable?
State coating type, thickness, sealing, color range, masking and witness-coupon approval. Define cosmetic viewing conditions when appearance is critical.
How will substitutions be handled?
Require written approval before changing alloy, temper, form, mill source or standard. A “similar” aluminum can behave differently in production.
Application patterns
Where 6061 commonly earns its place
6061 is popular because many ordinary engineering products need several good characteristics at once. The following are application patterns, not automatic approvals.
Frames, brackets and fixtures
Extrusions and plate combine moderate structural performance with easy drilling, milling and assembly. Deflection, fastener bearing and joint details still require design.
Priority: form, temper, flatness and connection designNon-critical lightweight structures
Low density and available tube or profiles support mass reduction. Fatigue spectrum, crash duty, weld details and corrosion exposure determine whether 6061 is sufficient.
Priority: welded-condition design and traceabilityHeat sinks and housings
Extruded geometry can place fins and channels efficiently. Thermal conductivity, surface area, airflow, anodizing and interface flatness matter alongside alloy strength.
Priority: extrusion feasibility and thermal validationGuards, robot cells and modular structures
Profiles enable adjustable structures and clean cable routing. The machine builder must still evaluate stiffness, vibration, anchor loads and guarding requirements.
Priority: section stiffness and assembly repeatabilityQualified welded assemblies
6061 can support frames, enclosures and equipment when the procedure controls cleanliness, fit-up, filler or autogenous parameters, shielding and inspection.
Priority: HAZ design and process qualificationStructures with managed exposure
A suitable finish, drainage, isolation from dissimilar metals and maintenance can make 6061 useful outdoors. Marine immersion may point to another alloy family.
Priority: environmental definition and coating systemContinue the decision
Related Oceanplayer welding resources
If your 6061 component will be laser welded, continue from material selection into process selection, energy control and application validation.
Review aluminum-specific reflectivity, oxide, porosity, fit-up and process-development considerations.
Open application guide →Process guideLaser Welding GuideUnderstand equipment architecture, joint design, parameters, shielding and validation workflow.
Read the guide →Engineering toolWelding Heat Input CalculatorEstimate nominal line energy as an early comparison variable while keeping qualification in control.
Use the calculator →EquipmentHandheld Laser Welding MachineExplore a flexible welding platform for suitable aluminum fabrication applications.
View system options →Filler-wire platformLaser Welder With Wire FeederReview system options for joints that require controlled filler addition.
Explore the system →ValidationSample TestingSend the real alloy, temper, geometry and acceptance criteria for application-level testing.
Plan a sample test →Frequently asked questions
6061 aluminum alloy buyer FAQs
What is 6061 aluminum alloy?
Is 6061-T6 the same as 6061?
What is the difference between 6061-T6 and 6061-T651?
Is 6061 aluminum easy to machine?
Can 6061 aluminum be welded?
Should I use 4043 or 5356 filler on 6061?
Does 6061 aluminum rust?
Is 6061 good for marine applications?
Which is better: 6061 or 7075?
What standard should I specify for 6061 aluminum?
Technical references
Sources used to build this buyer guide
Property statements were rewritten around registered alloy data, product standards and process-specific guidance rather than unsupported market prices or anonymous property cards.
- The Aluminum Association — Standards and alloy-designation resources.
- The Aluminum Association — International Alloy Designations and Chemical Composition Limits for Wrought Aluminum.
- The Aluminum Association — Aluminum Standards & Data 2024.
- ASTM International — B221, Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes.
- Kaiser Aluminum — 6061 Sheet, Coil and Plate product information.
- NASA Technical Reports Server — Materials Data Handbook: Aluminum Alloy 6061.
- TWI — What is the Heat-Affected Zone?.
- ESAB — Should I use 4043 or 5356 filler alloy?.
Planning to laser weld a 6061 component?
Share the product form, temper, thickness, joint drawing, target cycle time and acceptance criteria. Oceanplayer can help identify a starting equipment direction and structure a sample-validation plan around the real part.
