What Is Magnesium Alloy and When Should You Use It?
Magnesium alloy can remove substantial mass from a component, but low density alone does not make it the right material. Grade, product form, temperature, corrosion protection, joining, fire controls, supply and total part cost must work as one system.
Every kilogram has real system value.
Magnesium becomes compelling when lower mass improves range, handling, inertia, portability or assembly ergonomics—not merely when “lightweight” sounds attractive.
Grade and process must be paired.
A die-casting alloy, wrought sheet alloy and rare-earth aerospace alloy are not interchangeable. Start with the product form and service conditions.
Corrosion is a system-design issue.
Alloy purity, coating, drainage, galvanic isolation, fasteners, sealants and damage tolerance must be designed as one protection strategy.
Do not pay for density you cannot use.
If the design remains stiffness-limited, hot, exposed, very low-volume or supply-sensitive, aluminum, steel or another material may deliver lower total risk.
What is magnesium alloy?
Magnesium alloy is a metallic material in which magnesium is the principal element and controlled additions—commonly aluminum, zinc, manganese, rare-earth elements or zirconium—modify castability, strength, ductility, creep resistance, corrosion behavior and processing. Commercial magnesium alloys are valued primarily because their density is about 1.8 g/cm³, versus roughly 2.7 g/cm³ for aluminum and 7.8 g/cm³ for steel.
Use magnesium when weight reduction creates enough value to justify a qualified alloy, a compatible manufacturing route, corrosion and galvanic protection, combustible-metal controls for chips or dust, and a stable supply chain. Do not select it from density alone. The correct decision is made at the finished-part level: geometry, stiffness, fatigue, temperature, joining, coating, inspection, repair and total cost all matter.
Magnesium alloy is a family—not one material.
Pure magnesium is useful in chemistry and metallurgy, but structural products normally use an alloy whose composition, manufacturing route and temper have been engineered for a particular balance of properties. Saying “magnesium” without the exact grade and condition is like specifying “steel” without identifying the steel.
The lowest-density family of widely used commercial structural casting alloys. The exact density varies with composition.
About one-third denser than magnesium, but often easier to source, protect, join and qualify for general industrial use.
Far denser, yet its much higher elastic modulus and broad processing infrastructure can make it the efficient choice in stiffness- or cost-driven structures.
Magnesium is light, but its elastic modulus is also lower than aluminum or steel. On a simple modulus-to-density basis, these metals are closer than density alone suggests. Magnesium earns its advantage when the part can be redesigned—through ribs, section depth, integrated features or casting geometry—rather than substituted at identical dimensions.

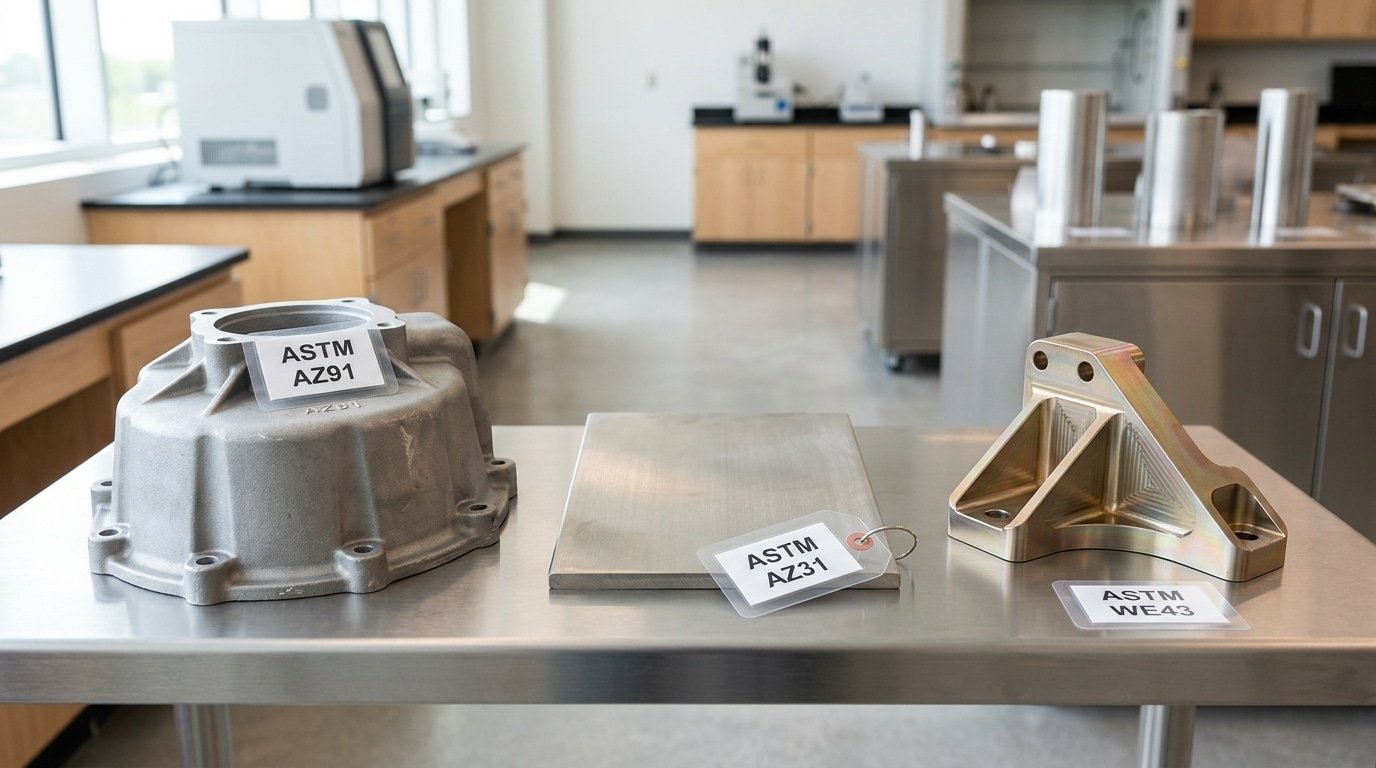

What do AZ91D, AM60B and WE43 mean?
The common ASTM-style shorthand identifies the principal alloying elements and their nominal amounts. It is a useful map, but it does not replace the full material specification, chemistry limits, product form, temper or applicable standard.
Read the code as a starting point
- A = aluminum, M = manganese, Z = zinc, K = zirconium, W = yttrium. Other letters identify other principal additions under the designation system.
- The numbers are nominal percentages, rounded. “91” in AZ91 indicates roughly 9% aluminum and 1% zinc; it is not a strength grade.
- The final letter distinguishes registered variants. AZ91D is not automatically interchangeable with every earlier AZ91 composition.
- Temper comes separately. A designation such as AZ31B-H24 adds condition information that materially changes properties and formability.
- Procurement still needs a standard. Drawing notes should specify alloy, product form, temper/condition, inspection, coating and any approved substitutions.
Magnesium vs aluminum vs steel: where the trade changes.
The most important comparison is not a single tensile-strength number. Each family spans many alloys and conditions. Compare the design levers that control the finished part.
| Decision factor | Magnesium alloys | Aluminum alloys | Steels | Design implication |
|---|---|---|---|---|
| Density | About 1.7–1.9 g/cm³ | About 2.6–2.9 g/cm³ | About 7.7–8.1 g/cm³ | Mg advantage High value when mass drives system performance. |
| Elastic modulus | Relatively low, around mid-40 GPa | Around high-60s to low-70s GPa | About 200 GPa | Equal-thickness substitution can lose stiffness. Use geometry and section depth. |
| Strength range | Depends strongly on grade, process and temper | Very broad range with mature heat-treatable families | Extremely broad, including very high-strength grades | Compare design allowables—not marketing maxima. |
| Thin-wall casting | Excellent potential with suitable HPDC grades and tooling | Also highly mature and widely available | Different process economics; sheet forming often dominant | Integrated die-cast geometry can make magnesium economically credible. |
| Corrosion protection | Requires disciplined purity, isolation, coating and drainage | Often more forgiving, but galvanic/coating design still matters | Wide range; carbon steel usually needs protection | System issue Judge the complete joint and service environment. |
| Elevated temperature | Conventional Mg-Al die-cast alloys may lose creep capability; specialized families extend the range | Many alloy families available, also temperature-limited by grade/temper | Usually the broadest conventional high-temperature capability | Use load, time and temperature—not one universal cut-off. |
| Machining | Often fast and low-force, but chips/dust demand combustible-metal controls | Mature and generally straightforward by grade | Highly grade-dependent; usually higher cutting forces | Cycle time can favor magnesium, while housekeeping and fire controls add cost. |
| Supply chain | More concentrated and sometimes more volatile | Large global ecosystem | Largest and most diversified ecosystem | Validate alloy, form, region, lead time, scrap loop and second source. |
Cast and wrought products, test direction, wall thickness, temper, strain rate, temperature and statistical allowables can all change the apparent winner. Use the governing standard and supplier-certified data for final design.
Choose the product route before choosing the grade.
A good shortlist begins with how the component will be made. High-pressure die casting, permanent-mold casting, sand casting, sheet, extrusion and forging create different microstructures, defect populations, dimensions and joining behavior.
AZ91D
A widely recognized general-purpose die-casting alloy with strong castability and a useful balance of strength and corrosion performance when chemistry and processing are controlled.
- Complex thin-wall housings
- Good starting point for structural castings
- Not the default for highest ductility
- Not a universal elevated-temperature solution
AM50A / AM60B
Mg-Al-Mn families often selected where ductility and energy absorption matter more than the higher strength associated with AZ91-type castings.
- Crash-relevant or energy-absorbing castings
- Structural brackets and frames
- Process porosity must be controlled for fusion joining
- Property choice depends on exact specification
AZ31B
A common wrought alloy used in sheet, plate and extrusions. Forming behavior is strongly dependent on temperature, direction and condition.
- Panels, covers and extrusions
- Useful baseline for welded wrought structures
- Forming route must be qualified
- Texture creates directional behavior
AZ61, AZ80, ZK60
Families used when a stronger extrusion or forging is needed. ZK alloys use zinc and zirconium rather than the common Mg-Al system.
- Extruded or forged load-carrying parts
- Strength depends on product and temper
- Joining and corrosion compatibility differ
- Check form availability early
WE43 / Elektron 21
Premium alloys designed for stronger elevated-temperature, creep or aerospace-oriented performance. They demand tighter qualification and carry higher material and supply-chain burden.
- Thermally demanding structures
- Aerospace or motorsport programs
- Specialized casting/wrought routes
- Never substitute without approval
AJ / AE families
Aluminum-containing systems modified with strontium or rare-earth additions to improve elevated-temperature behavior compared with conventional Mg-Al castings.
- Powertrain and warm-service castings
- Application-specific processing
- Joint and coating systems need validation
- Supplier capability is part of selection
Is magnesium alloy a sensible starting point?
Select the closest conditions. The result narrows the engineering route; it does not replace stress analysis, corrosion testing, fire-risk assessment or supplier qualification.
Start with a magnesium die-casting study.
High weight value, complex repeat production and controlled service conditions create a credible magnesium business case. Compare AZ91D and AM-series routes against the required strength, ductility and joining plan.
Magnesium corrosion is controlled at interfaces.
Modern high-purity alloys can perform well in suitable environments, but magnesium remains electrochemically active. The greatest failures often start where water collects, coating is damaged or a more noble metal creates a large galvanic cathode.
Galvanic details can dominate service life
Contact with a more noble metal becomes dangerous when moisture completes the electrical path and the protection system is damaged or incomplete.
Alexander Shorinov / Wikimedia Commons, CC BY 4.0.Build a complete protection stack
- Start with controlled alloy chemistry. Harmful impurity levels and melt/process quality affect the baseline corrosion response.
- Keep water moving out. Add drainage, ventilation and seal geometry; avoid pockets that trap condensate, salts or cleaning fluid.
- Isolate dissimilar metals. Use compatible coatings, sleeves, washers, sealants or adhesive layers and control the exposed cathode-to-anode area ratio.
- Protect cut edges and fastener holes. A coating system is only as durable as the damaged, machined and assembled details.
- Choose pretreatment + coating as a tested system. Conversion coatings, anodic/PEO-type treatments, primers and topcoats serve different functions.
- Test the actual joint. Generic salt-spray hours do not predict every field environment, cyclic exposure, scratch or galvanic couple.
Specify surface preparation, pretreatment, coating build, masked areas, fastener/isolation stack, repair method and acceptance test. “Paint magnesium” is not a production specification.
Cast, wrought and forged magnesium behave differently.
The route determines attainable geometry, directionality, internal defects, surface condition, joining response and economic volume. Design the component around the process window.
High-pressure die casting
Die casting is attractive for thin walls, ribs, bosses, shielding enclosures and integrated features. It can consolidate several steel or aluminum pieces into one low-mass casting. Its business case depends on repeat volume, tooling life, fill simulation, controlled melt handling, vacuum/venting strategy where required, dimensional capability and secondary operations.
Gas entrapment and porosity are especially relevant when a casting will be heat treated, welded, pressure sealed or machined into critical sections. Specify the post-casting operations before the tool is frozen.
Permanent-mold and sand casting
These routes suit different size, volume and alloy families than high-pressure die casting. They may support premium or rare-earth alloys and thicker sections, but economics and defect mechanisms differ. Qualification must match the exact foundry process.
Sheet and plate
Magnesium sheet can be formed, machined and joined, but its hexagonal crystal structure makes room-temperature formability more restrictive than familiar deep-drawing aluminum or low-carbon steel. Forming temperature, strain path, bend radius, rolling texture, grain size and temper need process trials.
Extrusions and forgings
Extrusions enable rails, frames and sections; forgings can provide strong, refined load paths. Directional properties and available billet/alloy/temper combinations must be reflected in design allowables. Do not assume a cast alloy has an equivalent wrought product.
Machining
Magnesium often machines efficiently with low cutting forces and high material-removal rates. The benefit is conditional: sharp tools, chip evacuation, housekeeping, compatible fluid strategy, dust control, ignition-source control and a material-specific emergency plan are required. Chips and fine particulate are a different fire hazard from a massive finished part.
“Magnesium burns” is true—but incomplete.
A solid casting, a thin ribbon, hot chips, grinding dust and atomized powder do not present the same ignition or combustion behavior. Risk is governed by form, particle size, temperature, contamination, quantity, ventilation and the credible initiating event.
Form changes the hazard
A thin ribbon demonstrates how rapidly a small magnesium section can oxidize. It should not be used to claim that every bulk casting ignites under normal service.
Capt. John Yossarian / Wikimedia Commons, CC BY-SA 3.0.NFPA 660 is the current consolidated U.S. standard addressing combustible dusts and particulate solids, including combustible metals. OSHA guidance also identifies metal particulate as a potential fire, deflagration or explosion hazard. Applicable legal requirements, insurer rules and local authority decisions still need to be confirmed for the facility.
Use magnesium where mass reduction changes the product.
The strongest applications pair the material with geometry and system-level value. A credible design requirement is more specific than “make it lighter.”
Cast frames, housings and brackets
Potential value comes from lower vehicle or rotating mass, part consolidation and thin-wall casting. Crash, creep, corrosion, fastening and repair requirements decide the alloy family.
Best question: What system function improves per kilogram removed?Qualified lightweight structures
Rare-earth magnesium families can serve thermally or mechanically demanding programs, but flammability, allowables, traceability, casting quality and approved finishing are qualification issues.
Best question: Which specification and test evidence govern approval?Rigid, shielded enclosures
Thin-wall magnesium castings can integrate mounting, heat-spreading and electromagnetic-shielding functions while keeping handheld or portable products light.
Best question: Can one casting replace several assembled pieces?Portable or fast-moving components
Reducing housing, arm or reciprocating mass can improve ergonomics and dynamic response. Impact, wear surfaces, fasteners and shop repair still require careful detailing.
Best question: Does lower inertia reduce energy, fatigue or cycle time?
Geometry creates the business case
Cast magnesium becomes most valuable when ribs, bosses, walls and mounting features are redesigned as a consolidated component rather than copied from a denser material.
Mark Fergus / CSIRO via Wikimedia Commons, CC BY 3.0.A light material can still make a heavy business case.
Magnesium is not automatically wrong in these conditions, but the engineering and commercial burden rises. Compare alternatives before committing tooling or qualification resources.
If mass does not improve performance, handling, range or part consolidation, aluminum or steel may deliver lower total cost and supply risk.
An identical-thickness material swap may fail stiffness or buckling targets because magnesium has a lower elastic modulus.
Do not apply one generic maximum temperature. Use creep and strength data for the exact alloy, product, stress and duration.
Persistent salt, wet crevices, conductive deposits and exposed dissimilar-metal joints can make durable protection difficult.
Complex die-cast magnesium economics may not work for prototypes or uncertain demand unless existing tooling, machining or alternative casting routes are viable.
Machining and finishing require suitable collection, housekeeping, storage, training and emergency response.
A field team treating magnesium like steel can damage coating, create galvanic interfaces or use an unqualified hot-work procedure.
Premium rare-earth grades, specialized forms or regional supply constraints may conflict with program continuity requirements.
Can magnesium alloy be laser welded, cleaned or marked?
Yes—under a qualified process. Magnesium’s oxide behavior, vapor pressure, alloying elements, casting porosity, low melting range and fire/fume hazards make coupon trials and source capture essential.
Identify alloy, form and condition.
Record the exact grade, product route, wall thickness, coating, prior treatment and known casting porosity. A wrought AZ31 sheet and AZ91 die casting will not share the same window.
Remove contamination without damaging the part.
Oil, moisture, release agent and oxide influence energy coupling and porosity. Cleaning must be repeatable, and residues must not introduce a new corrosion or fire hazard.
Balance coupling, speed and stability.
Laser welding studies report porosity, cracking, oxide inclusions and loss of volatile alloying elements as key risks. Power alone is not a procedure.
Inspect below the attractive top bead.
Use sectioning, porosity assessment, mechanical testing, corrosion evaluation and production-representative fixtures as required by the joint and acceptance standard.
Laser welding
Laser welding can produce narrow heat-affected zones and high travel speeds, but grade and product history matter. Die-cast gas porosity may expand during fusion. Moisture and surface contamination can contribute to pores; unstable keyholes, evaporation and wide solidification ranges can contribute to defects. Shielding, joint fit, focus, beam motion and travel speed must be developed together.
Do not publish a universal preheat, power or speed for “magnesium alloy.” A defensible procedure is tied to one alloy, thickness, joint, restraint, surface preparation, laser configuration and acceptance test.
Laser cleaning and marking
Laser cleaning may remove oxide, coating or contamination before joining or coating, while laser marking can create durable identification. Both processes can heat or ablate an active metal surface and create particulate or fume. Use conservative trials, extraction at source, controlled beam access and an evaluated residue-handling method.
When cleaning a corrosion-sensitive part, verify that the chosen laser window achieves the required surface without unacceptable melting, roughening, redeposition or loss of dimensional tolerance.
Price the finished part—not the kilogram.
Magnesium metal pricing is more volatile and the primary supply base is more geographically concentrated than many buyers expect. A resilient business case uses total part cost and a sourcing plan.
Material price is only one line
Calculate metal yield, runner/scrap recovery, melt loss, tooling, casting cycle, machining, surface treatment, fasteners, isolation hardware, inspection, packaging, repair and end-of-life recovery. A higher metal price can be offset by lower part mass, fewer components, faster machining or integrated functions; it can also be overwhelmed by low yield, premium coating or qualification.
Tooling and volume
High-pressure die casting can deliver strong economics in repeat production, but tooling and launch validation are front-loaded. For uncertain demand, compare machining from wrought stock, sand/permanent-mold casting or an aluminum design before approving a magnesium die.
Supply concentration
The U.S. Geological Survey’s 2026 Mineral Commodity Summaries estimates that China produced the large majority of global primary magnesium in 2025. That concentration does not mean every program is unsafe; it does mean alloy form, producer, region, inventory, lead time, tariff/logistics exposure, recycled content and a second-source strategy should be reviewed early.
Cost questions for the quote
- Is price indexed to primary magnesium, an alloy surcharge or a fixed conversion contract?
- Who owns and returns clean casting scrap, machining chips and rejected parts?
- Are coating, heat treatment, impregnation, inspection and packaging included?
- What annual volume and yield assumption supports the quoted cycle time?
- Which changes trigger requalification: source, chemistry, die, coating or process route?
Low mass does not guarantee low lifecycle impact.
The environmental answer depends on primary production route, energy mix, recycled content, manufacturing yield, service-life savings, coating/repair and the quality of the end-of-life scrap loop.
Where magnesium can create value
- Use-phase mass reduction can reduce energy associated with movement, acceleration or manual handling.
- Part consolidation can remove fasteners, subparts and assembly operations.
- Efficient machining may lower cycle time and cutting energy for suitable parts.
- Clean, segregated scrap can support higher-value recycling than contaminated mixed-metal waste.
What must be measured
- Primary-metal source and process can dominate cradle-to-gate impact.
- Yield and oxidation losses change the material required per shipped part.
- Coating and service durability determine whether lightweighting survives real use.
- Closed-loop logistics decide whether chips and casting returns remain recoverable alloy feed.
Use-phase savings depend on the specific vehicle or machine, duty cycle, energy source, part mass, lifetime and replacement behavior. Build a project-specific lifecycle model rather than repeating one generic carbon number.
What to specify before requesting samples or quotes.
The fastest way to lose the magnesium advantage is to leave alloy, form, interfaces or acceptance evidence ambiguous until after tooling. Put the real decisions into the technical package.
Define the value target.
Target part mass, stiffness, strength/fatigue basis, impact, thermal range, service life, corrosion zone, electrical/EMI function and fire/flammability requirements.
Lock the correct identity.
Alloy designation, governing standard, product form, temper/condition, chemistry certification, grain direction and approved alternatives.
Control the process route.
Casting method, vacuum/venting if required, porosity zones, machining, joining, heat treatment, impregnation, cleaning and traceability.
Specify the complete system.
Pretreatment, coating layers, thickness, masked areas, fastener isolation, sealant, drainage, damage repair and validation exposure.
Coupon and component tests matched to load direction, temperature, fatigue spectrum and statistical confidence.
Critical datums, wall thickness, distortion, porosity near machined zones and capability at production rate.
Representative coating damage, fasteners, sealant, drainage and cyclic environment—not a flat painted coupon alone.
Joint cross-sections, defects, strength, fatigue/corrosion interaction and repair/rework limits.
Chip/dust collection, fume capture, hot-work method, storage, disposal and emergency response aligned with the facility.
Yield, tooling, cycle, coating, second source, lead time, scrap ownership and change-control assumptions.
Validate your magnesium part before freezing the process.
Oceanplayer can review the material, surface, joint and production goal for laser cleaning, welding or marking trials. A useful test starts with the exact alloy and representative condition—not an unrelated magnesium coupon.
- Exact alloy and product form
- Thickness, geometry and photos
- Coating, oxide or contamination
- Joint and quality requirement
- Expected production volume
- Applicable safety or industry standard
Magnesium alloy questions, answered.
These answers are intentionally grade- and process-aware. Final design values must come from the governing specification and qualified supplier data.
What is magnesium alloy made of?
Magnesium is the principal element. Common additions include aluminum, zinc, manganese, rare-earth elements, yttrium and zirconium. The additions and impurity limits are selected to change castability, strength, ductility, creep resistance, grain structure and corrosion behavior. Exact chemistry is defined by the alloy specification.
Is magnesium alloy stronger than aluminum?
There is no universal winner. Both families include many cast and wrought grades. Magnesium often provides attractive strength per unit mass, while aluminum generally offers higher elastic modulus, a broad strength range and a larger supply ecosystem. Compare the exact grade, temper, product form, temperature, fatigue requirement and finished geometry.
Does magnesium alloy rust?
Magnesium does not form iron rust, but it can corrode. Moisture, salts, impurities, coating damage and galvanic contact with more noble metals are important drivers. A durable design combines suitable alloy purity, drainage, galvanic isolation, pretreatment, coating, sealing and representative corrosion testing.
Is magnesium alloy flammable?
Magnesium can burn, but form matters. Massive finished parts are not equivalent to ribbon, chips, dust or powder. Machining and finishing operations can create readily ignitable particulate, so facilities need combustible-metal collection, housekeeping, storage and emergency-response controls based on the actual process.
What is the difference between AZ91D and AM60B?
Both are common Mg-Al die-casting families. AZ91D is known for general castability and a balanced property set; AM60B is often considered when ductility and energy absorption are more important. The right choice depends on wall thickness, loading, corrosion system, casting quality, joining and the governing standard.
Can magnesium alloy be welded?
Many magnesium alloys can be welded by appropriate processes, including laser welding, but weldability varies by alloy and product route. Surface oxide, moisture, casting porosity, evaporation, joint fit, shielding and cracking susceptibility must be managed through a qualified procedure and relevant inspection.
What temperature can magnesium alloy withstand?
No single temperature applies to all magnesium alloys. Capability depends on alloy family, product form, stress, exposure duration, creep limit, oxidation/corrosion environment and required retained properties. Conventional Mg-Al die-cast alloys and premium rare-earth systems have very different performance envelopes.
When should I choose magnesium instead of aluminum?
Choose magnesium when the value of lower mass and integrated geometry exceeds the added burden of material cost, tooling, corrosion protection, fire controls and supply qualification. It is especially credible for complex repeat castings, portable products and moving components where section redesign can exploit the lower density.
Is magnesium alloy expensive?
The raw material is often more expensive and more volatile than common aluminum on a mass basis, but a magnesium part uses less mass for the same volume and may consolidate parts or machine faster. Compare total finished-part cost, tooling, yield, coating, inspection, joining, scrap recovery and supply risk.
Sources used for this engineering guide.
- International Magnesium Association — About Magnesium: density comparison, structural uses and functional characteristics.
- International Magnesium Association — Physical Properties: melting information for pure magnesium and selected alloys.
- International Magnesium Association — Magnesium Alloys Overview: effects of aluminum, zinc, manganese, rare-earths and zirconium.
- ASTM B275: magnesium alloy designation practice. Confirm the currently applicable edition for procurement.
- U.S. Geological Survey — Mineral Commodity Summaries 2026: primary-magnesium production and supply context.
- USGS — Magnesium Statistics and Information: structural-alloy uses and market information.
- OSHA Technical Manual, Combustible Dusts: combustible particulate and metal-dust hazard context.
- NFPA LiNK — NFPA 660: current consolidated combustible-dust and particulate-solids framework.
- NIOSH Pocket Guide — Magnesium Oxide Fume: exposure context when magnesium is burned, thermally cut or welded.
- FAA — Flammability Test Method for Magnesium Alloy Seat Components: evidence that aircraft use depends on dedicated component testing rather than blanket material claims.
- Cao et al., Journal of Materials Processing Technology: review of laser welding techniques, parameters and defects in magnesium alloys.
- Images: Morio, CC BY-SA 3.0; Mark Fergus / CSIRO, CC BY 3.0; Alexander Shorinov, CC BY 4.0; Capt. John Yossarian, CC BY-SA 3.0.
