Copper Busbar Laser Welding
How to select the wavelength, joint geometry, fit-up, beam strategy and inspection plan for low-resistance copper connections in batteries, motors and power electronics.
What decides whether a busbar weld becomes production-ready?
Power is only one variable. A robust line starts with the electrical duty and real material stack, then establishes a joint and process window that remains stable as parts, surfaces, fixtures and optics vary.
Distinguish Cu-ETP, oxygen-free grades, alloys and nickel- or tin-plated material. Chemistry and coating change coupling, vapor behavior and acceptance risk.
The permissible gap is process-specific. Measure flatness, overlap and clamp repeatability instead of assuming “zero gap” exists across every production part.
IR, green and blue sources offer different absorption, power, beam-delivery and cost trade-offs. The most absorbable wavelength is not automatically the best system.
Use four-wire resistance, current-heating behavior, sectioning, mechanical tests and traceable inline signals with product-specific limits.
What is copper busbar laser welding?
Copper busbar laser welding uses a focused laser beam to melt a defined interface between copper conductors, terminals, tabs or winding leads. The process is non-contact and readily integrated with motion systems, part tracking and inline monitoring. It is used where a compact joint must carry current while surviving assembly loads, vibration and thermal cycling.

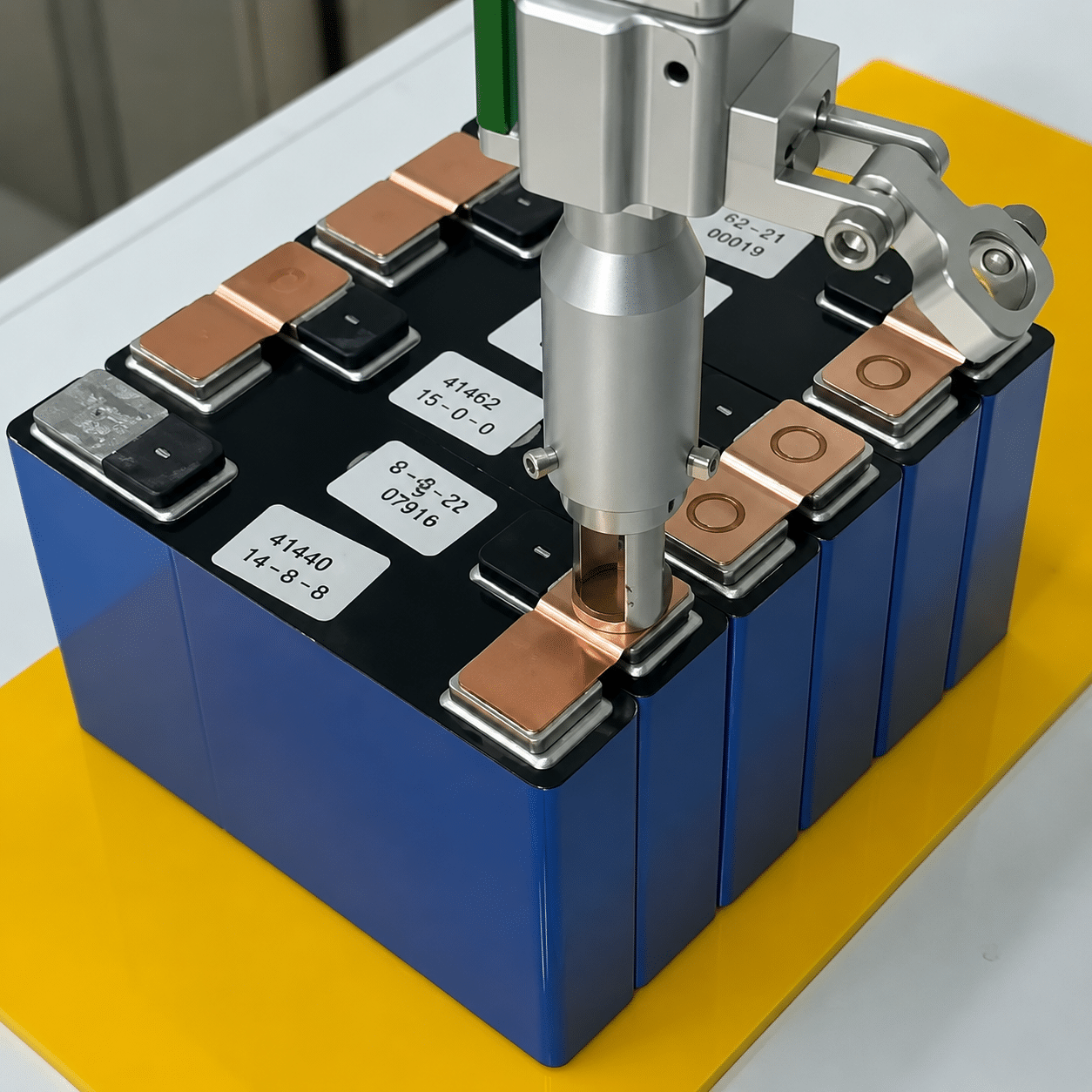

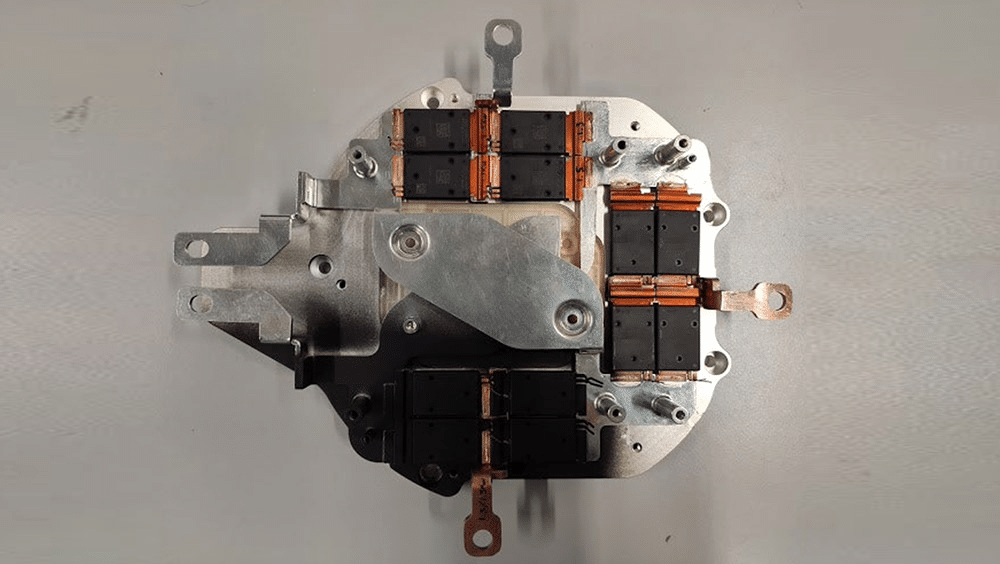

Typical applications include battery-module tab-to-busbar connections, inverter and power-module terminals, motor winding leads, switchgear conductors and other power-distribution assemblies. The value of the laser is not simply “a cleaner bead.” Its value is programmable energy delivery, fast motion, limited tool wear at the joint and compatibility with automation.
Why the weld cannot be judged like a cosmetic seam
A copper busbar joint is part of an electrical and thermal network. A visually smooth top surface can hide incomplete fusion or internal pores; a mechanically strong coupon can still have excessive resistance; and a low-resistance room-temperature joint can overheat if its effective area or heat path is inadequate. The acceptance plan therefore has to connect weld geometry to electrical resistance, mechanical load and temperature rise.
Low resistance, limited heat near cells, short cycle time and traceable production signals.
Small conductors, difficult access, enamel or surface variability and high mechanical repeatability.
Precise heat placement around sensitive components, coatings and compact assemblies.
Why is copper difficult to laser weld?
Cold copper can reflect much of an infrared beam while conducting absorbed heat rapidly away from the interaction zone. Once a molten pool forms, absorption changes—so initiation and steady-state welding may behave very differently.
Energy coupling is sensitive
Room-temperature copper couples weakly to common near-infrared wavelengths. Surface finish, oxide, plating, angle and contamination can change how consistently the process begins.
Absorption rises as the pool forms
The transition from reflective solid to molten copper can create a sharp process change. If the beam and travel strategy do not manage it, the keyhole may oscillate or collapse.
Heat leaves the weld rapidly
Fast heat flow affects pool size, penetration and solidification. Part mass, backing, clamp contact and nearby conductors become part of the thermal boundary condition.
IR vs green vs blue: which laser is best for copper?
There is no universal winner. Wavelength changes initial absorption, but available power, beam profile, process mode, optical protection, motion strategy, joint geometry, cycle time and capital cost determine the complete system.
High available power and a mature ecosystem
Common industrial fiber and disk sources can weld copper when energy coupling and melt-pool stability are established. Single-mode, multimode, core-ring and wobble approaches create different operating windows.
- Broad industrial availability and integration options
- Suitable for selected conduction and keyhole strategies
- Cold-start reflection and process transition require attention
- Back-reflection protection must be system-approved
Higher room-temperature coupling to copper
Green light is absorbed much more strongly by cold copper than near-infrared light. That can improve initiation, reproducibility and spatter control in suitable joints, especially where precise heat placement matters.
- More stable energy coupling at the cold surface
- Strong fit for precise electrical joining applications
- Available power, optics and system cost must be compared
- Still requires a qualified geometry and quality plan
Strong copper absorption for controlled melting
Industrial blue diode systems can deliver stable conduction-mode processing and selected penetration strategies. Their suitability depends on brightness, spot design, available power and the required weld aspect ratio.
- Efficient coupling into copper and many copper alloys
- Useful for foils, electrical contacts and controlled seams
- Beam quality and working distance differ by system
- Not automatically a substitute for every IR application
Design the weld around the current path
Busbar geometry determines more than laser access. It controls the current constriction, local heat generation, mechanical load transfer and how the fixture can support the parts. A wide attractive weld in the wrong location may be less effective than a smaller, well-placed fusion area.
Map the electrical contact area and heat path before choosing a seam shape. Where current crosses an overlap, the welded area, distance to edges and distribution of multiple spots or seams all affect current density. Where a terminal carries vibration or assembly loads, add mechanical criteria rather than treating resistance as the only output.
Which joint design fits a copper busbar application?
Select the joint from load path, stack-up and access. The drawings below explain the planning logic; the final dimensions and acceptance limits must be qualified on the actual assembly.
Overlap for area and access
A top-down seam or spot pattern can join stacked conductors with straightforward beam access. Control overlap, interface gap and current-constriction geometry.
Watch: trapped interface contamination, gap, edge breakout and hidden lack of fusion.Flat current path, strict fit-up
End-to-end geometry avoids an overlap step but demands precise edge position and gap control. Joint tracking and restraint can become decisive.
Watch: edge mismatch, root fusion, beam-position error and dimensional tolerance stack.Join winding leads or terminals
The smaller member can act as local filler in selected designs, but alignment, enamel removal and melt-volume balance must be developed together.
Watch: wire position, underfill, incomplete wetting and mechanical load direction.Place fusion around sensitive hardware
Short seams, rings or multiple spots may be used around terminals and power modules. Heat-sensitive insulation and component interfaces constrain the route.
Watch: local thermal damage, shielding access, plating vapor and asymmetric restraint.Find a practical copper busbar welding route
Describe the material pair, upper-member thickness, geometry and priority. The result identifies a starting direction and validation focus—not production settings.
Describe the joint
Use the closest category. Representative sample trials remain necessary.
For a thin copper lap joint, compare a high-coupling green route with an industrial IR route using the actual surface and fixture. Select on accepted-part stability, resistance and cycle time.
Which parameters control copper busbar weld stability?
Average power alone does not define the weld. Power density, beam profile, travel, oscillation, focus, ramping, shielding and the assembly’s thermal boundary condition interact.
Power density and beam profile
A tight high-brightness core, a wider multimode spot, a core-ring profile and a visible-wavelength beam can produce very different initiation and melt-pool behavior at the same nominal power.
Travel speed and path length
Speed changes energy per unit length and the time available for heat to spread. Curves, corners and scanner acceleration can create local conditions that differ from a straight coupon.
Focus and working distance
Focus position affects spot size and depth of focus. Tolerance in part height, optics contamination and fixture stack-up can shift the delivered power density.
Wobble or programmed motion
Circular, linear and figure-eight paths redistribute energy and stir the pool. Amplitude and frequency cannot be selected independently of speed, power, joint width and required fusion area.
Ramps and seam transitions
Power or motion transitions at start, stop and overlap regions can manage initiation and end-crater behavior. The correct strategy depends on geometry and cycle sequence.
Shielding and plume control
Gas type, nozzle geometry, extraction and flow can change pool geometry, oxidation and sensor signals. Qualify shielding—or a no-gas route—on the real assembly.
Below the stable window
Incomplete fusion, erratic initiation, high resistance, shallow penetration or unbonded interface regions may appear even when the top surface looks acceptable.
Above the stable window
Spatter, undercut, excessive penetration, burn-through, coating vaporization or damage to nearby insulation and components may increase.
How should copper busbars be clamped and prepared?
The fixture must reproduce the interface and thermal condition without blocking the beam, shielding, extraction, tracking camera or quality sensors.
Five fixture questions to answer
Surface condition is a controlled input
Cleaning is usually good production practice, but “always brush every busbar” is not a universal rule. Some qualified copper-wire-to-busbar studies have demonstrated tolerance to varied pre-weld surface treatments. The correct approach is to define the received condition, cleaning process and acceptable variation.
- Bare ETP or oxygen-free copper: control oil, oxide, storage and handling; confirm whether surface roughness changes initiation.
- Nickel-plated copper: plating may improve IR initiation but changes melt chemistry, vapor and section appearance.
- Tin-plated copper: low-melting coating can redistribute or vaporize; investigate pores, ejection and resistance rather than assuming it must be removed.
- Copper alloys: zinc, phosphorus, chromium or other alloying elements can change vaporization and cracking behavior.
- Copper to aluminum: control intermetallic compounds, mixing and heat input with a dedicated dissimilar-metal study.
Common copper busbar laser-weld defects
Treat each defect as a signal from the complete system. Changing power alone can hide the symptom while increasing another risk.
Molten metal is ejected
Possible contributors include unstable keyhole behavior, abrupt coupling, excessive local power density, interface gaps, coating vapor or an unsuitable motion pattern.
Check: high-speed/inline signals, gap map, beam path, ramp and surface lot.Voids remain below the surface
Contamination, plating vapor, unstable pool closure, dissolved gas and interface conditions can contribute. A smooth bead does not exclude internal pores.
Check: sections or CT where justified, surface process, gas/plume and pool stability.The interface is not fully bonded
Beam position, joint gap, insufficient local energy, poor wetting or a path that does not intersect the interface can leave an unbonded region.
Check: cross-section location, resistance distribution, seam tracking and part height.Material is removed from an edge
Excessive energy, fast vapor flow, unfavorable wobble width or asymmetric beam placement can reduce the effective conductor section.
Check: bead profile, edge position, width/depth balance and current-density impact.Solidification or restraint creates a crack
Pure copper and copper alloys do not share one cracking mechanism. Alloy chemistry, contamination, joint restraint, dilution and solidification path require review.
Check: material certificate, crack location, metallography and restraint history.The thin member loses section
Thin tabs, edges and coating transitions can overheat when the local power density or dwell exceeds the available melt volume and heat sink.
Check: part height, start/stop path, focus, speed transitions and backing condition.How do you verify copper busbar weld quality?
Use layered evidence. Incoming checks control the inputs, inline signals watch every cycle, destructive tests reveal internal geometry, and electrical/thermal tests confirm the function of the circuit.
Prove the inputs are inside the window
Material, coating, dimensions and fixture condition should be traceable before welding.
- Grade, temper and plating certificate
- Surface condition and cleaning record
- Gap, overlap, part height and locator check
- Optics, protective window and beam-delivery status
Record every production event
Coaxial images, photodiodes, back-reflection, thermal or acoustic signals can detect change—but require correlation with accepted and rejected sections.
- Seam position and part presence
- Emission or reflection signal envelope
- Spatter or plume anomalies
- Parameter, recipe, tool and part traceability
Section representative welds
Metallography measures fusion geometry, penetration, interface bonding, pore distribution and cracks at defined locations.
- Macrosection and microsection plan
- Multiple positions along a seam
- Edge, start, stop and overlap regions
- Worst-case material and gap combinations
Test the joint as a conductor
Use a four-wire Kelvin method for very low resistance, then connect the result to current-heating and mechanical duty.
- Fixture-controlled resistance measurement
- Temperature rise under representative current
- Pull, shear or peel test matched to load direction
- Thermal cycling, vibration or environmental tests where required
ISO 13919-2:2021 provides quality levels for imperfections in laser- and electron-beam-welded joints in aluminium, magnesium and their alloys, and pure copper. It is an imperfection framework—not a declaration that the joint is fit for a battery, motor or power module. Product-specific resistance, strength, temperature and lifetime requirements still control acceptance.
A successful study is a route—not a recipe
A 2024 peer-reviewed study on remote laser welding of thin copper wire to a copper busbar used the wire as filler in a T-joint and reported robust mechanical, electrical and thermal performance. The study is valuable because it demonstrates a production-relevant joining concept and compares multiple busbar surface treatments.
It does not prove that every copper grade, coating, busbar thickness or joint should use the same parameters. Transfer the method: define the geometry, test representative surface states, measure electrical and mechanical outputs, and build a window around variation.
- Match the research joint to your real material and load path.
- Separate reported experimental settings from supplier defaults.
- Repeat testing at start, center and end of the proposed window.
- Correlate inline signals to cut sections and functional tests.
Laser vs ultrasonic vs resistance vs mechanical joining
The right process depends on material stack, accessible sides, fusion or solid-state requirements, part volume, tooling, traceability and lifetime duty. Avoid universal cost and cycle-time claims.
| Process | Primary strength | Main limitation | Best questions to ask |
|---|---|---|---|
| Laser welding | Non-contact, programmable, fast motion, compact fusion zone and strong automation/monitoring potential | Copper coupling, optics protection, fit-up, safety enclosure and capital/system integration | Can it meet resistance and strength across the full surface, gap and fixture variation? |
| Ultrasonic metal welding | Solid-state joining with low bulk heat; strong fit for many thin foil and tab stacks | Horn/anvil access, tool wear, part marking and limits with thick or rigid members | Can tooling reach the stack and deliver uniform pressure without damaging cells or features? |
| Resistance welding | Mature, direct and cost-effective for selected accessible joints | Electrode access and wear, current path through the part, surface sensitivity and heat distribution | Is two-sided electrode access available, and can electrode condition remain controlled? |
| Mechanical fastening | Serviceability, no melt metallurgy and familiar assembly methods | Contact resistance, hardware, space, torque retention, vibration and joint-interface aging | Can contact pressure and surface condition remain stable over the full thermal and vibration life? |
Use a cost-per-accepted-assembly comparison that includes tooling, safety, fixtures, inspection, maintenance, rejected parts and line availability. Equipment price alone is not the business case.
A six-point copper busbar welding checklist
Use this list to turn an application description into a defensible supplier trial and acceptance plan.
Name every member and coating
Record copper grade, temper, plating type and thickness, alloy terminal, surface treatment and permitted substitutes.
Define the real joint stack
Supply CAD, tolerances, overlap, edge distance, expected gap distribution, clamp access and the current/load direction.
Convert use into measurable targets
State current, voltage-drop or resistance target, temperature rise, mechanical load, thermal cycling, vibration and lifetime.
Test source and beam as a system
Compare wavelength, profile, motion, focus, shielding, extraction and back-reflection protection on representative parts.
Challenge the proposed window
Include edge-of-tolerance gap, coating, oxide, part height, fixture wear, warm optics and realistic takt-time conditions.
Agree on the acceptance package
Specify sections, resistance method, strength test, inline monitoring, traceability, sampling, MSA and change-control requirements.
Validate your copper busbar joint before configuration
Oceanplayer can review your material pair, busbar dimensions, coating, target resistance, joint load and production volume, then plan representative sample trials and a suitable equipment direction.
Related copper and laser welding resources
Move from joint feasibility to equipment planning, beam-motion understanding and sample validation.
Copper busbar laser welding FAQ
Concise answers to common engineering and equipment-selection questions.
Can a standard infrared fiber laser weld copper busbars?
Yes, selected near-infrared fiber or disk laser systems can weld copper. The process must manage weak cold-copper absorption, the transition to the molten state and back-reflection risk. Beam quality, profile, motion, focus, travel, source protection and the real joint all affect whether IR is the best production route.
Is green or blue laser always better for copper?
No. Green and blue wavelengths couple more strongly into cold copper, which can improve initiation and stability, but the complete decision includes available power, beam quality, spot design, weld depth/width, optics, integration, throughput and cost. Compare accepted-part performance on the actual stack.
How small must the gap be for a copper busbar lap weld?
There is no universal gap limit. Smaller and more consistent interfaces are generally easier to weld, but the allowable value depends on member thickness, overlap, beam profile, motion, melt volume and the required fusion area. Specify a measurable gap distribution and verify the worst credible parts.
Do copper busbars have to be cleaned before laser welding?
Surface control is important, but the cleaning method should be qualified rather than assumed. Oil, oxide, storage and plating can affect coupling and vapor behavior. Some published wire-to-busbar work has shown tolerance to varied pre-weld treatments in a specific joint, which reinforces the need to test the real production surface range.
Does nickel plating help laser welding copper?
Nickel can change initial absorption and may help selected IR processes initiate, but it also changes melt chemistry, vapor behavior and section appearance. Treat plating type and thickness as controlled inputs, and include them in metallographic, electrical and mechanical qualification.
Can tin-plated copper busbars be laser welded?
They can be feasible, but tin melts and vaporizes differently from copper. Depending on the joint and coating, it can redistribute, form pores or be ejected. Do not automatically remove or retain it; compare representative plating conditions and set acceptance criteria for the finished joint.
How is copper busbar weld resistance measured?
A four-wire Kelvin measurement is commonly used because it separates test-lead resistance from the very low resistance of the joint. The fixture, probe position, temperature and reference conductor length must be defined so results are repeatable. The pass limit should come from the product’s voltage-drop and heating requirements.
What destructive tests are useful?
Cross-section metallography reveals fusion geometry, interface bonding, pores and cracks. Pull, shear or peel tests should load the joint in its real service direction. Depending on risk, CT, fatigue, thermal cycling, vibration or environmental testing may supplement routine sections.
Can inline monitoring replace cross-sections?
Not by itself. Inline optical, emission, reflection, thermal or acoustic signals become useful only after they are correlated with physical sections and functional results. Monitoring can check every weld for drift; destructive tests explain what the signal means inside the joint.
Is copper-to-aluminum busbar welding the same process?
No. Copper-to-aluminum welding introduces dissimilar-metal mixing and potentially brittle intermetallic compounds. The beam path, energy, fusion depth and acceptance plan must be developed specifically for the Cu–Al stack. Do not transfer a Cu–Cu recipe unchanged.
Does ISO 13919-2 define a complete battery busbar acceptance standard?
No. ISO 13919-2 provides quality levels for laser/electron-beam weld imperfections in listed materials including pure copper. It explicitly functions as an imperfection framework; the battery or power-electronics product still needs its own electrical, mechanical, thermal and lifetime acceptance requirements.
What should be sent for a sample welding evaluation?
Send the exact materials and coatings, drawings, thicknesses, joint tolerances, photos, target resistance or voltage drop, load direction, current and temperature limits, production volume, takt time and any required standard. Representative parts are much more useful than generic copper coupons.
Technical references and image attribution
- Sun, Kumar, Baglee et al. (2024): Joining thin copper wire and copper busbar by remote laser welding for electric motor assembly.
- TRUMPF: TruDisk with green wavelength and copper welding application guidance.
- Laserline: Blue diode laser welding of copper.
- ISO: ISO 13919-2:2021—quality levels for imperfections in laser- and electron-beam-welded joints.
- Micromachines review: Tab-to-Busbar Interconnections in EV Battery Packs: An Introductory Review of Typical Welding Methods.
- Wikimedia Commons images: 2500A copper busbars, busbar in an LT panel, and industrial laser welding. License details are stated on the source pages.
