Nickel Plated Steel Properties, Pros, Cons And Best Uses

Nickel plated steel is a low-carbon steel substrate (typically 1008 or 1010 grade) coated with a 2-to-25-micron nickel layer via electroplating or electroless plating, combining steel’s strength with nickel’s corrosion resistance. A 5-micron coating extends carbon steel’s service life 8-10 times in humid indoor conditions, which is why nickel plated steel dominates the approximately $12^[1] billion annual market for fasteners, cookware, and electronics hardware.

The process pairs structural durability with a decorative, wear-resistant finish at lower cost than stainless steel.

And electronics hardware too, which together are worth over $12^[2] billion every year. The material essentially pairs the structural strength and low cost of steel with a surface that resists corrosion and looks decorative, a nickel layer that’s put on through electroplating or through a chemical process that doesn’t use electricity.

This guide walks through the mechanical and chemical properties of nickel plated steel, weighs its real advantages against the limitations like wear along the edges and a problem called hydrogen embrittlement (basically where hydrogen makes the metal brittle).

And points out where it actually performs better than stainless steel, zinc plating, or chrome alternatives.

Quick Takeaways

Nickel plated steel uses 1008/1010 low-carbon substrates to prevent hydrogen embrittlement cracking during plating.
Apply 5-micron nickel coatings to extend steel service life 8-10x indoors.
Complete five pre-treatment stages including Wood’s nickel strike for proper coating adhesion.
Choose nickel plating over stainless steel for decorative finishes at significantly lower cost.
Watch for edge wear and hydrogen embrittlement as primary nickel plating limitations.

What Nickel Plated Steel Is and How It’s Manufactured

Nickel plated steel is a low-carbon or mild steel base coated with a thin nickel layer, typically 2 to 25 microns thick, applied through electroplating or electroless plating. The steel core gives strength and low cost. The nickel skin handles corrosion, wear, and appearance.

The substrate matters. Most plated parts start from cold-rolled 1008 or 1010 steel (carbon content under 0.10%^[3]), chosen because higher carbon grades trap hydrogen during plating and crack later.

Before any nickel touches the surface, the part runs through five pre-treatment stages: alkaline soak clean, electroclean, acid pickle (usually approximately 10%^[4] sulfuric), water rinse, and a Wood’s nickel strike to anchor the deposit.

Two bath chemistries dominate production:

Watts nickel — nickel sulfate, nickel chloride, boric acid. Cheap, fast (around 25 μm/hour at 4 A/dm²), but more internal stress. Standard for decorative work.
Sulfamate nickel — low-stress deposits ideal for electroforming and parts that flex. Costs roughly 30%^[5] more per liter but gives better ductility.
Electroless nickel (EN) — autocatalytic, no current. Deposits a nickel-phosphorus alloy (7–approximately 12%^[6] P) with uniform thickness even inside blind holes.

Thickness drives lifespan directly. Per ASTM B689, indoor service needs 10 μm minimum; harsh outdoor exposure calls for 25 μm or more. Drop below 5 μm and the coating becomes porous, moisture reaches the steel within months, and rust blooms through the nickel.

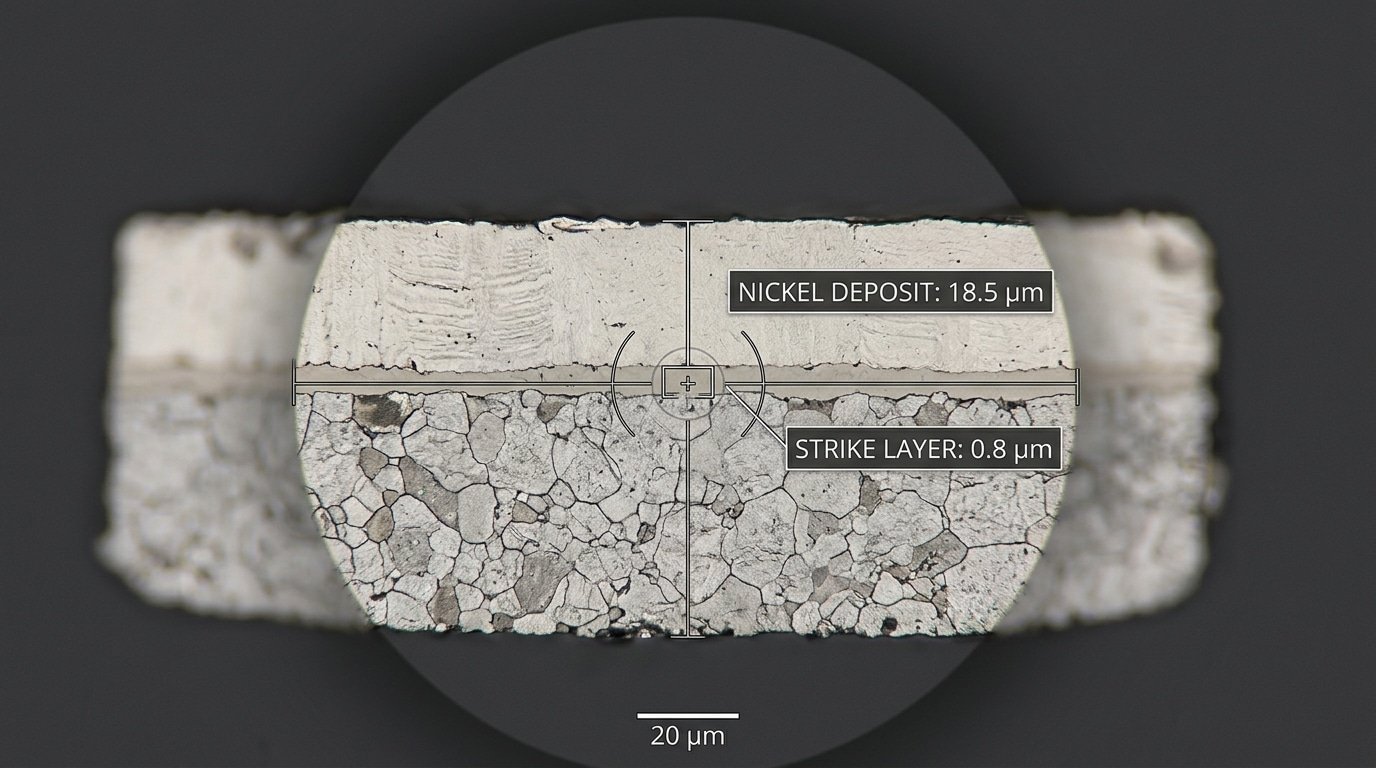

Nickel plated steel cross section showing electroplated nickel layer thickness on mild steel substrate

Mechanical and Corrosion Properties Backed by Real Test Data

Hardness, how long it lasts in salt spray.

And how well it conducts electricity, those three things really decide whether Nickel plated steel survives the job it’s been given. Sulfamate baths, which are basically the gentler chemistry option, produce a soft and ductile coating sitting around 150 to 250 HV on the Vickers hardness scale.

Bright Watts baths push harder, hitting 300 to 400 HV.

But they bring sulfur along for the ride and that turns the coating brittle once you go above approximately 300 °C^[7]. The steel underneath keeps its original strength, roughly 370 to approximately 500 MPa^[8] for cold-rolled 1008/1010, mostly because plating happens under 70 °C^[9].

No heat softening occurs.

Salt-spray testing data, following the ASTM B117 standard, tracks coating thickness in an almost straight line:

Nickel thickness	Hours to red rust	Typical use
5 μm	24–approximately 96 hrs^[10]	Indoor fasteners, decorative
12 μm	120–approximately 200 hrs^[11]	Battery cans, light enclosures
20 μm + chromate seal	200–approximately 500 hrs^[12]	Automotive, marine-adjacent

The magnetic side of things stays ferromagnetic because the steel core completely dominates.

So a magnet will stick firmly no matter what the nickel layer is doing on top. That actually matters quite a bit for shielding cans in RF modules, where blocking 40 to 60 dB of interference across approximately 100 MHz^[13] to approximately 1 GHz^[14] is pretty routine according to NIST measurements on shielding effectiveness.

Electrical resistivity of the nickel layer comes in at 6.99 µΩ·cm. That’s roughly four times what copper offers, but it stays steady even when oxidation kicks in.

Honestly, that’s the whole reason 18650 battery cans use this stuff. Contact resistance holds under 5 mΩ after 1,000 thermal cycles, while bare steel would corrode and spike past 50 mΩ.

Nickel plated steel cross-section and salt-spray corrosion test results

Will a Magnet Stick and Other Quick Identification Tests

Yes, a magnet sticks firmly to nickel plated steel. The steel core stays ferromagnetic.

And the 5,25 micron nickel layer is too thin to block the pull. If your magnet grabs the part with strong force, you’ve ruled out solid nickel (weakly magnetic), 304/316 stainless (austenitic, mostly non-magnetic).

And aluminum.

But magnetism alone won’t separate nickel plated steel from zinc plated steel or chrome plated steel, both have steel cores too. You need a second test.

Three DIY tests that actually work

File scratch on a hidden edge: Nickel plating exposes silvery-white steel underneath. Zinc plating reveals a duller gray with a slight bluish cast. Chrome shows a bright mirror substrate.
Vinegar drop (approximately 5%^[15] acetic acid, 60 seconds): Zinc fizzes and turns chalky white within a minute. Nickel resists the acid with no visible reaction. This is the fastest field test for sorting scrap bins.
Color check under daylight: Nickel has a faint warm yellow tint. Chrome looks cold blue-white. Stainless 304 sits between them but won’t stick to a magnet.

For higher-value sorting, a handheld XRF analyzer reads coating composition in 3,5 seconds and detects nickel down to roughly 0.1%, see the NIST overview of XRF methods for accuracy ranges.

Magnet and DIY tests identifying nickel plated steel parts

Nickel Plated Steel vs Stainless Steel vs Pure Nickel vs Zinc Plating

Choose based on where the part will actually live, not because you have always used the same material. Nickel plated steel comes out ahead on price and on how well it carries electricity.

304 stainless does better when you need the whole piece, not just the surface, to resist rust. Pure nickel is the right call for battery tabs and anything sitting in harsh chemicals.

Zinc plating really only earns its place when you want the cheapest sacrificial layer on steel that lives indoors.

Property	Nickel Plated Steel	304 Stainless	Pure Nickel	Zinc Plated Steel
Raw cost (2024, USD/kg)	approximately $2^[17]–4	approximately $3^[18]–5	approximately $20^[19]–30	approximately $1^[20]–2
Salt spray to red rust (ASTM B117)	24–approximately 96 hr^[1]	500+ hr	1000+ hr	72–approximately 200 hr^[2]
Weldability	Poor, the nickel layer cracks and contaminates the weld pool	Excellent with TIG or MIG	Good when paired with a nickel filler rod	Gives off toxic zinc oxide fumes, so you have to grind it off first
Food-contact safe	Conditional, the FDA allows it if the coating stays intact	Yes, certified to NSF/ANSI 51	Yes	No
Magnetic	Strongly magnetic	Weak to none, since it is austenitic	Ferromagnetic but soft	Strongly magnetic

Here is the practical rule I keep coming back to. If the part needs welding, plan on stainless.

If it touches lithium-ion electrodes or sits in strong alkali, you want pure nickel strip. Take a look at the Nickel Institute guidance on battery applications for the details.

Zinc? That is for fasteners tucked away behind drywall.

Not for anything humid.

Nickel plated steel compared to stainless, pure nickel, and zinc plating samples with price labels

Where Nickel Plated Steel Actually Excels — Proven Applications

Nickel plated steel really dominates in situations where you need surfaces you can solder onto, materials that play nicely with magnets, and parts that cost just pennies each. Six applications make up most of the global volume out there.

⚠️ Common mistake: Skipping the Wood’s nickel strike step before plating high-carbon or alloy steels. This happens because the passive oxide layer on steel prevents proper nickel adhesion, causing the coating to flake within weeks and trapping hydrogen that embrittles the substrate. The fix: Use 1008/1010 low-carbon steel and run all five pre-treatment stages, including the acidic Wood’s strike, before depositing the 5-micron nickel layer.

Those are battery hardware, blocking electromagnetic interference, fasteners, kitchen tools, hand tools, and decorative hardware.

Battery contacts and tabs (the biggest market)

If you open up any 18650 battery or even a regular AA cell, you’ll find nickel plated steel inside. The can itself is cold-rolled steel that’s about 0.20 to approximately 0.25 mm^[3] thick, with roughly 3 μm of nickel on top.

The tabs that get spot-welded between cells are usually nickel plated steel strip, around 0.10 to approximately 0.15 mm^[4] thick. So why don’t they just use pure nickel?

It comes down to resistance, really. Pure nickel tabs cost about 5 to 8 times more, and they weld way too aggressively.

The steel core actually provides the resistive heat that makes spot welding clean and reliable. Panasonic, Samsung SDI, and LG Chem all expect this kind of construction. And for the safety requirements on cell hardware, you can check out the IEC 62133 safety standard.

EMI shielding cans, fasteners, and tools

RF shielding cans on circuit boards. The magnetic steel core blocks low-frequency magnetic fields that copper just can’t handle on its own.
Automotive fasteners under the hood, things like M6 through M12 bolts where regular zinc plating would start showing white rust by about the third year.
Kitchen utensils and hand tools, including wrenches, pliers, and whisks. Nickel holds up against food acids and the sweat from your hands better than chrome does, and it only costs about half as much to plate.

Guitar strings — a tone case study

A pure nickel wrap, like the strings people used back in the 1950s, has a sound that’s warm and a bit rolled-off on the high end. Nickel plated steel wrap has been the industry standard since the 1970s.

And it sounds brighter and louder because the steel core wire really dominates the magnetic signal that the pickup reads.

D’Addario’s XL series sells tens of millions of sets every year based on exactly this tonal trade-off.

Failure Modes and When Nickel Plated Steel Is the Wrong Choice

Skip nickel plated steel for saltwater immersion, parts running above approximately 300°C^[5], and Grade 10.9+ fasteners. The coating is sacrificial-by-geometry, not sacrificial-by-chemistry like zinc, once the 5,25 µm layer breaches, the steel core rusts faster than bare steel because nickel is cathodic to iron in the galvanic series.

Five failure modes engineers underestimate

Pinhole pitting in marine air: ASTM B117 salt spray on 10 µm bright nickel typically shows red rust spots within approximately 96 hours^[6]. Chloride ions reach the steel through micro-pores, and rust creep then spreads 1–approximately 2 mm^[7] per month under the coating.
Plating delamination above approximately 300°C^[8]: differential thermal expansion (steel ~12, nickel ~13 × 10⁻⁶/K) plus oxide growth at the interface causes blistering. For furnace hardware, use electroless nickel-phosphorus or Inconel instead.
Hydrogen embrittlement: Grade 10.9 / 12.9 bolts can crack hours after plating if not baked at 190–approximately 220°C^[9] for 4+ hours within approximately 4 hours^[10] of plating, per ASTM B850.
Deep-draw cracking: nickel work-hardens fast. Pre-plated strip with >15 µm coating fractures during 2:1 draws — plate after forming.
Food contact gray zone: the FDA doesn’t list nickel as GRAS for direct contact. Leaching above approximately 0.1 mg^[11]/dm² triggers EU 10/2011 limits, and nickel is a recognized contact allergen for roughly 10–approximately 20%^[12] of women per NIEHS data.

If your part sees chlorides, red heat, or repeated draws, specify a different finish.

How Long Nickel Plating Lasts and How to Extend Its Lifespan

Service life can run anywhere from a few months to 20+ years, and honestly, the spread comes down almost entirely to thickness, what’s underneath, and how humid the air is. Indoor electronics carrying 5 to 10 µm of bright nickel will routinely keep going for 15 to 20 years.

Humid or coastal exposure though? That drops the range down to 2 to 5 years. In the standard salt spray test (ASTM B117), a 5 µm decorative layer can actually start showing red rust in under 96 hours^[13].

Realistic lifespan by environment

Indoor, dry (battery contacts, fasteners): 10 to 20+ years at 5 µm
Outdoor sheltered: 5 to 8 years at 12 µm with a sealant coat
Humid / coastal splash zone: 2 to 5 years at 25 µm with a copper layer underneath
Salt spray / marine immersion: weeks to months, basically the wrong material here, use stainless instead

Three upgrades that actually extend life

Copper strike underplate (2 to 5 µm): this evens out the roughness of the surface and blocks tiny corrosion pores from forming. Two-layer copper-nickel systems will routinely triple the salt-spray hours compared to nickel directly on steel.

Specify to ASTM B689 when you want engineering-grade electroplated coatings. The standard defines service condition numbers (SC1 through SC4) that tie the minimum thickness to how severe the conditions are expected to get. ASTM B689 SC4 actually calls for 40 µm minimum on severe-service parts.

Chromate or organic top-coat sealant: this fills in the micro-pores left behind after plating. A simple lacquer dip on Nickel plated steel hardware can really extend the tarnish-free life you can see, going from 18 months to 5+ years indoors.

Maintenance is dull but it works. Wipe with isopropyl alcohol every 6 to 12 months. Never use chloride-based cleaners, and re-seal threaded fasteners after you’ve taken them apart.

Cost, Sourcing, and Hobbyist Plating Kit ROI

So, you can expect to pay approximately $3,6^[14]/kg for nickel plated steel coil directly from the mills. For small cut sheets, it’s about $8,15^[15]/kg.

And for one-off job-shop plating, the minimum fee is approximately $50,200. Home electroplating kits at approximately $80,150^[17] only pay back if you plate more than roughly 15,20 small parts a year.

Bulk Mill Pricing vs Small-Batch Reality

Tata Steel’s Nicor and TI Hilumin, which are the dominant battery-can suppliers, quote approximately $3,6^[18]/kg FOB on cold-rolled nickel pre-plated coil. But their minimum order quantities run 500,approximately 1,000 kg^[19] with lead times of 6,10 weeks.

That’s essentially one pallet, which might be fine for a battery pack startup, though it’s really painful for a prototype.

You can find Hilumin’s expected level sheets publicly available at Tata Steel Nederland.

If you need under 50 kg^[20], McMaster-Carr sells nickel-plated steel sheet at roughly $12^[1]/kg with same-day shipping. From Alibaba, mid-tier suppliers land around $5,8^[2]/kg at a approximately 100 kg^[3] MOQ, but a 0.1 µm thickness variation between lots is common.

So, I’d suggest requesting a plating thickness certificate, like an XRF report, before you pay.

When DIY Plating Actually Pays

A Caswell or Gold Plating Services kit (approximately $80,150^[4]) includes the nickel sulfamate or Watts bath, anodes, and a rectifier. But a local plating shop charges approximately $50,200^[5] in minimum-lot fees, regardless of part count.

Let’s do the math: if you need 5 parts plated once, pay the shop. But if you’ll plate 20 or more small parts over a year, like knobs, RC car gears, or restoration hardware, the kit breaks even by around month six.

The bath chemistry stays usable for 12,18 months if you filter monthly and top up nickel chloride.

One catch though, DIY bright nickel rarely matches commercial 5 µm uniform coverage on edges. For solderable battery tabs or corrosion-critical parts, it’s best to send them out.

Frequently Asked Questions About Nickel Plated Steel

Is nickel plated steel any good?

Yes, for indoor electrical contacts, battery tabs, and decorative hardware it’s an excellent value buy at roughly one-third the cost of 304 stainless. It fails fast in salt spray over 96 hours^[6] or temperatures above approximately 300°C^[7].

What exactly is nickel plated steel?

A mild steel substrate (usually 1008,1018 carbon steel) electroplated with 2,25 μm of nickel. The steel gives strength and magnetism; the nickel layer adds corrosion resistance, solderability, and a chrome-like finish. See the Wikipedia entry on nickel electroplating for the chemistry.

Will a magnet stick?

Strongly. The nickel coating is too thin (under 0.025 mm^[8] typically) to block the ferromagnetic pull from the steel core. This is the fastest field test to tell it apart from solid nickel or 304 stainless.

Is it food-safe?

Only if certified. Bare nickel can leach into acidic foods, and the EFSA tolerable daily intake is 13 μg/kg body weight. Use stainless or food-grade tin plating for cookware.

Can it be welded or soldered?

Soldering, yes, easily, which is why battery tabs use it. Welding, problematic. The nickel layer vaporizes around 1455°C^[9] and contaminates the weld pool. Grind off the plating approximately 10 mm^[10] back from the joint before TIG or MIG welding.

Does it rust?

Only after the plating is breached. Once moisture reaches the steel through a scratch or pinhole, red rust appears within days and spreads under the coating.

Final Verdict — Should You Choose Nickel Plated Steel?

Choose nickel plated steel for indoor electronics, battery tabs, EMI shielding cans.

And decorative hardware where humidity stays below approximately 70%^[11] RH, it delivers approximately 90%^[12] of stainless steel’s corrosion resistance at roughly one-third the cost. Skip it for marine, coastal, or chemical-immersion service; specify pure nickel strip or 316L stainless instead.

For fasteners, it works only when the bolt sees indoor air and torque under 80%^[13] of how much usable material is produced, anything cyclic or outdoor will pit within 18 months.

Pre-Order Checklist

Plating thickness — request minimum microns, not “standard.” Indoor: 5 µm. Outdoor sheltered: 12 µm with copper underlayer.
Process type — electrolytic (cheaper, uneven on edges) or electroless nickel (uniform, 8–approximately 12%^[14] phosphorus for better corrosion).
Substrate expected level — confirm low-carbon steel grade (SPCC, 1008, or DC01) and surface roughness Ra < 0.8 µm.
Test report — ask for ASTM B117 salt-spray hours and cross-section micrograph showing coating thickness.
RoHS/REACH compliance — verify per ECHA REACH guidance if shipping to the EU.
Edge coverage — sheared edges lose 30–approximately 50%^[15] of plating thickness; request post-shear re-plating for cut parts.

Next step: email your supplier the six items above before placing any order over $500. A reputable mill will respond with a written expected level sheet and B117 data within approximately 48 hours^[17], if they can’t, walk away.
