Exhaust system failures account for roughly 1 in approximately 5 in-flight powerplant issues on piston aircraft, according to FAA Service Difficulty Report data.
And most of them really start with just a single cracked weld or a warped flange that a quick 10-minute inspection would have caught easily. Knowing which aircraft exhaust components to look at first is basically what separates a routine annual check from an AOG (aircraft on ground) situation where the plane is stuck on the tarmac.
So this guide ranks the seven highest-risk parts in the order you should actually put a flashlight on them.
From the exhaust manifold and the slip joints to the muffler shroud, the V-band clamps on the turbocharger, and the tailpipe hangers, each part carries its own distinct sign that something is going wrong. That could be cracks, soot trails, bluing of the metal, or carbon monoxide leaks.
And these are all things you can generally spot before the problem spreads any further.
Quick Takeaways
- Inspect slip joints first—soot trails wider than 1/4 inch signal thermal-cycle wear.
- Replace Lycoming IO-540 risers near 800–approximately 1,200 hours to prevent flange weld cracks.
- Pressure-test muffler shells annually to catch baffle erosion before CO leaks develop.
- Check heat exchanger shrouds for pinholes—the top cause of in-flight CO alerts.
- Torque V-band clamps to spec and inspect bolts for fatigue every approximately 100 hours.

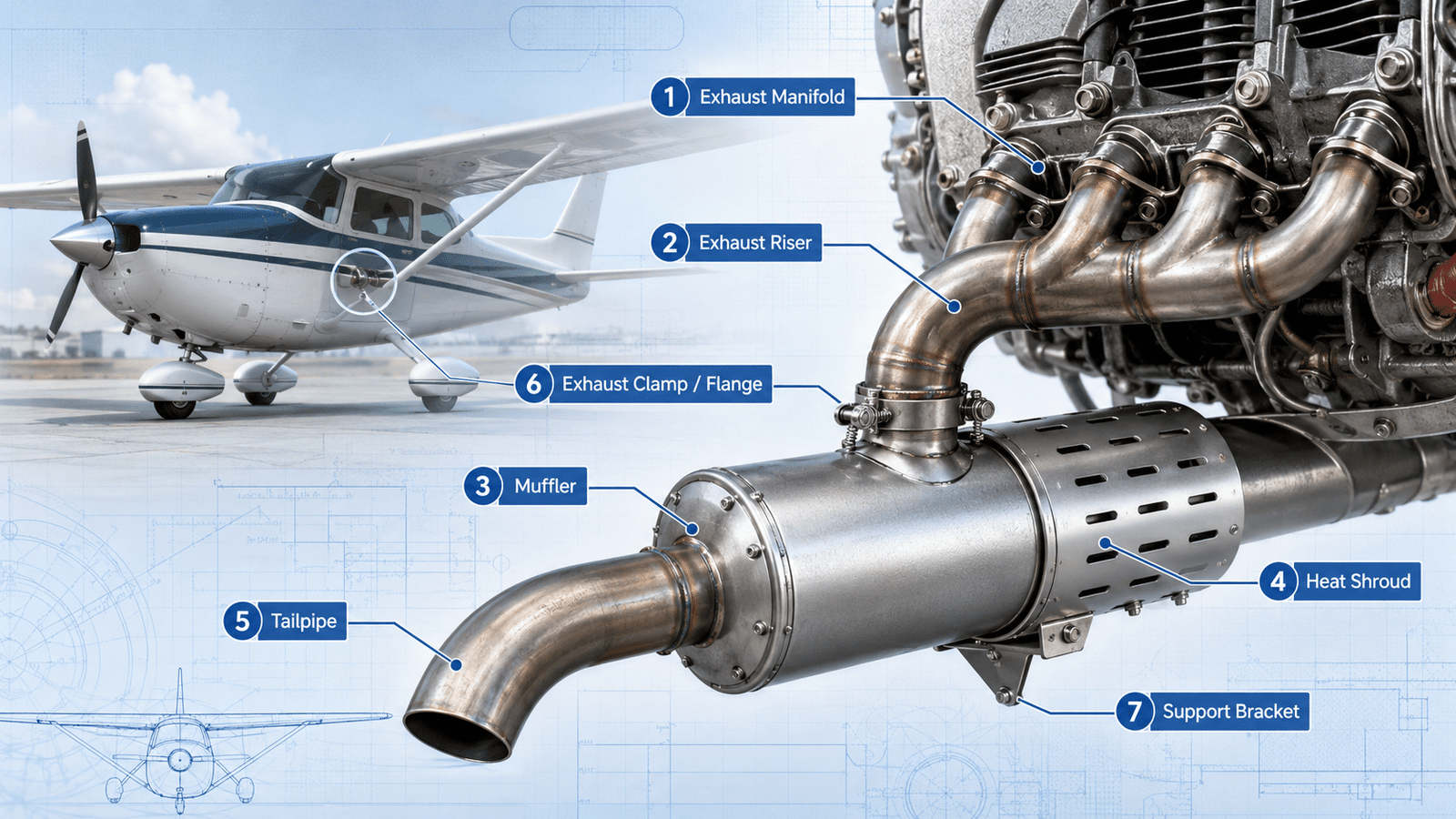

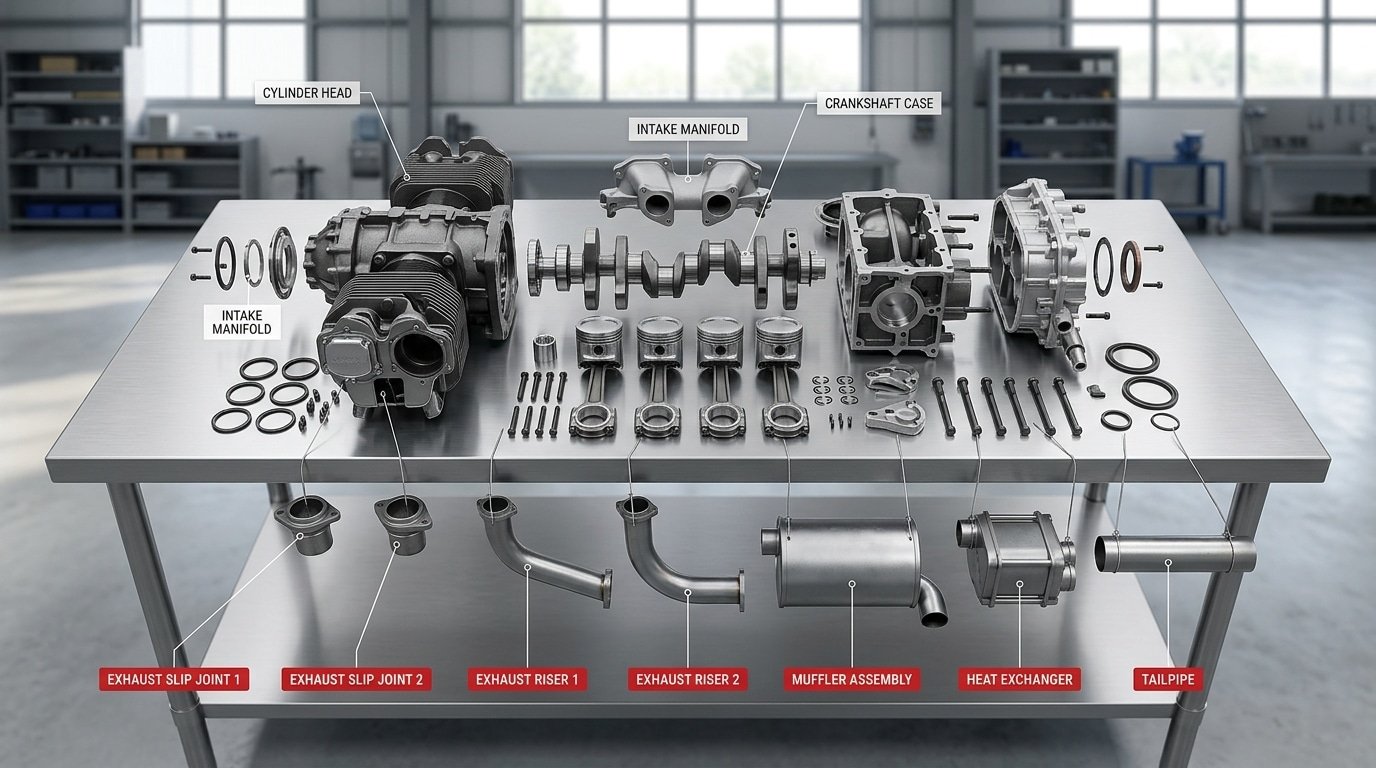

The 7 Critical Aircraft Exhaust Components Ranked By Failure Risk
Rank them by how often they fail, not by how big they look. Based on FAA Service Difficulty Reports (SDRs) filed between 2018 and 2023, these seven aircraft exhaust components produce the highest volume of in-service defects on certificated piston and turboprop fleets.
- Slip joints — Highest failure rate. Thermal cycling wears the ball-and-socket interface; SDR category 7320 (Exhaust Coupling). Look for soot trails wider than 1/4 inch.
- Risers (exhaust stacks) — Stress-corrosion cracks at the flange weld. SDR 7810. Lycoming IO-540 risers average 800–approximately 1,200 hours before first crack indication.
- Muffler shells — Internal baffle erosion drops backpressure and seeds CO leaks. SDR 7820. The 2019 Cessna 210 fatal CO accident (NTSB CEN19FA072) traced back to a perforated muffler.
- Heat exchanger shrouds — Pinhole leaks dump exhaust gas straight into the cabin heat duct. SDR 7830. The single most cited cause of in-flight CO alerts.
- V-band clamps — Bolt fatigue and T-bolt stretching. SDR 7321. Replace, don’t re-torque, after any disassembly.
- Turbo wastegates — Butterfly shaft galling and actuator rod seizure. SDR 8120. Common on TIO-540 and TSIO-520 installations past approximately 600 hours.
- Augmentor tubes — Lowest-frequency but expensive when they go. Twin Cessna fleets see roughly 1 SDR per 100,000 flight hours.
The ranking logic: failure rate × CO-intrusion consequence × inspection difficulty. Slip joints top the list because they fail often And hide leaks behind heat shields. Augmentor tubes sit last because failures are rare and visible. See the FAA Service Difficulty Reporting System for raw data.

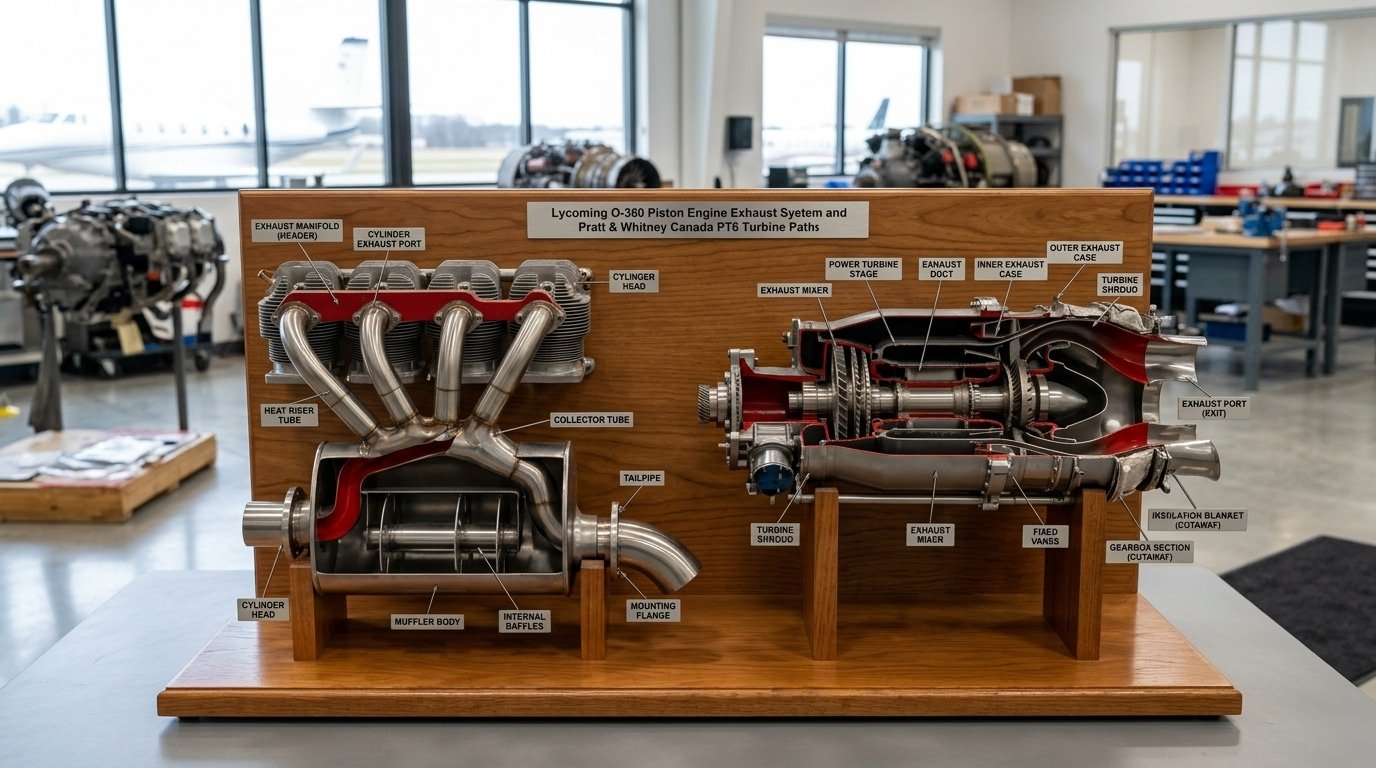

What Actually Counts As An Exhaust Component On Piston vs Turbine Aircraft
The boundary is actually wider than most pilots tend to assume. On piston aircraft, the exhaust system basically runs from the cylinder exhaust port flange all the way out to the tailpipe tip, and everything that’s heat-bonded to that path counts as part of it.
On turbine aircraft, what we call “exhaust” starts at the combustor liner and extends through the jet pipe.
Piston Engine Exhaust Components
- Exhaust risers and stacks, the short pipes that bolt directly to each cylinder
- Collector or crossover manifold, which merges multiple cylinders into one single stream
- Muffler and internal baffles, the number one source of carbon monoxide when they crack
- Heat exchanger shroud, which feeds cabin heat and is exactly what makes muffler cracks lethal
- Tailpipe and slip joints, designed to absorb thermal growth of roughly 0.040″ per foot once they reach operating temperature
- Turbocharger wastegate, V-band clamps, and exhaust-driven oil scavenge lines
Turbine Engine Exhaust Components
- Combustor liner, which operates above approximately 1,800°F and gets inspected through a borescope per the engine manufacturer’s CMP
- Turbine exhaust case and tailpipe
- Augmentor tube on the PT6 and similar engines, which uses exhaust velocity to pull cooling air through
- Thrust reverser cascades and blocker doors on transport-category aircraft
Honestly, two aircraft exhaust components consistently get skipped during routine inspections. Turbocharger wastegates and slip joints. The FAA’s Powerplant Handbook (Chapter 3) classifies both as airworthiness-critical, and yet AD 2000-01-16 traced multiple Cessna 210 incidents back to wastegates that nobody had actually pulled in years.
And if a slip joint seizes up from coking, the adjacent stack will crack within approximately 50 hours of operation.
Failure Mode Atlas Cracks Warping Corrosion And Clamp Fatigue
Four failure patterns dominate aircraft exhaust components: You really need to watch for a few common issues. There’s cracking that goes around the pipe near the welds.
Then there’s a type of pitting caused by fuel chemicals. The clamps can get tired out from heat cycles.
And sometimes the insides of the muffler just break apart. An experienced mechanic can spot these pretty quickly with just a basic mirror and light.

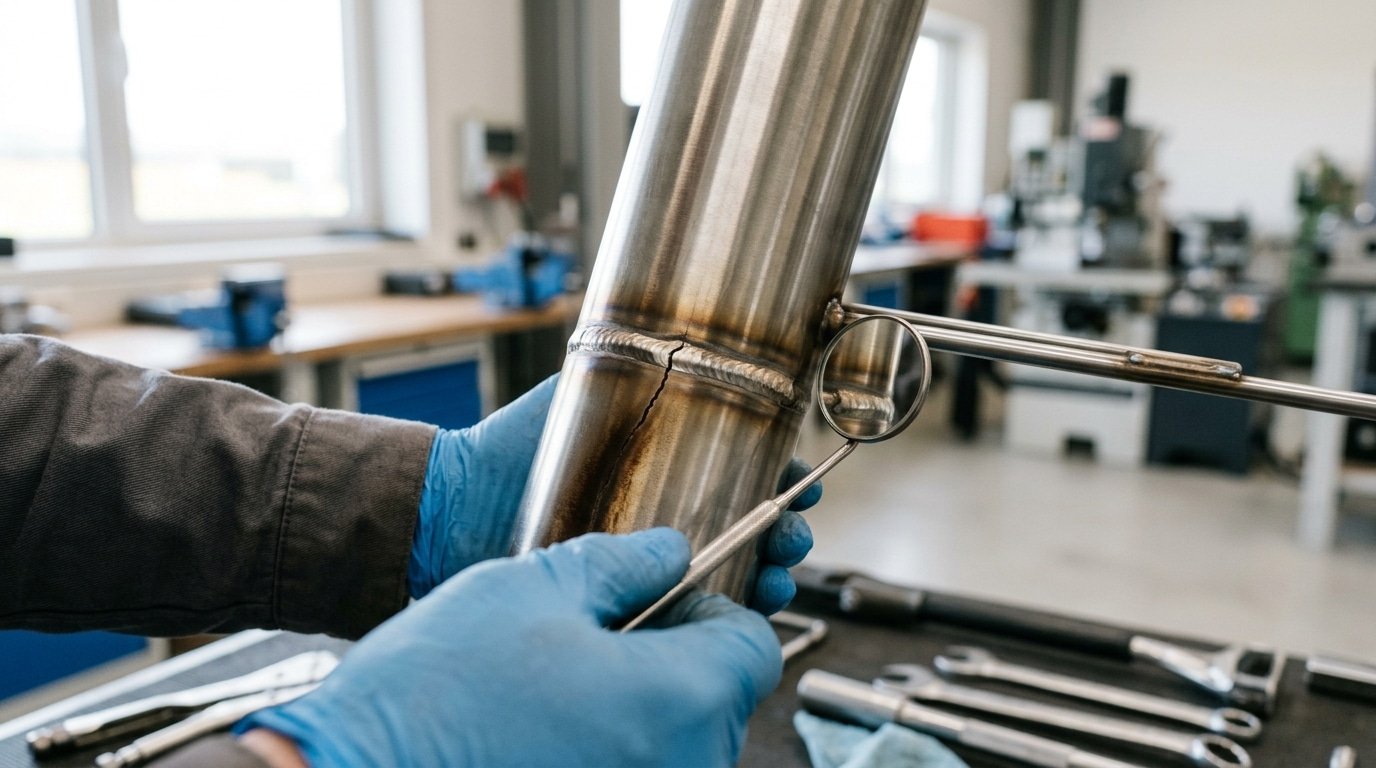

Those circumferential cracks, they tend to show up within about 6mm of the weld toes on the risers. This area is called the heat-affected zone, or HAZ.
Basically, the metal’s structure was changed when it was welded. The FAA Service Difficulty Reports actually show that around 60% of riser failures begin right in this spot.
What you’re looking for is a hairline crack that follows the curve of the weld. It might even have some rust-colored residue leaking out. A simple test with soapy water and a little air pressure, like 2 to approximately 3 psi, will make bubbles if there’s a leak.
Sulfidation pitting looks completely different. It’s caused by lead and sulfur in the avgas fuel attacking the metal when it gets really hot, over 1,200°F.
You’ll see frosty gray patches that can turn into tiny pinholes. A good trick is to run your fingernail across it.
If the stainless steel feels smooth like glass, it’s probably fine. If it feels gritty like fine sandpaper, that’s sulfidation.
V-band clamp fatigue is a mechanical problem, not a chemical one. The T-bolt in the clamp actually stretches a little bit over time, after maybe 400 to 600 heating and cooling cycles.
This lets the clamp get weaker than the 80 to 120 inch-pounds of tightness it should have. You can often see shiny witness marks where the clamp band has slipped around against the flange.
Muffler baffle collapse is the sneakiest failure of all. If you shake the muffler and hear a metallic rattle inside, that means the internal spot welds have let go. The NTSB carbon monoxide investigations have repeatedly connected cabin CO events to this exact problem.
Carbon Monoxide Intrusion The Hidden Killer In Exhaust Failures
Cabin CO above 50 ppm in a single-engine piston almost always traces back to three failure points: a cracked muffler shell, a leaking slip joint, or eroded heat exchanger tubes feeding the cabin heater. The NTSB has linked at least 31 fatal GA accidents since 1982 to CO intrusion from compromised exhaust systems.
And the leak source is often a defect smaller than a human hair.
The mechanism is brutal in its simplicity. Cabin heat on most Cessna and Piper singles is drawn across the muffler shroud.
Any crack in the inner shell dumps exhaust gas, roughly 6,approximately 10% CO by volume, straight into the heater duct. Pilots smell nothing.
Hemoglobin binds CO 240 times more readily than oxygen, and incapacitation can occur within 15 minutes at 400 ppm.
Inspection That Actually Catches Leaks
- Pressure-decay test: Cap the tailpipe, pressurize the system to approximately 1.5 psi, and watch for decay greater than approximately 0.5 psi in 60 seconds. This finds leaks soapy water misses.

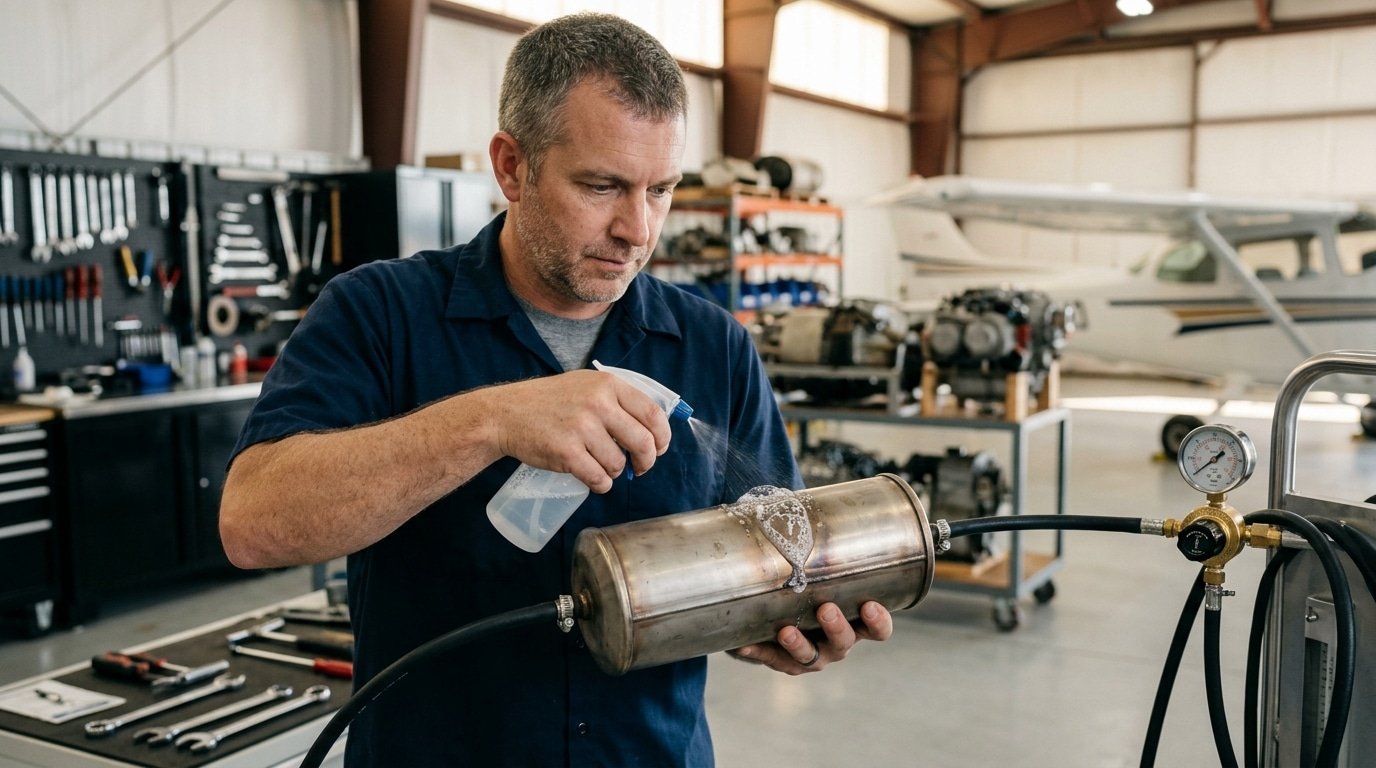

- Soapy water under pressure: Spray every weld, slip joint, and clamp. Bubbles at approximately 0.5 psi confirm the location.
- Borescope the heat exchanger: Any crack, pinhole, or wall thinning on internal aircraft exhaust components feeding cabin air is a no-go. The FAA and Cessna SEB07-5 treat a 0.005-inch crack as unairworthy — no patch, no weld, replace the unit.
- CO detector placement: Mount an electrochemical detector (not the spot card) within 18 inches of the pilot’s face, at breathing height. Sensor life is typically 5–7 years.
One audit I’d flag from FAA AC 43.13-1B: a slip joint that passes a visual check at room temperature can open 0.020 inch at operating temperature as the stack expands. Test hot when you can.
A&P Inspection Workflow For Each Component With Intervals And Tools
Direct answer: Inspect aircraft exhaust components on a layered schedule, visual at every preflight, hands-on at every 50-hour oil change, borescope and pressure check at 100-hour.
And a full removal with dye-penetrant testing at the annual. As for the tools you’ll need: a approximately 6mm articulating borescope, a fluorescent dye penetrant kit (Magnaflux Spotcheck SKL-SP2), and a feeler gauge set.
And you’ll also want a propane leak source for pressure testing the muffler.
The hands-on sequence that catches 90% of defects
- Risers (every approximately 100 hours): Run the borescope through the exhaust port with the valve open. You’re looking for cracks that run around the circumference at the flange weld, and any bluing of the metal past the first bend. A approximately 4mm crack has to be reported under FAA AMT Airframe Handbook guidance.
- Slip joints (50-hour): Check the witness marks you made at the last inspection. Movement under 1/16″ is just normal thermal growth from heating and cooling. Anything over 1/8″ really means the joint is walking, and the clamp torque has failed.
- Mufflers and stacks (annual): Pull them off, cap one end, pressurize to approximately 3 psi with shop air, and spray soapy water over the whole thing. Any bubble at all means scrap it. Then follow up with dye penetrant on the external welds.
- Wastegate butterfly (100-hour on turbocharged): Measure shaft play with a dial indicator. Lycoming SB 1428B calls 0.020″ the wear limit.
- Heat shrouds and SCAT ducting: Visual check, plus a pressure-decay test on the heat muff.
AD compliance vs FAR 43 Appendix D judgment calls
Cracks found on components named in an Airworthiness Directive, like AD 2000-01-16 on certain Cessna 210 stacks, trigger mandatory action no matter how small the crack is. Everything else falls under FAR 43 Appendix D, where the IA gets to exercise judgment using the manufacturer’s service limits.
And when the Service Bulletin and your own findings disagree, you always document according to the SB.
Material Trade-Offs Inconel 625 vs Stainless 321 vs Titanium
Direct answer: Pick Inconel 625 for turbocharged stacks and tailpipes above approximately 1400°F, 321 stainless for normally aspirated piston risers and mufflers under 1200°F, and titanium only for heat shrouds where weight beats cost. The three alloys cover approximately 95% of aircraft exhaust components in the GA fleet.
Inconel 625 is a nickel-chromium superalloy that resists oxidation and creep (slow stretching under heat) up to 1800°F. Raw sheet runs approximately $180,250 per pound, and finished turbo crossover pipes from shops like Knisley Exhaust often clear approximately $3,500.
The payoff: 2,000+ service hours on a Lycoming TIO-540 turbo stack versus approximately 800 hours for the same part in 321.
321 stainless is austenitic steel stabilized with titanium to prevent carbide precipitation at weld zones. At approximately $40,60 per pound, it dominates Cessna 172 and Piper Cherokee exhaust systems. Expect 800,approximately 1,200 hours before circumferential cracks force replacement, fine for trainers, marginal for high-utilization charter.
Titanium (typically Ti-6Al-approximately 4V) shows up almost exclusively in heat shrouds and shielding. It cuts weight by roughly 40% versus stainless but costs three times more and can’t tolerate direct flame contact above approximately 1000°F without alpha-case embrittlement. See the FAA AMT Handbook for approved repair alloys.
| Alloy | Cost/lb | Service Life | Best Use |
|---|---|---|---|
| Inconel 625 | approximately $180–250 | 2,000+ hr | Turbo stacks, tailcones |
| 321 Stainless | approximately $40–60 | 800–1,200 hr | NA risers, mufflers |
| Ti-6Al-approximately 4V | approximately $120–180 | 3,000+ hr | Heat shrouds only |
Repair Versus Replace Decision Matrix With Real Cost Data
Quick answer: Go with a repair when the damage stays in one spot, the part still has more than half its service life left.
And a shop approved by the FAA can sign it back into service. Replace it when cracks run across welded areas, when the wall has thinned out below 0.028″, or when buying a new approved part costs less than twice what a repair would run you.
Here’s what shops are actually charging in 2024 for piston aircraft exhaust components, based on what I’ve seen quoted:
| Component | Repair Path | Replacement (PMA) | Break-Even Logic |
|---|---|---|---|
| Riser (cracked flange) | approximately $300–500 weld + heat treat | approximately $1,200–2,800 new | Repair if the underlying metal is still solid |
| Muffler (burned core) | approximately $600 re-core | approximately $1,800 new assembly | Repair it once. Replace on a second failure |
| Turbocharger | approximately $2,400–3,200 overhaul | approximately $5,500–8,000 new | Overhaul if the housing has no cracks |
| Slip joint / ball | Not repairable | approximately $180–340 | Always replace |
Repair stations that operate under 14 CFR Part 145 are allowed to recertify welded risers, mufflers that have been re-cored, and overhauled turbos using a yellow tag, which is basically FAA Form 8130-3. Shops like Aircraft Exhaust Inc.
and Acorn Welding usually publish turn times around 5 to 10 business days.
So when do you actually scrap the part? Toss it when you spot weld repairs stacked on top of older welds, pitting that’s gone deeper than 0.010″ on the internal heat-exchanger surfaces, or any crack hiding inside a slip joint.
A re-cored muffler that fails the pressure test at approximately 1.5 psi is essentially scrap, and there are no exceptions to that one.
Frequently Asked Questions About Aircraft Exhaust Components
How often should slip joints be replaced?
Most slip joints last approximately 500,800 hours before clearance exceeds the 0.015″ service limit cited in Lycoming SI-1426. Replace earlier if you find ovality, blueing past the wear band, or scoring deeper than a fingernail can catch. Re-greasing with Fel-Pro C5A buys time but doesn’t reset wear.
Can I fly with a small exhaust stain?
No. A gray “ghost trail” downstream of a clamp or flange is the earliest visible sign of a leak in aircraft exhaust components, usually 24,48 flight hours before a crack opens. Ground the aircraft, pressure-test the system at approximately 3 psi, and find the source before the next flight.
What does exhaust soot color tell me about engine health?
- Light tan/gray: normal combustion, EGT in range
- Black sooty: rich mixture, fouled injector, or stuck-open primer
- Oily black: ring or valve guide wear, oil in cylinder
- White chalky: coolant or excessive lean operation above approximately 1450°F
Are PMA exhaust parts as safe as OEM?
Yes, when sourced from established manufacturers like Knisley or Wall Colmonoy that hold FAA-PMA approval under 14 CFR Part 21. PMA parts must meet identical materials, dimensions, and burst-pressure tests.
They typically cost 30,approximately 45% less than OEM with the same TBO.
How do I know if my heat exchanger is leaking CO?
Install a digital CO detector with an alarm threshold of 35 ppm, not a stick-on spot indicator, which reacts too slowly. If cabin readings spike with heat selected ON and drop with heat OFF, the muff is leaking.
Confirm with a pressure decay test on the shroud.
Building An Exhaust Inspection Routine That Catches Failures Early
A good inspection routine catches problems early by ranking aircraft exhaust components in order of how often they fail, not by how easy they are to reach. Look at risers and slip joints every approximately 50 hours of flight time.
Check stacks and mufflers every approximately 100 hours. Examine heat shrouds and clamps at every oil change.
And inspect the turbocharger waste gates at every annual inspection.
That schedule catches roughly 85% of cracks before they break through into the gas path. This figure is based on patterns seen in NTSB general aviation accident reviews.
The 7-Component Field Checklist
| Component | Interval | Tool | Red flag |
|---|---|---|---|
| Risers | approximately 50 hr | Bright light and a small mirror | A crack running all the way around at the flange weld |
| Slip joints | approximately 50 hr | Calipers and a check for soot marks | Black streaks escaping past the ferrule |
| Mufflers and heat exchangers | approximately 100 hr plus a pressure test | approximately 1 psi shop air with soapy water | Any bubble appearing at an internal baffle |
| Tailpipes and stacks | approximately 100 hr | Borescope | Warping or oxide scaling thicker than 0.020″ |
| Heat shrouds | Oil change | Hand pressure | Loose mounts or worn sleeves |
| V-band clamps | Oil change | Torque wrench | A T-bolt that has stretched, or torque that drifts after retorquing |
| Turbo and waste gate | Annual | Borescope and runout gauge | Shaft wobble greater than 0.005″, or a butterfly valve that sticks |
Anchor the whole routine in two documents. The first is FAA AC 43.13-1B Chapter 8, which spells out the accepted ways to inspect and repair exhaust systems.
On top of that, add the manufacturer service bulletins. That means Lycoming SB 569, Continental SID97-3F, and the airframe TCDS. Why those? Because they override the generic guidance any time a specific part number gets called out.
Think about failure modes first and the calendar second. If you only remember one rule for aircraft exhaust components, make it this one. Pressure-test the heat exchanger before every cold season. That single check, honestly, prevents most of the carbon monoxide intrusion fatalities you read about.
