Copper joining troubleshooting guide
Copper Laser Welding Defects & Fixes
Diagnose lack of fusion, unstable starts, porosity, spatter, burn-through, undercut and cracking without chasing a random power setting.
Short answerMost copper laser welding defects come from unstable energy coupling, excessive or insufficient local heat, contamination, poor fit-up, beam-position error or an unqualified joint design. Confirm the defect with cross-sections and functional tests, then change one controlled variable at a time.
A smooth copper bead can still hide an unfused interface, pores or an incorrect penetration path.
Hold material, gap, focus, beam path and inspection constant while changing one parameter.
Electrical, mechanical, leak, fatigue or corrosion evidence must match the product requirement.
Why copper is difficult
The process window can move very quickly.
Cold copper can couple weakly with common near-infrared laser light while carrying heat away rapidly. Once the surface melts and the keyhole develops, absorption and melt flow can change sharply. The same setting can therefore move from weak fusion to an unstable, ejecting keyhole when fit-up, focus or surface condition changes.
Cold starts are sensitive
Reflectivity, oxide, plating, surface roughness, angle and wavelength affect how much of the delivered laser energy enters the part.
The joint loses heat fast
Copper’s high thermal conductivity moves energy away from the seam. Thickness, contact area and fixture heat sinking change the local result.
The keyhole can oscillate
Once vapor pressure and melt flow become unstable, the process can create pores, spatter, underfill or irregular penetration.
“Copper” is not one process recipe.Cu-ETP, OFHC/OFE, CuCrZr, CuSn alloys, plated busbars, foil stacks and copper-aluminum joints have different chemistry, surface condition, heat flow and acceptance needs. Record the exact grade, temper, coating and product form before tuning.
Green / blue sourcesCan improve initial couplingUseful in some copper systems, but source wavelength alone does not guarantee an acceptable weld.
Near-infrared sourcesNeed a stable entry windowBeam shaping, wobble, ramping and joint design can improve process control.
Any wavelengthMust pass the same evidenceCross-section, function, repeatability and safety remain the release criteria.
Troubleshooting sequence
Start with the symptom. End with verified evidence.
A disciplined sequence prevents one defect from being hidden by another. For example, adding power may close a shallow section while increasing spatter or thinning the remaining wall.
Name the defect precisely
Record location, frequency, start/end behavior, bead geometry, spatter field and whether it follows a lot, fixture, operator or optic change.
Use the right evidence
Section the joint, measure penetration and remaining thickness, inspect internal pores when risk requires it, and test the product function.
Find the governing variable
Separate material, surface, gap, clamp, focus, beam offset, power, speed, wobble, ramp, shielding and extraction effects.
Prove the window, not one sample
Repeat nominal and boundary conditions across parts, operators and time. Lock the process only after acceptance evidence is repeatable.
Quick defect map
Match the visible symptom to the next useful check.
This table is a diagnostic starting point—not a universal parameter chart. A similar-looking top bead can have different root causes.
| Defect | Likely causes to investigate | Confirm with | Controlled response |
|---|---|---|---|
| Lack of fusion | Low effective coupling, high speed, beam offset, excessive gap, weak contact, defocus, oxide or insufficient overlap at the interface. | Macro cross-section at start/middle/end; peel, bend, shear or tensile test suited to the joint; electrical resistance where current flow matters. | Correct fit-up and beam position first; then adjust power-speed balance, focus, spot/beam shape, wobble or joint design inside a controlled trial. |
| Unstable starts | Cold-surface coupling variation, start ramp too short, inconsistent part location, damaged/dirty optics, changing angle or delayed plasma/keyhole formation. | Start-zone sections, high-speed/photodiode/acoustic signal when available, correlated with physical weld evidence. | Stabilize location and surface; tune lead-in, ramp, speed and beam pattern; monitor optics and reject unproven start zones. |
| Porosity | Keyhole collapse, trapped gas, oil/moisture, plating/oxide, excessive instability, poor shielding or solidification before bubbles escape. | Cross-section sampling plus X-ray or CT when defect size/location and product risk justify it. | Clean and dry the joint; stabilize the keyhole; refine speed, power, focus, beam shape and ramp; verify gas delivery and joint venting. |
| Spatter / ejection | Violent vaporization, unstable keyhole, excessive local dwell, beam-position error, contamination, abrupt ramp or poor plume/fume control. | Spatter count/area, camera or process signal, bead mass loss, internal geometry and nearby-component contamination. | Reduce instability rather than only reducing power; tune speed, ramp, focus, wobble and shielding; improve cleaning, clamping and extraction. |
| Burn-through | Too much local energy, slow travel, stops/corners, thin edge, overlap at closure, gap, low thermal mass or focus/spot mismatch. | Remaining-wall measurement, section at start/stop/corners and dimensional inspection. | Reduce dwell, use endpoint ramping, increase travel, redistribute the beam, improve support/fit-up or redesign the termination. |
| Undercut / underfill | Melt ejection, excessive speed, poor wetting, incorrect beam offset, low filler volume, unstable pool or geometry that cannot retain metal. | Profile measurement, section, mass/volume check and product-specific fatigue or strength evidence. | Stabilize melt flow; correct beam path and travel; use controlled filler when appropriate; retune wobble and joint geometry. |
| Cracks / brittle interface | Alloy chemistry, restrained shrinkage, excessive mixing, intermetallic phases in Cu-Al, contaminated/plated layers, high thermal gradients or poor joint design. | Metallography, fracture location, hardness/chemistry where relevant, electrical/mechanical/environmental testing. | Change the material combination, mixing depth, beam offset, filler/interlayer, thermal cycle or joint architecture—power alone is rarely the full fix. |
Do not release a copper weld from appearance alone.ISO 13919-2:2021 provides production-quality levels for imperfections in laser/electron-beam welds in pure copper, but it states that these levels are not proof of fitness for purpose and do not cover every metallurgical or NDT requirement.
Defects 01–02
Lack of fusion and unstable starts need different fixes.
Both can look like “not enough energy,” but the real problem may be a moving seam, poor contact, delayed coupling or an uncontrolled start transition.
01
Lack of fusion
Insufficient fusion means the required interface did not melt and join. It can occur even when the top bead looks wide and bright.
Check firstActual gap, clamp contact, seam location and beam offset.
Then changePower-speed balance, focus, spot/beam pattern or controlled wobble.
Prove withSections and the mechanical/electrical test that represents service.
Do not confuse delivered power with absorbed energy.Oxide, angle, wavelength, focus and molten-pool behavior change how much energy enters the joint.
02
Unstable starts and penetration
The first millimeters may see cold, reflective copper. After coupling begins, the same command can produce a much stronger melt response.
Check firstSections at start, middle and end—not one middle coupon.
Then changeStart ramp, lead-in, travel, beam pattern and part-location repeatability.
Prove withRepeated starts after normal idle time, optic wear and lot variation.
Monitor signals only after correlation.A camera, photodiode or acoustic signal is useful when its pattern has been linked to accepted and rejected physical joints.
Planning descriptor: El = P ÷ vNominal line energy equals laser output power divided by travel speed. It helps organize trials, but it is not absorbed heat input and does not include wavelength, beam profile, focus, wobble, joint contact, thermal mass or keyhole behavior. Two welds with the same P ÷ v can be physically different.
Defects 03–04
Porosity and spatter are signs of process instability.
They can share causes, yet they need separate acceptance rules. A pore may remain hidden inside the joint; spatter can escape and contaminate electrical or optical components nearby.

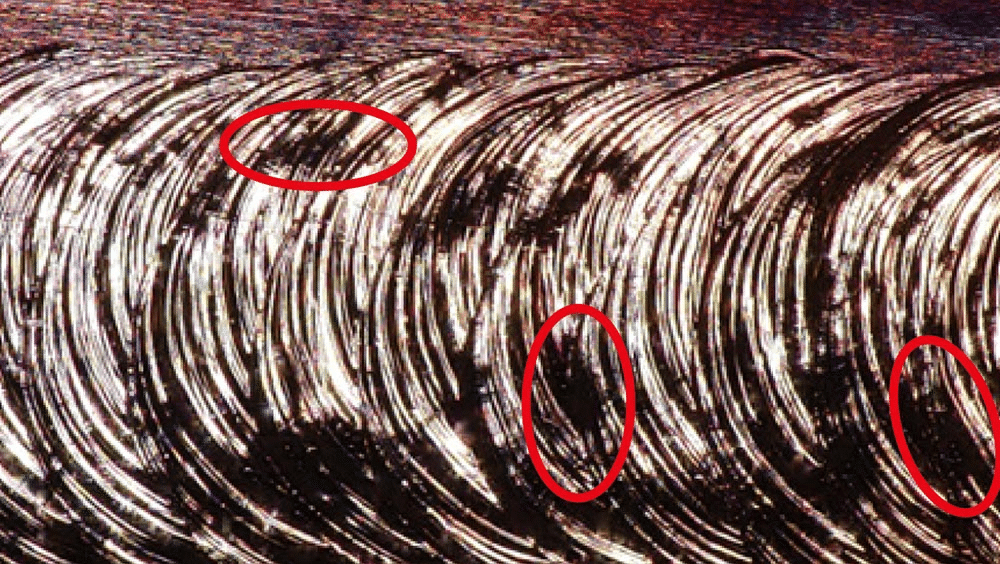

Give gas a path out
Clean and dry the joint, identify plated or contaminated layers, stabilize the keyhole, and avoid a melt pool that freezes before bubbles escape.
- Section at the actual start/stop and overlap
- Use X-ray/CT only where its sensitivity fits the defect
- Set an allowed pore size, location and frequency
Reduce violent ejection
Look for concentrated dwell, abrupt start ramps, contamination, unstable focus, excessive vapor pressure or an off-center beam striking an edge.
- Map spatter by location and process time
- Inspect nearby insulation, optics and conductors
- Measure accepted output after cleanup—not bead speed
Calibrate every alarm
Vision, photodiode, acoustic or back-reflection monitoring can detect changes, but the threshold must be correlated with sections and functional evidence.
- Include known-good and known-defect samples
- Track false accepts and false rejects
- Revalidate after material, optic or fixture changes
Confirm clean surface, repeatable beam position and a controlled lead-in.
Robot or operator motion may slow while commanded power stays high.
Check optics, gap, contamination, lot changes and focus stability.
The joint may look fused but no longer have the required section or throat.
Defects 05–07
Geometry loss and cracking require joint-level thinking.
Burn-through, undercut and cracks are not just “wrong power.” Stops, corners, overlap zones, alloy chemistry, restraint and dissimilar-metal mixing can control the failure.
Remove the local hot spot
Inspect starts, stops, small tabs, thin edges and seam overlaps. Use synchronized ramp-down, stable motion, support and a beam pattern that preserves remaining wall.
- Measure minimum remaining thickness
- Test the thinnest normal part
- Include the worst fixture contact condition
Preserve metal where it is needed
Correct beam position, melt ejection and travel before adding filler. If filler is required, control wire location, feed, melting and deposition as part of the qualified process.
- Measure profile and section area
- Inspect wire-feeder consistency
- Validate fatigue or strength where applicable
Separate Cu-Cu from Cu-Al
Pure-copper joints, precipitation-strengthened copper alloys and Cu-Al interfaces have different crack mechanisms. For Cu-Al, excess mixing can create brittle intermetallic phases; the deepest melt is not automatically the best joint.
- Identify where the fracture starts
- Control mixing depth and beam offset
- Test electrical, mechanical and environmental life
Copper-aluminum joints need their own qualification.Fraunhofer research using synchrotron imaging observed pores, fluctuating copper flow and mixing through the aluminum melt pool in laser-welded Al-Cu joints. Use a joint-specific metallurgy and reliability plan rather than extending a Cu-Cu recipe.
Joint strategy
The joint decides which defect is most expensive.
A busbar lap, foil stack, butt seam and copper-aluminum transition do not need the same penetration path or the same proof.
Fusion at the hidden interface
Top-bead width does not prove contact-plane fusion. Gap and clamp force can dominate electrical and mechanical performance.
Evidence: section + four-wire resistance + load testEdge location and gap
A focused beam can miss the root when seam position or edge preparation moves. Measure the production gap distribution.
Evidence: root fusion + profile + strengthHeat balance across layers
Loose contact, coating and thin exposed edges can create incomplete bonding or burn-through in different layers.
Evidence: layer-by-layer section + resistanceControl mixing, not maximum depth
Beam offset and thermal path can be used to limit brittle phase formation while achieving the required connection area.
Evidence: metallurgy + electrical + life testControlled trial
Build a window that survives normal production variation.
One attractive sample shows possibility. A qualification trial shows whether the process has enough margin for real parts, lots, optics, fixtures and operators.
Write the acceptance rule
Set required fusion, dimensions, resistance, strength, leak, fatigue, appearance and allowable defect limits before tuning.
Use real boundary parts
Include exact alloy, temper, coating, thickness, stack, minimum/normal/worst gap and the hardest accessible seam.
Measure the variation
Record surface condition, clamp force, seam position, optic state, focus, gas, program and starting quality.
Locate fusion limits
Use a coarse, documented matrix to separate lack of fusion from overpenetration or violent instability.
Stabilize the melt pool
Tune power, speed, focus, beam shape, wobble, ramp, offset, shielding and filler one controlled step at a time.
Prove the function
Use sections plus the electrical, mechanical, leak, fatigue or environmental tests required by the product.
Train the monitoring
Link signal thresholds to real accepted and rejected joints. Measure both false accepts and false rejects.
Release with change control
Freeze the approved material, fixture, optics, program, consumables, inspection frequency and revalidation triggers.
Include at least three positions in every circular or closed seam.Section the start, steady-state region and fade-out/overlap. A defect may exist only where the motion or power transitions.
Quality evidence
A clean top bead is only one piece of proof.
Select the inspection stack from the product failure mode. Electrical busbars, pressure parts and cosmetic covers do not need identical evidence.
Surface cracks, spatter, profile, discoloration and start/stop consistency.
Bead location, undercut, underfill, deformation and remaining wall.

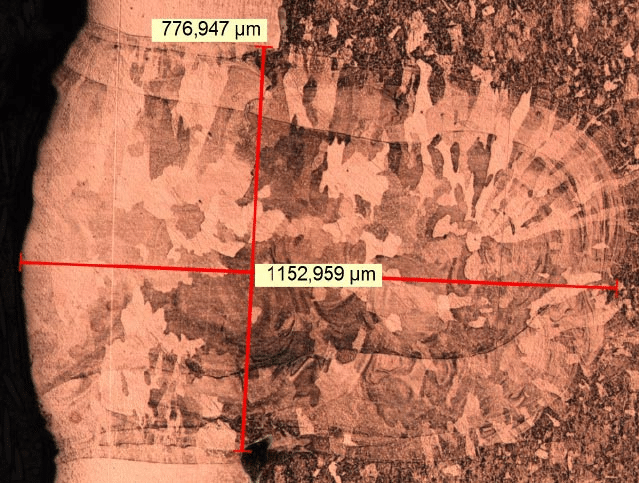

Fusion path, penetration, pores, mixing and interface geometry.
X-ray or CT when defect type, size and geometry are detectable.
Four-wire resistance, mechanical, leak, fatigue, thermal or corrosion test.
In-process alarms correlated with accepted and rejected physical evidence.
Use four-wire resistance for low-resistance joints when appropriate.Separate current and voltage leads so lead resistance does not dominate the measurement. Define probe location, current, temperature, stabilization time and acceptance limit.
Production control
Keep the process stable after the trial ends.
Most recurring defect investigations become faster when the shop can show what changed. Build the record before a problem appears.
Material identityGrade, temper, supplier lot, coating/plating, surface state and storage.
Fixture conditionGap, clamp force, part datum, wear, heat sinking and maintenance checks.
Optical conditionProtective window life, focus check, contamination, calibration and service log.
Program identityPower, speed, ramp, wobble, path, beam offset, gas and revision control.
Quality recordInspection result, section schedule, monitor signal, rework and defect location.
Change triggersNew material/lot, optic, fixture, coating, software, joint, thickness or supplier.
Safety is a hard gate, not a troubleshooting variable.High-power open-beam laser work is Class 4. Direct and reflected beams can injure eyes and skin and can create fire hazards. Use a documented risk assessment, laser-controlled area or validated enclosure, engineered access control, beam management, wavelength/OD-rated protection, trained authorized personnel, fume capture and fire controls. Copper’s reflective surface makes reflected-beam assessment especially important.
Supplier RFQ
Send the process inputs—not only a copper photo.
A useful feasibility response needs the joint, materials, required evidence and production conditions that define success.
Joint path, orientation, reach, start/stop, nearby sensitive components and cycle target.
Grade, temper, thickness, plating/coating, foil stack, mating alloy and lot variation.
Minimum, normal and worst gap; edge condition; clamp method; contact pressure and datum.
Current, resistance, mechanical load, leak, fatigue, temperature, corrosion and life requirement.
Visual, dimensional, section, NDT, electrical, mechanical and environmental checks.
Wavelength, output, beam profile, focus, wobble, optics, motion, wire and shielding.
Classification, enclosure/controlled area, reflections, interlocks, PPE, extraction and fire control.
Volume, shifts, material lots, operators, traceability, alarm rules and change control.
Sample report, commissioning, training, spare optics, response time and revalidation support.
Continue the diagnosis
Related Oceanplayer guides
These links are copied from Oceanplayer’s current published-page register.
Frequently asked questions
Copper laser welding defects
Why does copper laser welding create so much spatter?
Spatter often appears when energy coupling or keyhole behavior becomes unstable and ejects molten metal. Contamination, abrupt start ramps, excessive local dwell, poor focus, an off-center beam, variable gap and uncontrolled plume flow can all contribute. Map where and when spatter occurs, then change one controlled factor at a time.
Can increasing laser power fix lack of fusion in copper?
Sometimes, but not safely as the first response. Lack of fusion can come from poor contact, beam offset, gap, oxide, defocus or incorrect joint overlap. Adding power may increase spatter, burn-through or underfill without fixing the hidden interface. Confirm the section and correct geometry before retuning power and speed.

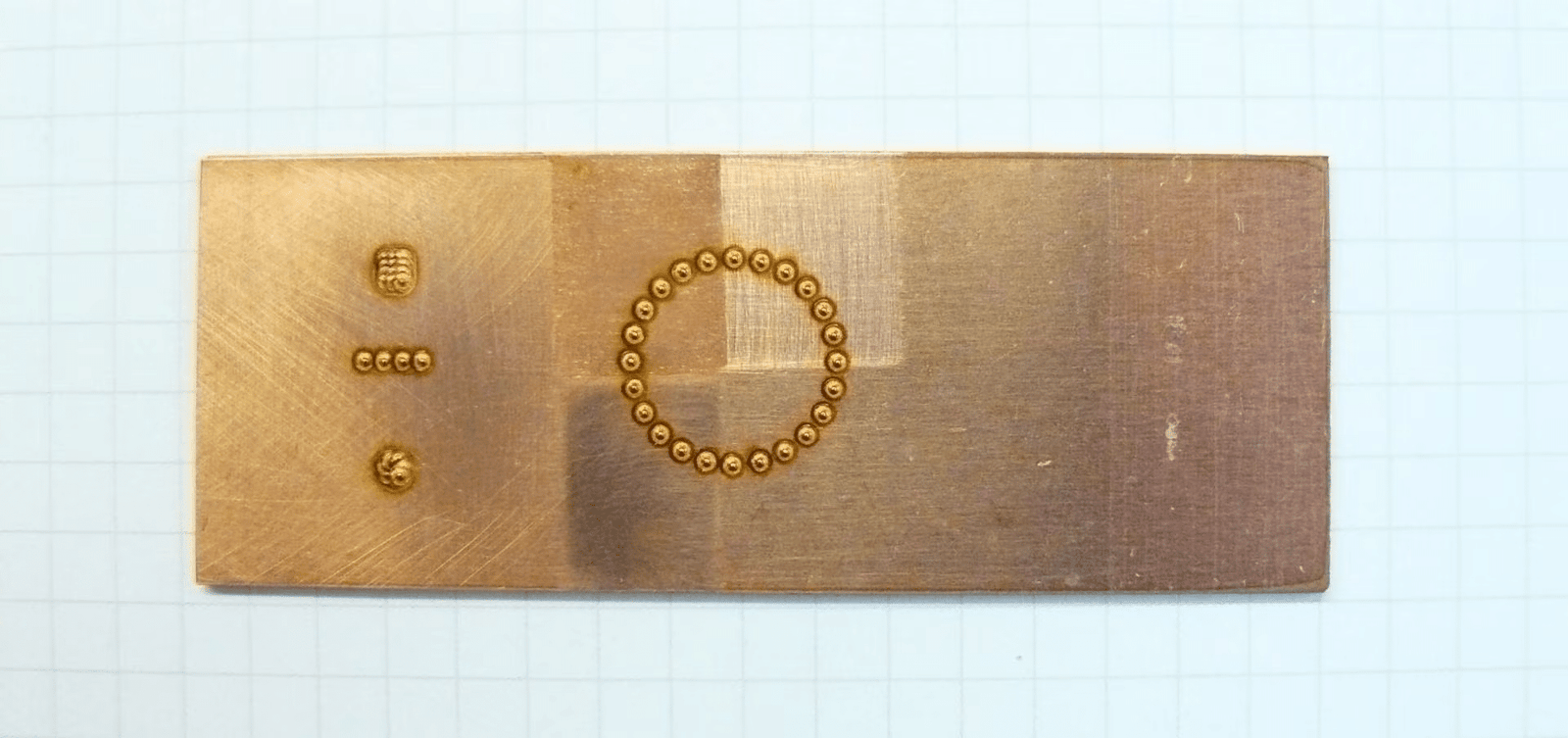

Is green laser welding better than infrared for copper?
Green light can provide stronger initial absorption in copper for some systems, which may widen the coupling window. However, “better” depends on the exact source, beam delivery, thickness, joint, production rate and acceptance target. Infrared systems with beam shaping, wobble and controlled ramps can also weld copper. Compare complete processes with representative parts.

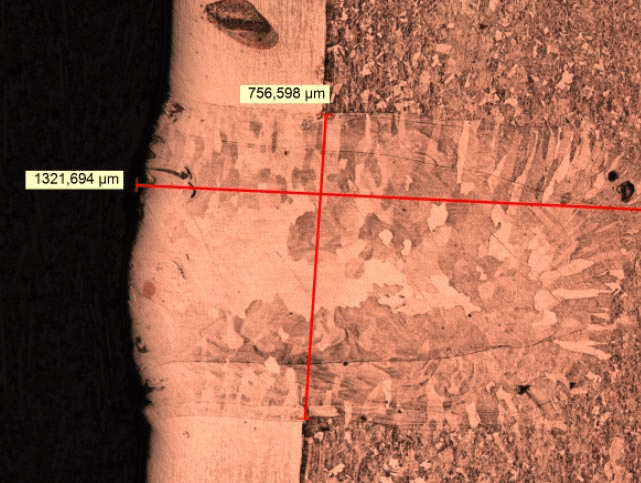

How can porosity in a copper laser weld be detected?
Start with planned macro cross-sections at the start, steady-state and end/overlap zones. X-ray or computed tomography can help when the joint geometry, pore size and product risk suit the method. Define the detectable defect and acceptance limit before relying on NDT.
Can copper and aluminum be laser welded together?
Yes, but Cu-Al is a dissimilar-metal joining problem, not an extension of a pure-copper recipe. Different heat flow, density and brittle intermetallic phases make mixing depth and beam offset important. Qualify the exact joint with metallography plus electrical, mechanical and environmental evidence.
Does a clean-looking copper weld have low electrical resistance?
Not necessarily. A smooth surface does not prove the intended interface is fully fused or that the current path is stable. Use a controlled low-resistance method such as a four-wire measurement, define probe locations and temperature, and combine it with sections and life testing where needed.
When should wobble laser welding be used on copper?
Wobble can widen the energy path, help cover both edges and change melt flow, but it also changes local energy density and travel-speed limits. Use it when a trial proves better fusion margin or geometry without unacceptable pores, spatter, undercut or heat spread. It is not a substitute for uncontrolled fit-up.
Final recommendation
Fix the defect by proving the process—not by guessing at power.
Send the exact material, joint, gap range, defect evidence and product requirement. Oceanplayer can help define a representative trial and a laser configuration that targets accepted, repeatable output.
Exact copper grade, temper, coating and thicknessJoint drawing, measured gap and fixture methodPhotos plus cross-sections or failed-test evidenceElectrical, mechanical or reliability acceptance target
Get a copper welding recommendation
The answer may involve wavelength, beam shape, motion, wobble, wire, joint design, clamping or inspection—not simply a larger power number.
Technical references
Sources behind this troubleshooting guide
Confirm the current edition, equipment scope and local applicability of standards before qualifying or releasing production.
- ISO 13919-2:2021 — quality levels for imperfections in laser/electron-beam welds in aluminum, magnesium and pure copper; confirmed current in 2026.
- Laserline: laser welding copper — manufacturer application guidance for blue-diode copper welding and electrical applications.
- TRUMPF: welding copper — manufacturer guidance on green sources, infrared wobble and beam shaping for copper applications.
- Fraunhofer ILT: visible-wavelength laser microwelding — copper/aluminum energy coupling, spatter and pore behavior.
- Fraunhofer ILT research on laser-welded Al-Cu joints — synchrotron observations of pore formation and melt-pool mixing.
- Fraunhofer IZFP: process monitoring for laser welding — acoustic monitoring research for pores, spatter and unstable processes.
- NIST guide to four-wire resistance measurement — separation of current and voltage leads to reduce lead-resistance error.
- OSHA laser hazards — Class 4 direct, reflected, skin and fire hazards.
- OSHA Technical Manual: laser hazards — controlled areas, reflections, training and engineering controls.
