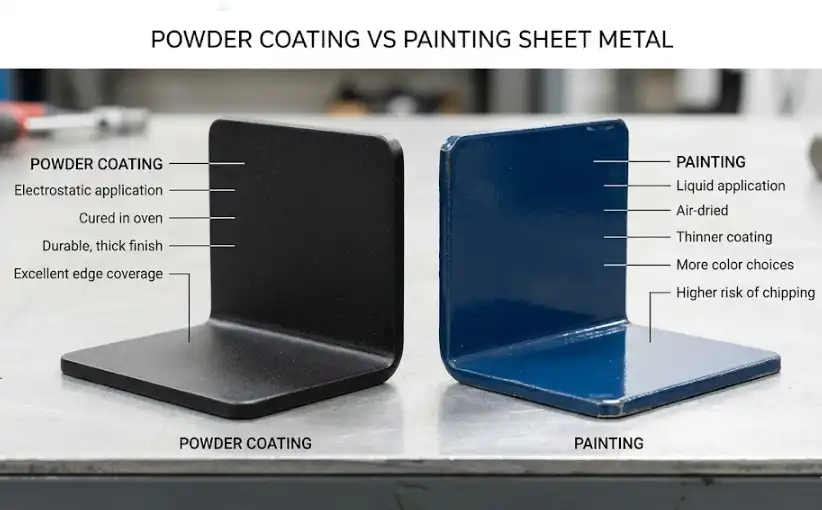

Powder Coating vs Painting Sheet Metal
Powder coating is a strong option for repeat sheet-metal batches that fit the coating line and can tolerate the required cure. Liquid paint offers more flexibility for installed parts, heat-sensitive assemblies and local repair. Neither is automatically more durable: compare the complete coating system for the same metal, environment and acceptance requirements.
Start with the limits of the part, then compare pretreatment, coating chemistry, coverage, appearance and cost. This guide focuses on finishing fabricated sheet-metal parts; prepainted coil is a separate manufacturing route.
Which process fits your part and production route?
Confirm size and heat compatibility before considering volume or price. A large order does not make an oven-incompatible assembly suitable for conventional powder coating.
| Constraint | Powder coating | Liquid painting |
|---|---|---|
| Part size and location | Needs access to the application and curing equipment, including racking and handling clearance. | A suitable site-applied system can suit installed or oversized parts. Access, containment and drying conditions still matter. |
| Heat-sensitive assembly | Confirm the entire assembly can tolerate the actual thermal cycle. Otherwise disassemble, qualify another powder technology, or choose another route. | Ambient-cure products are available, but some liquid systems also need baking. Select the product before assuming heat is unnecessary. |
| Repeat batches and colors | Often attractive when parts share pretreatment, color and cure conditions. Recovery can improve material use where permitted. | Can also be automated at volume. Compare actual passes, drying capacity, color changes and accepted output. |
| Thin film or layered protection | Use the product's specified thickness range. Powder can be a single coat or part of a primer/topcoat system. | Offers thin-film and multilayer options. The total liquid system can also be thick enough to affect fits. |
| Appearance and local repair | Many colors, textures and effects are available. A shop recoat and a liquid field touch-up are different repair routes. | Often more practical for blending or localized maintenance. A repair is not guaranteed to be invisible. |
| Outdoor or corrosive service | Specify the substrate, preparation, product chemistry, film build, edge/recess coverage and required tests. The delivery form—powder or liquid—does not establish outdoor life. | |
On a narrow screen, scroll the table horizontally to read both process columns.
How do powder and liquid coatings form a film?
Both need a prepared surface. Their application and curing steps create different handling, equipment and scheduling requirements.
Powder: deposit, melt and cure
In conventional electrostatic spraying, charged dry particles are attracted to a grounded part. Heating lets the particles melt and flow together. Thermosetting powders then react to develop their final film properties. Other powder technologies exist, so this oven-cured route is not a description of every powder product.
A dry, deposited layer has not yet become the finished coating. Grounding, application access and the specified thermal cycle must all work on the real part. HSE's powder-coating introduction explains the electrostatic application principle.
Liquid: apply, dry and develop properties
Liquid coatings are commonly waterborne or solvent-borne. After application, the carrier leaves the film; chemical reaction may also be required, depending on the binder and curing system. Some products cure at ambient temperature, while others need heat.
The technical data sheet may specify mixing ratio, working time after mixing, flash-off, recoat window and time before handling or service. A surface that feels dry is not necessarily ready for assembly, chemical exposure or a second coat.
Can the complete assembly meet the cure schedule?
For heat-cured powder, use the specified object or metal temperature and time. Oven setpoint and conveyor dwell alone do not show what a heavy corner, inner surface or attached component experienced.
Ask the finisher to review the coldest relevant part locations, the hottest sensitive components and the actual rack load. Check adhesives, seals, fillers, electronics and dimensional requirements. Thin sheet should be assessed with its supports and welds; thickness alone is not enough to accept or reject the bake cycle.
The metal warms toward the required temperature. This bring-up period is not automatically the specified cure time.
Verify the relevant metal locations satisfy the product's time/temperature schedule without exceeding applicable limits.
Allow suitable handling conditions, then check the film and dimensions against the agreed requirements.
Example: reading a published data sheet. The South African Interpon 600 J Series sheet, issued December 2017, reports laboratory conditions including zinc-phosphate pretreatment, a 60–70 µm film and 10 minutes at 200°C object temperature. These conditions explain the reported test results; they are not a universal schedule for every powder or a current purchase specification.
In a hypothetical constant-temperature example, a part that first reaches 200°C after 12 minutes would need a further 10 minutes at that temperature to match that stated time. A total dwell of 10 minutes would not do so. Use the actual product data and measured profile for production.
A published PCI question about changing from light sheet to thicker hollow sections makes the same practical point: confirm that inner as well as outer locations reach the necessary cure conditions. See Powder Coated Tough, May–June 2024, page 39. Low-temperature or UV powder technologies need their own product and line qualification.
What surface preparation does each metal need?
Both routes can fail over contamination or an unsuitable underlying layer. Specify the preparation with the coating supplier; a bright-looking surface does not establish cleanliness, profile or adhesion.
Carbon steel
Address oil, rust, mill scale, dust and relevant soluble contamination. Use the blast profile or conversion treatment required by the selected system. Do not assume a powder layer makes cleaning or pretreatment optional.
Protect prepared steel from recontamination and unacceptable rusting. The permitted delay depends on the surface and coating conditions; see when to paint after rust removal.
Galvanized steel and aluminum
Identify the substrate and existing surface treatment before selecting cleaning chemistry or abrasion. Preserve the required zinc layer on galvanized steel and use a treatment compatible with the aluminum alloy and finish. A steel preparation recipe is not automatically transferable. The Interpon sheet's separate metal-specific preparation notes illustrate this need for substrate review.
Cut edges, welds and seams
Include oxide, burrs, weld spatter, anti-spatter residue and trapped process liquid in the incoming-part review. Define the required edge preparation, drainage, venting and masking before coating. Test the actual fabricated features; an unworked sheet coupon misses these conditions.
Where laser cleaning fits: treat it as a preparation step to evaluate on the actual substrate and contamination. It does not, by itself, prove the specified conversion treatment, profile or coating adhesion. The coating supplier must accept the resulting surface. See laser surface preparation for that separate process decision.
Which finish lasts longer outdoors?
Neither category has a fixed service life. Compare complete systems intended for the same exposure, including pretreatment, primer if required, topcoat and maintenance.
Corrosion resistance and weathering resistance answer different questions. Corrosion protection depends on keeping an effective barrier on the metal, particularly at defects and edges. Weathering also concerns changes in color, gloss and film condition under sunlight and moisture. A coating may retain adhesion while its appearance changes.
For either route, identify the exact product chemistry and its exposure evidence. Do not treat every epoxy, polyester or polyurethane as interchangeable, or compare an indoor coating with a qualified exterior system. Also separate a topcoat's performance from the contribution of its primer and pretreatment.
Where a project invokes ISO 12944, follow its applicable protective-paint system specification for steel structures. The series is not a general ranking of powder against liquid finishes.
Salt-spray hours are not outdoor years
ASTM B117 defines a controlled salt-fog environment. It does not set the product's specimen, exposure duration or interpretation, and stand-alone results do not reliably predict natural exposure.
Two reports showing the same hours are not equivalent unless the substrate, preparation, film build, scribe, evaluation and acceptance criteria are comparable. Request the report and its test conditions, rather than accepting the headline number as a life guarantee.
Will the coating cover recesses, edges and functional surfaces?
A good broad-face measurement can hide a thin corner or exposed edge. Mark the difficult features on the drawing and inspect them on representative parts.
Recesses and sharp edges fail differently
In electrostatic powder application, the electric field favors exposed surfaces; deep recesses can receive less powder. Extra spraying may increase build around the opening without giving adequate internal coverage. AAF's Faraday-cage bulletin explains this geometry effect.
Sharp-edge coverage is a separate issue. A film can pull back from the edge during flow and cure, affecting both liquid and powder systems. The ACA edge-coverage discussion explains why more coating on the flat face does not resolve this automatically.
Film build changes fit and contact
Specify where thickness is allowed and where coating must be excluded: threads, locating fits, hinges, sealing faces and electrical contact points. Both routes add material; a multilayer liquid system can have significant total build.
For a simple hypothetical parallel clearance, coating each opposing face by 70 µm reduces a 0.30 mm bare gap by 0.14 mm, leaving 0.16 mm before manufacturing tolerances. Threads and complex fits need their own dimensional review.
Verify the geometry, not just the panel. Agree accessible inspection locations and a suitable method for features the normal thickness probe cannot measure reliably. Check the finished part after cure, including masked boundaries and rack contact marks.
How should appearance and future repair affect the choice?
Choose against an approved sample and a realistic repair method. Color names alone do not define gloss, texture, smoothness or the acceptability of a touched-up area.
Define the appearance you will accept
Powder offers smooth and textured finishes, metallic effects and custom colors. Liquid systems can offer useful flexibility for local blending and complex appearance. Neither route guarantees a visual match across different materials, batches or application conditions.
Set the color reference, gloss measurement, texture, viewing conditions and approved panel. If a supplier quotes a smoothness grade, identify the reference set: PCI notes that the same number on powder and liquid smoothness panels does not mean the same surface.
Separate local touch-up from full recoating
Liquid repair over sound powder is possible with a compatible, approved preparation and coating system. Additives, surface condition and the chosen repair product affect adhesion. Qualify the repair before promising a match or equivalent durability; a full powder recoat normally returns the part to a suitable coating and curing facility.
For an installed asset that will be altered or scratched repeatedly, field repair may outweigh a factory finishing advantage. Agree the allowed repair size, material and acceptance criteria before production.
Can you powder coat over old liquid paint?
Do not specify direct overcoating of an unknown liquid finish. Its adhesion and behavior during powder cure are unverified. Plan removal to an accepted substrate, or obtain a deliberately qualified coating-over-coating procedure from the system supplier. The same caution applies to unknown fillers: appearance before baking does not prove compatibility afterward.
Which option costs less per accepted part?
Compare quotations for the same part, batch, coating performance and acceptance criteria. A price per area alone may hide setup, masking, rework or a different preparation system.
| Cost item | What can change the result? | What to request in the quote |
|---|---|---|
| Preparation and handling | Cleaning, stripping, racking, masking and transport may dominate a simple spray charge. | Included surface condition, preparation route, masked areas and handling steps. |
| Application and color changes | Recovery, number of coats, cleaning and minimum color lots depend on the actual line. | Lot charge by color, usable recovery policy and number of application passes. |
| Cure and capacity | Oven load, heating/cooling time or liquid drying space can restrict output. | Capacity for the real part size and mix, including utilities and waiting time. |
| Rework and delivery | Strip/recoat, rejected parts and packaging damage change the cost of usable output. | Responsibility for repair, replacement, return freight and final inspection. |
| Maintenance | Site access and disassembly can cost more than the repair coating itself. | An agreed touch-up method and a separately stated maintenance scenario. |
Scroll horizontally on a narrow screen to reach the quote requirements.
Illustrative cost comparison—not market prices
Finishing cost per accepted part = total included finishing cost ÷ accepted parts
Assume two trial lots contain 100 parts each. Route A costs $1,200 with 96 accepted parts: $12.50 per accepted part. Route B costs $1,150 with 90 accepted parts: $12.78 per accepted part. The lower total quote is not the lower accepted-part cost in this example.
The figures are hypothetical USD amounts. Define whether rework, scrapped substrate value, freight and replacement parts are included; add excluded costs before using the comparison for a purchase decision.
What should the coating specification and trial prove?
Give suppliers enough information to quote the same result. Then qualify representative parts with their real alloy, welds, bends, recesses and preparation route.
| Specify | Include on the drawing or purchase order | Evidence to agree |
|---|---|---|
| Part and exposure | Material, gauge, surface condition, dimensions, quantity, environment and relevant chemicals. | A system supplier's recommendation for the actual substrate and service. |
| Preparation and coating | Accepted preparation, product identification, layers, masked areas and repair method. | Process records and agreement on allowed substitutions. |
| Dry-film thickness | Minimum/maximum for each relevant layer and total system, with sampling locations. | Appropriate gauge and verification/adjustment procedure; ASTM D7091 where applicable. |
| Cure and adhesion | Product-specific cure/dry requirements, inspection stage and required adhesion method/rating. | Thermal profile or applicable cure evidence, plus the agreed adhesion test. A good appearance alone is insufficient. |
| Appearance and function | Color/gloss/texture standard, viewing conditions, fit and permitted visible defects. | Approved control panel and finished-part inspection, including contact and masked areas. |
| Exposure performance | Required corrosion/weathering test, duration, specimen details and failure limits. | The test report with its preparation, film thickness and evaluation conditions. |
Scroll horizontally on a narrow screen to read the evidence column.
ASTM D7091-22 covers applicable magnetic and eddy-current dry-film measurements. Instrument verification, substrate adjustment and representative readings matter. One point on a large panel cannot establish coverage over the complete part.
Record where a failure occurs before changing the coating type. Poor adhesion, edge corrosion, pinholes or a missed recess can have different causes. Compare the failed location with preparation, application and cure records, correct the identified cause, and repeat the affected acceptance checks.
Does low VOC mean a simpler or safer process?
Powder avoids a liquid solvent carrier, but it still requires control of airborne powder, ignition sources and process exposure. Liquid coatings vary widely in their solvent content and hazards.
The EPA includes powder, waterborne and high-solids coatings among low/no-VOC approaches. VOC means volatile organic compound; the label is not proof of zero emissions across preparation, cleanup and curing.
HSE's powder guidance calls for formulation-specific risk assessment and exposure control. For liquid painting, HSE also warns about isocyanate-containing paints; water-based does not automatically mean isocyanate-free.
Compare the actual safety data sheets, ventilation and containment needs, waste handling and energy for both proposed routes. Use applicable local requirements and the line's risk assessment, rather than treating the finish name as a safety approval or a complete environmental comparison.
Technical references
Product data, process guidance and test scopes support different parts of the comparison.
- AkzoNobel — Interpon 600 J Series data sheetDated regional example of object-temperature, film-build and pretreatment conditions; not a universal production schedule.
- PCI — Ask the Experts, May–June 2024Pages 38–39: fillers, hollow-section cure, smoothness standards and repair compatibility.
- AAF — TB 115: The Faraday Cage EffectUneven deposition around recesses and openings, and the limits of extra application.
- ACA — Powder Coating Systems for Improved Corrosion ProtectionBarrier continuity and loss of sharp-edge coverage during cure.
- ASTM B117 — Salt-spray apparatusExposure scope and limits on predicting natural service from chamber results.
- ASTM D7091-22 — Dry-film thickness measurementInstrument practice and representative measurement on applicable metal substrates.
- ISO 12944-1:2017 — Protective paint systemsGeneral scope of corrosion protection for steel structures.
- HSE — Introduction to powder coatingElectrostatic process and key workplace hazards.
