What You Need to Know About Corner Joints and T-Joints
Corner joints and T-joints both join parts at about 90 degrees, but they solve different structural problems. A corner joint closes an outside edge, while a T-joint adds a member, stiffener or branch to the face of another part.
Image: U.S. Navy / Wikimedia Commons, public domain.
Pick the joint by load path, not by habit.
A clean-looking weld can still fail if the joint geometry, weld type and inspection criteria do not match the way the part will be loaded. Treat the joint name as a starting point, then confirm access, thickness, distortion risk and the required standard.
Frames, cabinets, boxes, covers, trays, tanks and enclosures usually start with corner joints because the parts meet at the perimeter.
Base plates, ribs, brackets, internal supports and machine frames commonly use T-joints because one part lands on another surface.
Fillet welds are widely used, but groove welds, plug welds, slot welds, spot welds or laser seams may be better when strength, access or appearance changes.
Do not apply one universal weld size. The drawing, WPS/PQR, material thickness, governing code and service condition set the real requirement.
Corner joints and T-joints look simple, but they behave differently.
A corner joint connects two members at their edges to form an L shape. A T-joint connects the edge of one member to the surface of another member, forming a tee. Both can be welded with fillet welds, groove welds or other weld types, but the stress path is different.
In a corner joint, the weld often closes an outside boundary. The main challenge is fit-up, heat distortion and edge melting, especially in sheet metal. In a T-joint, the weld often transfers force from a web, rib, bracket or branch into a base part. The main challenge is fusion at the root, throat size, fatigue detail and access to both sides.
If the joint defines the outer shape of the part, think corner joint. If one piece reinforces, supports or intersects another piece, think T-joint. Then confirm whether the weld must be cosmetic, sealed, structural, fatigue resistant or leak tight.

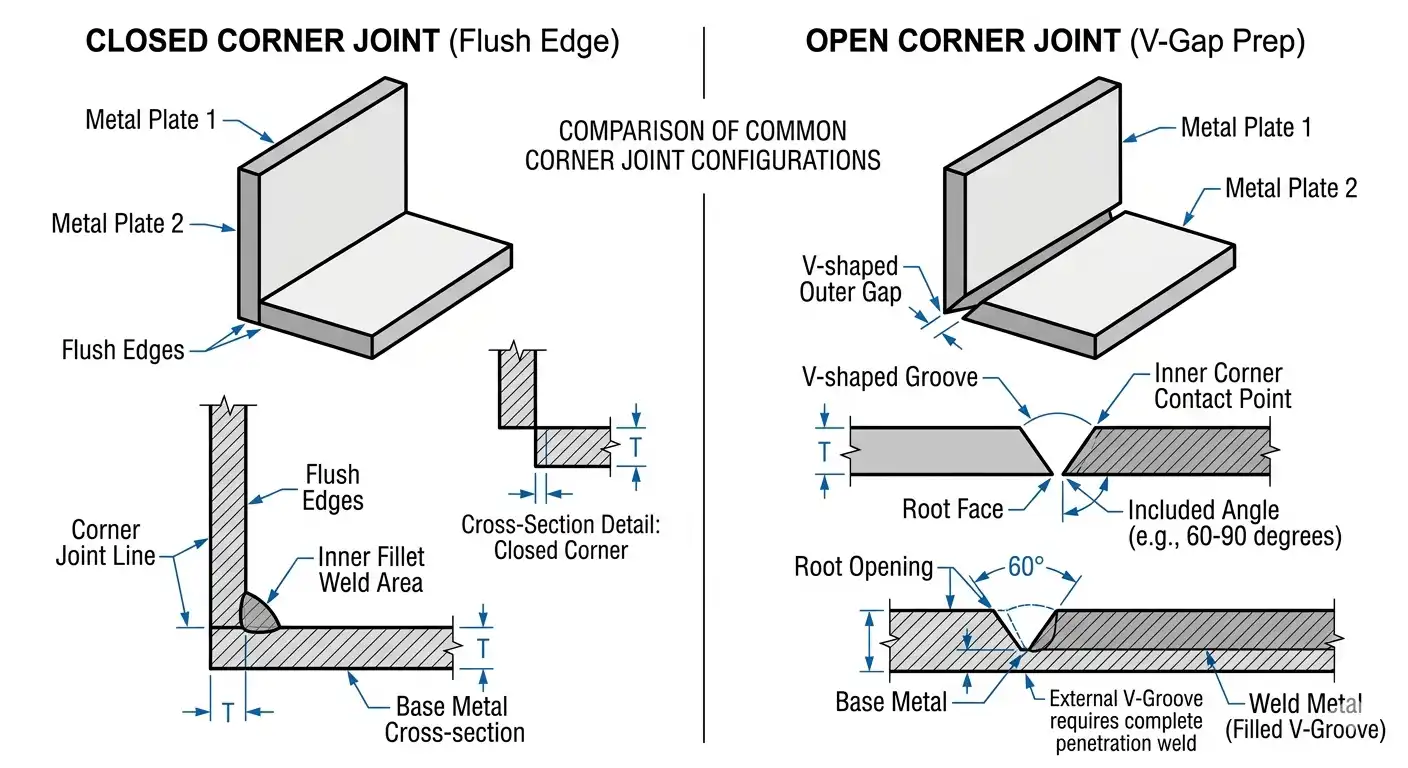

What is a corner joint, and what is a T-joint?

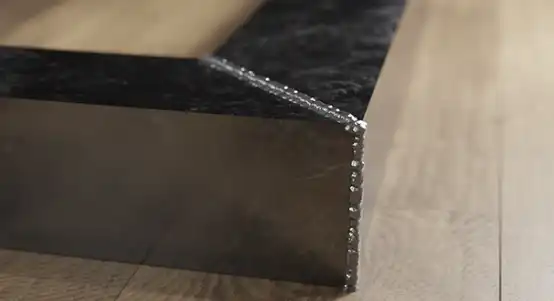

A corner joint is made when two members meet near their edges at an angle, most often 90 degrees. It may be open, closed, half-open, edge-to-edge or flanged, depending on the part geometry. Corner joints are common in sheet metal enclosures, machine guards, tanks, cabinets, frames and welded boxes.

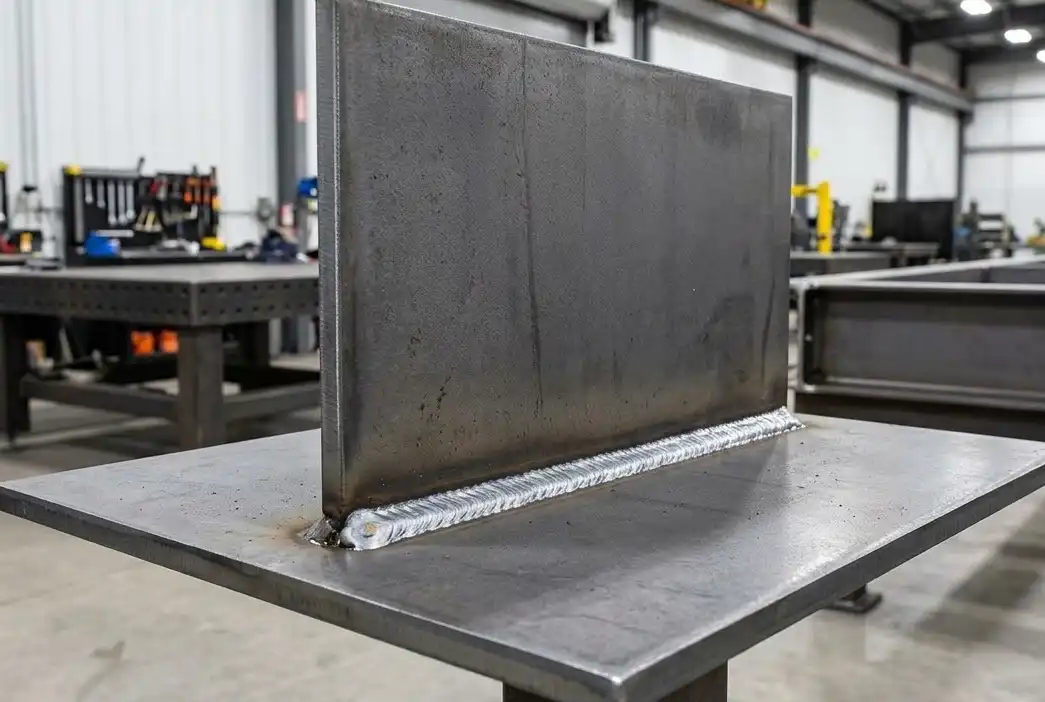

A T-joint, also called a tee joint, is made when the edge of one member meets the surface of another member at about 90 degrees. It is common in stiffeners, ribs, brackets, base plates, frames, supports and branch connections.
The joint name describes geometry. It does not by itself define strength. Two corner joints can have very different capacity if one is an outside cosmetic seam and the other is a full-penetration structural groove weld. Two T-joints can also behave differently if one has a small intermittent fillet and the other has full-size welds on both sides.

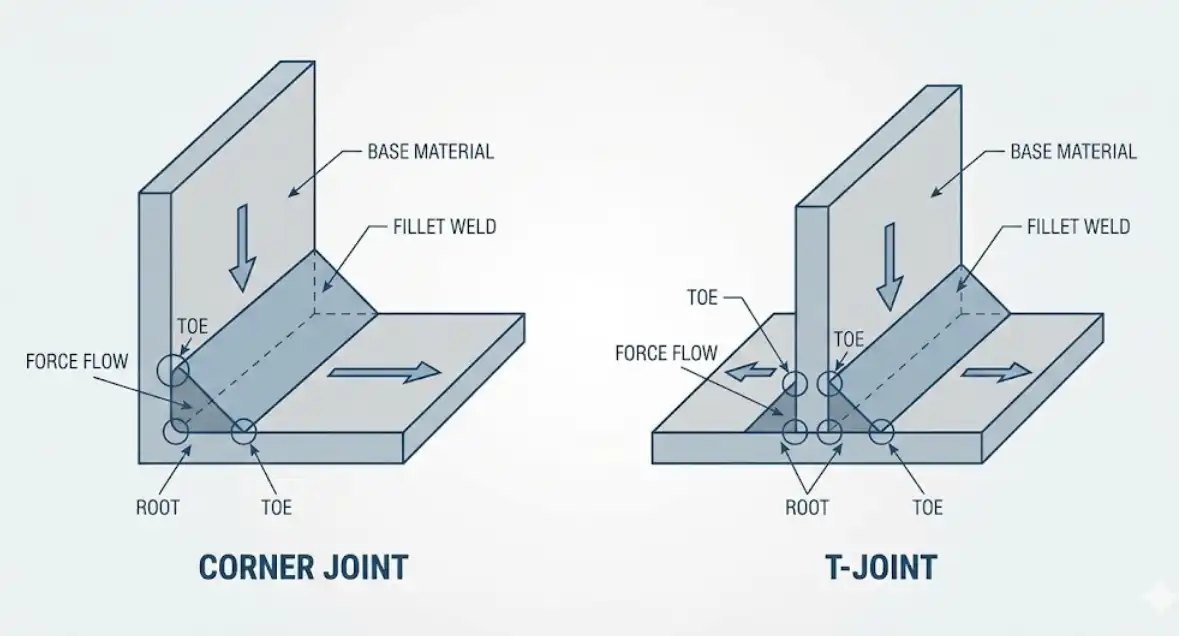

Corner joint vs T-joint: the differences that affect weld quality.
The useful comparison is not simply L shape versus T shape. The real engineering question is how the joint carries load, how it can be accessed, and what type of weld can be qualified and inspected.
| Factor | Corner joint | T-joint | What to verify |
|---|---|---|---|
| Geometry | Two edges or flanges meet to form an outside or inside corner. | One member lands on the face of another member. | Open, closed, flanged, backed, one-sided or two-sided access. |
| Common role | Forms boxes, frames, covers, trays, enclosures and outside edges. | Adds stiffeners, ribs, branches, brackets, supports and webs. | Whether the weld is cosmetic, sealed, structural or fatigue sensitive. |
| Typical weld | Fillet weld, edge weld, groove weld, flare weld, seam weld or spot weld. | Fillet weld, groove weld, plug weld, slot weld, flare-bevel weld or melt-through weld. | Weld symbol, required leg size or throat, length and intermittency. |
| Main risk | Distortion, burn-through, edge mismatch, lack of seal or uneven appearance. | Lack of root fusion, undersized throat, toe cracking, fatigue detail or inaccessible backside. | Fit-up tolerance, procedure qualification and inspection method. |
| Best process fit | TIG, MIG, resistance spot, laser seam or laser wobble, depending on material and finish. | MIG, flux-cored, stick, TIG, submerged arc, robotic arc or laser with wire/wobble when gap must be bridged. | Material thickness, heat input tolerance and whether filler is needed. |
Use this table as a planning guide. Final weld dimensions and acceptance criteria must come from the drawing, qualified WPS, contract code and service requirement.
Describe the joint and get a starting recommendation.
This selector is a planning aid, not a substitute for design review. It helps a buyer, fabricator or engineer decide whether to start with a corner joint, a T-joint or a design review before choosing the welding process.
Change the inputs and the recommendation updates instantly. If the part is safety critical, cyclically loaded, pressure retaining or code controlled, qualify the procedure and inspection route before production.
Joint inputs
Start with a corner joint
For an outside edge where appearance and distortion matter, begin with a controlled corner joint and plan tacks, clamps and heat sequence before welding.
Confirm joint gap, tack sequence, heat input and whether the outside corner must be ground, sealed, painted or left as-welded.
The strongest joint is the one that puts the weld in the right job.
Welded joints fail for many reasons: insufficient throat, poor fusion, cracking, porosity, undercut, distortion, fatigue detail, corrosion traps or wrong inspection assumptions. The joint geometry changes which risk is most likely.
In a corner joint, heat tends to pull the edges and twist the corner. Thin sheet can warp quickly. If the outside corner must be smooth, there may be grinding or finishing after welding, which can reduce the effective weld if the original bead was too small. Sealed corners also need continuity, not just strength.
In a T-joint, the root area is easy to overlook. A fillet weld may look good on the outside while fusion at the intersection is incomplete. For heavily loaded brackets, stiffeners or frames, the designer may require welds on both sides, larger throat, plug or slot welds, groove preparation or a different joint design.
Do not let the visible bead decide the joint. Decide the load path first, then pick the weld type, sequence, process, inspection method and acceptance criteria.
Which welds are used for corner joints and T-joints?
Fillet welds are common because they are economical and easy to apply, but they are not the only option. The right weld depends on thickness, access, required penetration, finish and inspection.
Corner joint weld options
- Fillet weld: common for inside corners and frame corners when a throat is needed.
- Edge weld or seam weld: useful for thin sheet, covers, cabinets and sealed edges.
- Groove weld: used when thicker sections need deeper fusion or structural capacity.
- Spot or resistance weld: useful for overlapping sheet metal and flanged corners.
- Laser seam weld: useful when heat input, speed and appearance are important and fit-up is controlled.
T-joint weld options
- Single or double fillet weld: the standard starting point for many brackets and stiffeners.
- Groove weld: used when design requires deeper penetration or a stronger connection.
- Plug or slot weld: helps connect overlapping members or spread load through a plate.
- Flare-bevel weld: used when round or curved members meet a flat surface.
- Laser with wire or wobble: useful when distortion must be low, but gap bridging must be proven.
Fillet size, throat and root fusion make or break the joint.
A fillet weld is often described by leg size, but strength is related to effective throat and fusion. A larger visible leg does not automatically mean a stronger joint if the weld lacks root fusion, has undercut, contains defects or is placed on poorly fitted parts.
For T-joints, the root of the fillet is a frequent risk area. TWI's welding defect guidance highlights incomplete root fusion or penetration as a defect where fusion is missing at the root area. For corner joints, the parallel risk is poor edge fusion, burn-through or corner distortion.
Clean oxides, oil, coatings and mill scale where the process requires it.
Gap, angle, mismatch and clamping determine how the heat will move the parts.
Do not infer fillet size, length or intermittency from a generic article.
Match the joint to the welding process, not the other way around.
Each process has a different heat input, deposition rate, gap tolerance and finish quality. This is where corner joints and T-joints begin to behave differently in production.
| Process | Works well for | Watch point | Typical role |
|---|---|---|---|
| GMAW / MIG | Fast fillet welds on frames, brackets, corner seams and T-joints. | Spatter, fusion at the root, travel angle and heat distortion. | General fabrication and medium production. |
| GTAW / TIG | Clean corner joints, thin sheet, stainless steel and visible seams. | Slower speed and operator skill; fit-up must be controlled. | Precision, appearance and low-spatter work. |
| SMAW / Stick | Outdoor structural work and thicker sections where portability matters. | Slag removal, access and consistency in small corners. | Field repair and structural fabrication. |
| FCAW | High deposition fillets on structural T-joints and frames. | Fume, slag and heat input management. | Heavy fabrication and high productivity. |
| Resistance spot | Overlapping sheet and flanged corner assemblies. | Requires lap geometry and access for electrodes. | Sheet metal and automotive style production. |
| Laser welding | Low-distortion seams, fine corner welds, automated T-joints and thin-to-medium sheet. | Gap sensitivity, reflectivity, fixture quality and shielding gas. | Precision, speed and automation when fit-up is proven. |
Common defects in corner joints and T-joints.
Most joint problems start before the arc or laser turns on. Poor fit-up, contamination, wrong weld sequence and unclear acceptance criteria produce defects that are expensive to repair later.
Distortion and opening
Heat shrinkage can pull the corner out of square. Use tacks, clamps, balanced sequence and lower heat input when the part is thin or cosmetically important.
Burn-through or edge melt
Open corners and thin sheet can overheat quickly. Adjust travel speed, wire feed, pulse settings, laser power, beam size or backing support.
Lack of root fusion
A bead can look acceptable while the root of the tee is not fused. Correct travel angle, current, joint cleanliness and access are critical.
Undercut and fatigue risk
Toe undercut and abrupt profiles increase stress concentration. This matters in vibration, cyclic load, frames and bracketed machinery.
Porosity
Moisture, coating, oil, zinc, poor shielding or wind can trap gas. Clean the parts and protect the weld zone.
Wrong weld size
Oversized welds waste filler and increase distortion. Undersized welds may fail load requirements. Use the drawing and WPS.
Can laser welding be used for corner joints and T-joints?
Yes, laser welding can be used on both corner joints and T-joints, especially where low distortion, speed, clean appearance and automation matter. But laser welding is more sensitive to fit-up than many arc processes. The smaller molten pool and concentrated energy make gap, mismatch and fixture stability very important.
Autogenous laser welding can produce precise seams when parts fit closely. If the joint has a gap, mismatch or varying edge condition, wire feeding, beam wobble or a redesigned joint may be required. Published research on laser welding gap bridging shows that process strategy can improve tolerance, but this is not a universal guarantee for every material, thickness and joint geometry.
For laser welded corner joints or T-joints, validate three things before buying equipment: real part fit-up, acceptable penetration or throat, and whether the finished part can pass the inspection method you will actually use.
How to prepare and inspect a corner joint or T-joint before welding.
Fit-up control is the quiet part of good welding. Better parameters cannot fully fix a joint that is dirty, misaligned, gapped beyond the process window or clamped in a way that creates distortion.
Look for weld symbol, size, length, all-around requirements, contour, finish, process notes and inspection class. ISO 2553 is commonly used for symbolic representation of welds, while AWS-style symbols may be used in other markets.
Thin sheet, galvanized steel, aluminum, stainless steel and thick structural sections need different heat input, cleaning and process choices.
Use feeler gauges, squares, fixtures or go/no-go checks. Record actual values before changing parameters.
Tack welds should hold alignment without creating cracks, hard spots or unplanned restraint. TWI notes that tack welding can help manage distortion when used correctly.
For production, validate bead shape, penetration, throat, distortion, leakage, fatigue-sensitive toes and post-weld finishing before releasing the job.
Five questions to ask before choosing the joint.
Static, impact, vibration, bending and fatigue all change the joint detail.
Two-sided access may allow a stronger, more balanced weld and lower distortion.
Cosmetic corners may need TIG, laser, grinding, polishing or a different assembly sequence.
A structural intermittent weld may be fine for strength but poor for water, dust or air leakage.
Visual inspection, leak testing, macro section, dye penetrant or ultrasonic testing may change the design.
Robot and laser paths prefer repeatable edges, controlled gaps and fixture-friendly geometry.
Use standards as the acceptance language, not as generic internet numbers.
Welded joint articles often list example dimensions, but those values can be misleading when copied into a real design. Standards and codes define language, quality levels, testing and acceptance, while the actual part drawing and qualified procedure define what the weld must be.
Common references
- ISO 2553: symbolic representation of welded joints on drawings.
- ISO 5817: quality levels for imperfections in fusion-welded joints.
- AWS D1.1 / D1.3: structural steel and sheet steel welding code contexts.
- WPS/PQR: the qualified procedure route used by the fabricator.
What they do not replace
- They do not replace engineering design of load, fatigue and service condition.
- They do not turn one example root gap or fillet leg into a universal rule.
- They do not prove a laser or arc setting on your actual material.
- They do not remove the need for qualified inspection when the part is critical.
Where each joint is normally used.
These examples help match geometry to real industrial work. The same product can include both joint types: a welded machine enclosure may use corner joints on the shell and T-joints for internal stiffeners.
| Application | Likely joint | Why | Process note |
|---|---|---|---|
| Electrical enclosure | Corner joint | Forms sealed outside corners and visible edges. | TIG, MIG, laser seam or spot welding depending on thickness and finish. |
| Machine frame | Both | Outer frame corners plus T-joint cross-members and brackets. | MIG, FCAW, robotic arc or laser hybrid depending on section and volume. |
| Base plate with vertical web | T-joint | The web transfers load into the base plate. | Fillet welds on both sides are common when access allows. |
| Sheet metal tray | Corner joint | The part is created by joining perimeter edges. | Low heat input and clamping reduce distortion. |
| Battery box or precision housing | Corner joint | Needs clean seams, repeatability and sometimes sealing. | Laser welding may work well if fit-up and fixture are controlled. |
| Stiffener on thin panel | T-joint | Adds rigidity without changing the panel outline. | Intermittent welds, spot welds or laser welds may reduce distortion. |
What to send when asking for a welding recommendation.
If you ask a supplier to recommend a laser welder, MIG setup or robotic welding path, send enough information to avoid vague advice. A clear request usually gets a much better machine recommendation.
Show whether the part is a corner joint, T-joint, overlap, butt joint or mixed assembly.
List alloy, coating, thickness, surface condition and whether filler wire is allowed.
Provide measured gap, mismatch, tolerance and fixture concept if available.
Specify strength, appearance, leak tightness, allowable distortion and inspection method.
Share parts per shift, manual or robotic preference and whether post-weld grinding is acceptable.
Plan the next welding decision.
After you identify the joint, the next step is choosing power, wire, speed, heat input and whether the joint needs a manual, handheld or robotic route.
Corner joint and T-joint questions.
What is the main difference between a corner joint and a T-joint?
A corner joint connects two pieces near their edges to form an L-shaped corner. A T-joint connects the edge of one member to the surface of another member, forming a tee shape. The difference changes load path, weld access and common defects.
Are corner joints weaker than T-joints?
Not automatically. Either joint can be strong or weak depending on material, thickness, weld size, fusion, access, load direction and inspection criteria. A well-designed corner joint can outperform a poorly fitted T-joint.
What weld is most common for T-joints?
Fillet welds are the most common starting point for T-joints because they are practical and economical. Heavier or critical designs may require welds on both sides, groove welds, plug welds, slot welds or other details.
What weld is most common for corner joints?
Corner joints commonly use fillet welds, edge welds, groove welds, spot welds or laser seam welds. The best choice depends on whether the joint is structural, sealed, cosmetic, thin sheet or thick section.
Can laser welding handle T-joints?
Yes, but the fit-up must be controlled. Laser welding can produce clean, low-distortion T-joints, especially in automation. If the joint has a gap or mismatch, wire feeding, beam wobble or a different joint design may be needed.
Can laser welding handle corner joints?
Yes. Laser welding is often attractive for corner seams in sheet metal housings, cabinets, stainless components and precision assemblies. It works best when edge fit-up, clamping and shielding gas are stable.
Should a T-joint be welded on both sides?
Welding both sides can improve load transfer and reduce distortion, but it is not always required. The decision depends on the design load, access, fatigue risk, material thickness and drawing requirement.
Why do corner joints distort?
Corner joints distort because weld metal and heated base metal shrink as they cool. Thin sheet and long continuous seams are especially sensitive. Tacks, clamps, balanced sequence, lower heat input and fixtures help control movement.
What is the biggest defect risk in T-joints?
Lack of root fusion is one of the main risks. The outside bead may look acceptable while the intersection between the vertical member and base member is not fully fused. Proper angle, heat input, cleaning and access are important.
Do welding standards tell me the exact joint size to use?
Standards provide terminology, symbols, quality levels, procedures and acceptance frameworks. The exact weld size and joint detail should come from the drawing, qualified procedure, design requirements and applicable code.
Is a fillet weld enough for a structural T-joint?
It can be, if the fillet weld is correctly sized, placed, fused and accepted for the service load. Some structural T-joints need groove welds, two-sided welds, testing or design review.
What information should I send for a welding sample test?
Send the joint drawing or photos, material grade, thickness, coating, measured gap, expected strength, appearance requirement, production volume and inspection method. These details make the welding recommendation much more useful.
Validate your corner joint or T-joint before choosing the machine.
Oceanplayer can review your joint geometry, material, thickness, fit-up condition and production target, then recommend whether handheld laser welding, wire-feed laser welding, robotic laser welding or another process path is more suitable.
For the most useful answer, send part photos or drawings, material thickness, joint gap, required weld appearance, load requirement and expected daily output. A sample test can confirm bead appearance, penetration, distortion and whether filler wire or wobble is needed.
- ISO 2553: Welding and allied processes - Symbolic representation on drawings.
- ISO 5817: Quality levels for imperfections in fusion-welded joints.
- TWI: Weld defects - incomplete root fusion or penetration.
- TWI: Tack welding and distortion control.
- OSHA: Welding, cutting and brazing safety topics.
- International Journal of Advanced Manufacturing Technology: Laser welding gap-bridging strategy research.
