Why Does Aluminum Welding Wire Use U-Groove Drive Rolls?
Aluminum welding wire is easy to deform and buckle. A correctly sized, smooth U-groove supports more of its circumference, helping the feeder grip it with less localized squeezing and shaving. It is the usual choice for aluminum MIG wire and is specified in some laser-wire systems. Reliable feeding still depends on the matching liner, guides, roll pressure and cable route.
Aluminum frame welding; the drive rolls are not visible. Photo: Art Graphics / Wikimedia Commons, CC BY-SA 4.0. Cropped with a dark overlay.
What does the U-shaped groove change?
Drive rolls grip welding wire and move it toward the gun or welding head. In MIG, also called gas metal arc welding (GMAW), the continuously fed wire is also the electrode. The letter U describes the groove around the roll’s rim, rather than the outside shape of the wheel.
Aluminum needs both gentle contact and support against buckling. Softness makes it easier to dent or flatten at the rolls. Column strength describes its ability to transmit a pushing force without bending sideways. Wire that meets too much resistance can buckle into a tangle near the feeder, commonly called a birdnest.
The rounded U profile spreads contact around the wire. It helps preserve the round shape needed to pass through the next guide and liner. A standard steel-wire V profile concentrates contact into narrower bands; serrations on a conventional knurled roll can bite into aluminum. ESAB explains the contact and feeding differences.
U-groove, V-groove and knurled rolls: what should you use?
Start with the aluminum consumable chart for the exact feeder and gun. A roll that fits the shaft can still have the wrong groove, dimensions or wire-diameter range.
U-groove: broader support
The curved profile supports soft wire over a wider region. Correct sizing and pressure still matter.
Standard V-groove: narrower contact
Two sloped faces provide concentrated grip. A generic hard-wire V roll is not an aluminum conversion kit.

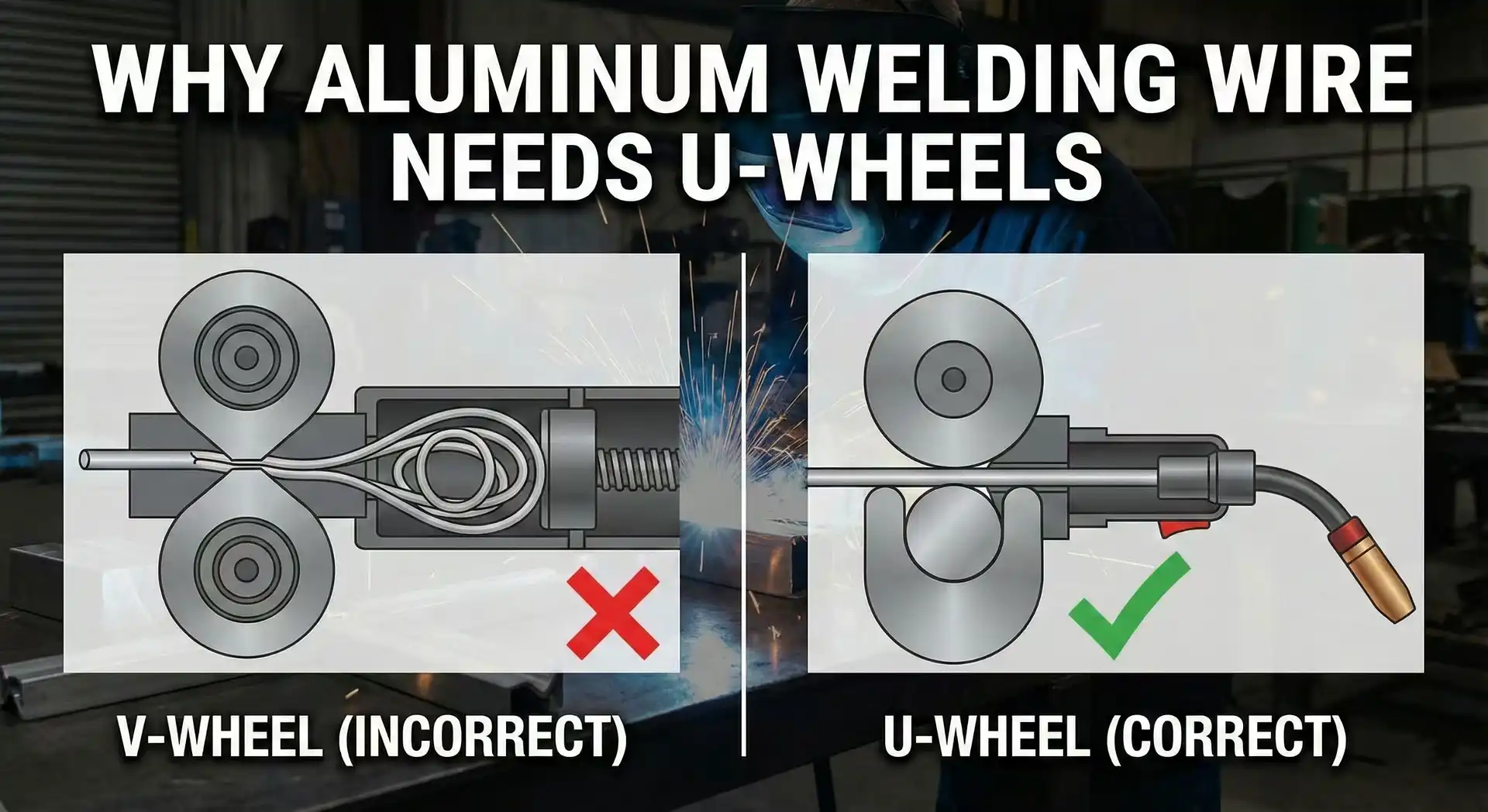

Conceptual cross-sections of one groove, not to scale. Colors show contact regions, not measured pressure or machining dimensions.
Scroll horizontally on a small screen to read the comparison.
| Roll type | Usual role | Decision for aluminum wire |
|---|---|---|
| Smooth, polished U-groove | Soft solid wire, including aluminum. | Use the manufacturer-approved size and set. A rough, worn or over-tightened U roll can still damage wire. |
| Conventional smooth V-groove | Harder solid wires, commonly steel and stainless steel. | Do not substitute a generic steel-wire roll for the specified aluminum hardware. |
| Conventional knurled roll | Often used for cored wire; teeth increase grip. | Its teeth can score aluminum and create debris. Use only the exact design approved for the aluminum feed system. |
There are equipment-specific exceptions. ESAB also discusses suitable soft V-groove designs for aluminum. That does not make a standard steel-wire V roll interchangeable. Follow the exact equipment chart. For the broader material comparison, see U-groove versus V-groove drive rolls.
Match the whole aluminum wire path
Groove profile is only the first specification. Check the nominal wire diameter and which groove is active, especially on reversible rolls. Miller’s .047-inch U-groove kit is one example of diameter-specific hardware for aluminum or soft wire; it is not a universal replacement roll.
- Spool and brake
- The spool should unwind smoothly and stop without spilling loose turns. Excess brake drag increases the force required at the rolls.
- Guides and roll alignment
- Support the wire close to the drive mechanism without rubbing it against an edge. An unsupported gap gives soft wire room to buckle.
- Liner and conduit
- Use the approved aluminum liner material, bore and length. Common choices include low-friction plastics such as PTFE (Teflon) or nylon. Correct seating, clean transitions and gentle bends matter as much as the material name.
- Final tip
- Choose the tip specified for the wire and gun or head. A nominal size on a tip does not state its exact bore clearance. Do not drill it out or substitute a larger tip by guesswork.
AWS’s aluminum GMAW setup guide explains why spool handling, drive pressure and gun consumables need to be considered together.
How tight should the drive rolls be?
Use the lowest pressure that produces reliable feeding under the normal routed load, following the feeder’s adjustment procedure. Knob numbers are not transferable between machines. Increasing pressure to overcome a blocked tip or tight cable bend can flatten the wire and make the restriction worse.
- Confirm the hardware before adjusting. Verify alloy, diameter, active groove and matched consumables. Switch off and isolate the equipment as its manual requires before changing parts or clearing a birdnest.
- Remove resistance from the path. Inspect the spool, guide alignment, liner seating and tip. Correct tight bends and remove contaminated or damaged consumables using the manufacturer’s maintenance instructions.
- Adjust using the specified feed test. Use the approved cold-feed or jog procedure with welding output disabled. Keep hands clear of rolls and exiting wire. Push-pull systems may require a separate motor or tension-balancing procedure.
- Inspect the wire after feeding. Flat sides, deep scoring or fresh aluminum dust call for correction. If stable delivery requires damaging pressure, investigate the obstruction or feed-system choice before welding.
Hobart’s drive-roll guidance links rough surfaces, sharp edges and misalignment to shavings and blocked liners. The polished groove should remain smooth; roughening it for more grip defeats its purpose.
Why does aluminum still birdnest with U-groove rolls?
A U-groove improves the contact at the feeder. It cannot eliminate resistance farther along the path. Use the location and timing of the symptom to choose the first inspection.
Scroll horizontally on mobile to compare symptoms and checks.
| What you observe | First checks | What the finding means |
|---|---|---|
| Flat or deeply scored wire | Active groove, roll pressure, edge damage and guide alignment. | The wire is being damaged mechanically. Remove damaged wire after correcting the cause. |
| Fresh shavings near the rolls | Rough groove surfaces, aluminum buildup, wrong profile or misalignment. | Debris can travel into the liner; inspect the downstream path as well. |
| Rolls turn but delivery hesitates | Groove size and condition, pressure, spool drag, liner and tip resistance. | Visible roll rotation does not prove that wire is moving at the commanded speed. |
| Tangle at the liner entrance | Blocked tip, liner seating, outlet-guide gap and cable bends. | The tangle may be upstream of the original restriction. |
| Feeding changes when the cable moves | Tight bends, damaged conduit and changing liner drag. | The route is contributing to the problem; tightening the rolls may hide it only temporarily. |
| Loose spool turns after stopping | Spool installation and brake adjustment. | Drive-roll pressure does not control spool overrun. |
These inspection routes combine ESAB’s feeding-system checks with Hobart’s wire-damage guidance. If the drive does not turn at all, use the separate automatic wire-feeder troubleshooting guide.
Separate feed faults from process faults. In MIG, burnback means the arc melts the wire back into the current-carrying contact tip. Check mechanical delivery, then the tip and welding controls. Cold-wire laser feeding has different heat and control conditions; a wire melting onto its guide needs laser-head positioning and timing checks, not copied MIG voltage adjustments.
When does the feed system matter more than the roll?
Long push distances, tight bends and easily buckled wire can exceed what a correctly adjusted roll can deliver. Changing the delivery architecture may be more useful than repeatedly replacing the same consumables.
Push-only feeding
The machine pushes wire through the full cable. A short, straight, approved aluminum path can work, but smaller wire and rising friction make it less forgiving. Check performance with the cable routed as it will be used.
Spool guns and push-pull guns
A spool gun puts the wire supply near the weld and greatly shortens the push path, at the cost of extra gun weight and smaller spools. A push-pull gun uses a pull motor at the gun with an assisting feeder motor, supporting longer working reach when the system is correctly matched.
These are MIG delivery arrangements, described in Miller’s industrial aluminum welding guide. They are not plug-in gun options for an arbitrary laser welder.
Does 5356 wire feed more easily than 4043?
Generally, 5356 offers better resistance to buckling than 4043 or 4943 and can be easier to feed. Larger approved wire diameters can also be easier to push. Neither is a reason to change the filler without checking the joint requirements.
Hobart’s filler-selection guide considers the base alloy, service temperature, anodizing, required mechanical properties and post-weld heat treatment. An easier-feeding wire may still be unsuitable for those conditions.
Choose an acceptable filler and diameter within the process and equipment limits, then configure delivery around that choice. A stable cold-feed test demonstrates mechanical delivery; it does not establish metallurgical compatibility.
How does this apply to laser welding wire feeders?
The same need to support soft wire applies, but the components and setup belong to the laser system. In conventional cold-wire laser welding, the filler is delivered to a laser-heated pool without a MIG arc. A part named “contact tip” in a laser manual does not, by itself, imply MIG welding-current transfer.
Manufacturer example: LightWELD soft-wire configuration
IPG’s 2024 LightWELD Wire Feeder Setup Guide, revision A, gives a specific example for 1.2 mm (0.047-inch) aluminum 5XXX filler wire:
- Drive roll
- 1.2 / 1.6 mm U-groove roll, using the matching groove.
- Liner
- Orange PTFE liner rated for 0.8–1.2 mm wire.
- Contact tip
- Nominal 1.2 mm tip specified in the kit.
- Extension
- 7 mm extension for that soft-wire configuration.
Source: IPG setup guide, page 13, hosted by MavWeld. This is an equipment-specific example, not a parts list for every laser feeder. The listed wire-size ranges are not groove or liner-bore dimensions.
This example shows why buying a U roll alone is incomplete. On your system, also verify the guide-tip position, wire route and synchronization procedure. Keep the wire in the specified beam–pool interaction position; for the tip distinction, see how guide-tip bore affects laser wire feeding.
How can you confirm that the setup is working?
Check delivery separately from weld appearance. During the equipment’s approved feed test, compare repeated delivered lengths at the same setting and route. Inspect for scoring, flattened wire, fresh debris, hesitation and tangles. Recheck after representative cable movement rather than testing only with everything laid perfectly straight.
Record the wire alloy and diameter, roll and liner identification, pressure setting and route with the result. Then test representative joints using the intended material preparation, shielding and welding procedure. Consistent wire delivery supports repeatable filler addition, but it cannot by itself prove fusion or eliminate porosity and cracking.
