Product Overview

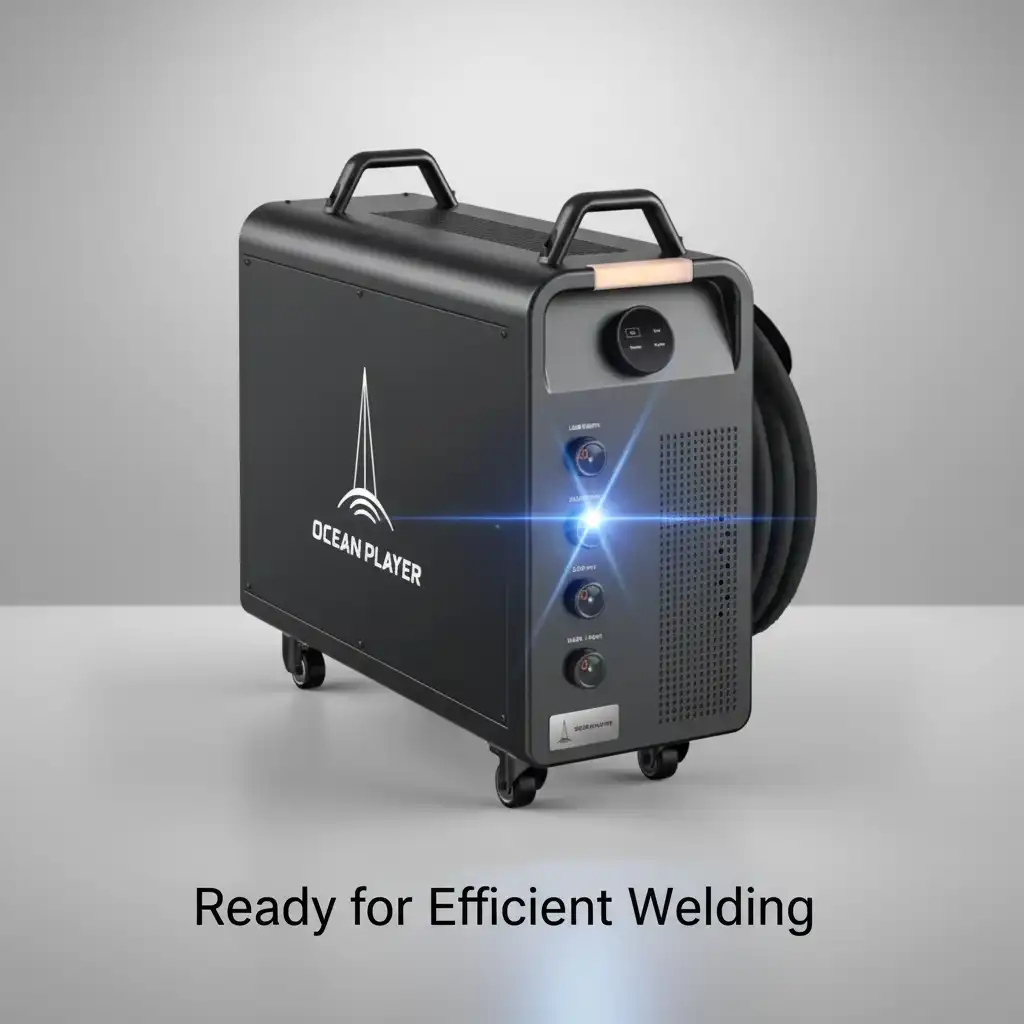

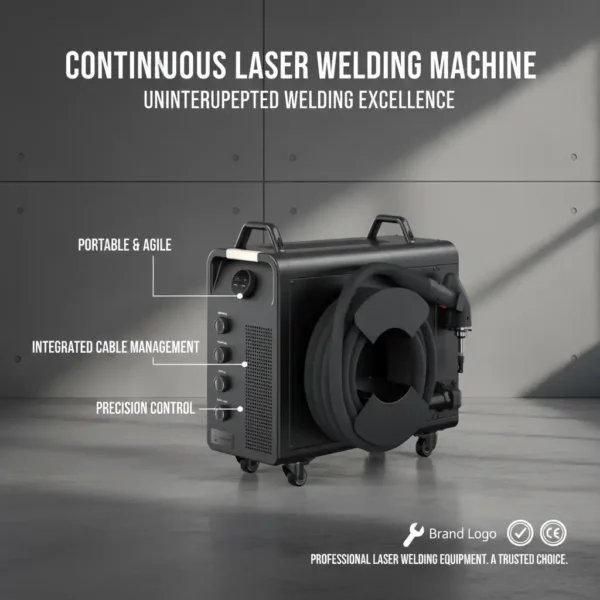

Say goodbye to the heavy reliance on skilled welders and time-consuming post-processing. Our latest generation Fiber Laser Welding Machine redefines industrial welding with a revolutionary Smart Gun Head design. By integrating a 0.96-inch OLED display and mechanical controls directly onto the welding torch, we put precision control in your hand. Designed for durability, ease of use, and high-speed operation, this machine is the ultimate solution for metal fabrication shops, automotive industries, and kitchenware manufacturing.
Key Features & Benefits
Revolutionary Smart Gun Head Unlike traditional welding guns, our patented design integrates the control system directly into the handle.
-
Visual Control: A clear 0.96-inch OLED screen displays real-time parameters.
-
Mechanical Reliability: We use industrial-grade mechanical buttons instead of fragile touch screens. This ensures reliable operation even with gloved hands or in oily environments, significantly reducing failure rates.
-
Ergonomic Design: Lightweight and compact, reducing operator fatigue during long shifts.
Industrial-Grade Stability & Safety Engineered to run 24/7 without interruption.
-
Internal Constant Temperature: The unique internal structure ensures the equipment operates stably even at ambient temperatures up to 40°C, preventing laser source overheating.
-
Circuit Protection: Built-in over-voltage and under-voltage protection shields the sensitive electronics from grid fluctuations.
-
Real-time Monitoring: The intelligent system continuously monitors the status of the laser, chiller, and circuit, triggering automatic safety locks if any anomaly is detected.
Superior Welding Performance
-
4X Faster Speed: Welding speed is 4 to 10 times faster than traditional TIG/MIG welding.
-
No Polishing Needed: The heat-affected zone is minimal. The weld seam is smooth, continuous, and beautiful. Workpieces undergo no deformation and no weld scars, eliminating the need for secondary grinding or polishing.
-
Deep Penetration: Delivers strong welding strength suitable for various complex seams (butt, lap, internal/external corner welding).
Automation Ready Future-proof your production line. This system supports RS485 and serial communication, allowing for seamless integration with robotic arms or automatic feeding systems. It also features multi-language switching, making it accessible for global teams.
Applications & Materials
-
Applicable Materials: Stainless steel, Carbon steel, Aluminum, Brass, Galvanized sheets, and other metal alloys.
-
Key Industries:
-
Kitchen & Bathroom Cabinets
-
Stair Elevators & Handrails
-
Shelf & Sheet Metal Processing
-
Advertising Letters & Signage
-
Auto Parts & Machinery Components
-
Comparison: Why Laser?
| Feature | Our Fiber Laser Welder | Traditional TIG/Argon Welding |
| Operation Difficulty | Easy (10 mins training) | Hard (Requires years of experience) |
| Welding Speed | Very Fast (Save time) | Slow |
| Heat Deformation | Minimal to None | High (Product often warps) |
| Post-Processing | None (Finish is smooth) | Heavy (Needs grinding/polishing) |
| Labor Cost | Low (General worker) | High (Professional welder) |
Technical Specifications
-
Laser Power: 1000W / 1500W / 2000W / 3000W (Optional)
-
Laser Wavelength: 1064nm ± 5nm
-
Fiber Cable Length: Standard 10m (Customizable to 15m)
-
Working Mode: Continuous / Modulation
-
Welding Gap Requirements: ≤0.5mm (varies by material thickness)
-
Cooling Method: Built-in Industrial Water Chiller
-
Voltage: AC 220V/380V ± 10%, 50/60Hz
Packing List
-
1x Fiber Laser Welding Machine Main Unit
-
1x Smart Handheld Welding Gun (with OLED Display)
-
1x Wire Feeder (Automatic)
-
1x Set of Nozzles (Various angles)
-
1x Protective Glasses
-
1x User Manual & Warranty Card
