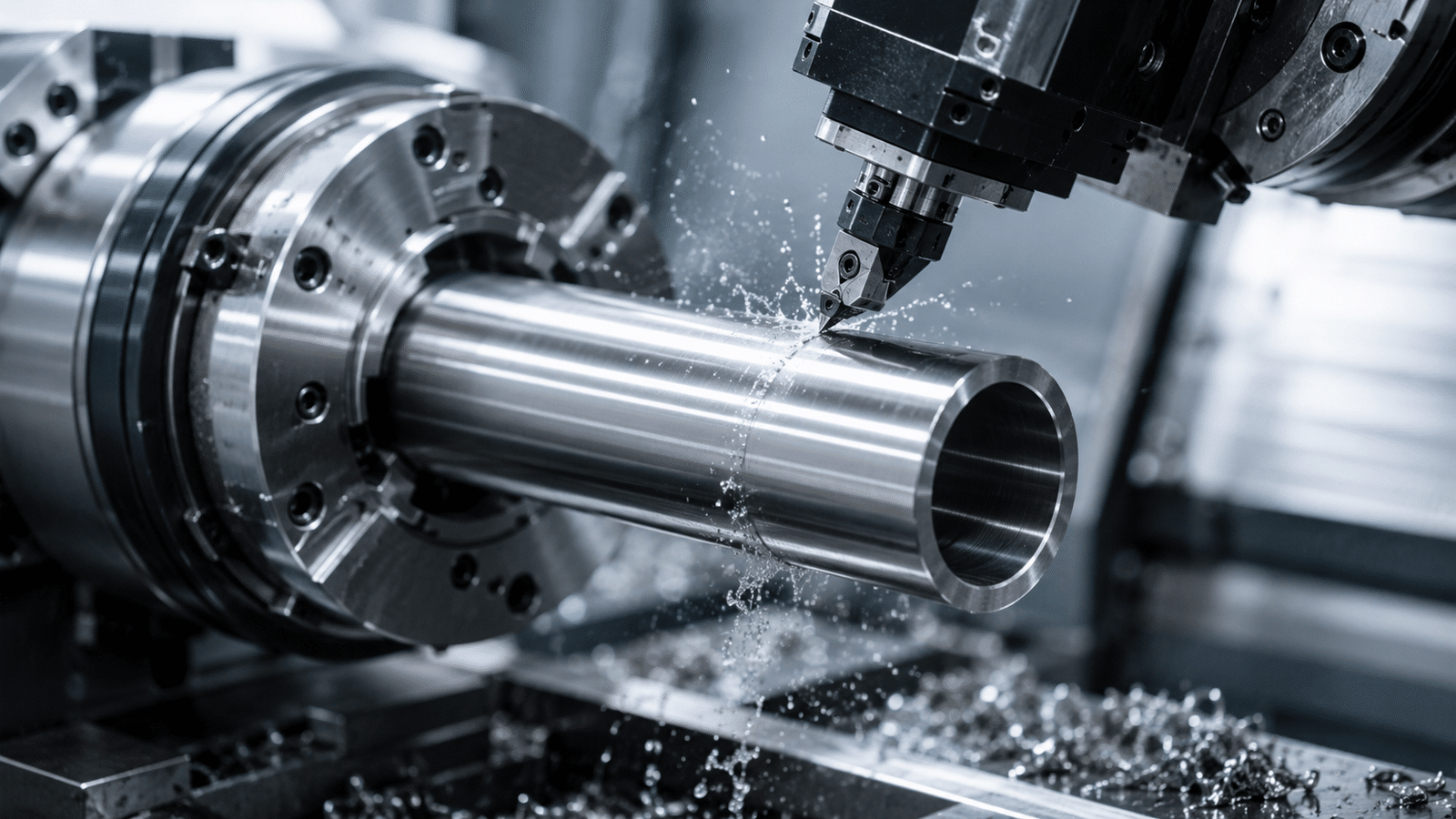

How to Machine Stainless Steel Pipe with High Precision
Control the wall, the cutting edge and the measurement—not just the CNC program. A practical guide to turning, boring and finishing stainless pipe without losing the shape you need.
High-precision stainless steel pipe machining is possible when the drawing defines the functional features, the starting tube has enough stock, the fixture supports the wall without locking in distortion, and the inspection plan checks the released, stabilized part. Stop and revise the plan when stock, access, support or measurement cannot prove the requirement.
Set tolerances after machining, unclamping and any required treatment.
A thin wall can spring back when the chuck opens.
Choose feed and depth for the actual insert and support.
Verify form, alignment, finish and cleanliness as specified.
What Does High-Precision Stainless Steel Pipe Machining Require?
High precision is not one universal tolerance. It is a controlled match between the part’s function, the drawing, the starting tube, the fixture, the cutting process and the final inspection state.
| Condition | Starting action | Evidence required | Stop boundary |
|---|---|---|---|
| Function and drawing | Define the OD, ID, face or seal feature that actually controls service. | Revision-controlled drawing, datums, limits, surface and edge requirements. | Do not quote “high precision” when the functional feature or acceptance rule is still undefined. |
| Stock and remaining wall | Map incoming OD, ID, wall, straightness and seam condition before setting the cut. | Material certificate plus measurements from representative positions and angles. | Stop if full cleanup and the required minimum wall cannot both be demonstrated. |
| Holding and process access | Plan distributed support, tool reach, coolant delivery, chip exit and gauge access together. | First-off fixture trial and measurements after the pipe is released. | Stop if the part cannot be held safely or the deep feature cannot be cut, cleared and measured reliably. |
| Downstream operations | Place honing, grinding, cleaning, treatment, welding and final inspection in the correct order. | Process specifications and a post-process inspection plan for affected features. | Do not release the part before a material-removing or heat-adding step that can change the accepted dimension. |
There is no universal threshold such as “all precision pipe must be within ±0.01 mm.” That may be an appropriate drawing requirement for one feature. It is not a general definition or a promise that every pipe can be machined to it.
Separate machine accuracy from part accuracy. A lathe may position its axes very closely, yet the pipe can still move under clamp pressure, cutting force or temperature change. Repeatable machine motion cannot correct an unstable workpiece.
Also separate incoming stock from the finished component. Pipe may be ordered by nominal size and schedule; tube is often ordered by outside diameter and wall. ASME B36.19 addresses stainless pipe dimensions, while ASTM A269/A269M covers seamless and welded austenitic tubing for general service. Neither one automatically defines the finished precision bore or fit.
| Requirement | What it tells you | What to put on the drawing or plan |
|---|---|---|
| Size | How large the OD, ID, length or wall is. | Limits for each functional feature, plus the condition in which it is measured. |
| Form | Whether the surface is round, straight or cylindrical. | Roundness, straightness or cylindricity where function requires them. |
| Alignment | How the bore, OD and end face relate to the chosen datum. | Datum references and the actual geometric control. Do not use “concentric” as an informal substitute. |
| Surface | Texture, burrs and condition of the contact or fluid surface. | Specified texture parameter, measurement settings, lay where relevant, and edge requirements. |
| Cleanliness | Whether residues or contamination can affect service. | Cleaning, passivation, verification, packaging and traceability requirements. |
Use the geometric controls required by the drawing and the applicable edition of ASME Y14.5 or the specified ISO GPS standards. Do not replace a datum-based requirement with an informal word such as “concentric.”
Total indicator reading is the difference between the highest and lowest indicator readings during a specified check. Form error, setup and alignment can all affect it. Record the datum, support and measurement location; a single TIR number does not describe the whole part.
- Datum
- The reference feature used to locate or orient the part for manufacturing and inspection.
- TIR
- The total change in an indicator reading during the stated check—not a complete description of geometry.
- Cylindricity
- A control of the whole cylindrical surface, including roundness and straightness of its form.
- Built-up edge
- Workpiece material that sticks to the cutting edge and makes the cut less stable.
- Lay
- The main direction of the surface pattern left by machining or finishing.
- mm/rev
- The distance a turning tool advances during one spindle revolution.
Which Stainless Grade and Starting Tube Condition Are You Machining?
The grade name alone is not enough. Check the material certificate, hardness or delivery condition, welded or seamless construction, straightness and starting wall variation.

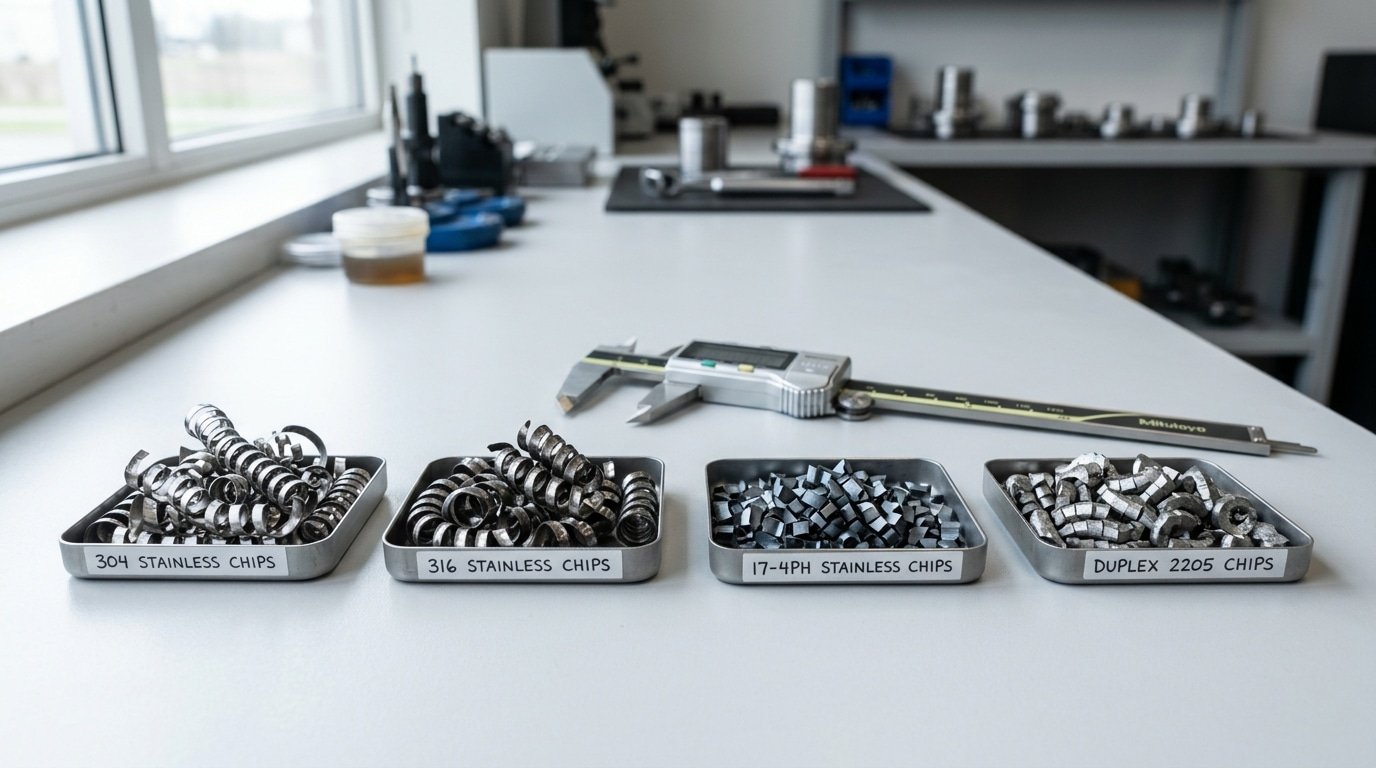

| Material | Machining concern | Practical planning response |
|---|---|---|
| 304 / 304L | Austenitic stainless can work-harden and form an unstable built-up edge. | Use an appropriate sharp cutting geometry, a stable feed and enough finishing stock for a real cut. |
| 316 / 316L | Similar issues, with cutting behavior affected by chemistry and product condition. | Select data for the actual grade and tool. Do not apply a fixed speed discount from a 304 recipe. |
| Duplex 2205 / superduplex | Higher strength can increase cutting loads; heat and chip control remain important. | Use the toolmaker’s duplex recommendations and check rigidity, power and wall support together. |
| 17-4PH | Machinability and dimensions depend strongly on heat-treatment condition. | Specify the condition before and after machining. Plan aging and final sizing around the drawing—not an automatic “machine everything in Condition A” rule. |
Material families guide tool selection; they do not establish guaranteed cutting speeds, tool life or tolerances. References: Sandvik’s material-specific turning guidance and Carpenter’s Custom 630 (17-4PH) data.
Check the OD and ID at useful positions. A straight outer surface can hide an off-center bore. Confirm that the planned cut will leave the required minimum wall everywhere.
Allow for incoming ovality, seam condition, scale and alignment. “Nominal bore already close to size” does not mean there is enough stock to machine a full clean surface.
A better starting tube may reduce setup and scrap. Compare usable yield and machining time, not only 316 pipe price per kilogram.
- The alloy, heat-treatment condition or welded-seam construction is unknown.
- The measured stock cannot leave the required minimum wall after full cleanup.
- The bore is too deep for reliable tool support, chip evacuation, coolant delivery or inspection.
- The available measurement method cannot prove the stated tolerance and geometry.
Related material decisions: 304 vs 316 identification and 316L vs duplex 2205.
How Do You Hold Thin-Wall Stainless Pipe Without Distorting It?
Thin-wall pipe is a flexible ring, not solid bar. Use controlled, distributed contact and support close to the cut, then judge the result after the fixture releases the wall.
Bored soft jaws, suitable collets or purpose-made sleeves can spread gripping load. Match contact to the actual stock, keep the grip surfaces clean, and validate both slip resistance and released shape.
A properly designed internal support can reduce wall movement during OD work. An expanding mandrel can locate from a finished bore, but expansion itself can distort a thin wall. Treat it as a designed fixture, not an automatic cure.
Use aligned steady or follower support where needed. Confirm surface compatibility, clearance and the setup’s rated speed. Long stock projecting through the spindle also needs appropriate support and guarding.
Too much force distorts the wall; too little can let it move or escape. Have the qualified setup team establish and document the working range. There is no universal clamp-pressure limit for all pipes.
Distributed contact is a real fixture-design approach: SCHUNK’s ROTA NCR, for example, uses six contacts in oscillating jaw pairs for deformation-sensitive parts. It is an example, not a requirement for every pipe.
Stop the spindle and feed before adjusting support, measuring or clearing chips, then follow the machine and site isolation procedure. Never remove continuous chips by hand. Long pipe projecting from the spindle requires suitable support and guarding. OSHA’s machine-guarding overview identifies rotating parts and flying chips as core hazards.
What Is a Repeatable Stainless Steel Pipe Machining Workflow?
Start with the tightest functional feature, but protect the stock and support needed by later operations. The six steps below are a planning framework; the drawing, material condition and available equipment determine the final sequence.
Identify which surface locates the part in service. Confirm grade, wall, straightness, surface condition and enough material to clean up the critical OD and ID.
Output: marked drawing, incoming checks and an agreed inspection plan.
Leave suitable length allowance. Remove loose burrs, prepare the support and check that the blank seats consistently. Verify runout at the relevant positions before machining.
Output: a documented fixture setup and a controlled first-off trial.
Plan OD and ID stock removal together. Avoid finishing one thin surface early if later cuts will make it flex or release residual stress. Keep useful clamping lands until their job is done.
Output: consistent, measurable stock for finishing—not a barely touching final pass.
Where access allows, finish mating OD, ID and faces in one setup. If the part must be reversed, use a clean, repeatable locating feature and verify alignment again.
Output: a proven cutting cycle with controlled tool condition and offsets.
Deburr bore entrances, grooves and cross-holes without rounding a functional edge. Apply specified honing, grinding, cleaning or material-removing treatment in the planned order.
Output: the final surface condition, including any dimensional change from finishing.
Measure after unclamping and thermal stabilization as the inspection plan requires. Record critical size, form, texture and traceability. Recheck after a material-removing treatment, welding, or a fixture, tool or material-lot change.
Output: acceptance evidence tied to the actual finished part.
Place tight controls on the features that affect sealing, alignment, assembly or service life. A nonfunctional outside surface rarely benefits from the same tolerance and finish as a seal bore.
How Do You Prevent Work Hardening, Chatter and Poor Chip Control?
Work hardening means the material becomes harder as it deforms. Repeated rubbing can leave a harder surface for the next pass. Keep a sound cutting edge forming a chip under stable conditions.

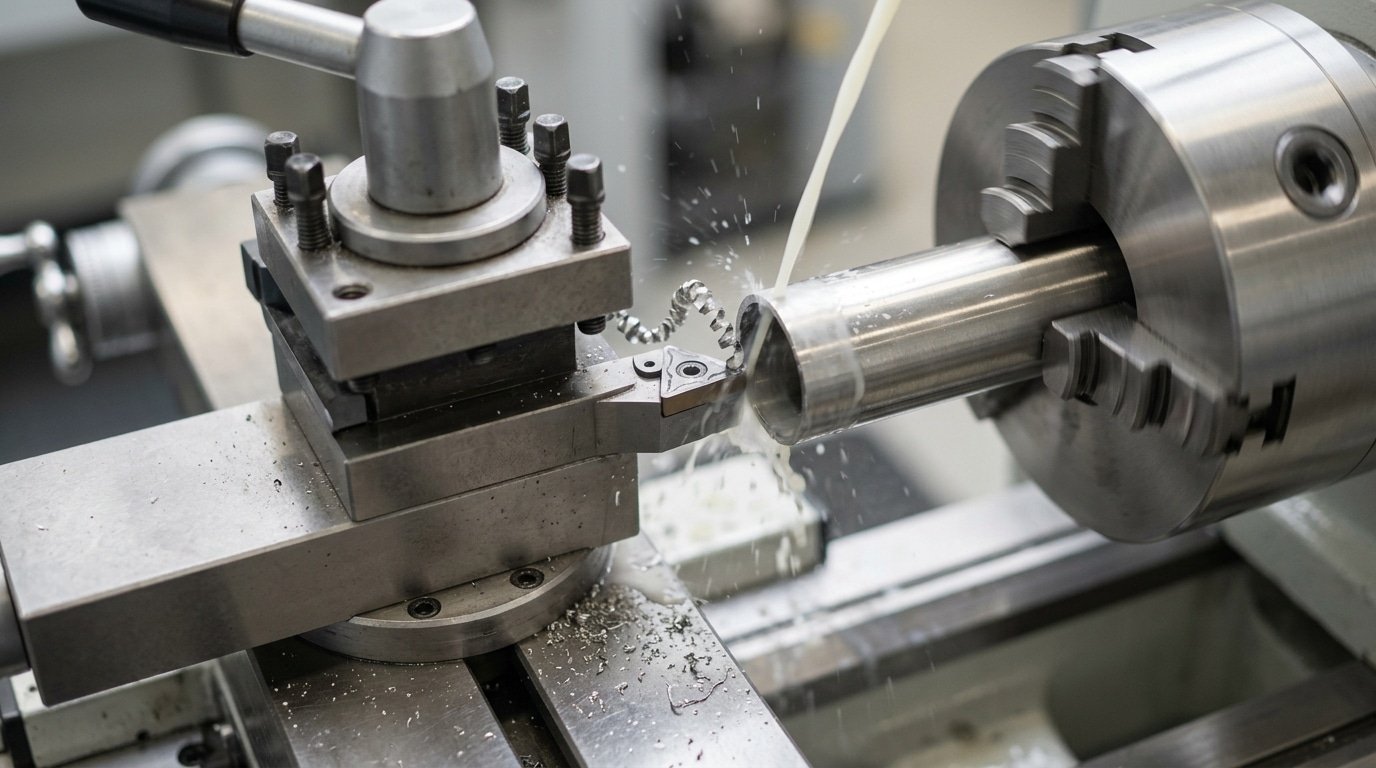

Positive, low-force geometries can help flexible parts. Edge sharpness, strength, nose radius and chip breaker must suit the cut. A larger nose radius may improve the theoretical finish but can increase radial force and vibration.
Use the shortest practical overhang and a bar diameter that still leaves room for chips and coolant. Select steel, carbide or damped bars from the supplier’s application limits—not a universal reach ratio.
A worn or chipped edge can push size, finish and burrs out of control. Establish replacement points from the actual run. Do not promise a fixed number of minutes of tool life from the stainless grade alone.
Record the Complete Boring Setup
A deeper bore changes the stiffness and chip-exit problem. Record bar diameter, unsupported overhang, holder arrangement and the space available around the bar.
Sandvik’s internal-turning guidance prioritizes short overhang, suitable bar size and low cutting forces. A published reach limit applies to a particular tool arrangement; it is not a guarantee that a flexible pipe will stay stable.
Verify chip clearance through the full toolpath, including withdrawal. Do not solve bar vibration by increasing gripping force until the pipe distorts.
Set Feed and Depth Together
Very light engagement can let an unsuitable edge rub instead of cut. On the other hand, simply increasing feed or depth can overload a thin wall. Select both from the insert’s working range, then validate the finish and released dimensions.
Do not confuse turning feed in mm/rev with milling feed per tooth in mm/tooth. They are different inputs. An internet “minimum chip load” cannot be transferred unchanged between these operations.

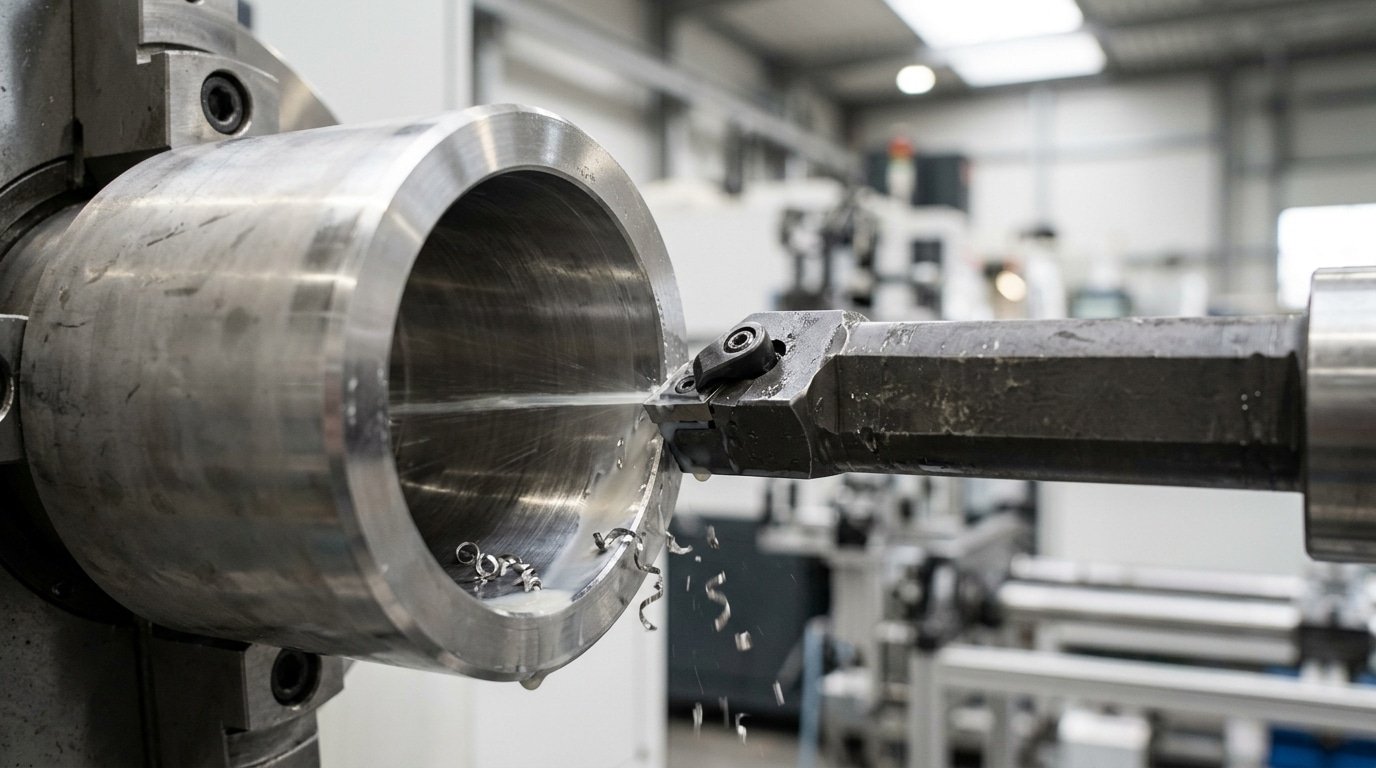

Deliver Coolant Where the Chip Forms
Coolant helps manage heat, friction and chip removal when the tool and process call for it. For a deep bore, delivery at the cutting edge and a clear chip exit can matter more than the pump’s headline pressure.
Use the fluid concentration, pressure, flow and filtration specified for the tooling and machine. Sandvik explains the different roles of directed coolant. Maintain fluid quality and control mist exposure; HSE covers the health risks.
Process-planning reference: Seco—optimizing stainless-steel machining. Keep a setup record linking each tool and cutting condition to the inspected result.
How Do You Calculate Turning RPM and Feed Rate?
Use a cutting speed and feed from your toolmaker or a qualified process trial. This calculator converts those inputs; it does not choose safe settings or predict whether a thin pipe will remain stable.
Metric units. Required fields are blank by default so the calculator cannot be mistaken for a stainless-steel cutting recipe.
Enter diameter, tool-supported cutting speed and feed. Add the lowest verified setup RPM limit when known.
Arithmetic example only: 80 m/min at 60 mm gives about 424.4 RPM; at 0.15 mm/rev, feed is about 63.7 mm/min. These values are not a 316L recommendation. Results use unrounded values. Formula reference: Sandvik Coromant turning formulas.
For facing or another changing-diameter cut, verify constant-surface-speed behavior and the spindle cap in the machine control. Calculated RPM is never the safe-speed approval: use the lowest applicable limit for the machine, chuck, jaws, stock projection, support and qualified setup. This tool evaluates one diameter only; it does not generate CNC code or predict chatter, tool life or cutting force.
Should You Turn, Bore, Ream, Hone or Grind the Feature?
Choose the process that controls the required feature. A lower Ra value is not automatically a better seal surface, and a shiny bore is not proof of correct size or geometry.
| Process | Useful for | Check before choosing it |
|---|---|---|
| OD turning / single-point boring | Diameters, faces, shoulders, grooves and controlled relationships between features. | Wall movement, bar deflection, chip control and the surface the insert can actually produce. |
| Reaming | Sizing and finishing a suitable prepared hole with consistent stock. | Hole preparation and alignment. A reamer tends to follow the existing hole; it is not a universal fix for an incorrectly positioned bore. |
| Honing | Refining bore size, texture and certain form errors with an appropriate honing system. | Tool access, stroke, stock allowance and whether the route can correct the actual defect. It will not automatically relocate the bore axis. |
| ID / OD grinding | Selected tight-tolerance or hardened features when setup and geometry allow. | Wheel access, thermal damage, support and the cost of inspection and dressing. |
| Electropolishing | Specified surface treatment and smoothing in a controlled finishing route. | Material removal, edge changes and final dimensions. It is not a replacement for geometric machining. |
Sealing surfaces can need more than Ra: lay, waviness and other texture parameters may matter. Use the specified surface-texture framework, such as ISO 21920-2:2021, and agree the functional requirement with the seal or equipment designer. For visual finishing, see the 304 stainless polishing guide; mirror appearance is a separate goal from dimensional accuracy.

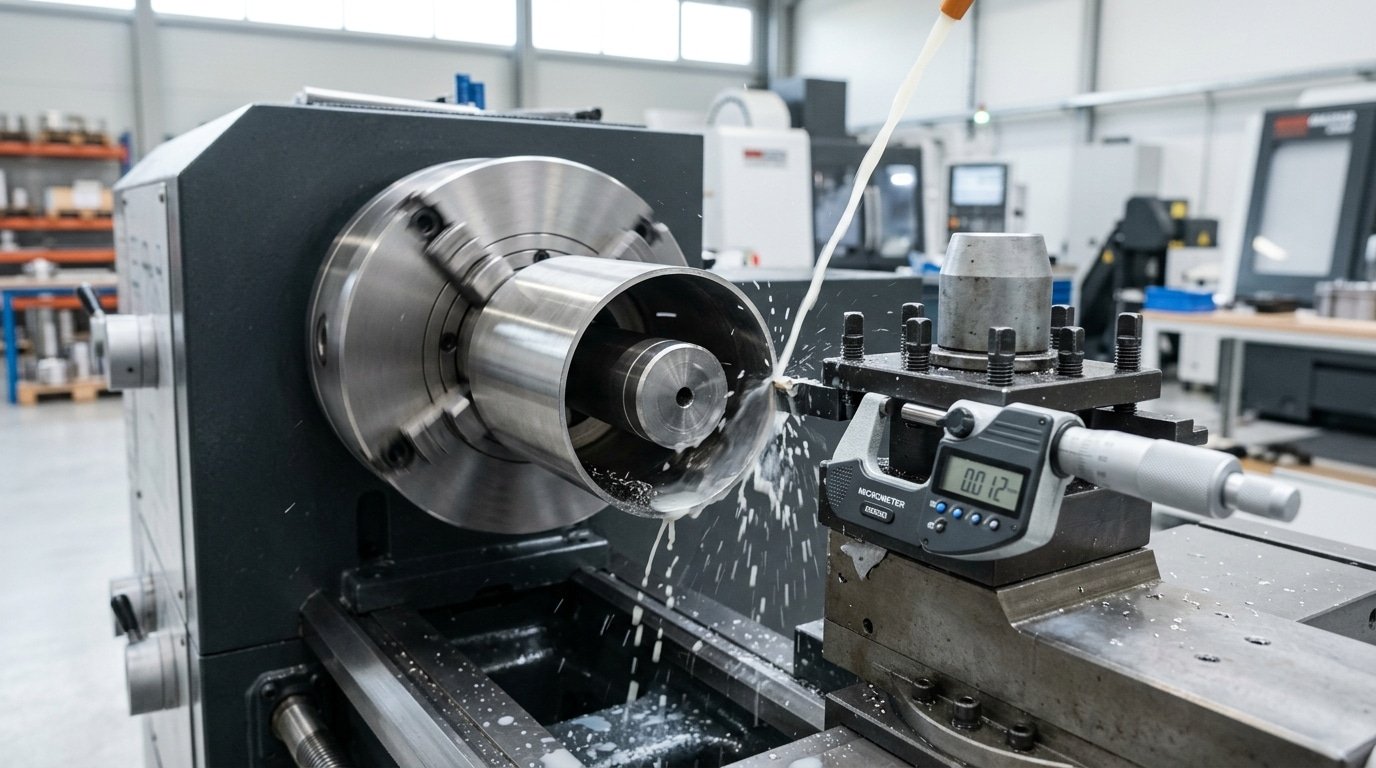

How Do You Inspect Diameter, Form and Surface Finish?
Build the measurement plan before the first cut. The gauge, contact force, access, datum setup, part state and temperature must all suit the tolerance being accepted.
Match the Measurement Method to the Requirement
- OD and wall: use a suitable calibrated micrometer or approved method with controlled contact force and the access needed to reach the actual feature.
- ID size and taper: use an appropriate bore gauge, internal micrometer or air gauge with the required setting standard.
- Roundness and cylindricity: use a form-measurement system or a validated CMM strategy with adequate sampling and uncertainty.
- Texture: use the specified surface-measurement method and settings; visual inspection cannot certify Ra.
Why Diameter Alone Does Not Prove Roundness
Two-point diameter measurements can miss certain lobed shapes. Mitutoyo’s roundness guide explains why diameter and full-circumference form measurements do not provide the same information.
For a bore, entry, middle and exit checks are a useful starting map—not a universal sampling plan. Add locations and angular positions where geometry or risk requires them. Gauge display resolution alone does not establish measurement capability.
The size limits are 39.990–40.010 mm. But readings of 40.003 mm at the entry, 40.007 mm at the middle and 40.004 mm at the exit do not prove that every cross-section is round or that the bore axis is aligned with the OD. Check the other drawing controls separately.
Example dimensions only. They are not a claim of process capability or a recommended tolerance for every pipe.
State whether acceptance is free or restrained. Let the part and gauge stabilize, and address temperature differences instead of chasing warm-part readings with offsets.
Approve the first article, monitor the process, and perform the final check after all dimension-changing operations. Revalidate after significant material, fixture, tool or program changes.
Assess measurement capability and actual part-to-part variation. Set sampling from risk and demonstrated stability—not an automatic “every tenth part” rule.
Dimensional values are referenced to the standard temperature defined by ISO 1:2022; the drawing and inspection plan must state how the actual measurement condition is controlled or compensated.
How Do You Protect Stainless Surface Integrity After Machining?
Remove chips, oils and residues to the cleanliness level required by the drawing or service, without adding new contamination. Protect finished bores from damage during treatment, transport and assembly.
Cleaning, descaling, pickling, passivation and electropolishing do different jobs. Do not use them as interchangeable words on a purchase order.
Specify Treatment and Verification Together
ASTM A380/A380M covers practices for cleaning, descaling and passivation, while ASTM A967/A967M addresses chemical passivation treatments and tests. Chemical passivation is not automatically required for every machined stainless part.
Do not apply a generic acid recipe to every stainless grade. Chemical passivation cannot correct a poor bore, and a material-removing process such as electropolishing can change edges and dimensions. Complete it before final dimensional release when the drawing requires the post-treatment size.
For critical fluid systems, specify cleanliness, rinsing, drying, inspection and protective packaging explicitly. Avoid claiming a component is suitable for medical, sanitary or semiconductor service based only on its alloy name.
What Do Common Stainless Pipe Machining Defects Tell You?
Several causes can create the same symptom. Confirm the measurement, inspect the tool and support, then change one controlled variable at a time.
| Symptom | Check first | Controlled next step |
|---|---|---|
| Round in the chuck, distorted after release | Grip contact, force, incoming ovality and remaining wall. | Trial broader support or revised gripping conditions. Confirm secure holding and remeasure the released part. |
| Taper or bell-mouth | Boring-bar deflection, stock distribution, support alignment and gauge technique. | Shorten or stiffen the tool where possible; correct the setup before applying taper compensation. |
| Chatter marks | Tool overhang, holder seating, workpiece support, edge condition and current engagement. | Remove mechanical weakness, then adjust cutting data within the toolmaker’s range. No fixed RPM percentage cures every setup. |
| Smeared finish or heavy burrs | Built-up edge, worn tool, rubbing, chip recutting and coolant delivery. | Restore the cutting edge and chip evacuation. Revalidate feed, depth and nose geometry together. |
| Size drifts through the batch | Tool wear, thermal trend, fixture repeatability and gauge stability. | Separate thermal drift from wear. Set controlled correction and replacement limits using run data. |
| Scratches inside the bore | Trapped chips, bar clearance, tool withdrawal and handling. | Correct chip exit and clearance; use an approved deburring and handling method. |
| Rust staining or pits after finishing | Contamination, cleaning residues, treatment records and actual service exposure. | Investigate the surface and chemistry with the finishing specialist. Do not assume every stain has the same cause. |
An offset changes where the tool moves. It does not remove wall springback, chatter, an unreliable datum or an inadequate gauge. First make the process repeatable; then adjust it to target.
What Should You Send a Precision Pipe Machining Supplier?
A useful RFQ states the finished requirement and the evidence needed to accept it. “316 pipe, high precision, smooth inside” leaves too many decisions open.
Grade, product specification, heat-treatment condition, welded or seamless construction, and required certificate.
OD, ID or wall distribution, length, straightness, seam location and surface condition—not nominal size alone.
All limits, minimum remaining wall, full-cleanup requirement and the state in which dimensions apply.
Revision-controlled drawing, geometric controls and the surfaces used to locate and align the part.
Bore depth, through or blind condition, tool entry, chip exit, coolant route and gauge access.
Surface-texture parameters, lay if functional, burr limits, chamfers, threads and protected surfaces.
Heat treatment, honing, grinding, cleaning, passivation, electropolishing, welding and assembly after machining.
Free or restrained state, temperature condition, instruments, records, sampling and first-article approval.
Quantity, repeat volume, delivery plan, packaging, allowed process alternatives and approval points.
Ask the supplier to separate setup, special tooling, finishing and inspection costs, and to identify any requirement it cannot verify. A low unit price is not a comparable offer if it excludes the form checks, treatment or post-process inspection your drawing requires.
How Does Later Laser Welding Change the Machining Plan?
Plan the weld interface before finalizing the machining route. End squareness, local wall, joint gap and cleanliness influence fit-up. Later welding can also change the dimensions you just finished.
Oceanplayer Laser can discuss the laser-welding application and sample-test requirements. Machining capability and finished-part tolerances must be confirmed with your machining supplier.
- Pipe grade, OD and wall thickness
- Joint drawing and fit-up variation
- Required weld quality and inspection
- Dimensions that must remain correct after welding
Preparing a weld edge? Read what a bevel solves in welding and follow the qualified joint design. A bevel is not required for every laser-welded joint.
Stainless Steel Pipe Machining FAQ
Can a CNC lathe hold ±0.01 mm on stainless pipe?
It may be achievable for a defined feature, but it is not guaranteed by owning a CNC lathe. Grade, geometry, wall support, tool condition, temperature and measurement capability all matter. Prove the requirement on released parts under the agreed inspection conditions.
What cutting speed should I use for 316L pipe?
Start with the toolmaker’s data for the exact insert, operation and material condition. Then account for pipe stiffness, tool overhang and chip control. There is no single reliable speed range for every 316L pipe. Use the calculator to convert your selected cutting speed into RPM.
Why does the pipe go out of round after unclamping?
The fixture may have held the wall in a distorted shape while the tool cut a circular path. The wall then springs back when released. Residual stress can also contribute. Check gripping contact, force, support and the order of stock removal before changing offsets.
What is the thinnest stainless wall I can machine?
There is no universal minimum. Diameter, unsupported length, material condition, remaining wall, fixture contact and required accuracy determine feasibility. A representative fixture trial is more useful than a blanket wall-thickness cutoff.
Does honing guarantee a straight, centered bore?
No. A suitable honing process can improve bore size, texture and certain form errors, but it does not automatically move the bore axis into the required position. Establish location and alignment in the earlier operations and verify the finished geometry separately.
Should final inspection happen before or after passivation, electropolishing or welding?
Inspect after the last operation that can change the accepted feature. A material-removing treatment or later weld may alter dimensions, edges or alignment. In-process checks still help control machining, but final release must match the condition required by the drawing.
Technical Sources and Further Reading
Use the drawing’s specified standard edition and the instructions for the actual tool and machine. The guidance here supports process planning; it is not a machining qualification or an application-specific acceptance standard.
- ASME B36.19-2022—Stainless steel pipePipe size and schedule framework; not a finished precision-feature specification.
- ASTM A269/A269M-25—Austenitic stainless steel tubing for general serviceScope for seamless and welded austenitic tubing; not duplex or 17-4PH generally.
- ASME Y14 standardsEngineering drawing and geometric-dimensioning framework.
- ISO 1101:2017—Geometrical tolerancingISO GPS symbols, definitions and indication rules.
- ISO 5459:2024—Datums and datum systemsDatum specification within the ISO GPS system.
- ISO 1:2022—Standard reference temperatureReference temperature for geometrical and dimensional properties.
- ISO 21920-2:2021—Profile surface textureTerms, definitions and surface-texture parameters.
- Sandvik Coromant—Turning formulas and definitionsCutting speed, spindle speed and feed-per-revolution terminology.
- Sandvik Coromant—Turning different materialsAustenitic and duplex stainless-steel cutting considerations.
- Sandvik Coromant—Internal turningBoring-bar reach, chip evacuation and cutting forces.
- Sandvik Coromant—Coolant in turningDelivery, pressure and the functions of cutting fluid.
- Carpenter Technology—Custom 630 (17-4PH) dataAlloy and condition-related notes; not a pipe or tube product specification.
- SCHUNK—ROTA NCR workholdingAn example of distributed clamping for deformation-sensitive parts.
- ASTM A380/A380M-25—Cleaning, descaling and passivationPractice-level distinction between stainless surface-treatment steps.
- ASTM A967/A967M-25—Chemical passivation treatmentsPassivation treatment and verification scope.
- HSE—About metalworking fluidsFluid quality, skin exposure and airborne mist control.
- OSHA—Machine guarding: general requirementsRotating-part and flying-chip hazards.
- OSHA—Lathe safety trainer scriptLathe-specific guarding, clothing and chip-handling precautions.
Our team creates practical guides on laser cleaning, welding, marking and industrial automation. We combine application experience with cited engineering sources to help manufacturers compare materials, evaluate processes and plan equipment trials with clearer requirements.
