Key Features & Benefits
-
Advanced Active Air-Cooling Technology: Say goodbye to leaks, condensation, and coolant maintenance. Unlike traditional water-cooled units, our advanced active air-cooling system ensures continuous 24/7 operation at 1200W power without an external chiller. This design drastically reduces the machine’s footprint and weight, allowing you to carry it easily to any job site or tight workspace.
-

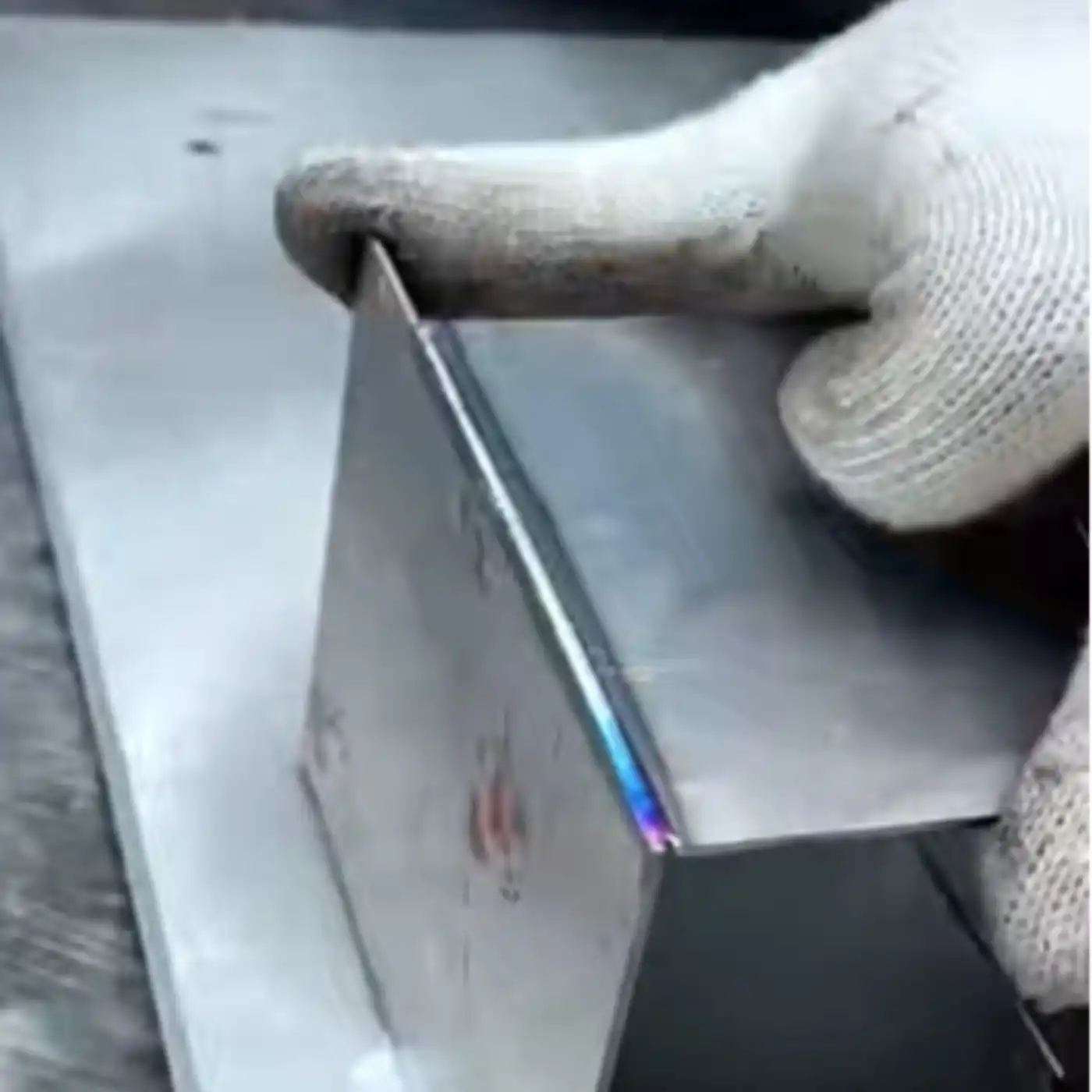

Superior Welding Speed & Quality: Experience welding speeds up to 4-10 times faster than traditional TIG welding. The high-density laser beam creates smooth, aesthetic seams with minimal heat-affected zones (HAZ), significantly reducing or eliminating the need for post-weld grinding and polishing. Perfect for welding up to 4mm stainless steel and carbon steel.
-
Smart Control & Ease of Use: Designed for operators of all skill levels. The intuitive touchscreen interface comes with pre-set process libraries for various material types and thicknesses. Even beginners can master the operation within hours. Features built-in wobble welding modes to handle wider gaps and improve weld consistency.
-
Cost-Effective & Energy Efficient: Maximize your ROI with an industry-leading wall-plug efficiency. The air-cooled design consumes significantly less electricity compared to water-cooled counterparts. With no optical consumables to align and a maintenance-free cooling loop, your operational costs are kept to an absolute minimum.
-
Enhanced Safety & Versatility: Equipped with multi-level safety interlocks, including a workpiece contact sensor and emergency stop, ensuring operator safety. The ergonomic welding gun is lightweight and supports various nozzle tips, making it versatile for fillet welds, butt welds, and overlap welds on complex geometries.
Upgrade your workshop with precision welding machines

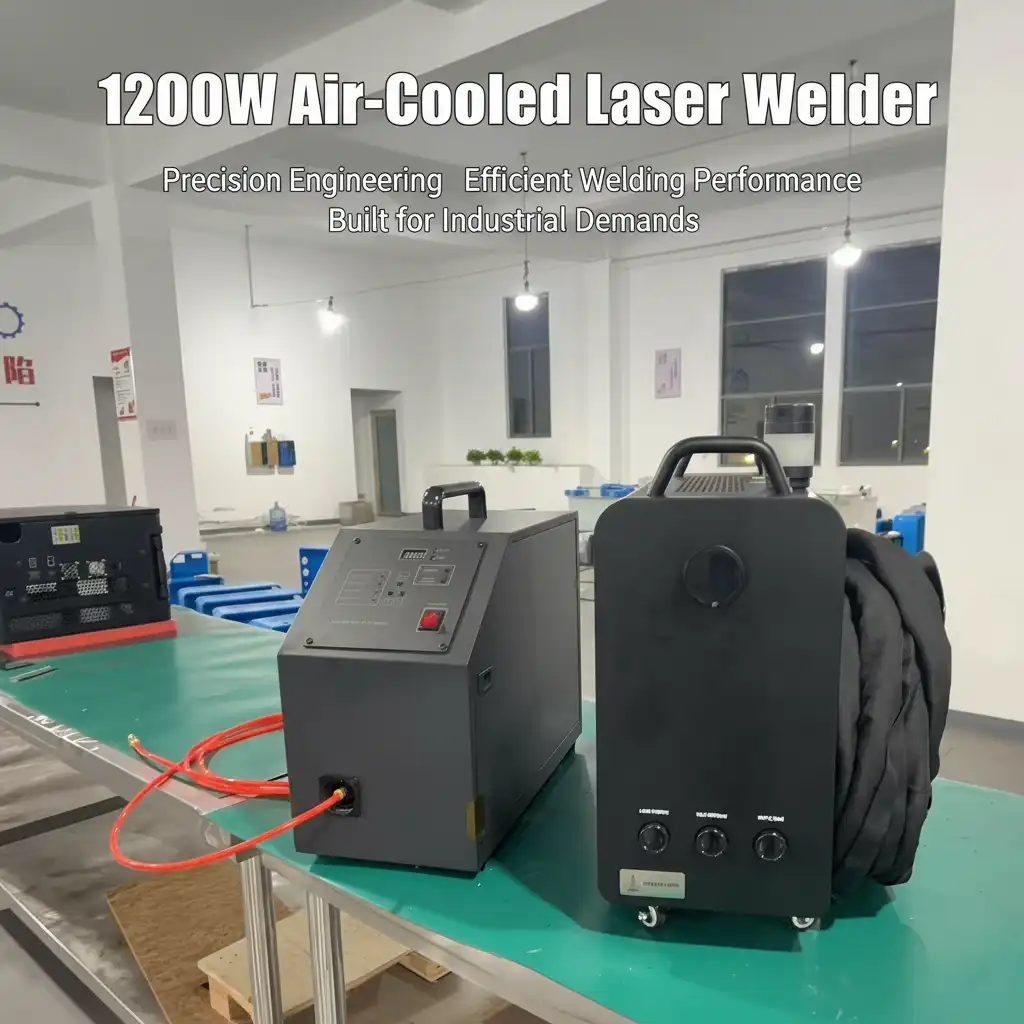

Our 1200W Air-Cooled Laser Welder is engineered to solve the pain points of traditional welding—eliminating the weight of water chillers and the slowness of arc welding. Whether you are in sheet metal processing, automotive repair, or infrastructure construction, this machine delivers mobility without sacrificing power.
General Parameters
| Parameter | Value |
| Model | Air-Cooled Handheld Laser Welder 1200W |
| Laser Power | 1200W |
| Laser Wavelength | 1080 ± 10 nm |
| Operation Mode | Continuous Wave (CW) / Modulated / Pulse |
| Cooling Method | Active Air Cooling (Refrigerant-free) |
| Machine Weight | < 40 kg (Ultra-portable) |
| Dimensions (LWH) | Approx. 660 * 260 * 550 mm (Compact Design) |
| Fiber Cable Length | Standard 5.0m (Customizable up to 10m) |
Electrical Requirements
| Parameter | Value |
| Input Voltage | AC 220V ± 10%, 1-Phase, 50/60Hz |
| Power Consumption | < 5.5 kW |
| Working Environment | -10°C to 40°C, Humidity < 80% |
Welding Capabilities (Reference)
| Material | Single-Sided Penetration |
| Stainless Steel | Up to 4.0 mm |
| Carbon Steel | Up to 4.0 mm |

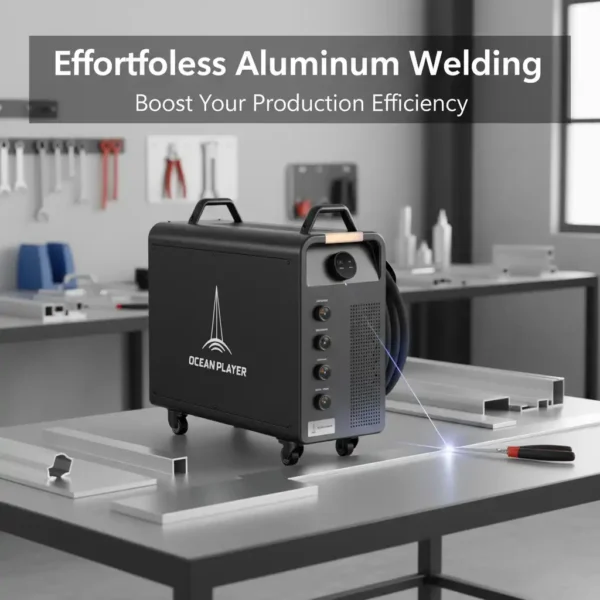

| Aluminum Alloy | Up to 3.0 mm |
| Galvanized Sheet | Up to 3.5 mm |
| Brass / Copper | Up to 1.5 – 2.0 mm |
