Key Features & Benefits
-
3000W High-Power Efficiency: Powered by a premium continuous fiber laser source, this machine delivers high-energy density to cover large areas quickly. It offers cleaning speeds 5-8 times faster than lower-power units, making it perfect for large-scale projects like bridge maintenance, ship hull descaling, and heavy machinery refurbishment.
-
Advanced Water-Cooling System for Continuous Duty: Equipped with a built-in high-capacity industrial chiller, the system actively cools both the laser source and the optical cleaning head. This ensures consistent performance and prevents overheating, even during prolonged operation in high-temperature or dusty factory environments.
-
Non-Contact & Eco-Friendly Cleaning: Utilizing laser ablation technology, it vaporizes contaminants instantly without touching the base material. The process requires no chemical reagents, dry ice, or abrasive media, significantly reducing operating costs and eliminating secondary waste pollution.
-

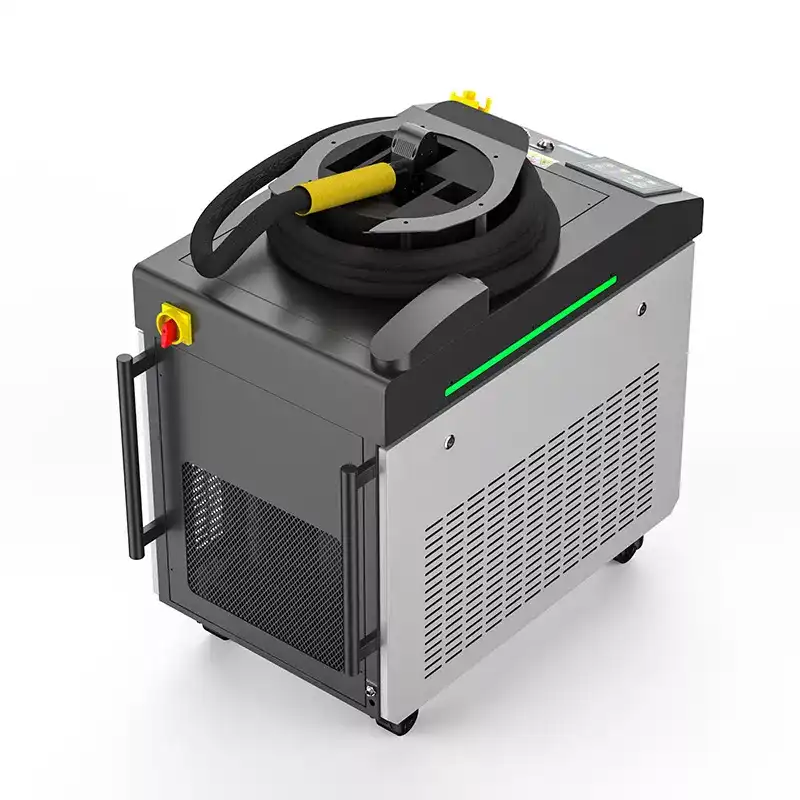

Ergonomic Design with Extended Reach: The handheld laser gun is lightweight (<2kg) and designed for ease of use to reduce operator fatigue. Combined with a standard 10-meter (or longer) armored fiber cable, it allows for flexible operation on complex surfaces, high elevations, and hard-to-reach corners.
-

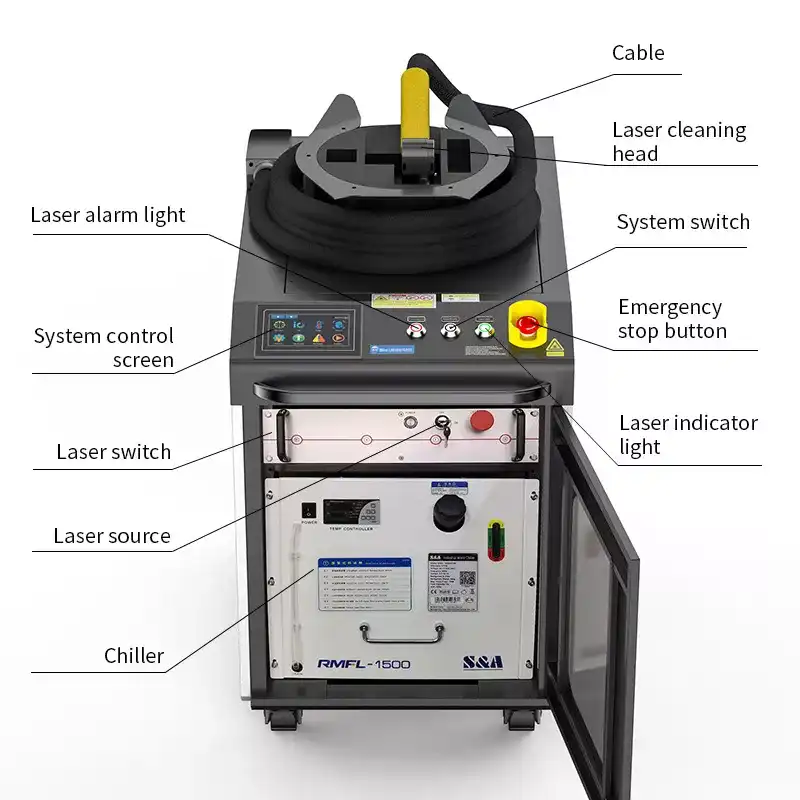

Smart Control Interface: Features a user-friendly touch screen control panel. Operators can easily adjust laser power, pulse frequency, and cleaning width (0-150mm) to suit different materials. The system includes preset modes, allowing even beginners to achieve professional, uniform cleaning results immediately.
Transform Your Industrial Cleaning Process
This 3kW Water-Cooled Laser Cleaner is more than just a tool; it is a long-term investment in efficiency and environmental compliance. Whether you are stripping paint from automotive parts or removing rust from structural steel, our equipment delivers precision and speed.
📊 Technical Specifications
| Parameter | Specification |
| Model | LC-3000W-CW |
| Laser Power | 3000W |
| Laser Source Type | Continuous Wave (CW) Fiber Laser |
| Laser Wavelength | 1080 ± 5 nm |
| Operating Mode | CW / Modulated |
| Power Adjustment Range | 10% – 100% (Continuously Adjustable) |
| Cleaning Width (Scan Width) | 10mm – 160mm (Adjustable) |
| Cleaning Efficiency | 15 – 45 m²/h (Depends on substrate & rust thickness) |
| Fiber Cable Length | Standard 10m (Optional: 15m / 20m) |
| Cooling Method | Industrial Water Cooling (Built-in Chiller) |
| Cooling Media | Deionized Water or Distilled Water |
| Input Voltage | AC 220V ±10%, 1-Phase, 50/60Hz (Optional: 380V 3-Phase) |
| Total Power Consumption | ≈ 7.0 KW – 8.0 KW |
| Working Environment | Temp: 5°C-40°C / Humidity: < 80% (No Condensation) |
| Machine Dimensions | Approx. 1100mm x 700mm x 1150mm (Customizable) |
| Net Weight | Approx. 180kg – 240kg (Varies by chassis design) |
| Cleaning Head Weight | < 0.8 kg (Handheld part, ergonomic design) |
| Supported Languages | English, Spanish, Russian, German, etc. (Customizable) |
📦 Standard Accessories & Packing List
| Item | Quantity | Description |
| Laser Cleaning Host | 1 Set | Integrated with Water Chiller & Laser Source |
| Handheld Cleaning Gun | 1 Pc | Lightweight, with Safety Trigger |
| Protective Lens | 5 Pcs | Free Spare Parts (High Consumption Item) |
| Safety Goggles | 1 Pair | OD6+ Professional Laser Safety Glasses |
| Control Screen | 1 Set | Touch Screen Panel (Integrated) |
| Power Cable | 1 Pc | Industrial Grade (Customer’s Plug Standard) |
| User Manual | 1 Set | English Operation Guide & Video Tutorials |
