Reflective-metal laser processing guide

Why Do Lasers Struggle With Aluminum and Copper?

Aluminum and copper are difficult mainly when an industrial laser must start on a cold, reflective surface and then stay stable as the metal heats, melts or forms a keyhole. Fast heat flow, surface layers, alloy behavior and returned light make the usable process window narrower than it is for many steels.

Short answerYes, lasers can cut, weld, clean and mark aluminum and copper—but the machine must be matched to the exact process. Buyers should compare the same alloy, surface, geometry and acceptance test, then verify cold starts, hidden defects, functional performance and optics protection on production-representative parts.
Request a Sample TestExplore Metal Reflectivity
Audience: engineers, buyers and integratorsUpdated: September 2, 2026Engineering guide with cited boundaries
High-power laser welding test with shielding gas and a fume-removal nozzle
High-power laser welding test; the setup illustrates laser-process controls rather than a specific aluminum or copper procedure. Image: Krorc / Wikimedia Commons, CC BY-SA 3.0.
60-second verdictThe difficulty is a moving target, not one fixed reflectivity number.

Cold surface, oxide, roughness, temperature, molten metal and keyhole geometry can all change how much energy is coupled into the part.

Shared challengeLow initial coupling + fast heat flow

A weak start can become an abrupt melt transition when the process finally crosses its threshold.

Copper watch-outBack reflection and unstable penetration

Near-infrared coupling can be especially low before melting, while reflected energy can threaten optics.

Aluminum watch-outOxide, porosity and cracking

Surface condition, casting pores, alloy chemistry and restraint can matter as much as nominal power.

Start with the right comparison

Why Do Aluminum and Copper Challenge Lasers in Different Ways?

Calling both metals “reflective” is only the first sentence. A useful process plan separates optical coupling, heat flow, surface condition, metallurgy and the part’s acceptance requirement.

Cut square bar made from 6061 aluminum alloy
AluminumSurface and metallurgy can dominate final quality

Aluminum moves heat quickly and carries a tenacious oxide layer. In welding, alloy family, temper, filler choice, hydrogen sources, casting pores and restraint influence whether the joint is sound.

  • Oxide and contamination can disturb wetting and introduce defects.
  • Cast material may release trapped gas into a rapidly solidifying pool.
  • Some 6xxx alloys need a qualified filler and thermal strategy to manage hot cracking.
  • Low heat spread is possible, but “zero heat-affected zone” is not.
A bandsaw-cut 6061 aluminum bar. The photo shows a mill-product form, not a laser-processing result. Image: Robert.Baruch / Wikimedia Commons, CC BY-SA 3.0.
Copper busbars used for high-current electrical distribution
CopperCold starts and the move into a keyhole are critical

Copper can couple poorly with common near-infrared fiber-laser wavelengths when the surface is cold and smooth. After melting begins, coupling can rise sharply, which makes the process sensitive to small changes.

  • Reflected light can return toward the delivery path and damage unprotected optics.
  • Small focus, speed or surface changes may move the weld between conduction and keyhole modes.
  • Spatter and porosity can appear when the vapor cavity becomes unstable.
  • Electrical parts need conductivity and joint-resistance evidence, not appearance alone.
Copper busbars illustrate a common electrical joining application. Image: Ali@gwc.org.uk / Wikimedia Commons, CC BY-SA 3.0.
Do not use one “absorption percentage” as a universal design value.Absorption changes with wavelength, temperature, surface finish, angle, polarization, oxidation and whether a molten pool or keyhole already exists. Use published values to understand the trend; use a production-intent test to qualify the real process.

Use this condition table to turn a broad material question into a testable buying decision.

On a phone, swipe the table horizontally to see all columns.

ConditionStarting recommendationEvidence requiredStop or failure boundary
Cold copper starts are inconsistentCompare the qualified start strategy, focus, angle, beam profile and wavelength on identical parts; confirm returned-light protection.Start trace, repeated cross-sections, spatter record and electrical resistance when the joint carries current.Stop after repeated optics alarms, uncontrolled spatter or penetration outside the agreed range.
Wrought aluminum welds show pores or cracksLock the alloy, temper, filler, cleaning, shielding, gap and restraint before changing power.Material certificate, preparation record, cross-sections and the product’s porosity or crack acceptance rule.Stop if cracking appears or internal defects remain above the written acceptance limit.
Cast aluminum releases trapped gasTest several real cast lots and separate pre-existing casting pores from keyhole-collapse porosity.Sections or CT from representative lots plus the required leak, strength or fatigue result.Escalate when internal casting quality prevents a repeatable qualified window.
Cleaning exposes bare aluminum or copperBuild a layer-to-substrate threshold window with controlled pulse energy, overlap, focus and passes.Before/after residue, roughness, dimensions and the next operation’s adhesion, resistance or weldability.Stop when the base metal melts, erodes or changes beyond the functional limit.
The physics in plain English

What Happens When the Laser Moves From a Cold Surface to a Keyhole?

The laser must first deposit enough energy to overcome reflection and heat loss. Once the surface melts or a vapor cavity forms, the beam can interact many times inside the cavity and the absorbed fraction may rise. A keyhole is the narrow vapor cavity created by intense local heating.

01Cold solid

A smooth surface reflects part of the beam. Aluminum and copper also spread absorbed heat away from the spot quickly.

02Threshold

Power density, focus, dwell time and surface condition determine whether the spot reaches the melting threshold.

03Molten pool

The optical condition changes. Coupling can increase, but fluid flow, oxide and gas now influence stability.

04Keyhole

Multiple reflections inside the vapor cavity can improve energy capture and enable deeper penetration.

05Instability

If the cavity collapses or oscillates, the result may be spatter, pores, depth variation, underfill or a strong reflected pulse.

Conceptual energy balance: absorbed laser power = incident power × effective absorptivity. The temperature rise then competes with conduction into the part, melting, vaporization, radiation, convection and material flow. “More watts” changes only one part of this balance.

Why One Reflectivity Number Can Mislead a Buyer

Room-temperature optical curves are useful because they show the direction of the problem: copper and aluminum absorb far less near-infrared light than many steels. They do not predict the exact fraction of laser power absorbed during a real weld.

Surface roughness, oxide, angle, polarization, alloy, temperature and material phase all change coupling. NIST has also shown that absorption can change within milliseconds as a vapor cavity forms. That is why a process may look weak at the start and then suddenly produce deep penetration or spatter.

235W/m·K for aluminum in a NIST room-temperature reference table
400W/m·K for copper in the same reference table
15W/m·K for 304 stainless steel, shown only as an orientation baseline

These are selected reference values at about room temperature, not guaranteed values for every alloy, temper or process temperature.

This is a qualitative process map, not a numeric absorption curve. The direction is supported by NIST dynamic-absorption measurements; the actual response depends on the source, surface, material and process.
Why heat flow matters

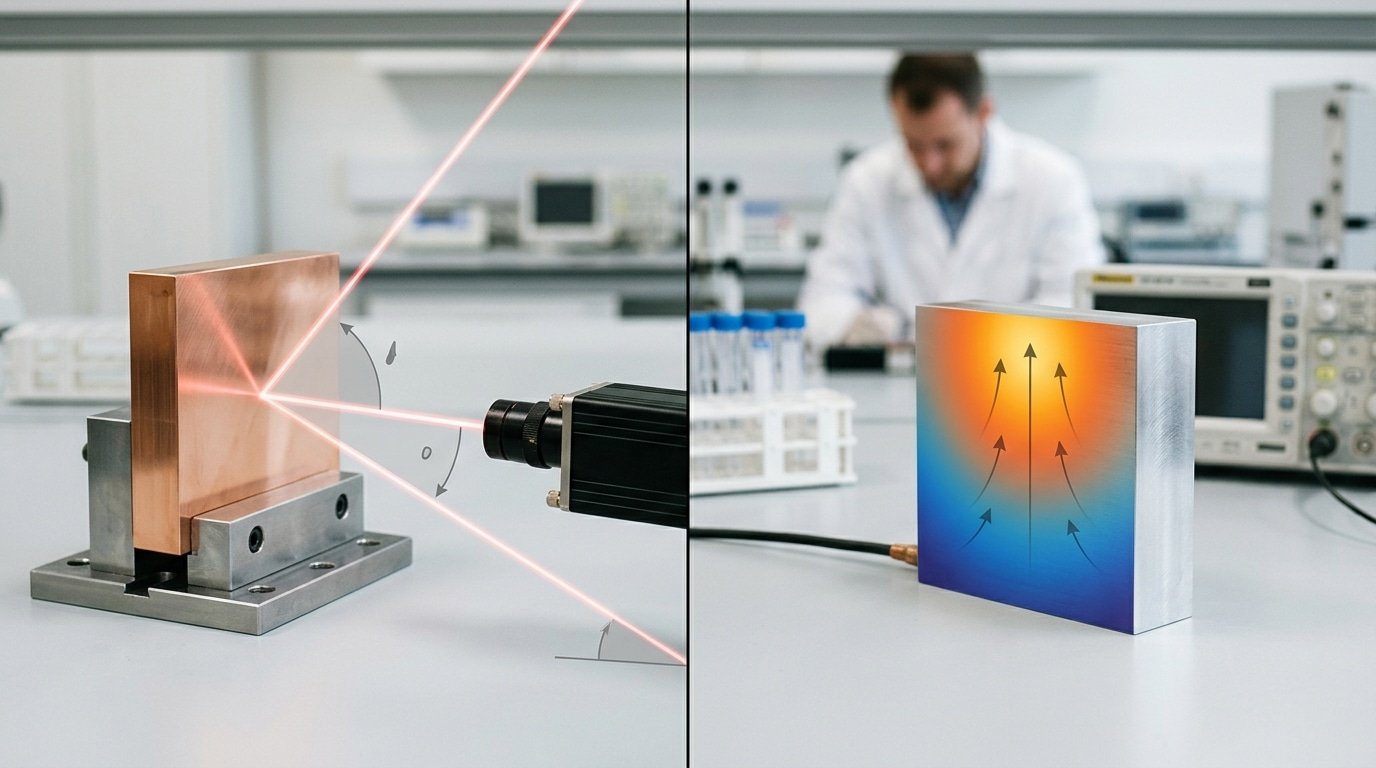

Why Does Thermal Conductivity Make Laser Processing Harder?

Thermal conductivity describes how readily heat moves through the metal. Copper is an exceptional heat conductor, and aluminum also conducts heat much faster than many steels. A large part, thick fixture or highly conductive joint can draw energy away from the interaction zone.

This creates two common mistakes. The first is raising power without controlling focus and travel, which can turn a weak start into an unstable keyhole. The second is qualifying a small warm coupon and assuming a large cold production part will behave the same.

Production implicationTest cold starts, long seams, corners, heat sinks, fixture contact and repeated cycles. A stable weld after the part warms up does not prove the first part of the shift.
Heat conduction diagram showing heat moving through a solid from hot to cold
Heat moves from the hot interaction zone into colder material. Geometry, fixture contact and temperature determine how much heat is carried away. Diagram: Chcastan / Wikimedia Commons, public domain.
Copper deep dive

Why Do Near-Infrared Lasers Struggle With Copper?

The main challenge is not simply that copper “reflects lasers.” It is that cold-state coupling can be low, heat moves away rapidly and the absorption state may change sharply when melting and keyhole formation begin.

01 / StartWeak cold coupling

A near-infrared beam may deposit too little energy into a smooth cold surface to start the melt consistently. Surface finish and focus can become unusually important.

02 / TransitionSudden absorption rise

Once molten metal or a keyhole appears, multiple internal reflections can increase coupling. If the ramp is poorly controlled, penetration and spatter can jump.

03 / ProtectionBack-reflection risk

Reflected energy can return through the process head. A suitable source, isolator or back-reflection management, beam dump and monitoring are part of the system decision.

04 / AcceptanceElectrical function

A busbar joint may need low electrical resistance, controlled porosity, mechanical strength and corrosion performance. A smooth top bead proves none of these by itself.

A useful research benchmark, not a universal ruleIn one Fraunhofer study of pure-copper powder-bed fusion, reported near-infrared absorptivity under the studied conditions ranged from about 5% to 20% before keyhole behavior, while multiple reflection in a keyhole raised effective absorption substantially. The numbers explain the transition; they should not be copied into a different machine as production settings.
Aluminum oxide skimmed from molten aluminum
Aluminum oxide skimmed from molten aluminum shows that the oxide is a distinct material. The image is not a weld surface. Image: Nbritton / Wikimedia Commons, public domain.
Aluminum deep dive

Why Is Aluminum Difficult to Laser Weld?

The oxide film melts at a much higher temperature than the underlying aluminum. It can disturb wetting and trap contamination if surface preparation and shielding are poor. The base metal also conducts heat quickly, so the same nominal settings may behave differently at an edge, a thick heat sink or a warmed-up seam.

What Causes Porosity in Aluminum Laser Welds?

Hydrogen from moisture, oil or surface contamination can become less soluble as the pool solidifies. Die-cast material may already contain pores or trapped gas that expands during welding. Keyhole instability can also trap vapor. Cleaning helps, but it cannot remove porosity already inside a casting.

Why Do Some Aluminum Alloys Hot-Crack?

Hot cracking means a crack forms while the weld is solidifying. Some aluminum compositions pass through a vulnerable solidification range. Filler chemistry, dilution, joint restraint, travel speed, beam motion and thermal history can change the risk. A parameter sheet for one alloy family should not be copied to another. For 6061, compare filler choices against the actual joint and acceptance target rather than selecting by wire availability alone.

Buyer questionAsk the supplier to identify the exact alloy, temper, product form, surface condition and filler. “Aluminum” is not a qualified material specification.
Look below the top bead

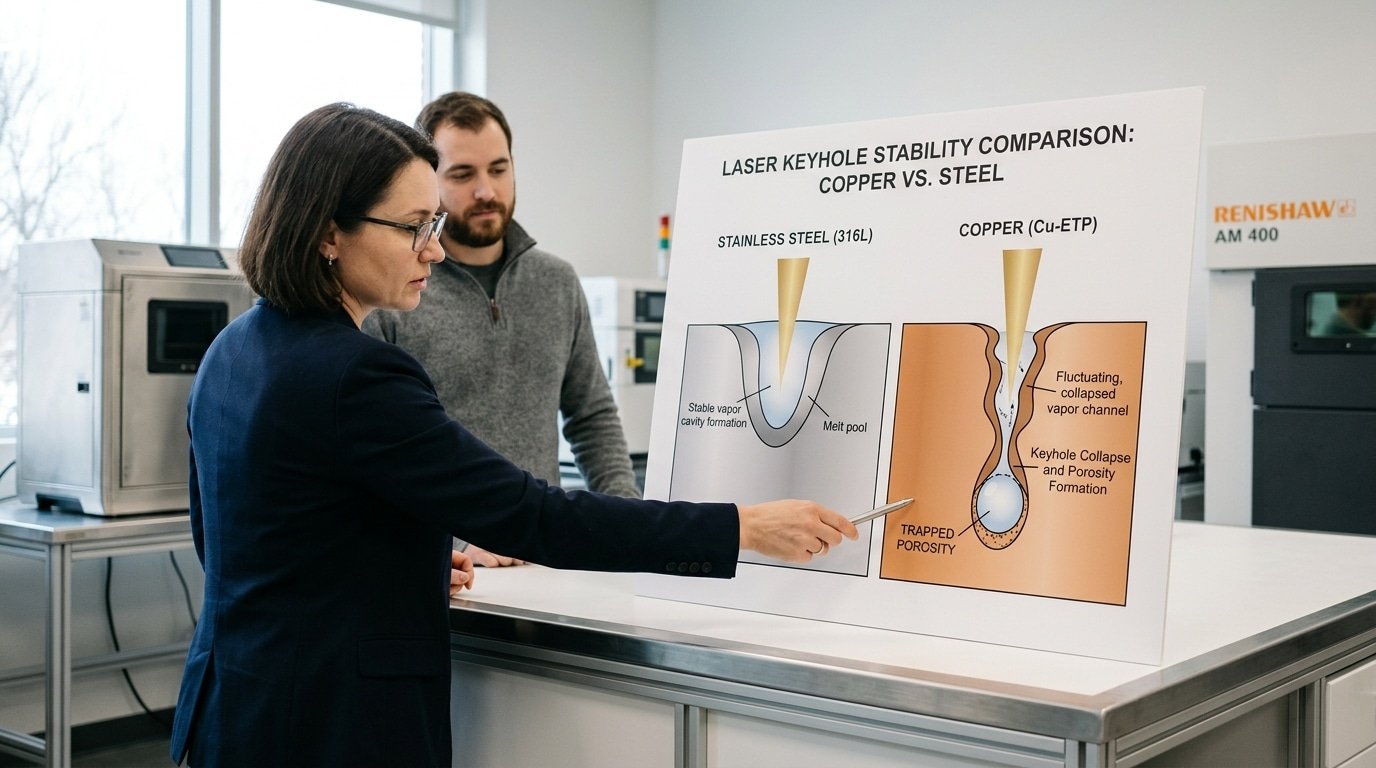

How Do Keyhole Shape and Stability Differ in Aluminum and Copper?

A keyhole is a narrow vapor cavity created when local intensity is high enough. The beam reflects inside it, which can increase energy absorption and penetration. The same cavity can also oscillate or collapse, trap gas and eject molten metal.

Aluminum process mapThis original diagram shows why a stable-looking top bead does not rule out internal pores. Experimental X-ray work shows that cavity shape changes with material and conditions; see the University of Stuttgart open research dataset.
Copper process mapThis original diagram shows how multiple internal reflections can raise coupling after a vapor cavity forms, while some energy may return toward the optics. Real cavity shapes and stability are machine- and condition-specific; compare with the University of Stuttgart X-ray dataset.
What these diagrams explain—and what they do not proveThey show why surface photographs are not enough: two smooth-looking welds may contain different penetration shapes or internal defects. They do not prove that copper always needs more power, that aluminum always forms a wider cavity, or that one laboratory result transfers to another laser, alloy, joint or spot size. Use cross-sections, X-ray/CT, leak, electrical or mechanical tests when product risk requires them.
The word laser is too broad

Does the Difficulty Change Between Cutting, Welding, Cleaning and Marking?

Yes. These processes do not ask the beam to do the same work. A machine that marks copper effectively is not automatically suited to deep copper welding, and a cleaning recipe must protect the substrate after the coating disappears.

On a phone, swipe the table horizontally to see all columns.

ProcessMain objectiveAluminum watch-outsCopper watch-outsEvidence to request
CuttingCreate and sustain a cut front while ejecting molten metal.Fast heat flow, dross, oxide and gas/nozzle interaction.Weak start, reflection, narrow process window and optics protection.Cut edge, dross, taper, pierce time, repeatability and optics log on actual thickness.
WeldingCreate a controlled fusion zone and acceptable joint.Oxide, porosity, hot cracking, alloy/filler and distortion.Cold coupling, abrupt keyhole, spatter, porosity and back reflection.Macrosection, penetration, porosity, mechanical/electrical tests and production repeatability.
CleaningRemove oxide, coating or contamination without unacceptable substrate change.Thin oxide versus anodized/coated surfaces; heat-sensitive geometry.High reflectivity after contamination is removed; surface texture and color change.Before/after chemistry, roughness, dimensions, adhesion or weldability—not appearance alone.
MarkingCreate contrast, engraving or traceability without harming function.Anodized and bare aluminum need different mechanisms and settings.Contrast can require oxidation, texture or a wavelength that couples more efficiently.Contrast, depth, code grade, corrosion, conductivity and cycle life.
Additive / depositionMelt powder or wire into a stable track and build geometry.Oxide, powder quality, pores, cracking and thermal accumulation.Initial absorption, melt-pool stability and reflected energy.Density, defects, composition, mechanical properties, geometry and build repeatability.
Scanning electron microscope image of a porous copper oxide surface
This SEM image shows a specially prepared porous copper-oxide surface, not ordinary mill oxide. It illustrates why an oxide layer and the bare metal below can interact with a laser differently. Image: DenisovaAG / Wikimedia Commons, CC BY-SA 4.0.
Cleaning is a threshold problem

Why Laser Cleaning Changes as the Surface Layer Disappears

Paint, dark oxide or contamination may absorb the first passes more strongly than the aluminum or copper below. As the layer disappears, the energy balance changes. A recipe that removes contamination quickly at the start can overheat edges, overlaps or already-clean areas later.

That is why a cleaning trial should measure more than visual brightness. Check residue, oxide state, roughness, base-metal loss and the next operation—such as coating adhesion, electrical contact or laser welding. Research on copper oxide has even shown substrate melting under some cleaning conditions, so “non-damaging” must be demonstrated on the real surface.

Practical controlUse defined pulse energy, overlap, focus, scan speed and passes. Include mixed contamination thickness and exposed-metal areas in the test, not only a uniformly dirty coupon.
Wavelength selection

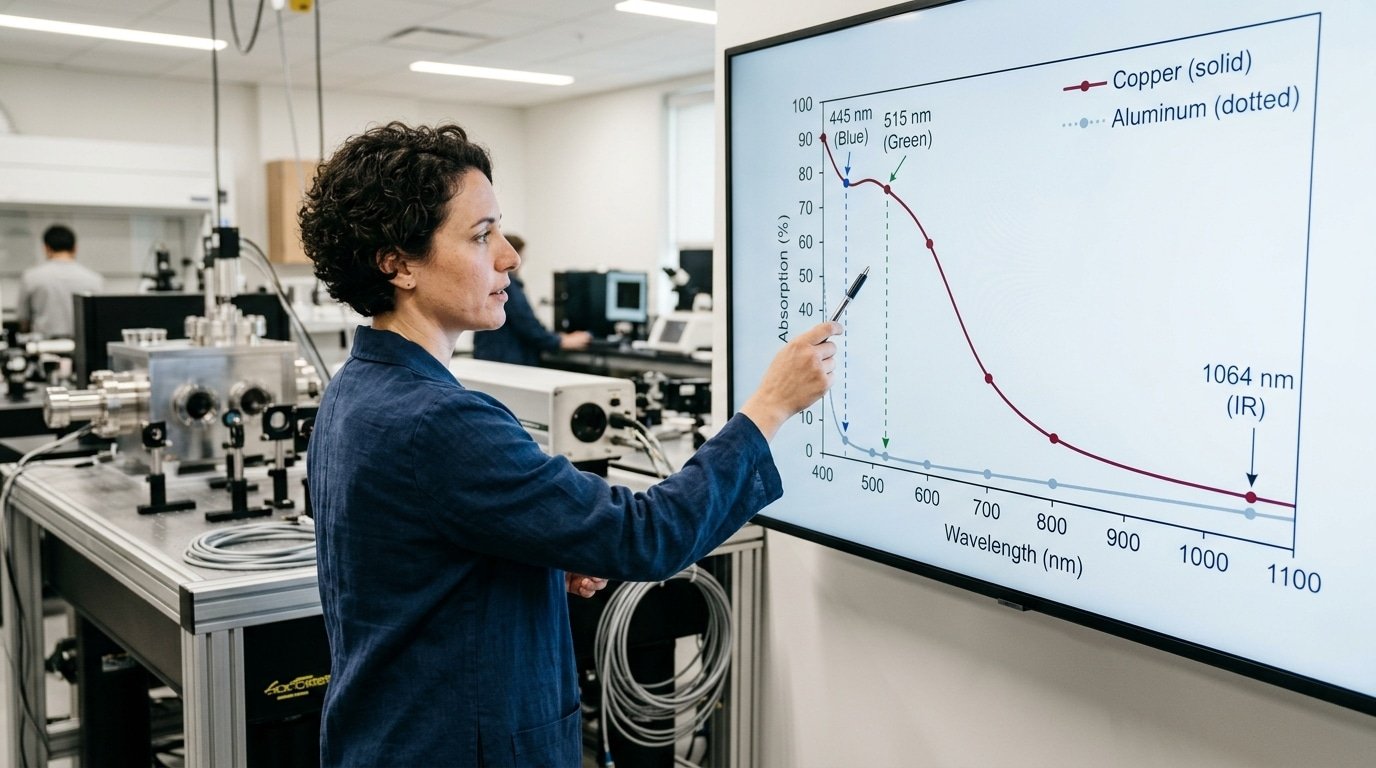

Is a Green Laser Better for Copper Than an Infrared Laser?

It can be better for the cold start because copper absorbs green light more strongly at room temperature. That does not make it the best complete system for every joint. Available power, beam quality, penetration target, optics, service and cost still decide the production result.

Near infrared · about 1 µmCommon high-power platform

Fiber and disk lasers offer mature delivery, strong power scaling and broad metal-processing capability. Reflective-metal performance depends heavily on source protection, beam brightness, spot control, ramps, beam shaping and monitoring. Here, brightness means the source can concentrate useful power into a small, well-controlled spot.

  • Do not judge by wavelength alone.
  • Ask how the source handles returned light.
  • Validate starts, stops and cold parts.
Green · around 515 nmStronger cold copper absorption

Green light can couple into copper more readily before melting. TRUMPF reports an eightfold room-temperature absorption advantage over infrared in its own product comparison. Treat this as vendor context, not a universal speed multiplier.

  • Can reduce the cold-start barrier.
  • May support controlled conduction or penetration welding.
  • Still requires fit-up, shielding and acceptance tests.
Blue, pulsed and hybrid optionsUseful for specific interaction goals

Blue wavelengths, short pulses, mixed wavelengths and shaped beams can target absorption, heat input or stability differently. The best architecture depends on penetration, area, speed, thermal damage and cost.

  • Pulse energy and duration matter for marking and cleaning.
  • Core-ring beams can separate preheat and penetration roles.
  • No architecture removes the need for qualification.
Choose the process window, not the color of the laser.Ask for a comparison on the same material, joint, thickness, gap, finish, cycle time and acceptance method. A wavelength that absorbs better may still lose if the complete system cannot meet throughput, quality, service or cost requirements.
How stable processes are built

Which Process Controls Matter More Than Adding Laser Power?

These are not settings to copy. They are the five areas a supplier should control and document during the sample trial.

01 / Cross the thresholdStart and ramp strategy

Use power ramps, lead-ins, preheating, pulse structure or a defined start feature to make the cold-to-molten transition repeatable.

02 / Control intensitySpot, focus and brightness

Focus position and beam quality change power density. More source power with the wrong spot can remain weak—or become destructive.

03 / Shape the energyCore-ring or wobble

Beam shaping and oscillation can manage pool width, preheat and keyhole stability. The path must solve a named defect, not decorate the bead.

04 / Control the partSurface, joint and heat sink

Cleanliness, oxide, gap, clamping, contact area, shielding and part temperature must stay inside an allowed window.

05 / Detect driftMonitoring and protection

Back-reflection, photodiode, camera, pyrometer, acoustic or optical-coherence-tomography (OCT) signals can flag changes, but each sensor needs a qualified alarm rule.

Symptom-to-cause guide

How Do You Troubleshoot Unstable Aluminum or Copper Laser Processing?

Each symptom has several possible causes. Change one controlled factor at a time and inspect the joint below the surface.

Reflective-metal troubleshooting guide

Choose the closest production condition. The output is a first-check sequence, not a parameter prescription.

Planning guidance Check the cold-start coupling window first

For copper welding with a weak start, verify the exact surface, focus, joint location and returned-power trace before assuming the source lacks power.

Likely mechanism

Low initial near-infrared coupling plus rapid heat loss into the part.

Measure first

Material lot, surface condition, focal position, spot location, part temperature and start trace.

Controlled next experiment

Compare a qualified start ramp, incidence angle or wavelength on identical production-intent parts.

Do not assume

Do not assume that more average power will create a more stable weld.

Use the checker to choose what to measure, not what value to enter.The correct test must stay inside the laser source, optics, gas, material and safety limits set by the manufacturer and your qualified procedure.
Intermittent start
Check first

Cold surface condition, focus, power ramp, incidence angle, fixture heat sink and actual material identity.

Depth changes along seam
Check first

Standoff, joint location, part temperature, gap, clamping, keyhole monitoring and speed consistency.

Copper spatter
Check first

Abrupt threshold crossing, excessive intensity, unstable keyhole, beam shape, surface condition and shielding flow.

Aluminum pores
Check first

Moisture/oil, oxide preparation, cast-stock pores, keyhole collapse, gas delivery and solidification rate.

Aluminum cracks
Check first

Alloy and filler compatibility, dilution, restraint, joint geometry, heat cycle and solidification path.

Optics alarm or damage
Stop and investigate

Return-light path, angle, beam dump, protective window, contamination, source limits and interlock history. Do not simply reset and continue.

Safety is part of process design

How Should Reflective-Metal Laser Processing Be Controlled Safely?

High-power industrial laser processing can expose people and equipment to direct, scattered and reflected radiation. Molten metal, plume, fumes and fire hazards remain even when the process looks clean.

Beam controlEnclose or establish a validated controlled area

Use rated barriers and windows, interlocked access, beam stops, managed reflections and authorized entry. A shiny part can redirect energy outside the expected path.

People and proceduresTrain for the actual wavelength and machine

Laser safety responsibility, risk assessment, operating limits, wavelength and optical-density PPE, emergency response and maintenance controls must be documented.

Air and fireCapture emissions and manage ignition

Aluminum, copper, coatings, oil and filler can create hazardous plume or dust. Fine aluminum dust can be explosible, so collector selection needs a material-specific hazard review.

Different types of protective eyewear in a laser research laboratory
Laser eyewear must match the actual wavelength and required optical density. It supplements enclosure, interlocks and access control; it does not replace them. Photo: Marc-Lautenbacher / Wikimedia Commons, CC BY-SA 4.0; display cropped.
No universal safe distance or eyewear number belongs in a general article.The nominal hazard zone and optical density depend on wavelength, power, beam parameters, exposure geometry and control measures. Use the machine documentation and a competent site-specific laser safety assessment.
Supplier validation plan

How Should a Supplier Test Aluminum or Copper Parts Before You Buy?

A polished flat coupon proves very little if your production part is cold, coated, constrained, thick-to-thin, cast, curved or electrically functional. Freeze the acceptance rule before the test begins.

01 / IdentifyLock material identity

Alloy, temper, product form, coating, surface finish, lot and filler.

02 / BoundMeasure variation

Thickness, gap, offset, edge quality, oxide, contamination and fixture contact.

03 / ReproduceUse real geometry

Starts, stops, corners, access, joint orientation and reflective surroundings.

04 / StressTest cold and warm

First part, thermal soak, long seam, repeat cycle and expected environment.

05 / RecordCapture the window

Power, speed, focus, beam motion, gas, wire, temperature and monitoring signals.

06 / InspectProve the function

Section, porosity, strength, leak, resistance, corrosion or nondestructive testing (NDT) as required.

07 / ReleaseDefine stop rules

Allowed range, alarm limits, optics checks, maintenance and requalification triggers.

Acceptance must be written before the demonstration.Otherwise the supplier can optimize for a visually attractive result while the buyer later discovers unacceptable penetration, pores, resistance, distortion or optics life.
RFQ checklist

What Should You Send for an Aluminum or Copper Laser Recommendation?

Oceanplayer Laser can narrow the machine and test plan only when the request describes the real material, geometry, variation and acceptance target.

PartDrawing and joint photos

Show dimensions, seam path, access, start and stop, gap, fixture and annual volume.

MaterialAlloy, temper and surface

Include certificate, coating, oxide, oil, casting process and normal lot variation.

FunctionAcceptance requirement

Penetration, strength, leak, resistance, porosity, appearance, corrosion or code needs.

Current processCycle and defect data

Preparation, welding, finishing, inspection, rework, scrap and current bottleneck.

Discuss My Aluminum or Copper PartView Laser Welding Machines
Continue your research

Related Aluminum, Copper and Laser Processing Guides

Use the next guide that matches your material decision, process setup or acceptance method.

ApplicationAluminum Laser WeldingExplore the process → Aluminum guideWhy Aluminum Welding Is DifficultUnderstand the causes → Copper joiningCopper Busbar Joint Design and Quality ChecksRead the guide → Copper gradesOFHC Copper vs ETP CopperCompare material choices → Process controlHow to Laser Weld Highly Reflective MaterialsBuild a stable process → Process evidenceLaser Power vs Penetration DepthPlan the validation → Filler selection5356 vs 4043 vs 4643 for 6061Compare filler choices → Surface preparationLaser Cleaning Before WeldingControl the surface →
Frequently asked questions

FAQ About Laser Processing Aluminum and Copper

Can a fiber laser cut and weld aluminum and copper?

Yes, when the source, optics and machine are designed for the exact alloy, thickness and process. Cutting also depends on the gas, nozzle and pierce strategy; welding depends on the joint, surface, shielding and required internal or functional quality. Ask for repeated tests on production-representative parts.

Why is copper usually harder for a near-infrared laser?

Cold copper can absorb little of a common near-infrared beam while carrying heat away very quickly. After melting or keyhole formation begins, coupling can rise sharply. That makes the start, penetration and returned-light behavior sensitive to small changes in focus, surface and geometry.

Is a green laser always better for copper?

No. Green light is absorbed more strongly by cold copper than common near-infrared light, so it can improve the start and stability in some applications. The best complete system still depends on available power, beam quality, penetration target, cycle time, optics, service and cost.

Does more laser power solve aluminum and copper problems?

No. More power can add process headroom, but it cannot correct unstable focus, poor fit-up, contaminated surfaces, unsuitable filler, uncontrolled reflection or the wrong beam profile. Outside a stable window it can increase burn-through, spatter, pores or optics risk.

Why do aluminum laser welds develop pores?

Possible causes include moisture or oil, hydrogen, oxide contamination, gas or pores already trapped in cast stock, and collapse of an unstable keyhole. The remedy depends on the verified cause. Surface cleaning cannot remove porosity already inside a casting.

Can reflected laser light damage the source or optics?

Yes. Strong returned light can damage unprotected delivery optics or the source. A reflective-metal system needs suitable source protection, return-light management, beam-path control, monitoring and maintenance limits. Stop and investigate repeated optics alarms instead of treating them as routine resets.

Move from theory to evidence
Test the material, joint and acceptance target—not only the wattage.

Oceanplayer Laser can review your aluminum or copper part and help define a production-representative sample test.

Exact alloy, temper, product form and surfaceJoint, gap, access, fixture and heat-sink conditionRequired penetration, strength, resistance or surface resultCold start, repeat cycle and worst-normal variation
Get a process and machine recommendation

The useful answer may involve near-infrared, a different wavelength, beam shaping, filler wire, revised joint design or a controlled surface-preparation step.

Request an Application ReviewContact Oceanplayer Laser
Technical references

Sources and Technical Review

Published values describe the cited conditions. Confirm current standards, machine documentation and the requirements that govern your product before release. No cited laboratory result is presented here as a universal machine setting.

  • Main menu
